FS S5300-12S User manual
クイックスタートガイド
Guide de Démarrage Rapide
V1.0
Quick Start Guide
Quick Start Anleitung
ETHERNET SWITCH
S5300-12S
ETHERNET-SWITCH
SWITCH ETHERNET
S5300-12S
CONSOLE
SYS
4
159
812
PWR
13
2417
68910 11 12
1
Introduction
EN
Thank you for choosing the S5300-12S Switch. This guide is designed to familiarize you with the
layout of the switch and describes how to deploy it in your network.
Accessories
Console Cable x1Power Cord x2
Grounding Cable x1
Ethernet Cable x1
M3 Screw x8
S5300-12S
Rubber Pad x4 Mounting Bracket x2
M6 Cage Nut x4M6 Screw x4
S5300-12S 1 5 9
4 8 12
PWR
SYS
CONSOLE
2 3 41 6 7 85 10 11 129
2
Hardware Overview
Front Panel LEDs
Front Panel Ports
EN
LEDs State Description
SYS
PWR
Link/ACT
The system is operating normally.
The device is powered on.
The port is sending and receiving trac.
SFP+
NOTE: The accessories may vary from illustration, please prevail in kind.
S5300-12S 1 5 9
4 8 12
PWR
SYS
CONSOLE
2 3 41 6 7 85 10 11 129
S5300-12S 1 5 9
4 8 12
PWR
SYS
CONSOLE
2 3 41 6 7 85 10 11 129
SYS
Link/ACT
PWR
CONSOLE
Blinking Green
Solid Green
Blinking
NOTE: This power cord cannot be used with other devices, and other power cords should
not be used with this device.
3
EN
Installation Requirements
Before the installation, make sure that you have the following conditions
ready:
Phillips screwdriver, related bolts and ESD tools.
Standard-sized, 19" wide rack with a minimum of 1U height available.
Fiber optic cables and ber transceivers.
Site Environment
Ensure that the operating temperature is maintained at 0°C~45°C.
Ensure that the operating humidity is maintained at 5%~95%.
The installation site must be free from leaking, dripping water, heavy dew, or humidity.
Keep the installation site dust-free.
The installation site must be well-ventilated. Ensure that there is adequate airow around the
switch.
Ensure that the switch is level and stable to avoid any hazardous conditions.
Ensure that the rack and the working platform are well-earthed.
Do not disassemble the enclosure of the device.
Cut o the power supply before cleaning the device. Do not use any liquid to wipe the device.
Keep the device away from electric lines of force, lamps and power grids.
Ensure that the rack and the working platform are rm enough to support the weight of a switch
and its accessories for installation.
Ports Description
SFP＋
CONSOLE
SFP+ ports for 10G connection
An RJ45 console port for serial management
S5300-12S
2 3 41 65
4
EN
Mounting the Switch
1. Attach four rubber pads to the bottom of the switch.
2. Place the switch on a stable desk.
Desk Mounting
NOTE: Do not place heavy objects on the switch.
S5300-12S
1 5 9
4 8 12
PWR
SYS
CONSOLE
2 3 41 6 7 85 10 11 129
IES5100-24FS
1. Secure the mounting brackets to the two sides of the switch with screws.
Rack Mounting
1 5 9
4 8 12
PWR
SYS
CONSOLE
7 8 10 11 129
5
EN
S5300-12S
1 5 9
4 8 12
PWR
SYS
CONSOLE
2 3 41 6 7 85 10 11 129
2. Install the switch on the rack with screws and cage nuts.
1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the
switch is mounted.
2. Secure the grounding lug to the grounding point on the switch back panel with the screw and
washers.
Grounding the Switch
CAUTION: The earth connection must not be removed unless all supply connections have
been disconnected.
POWER
Input: 100-240Vac
Freq:50/60Hz
6
EN

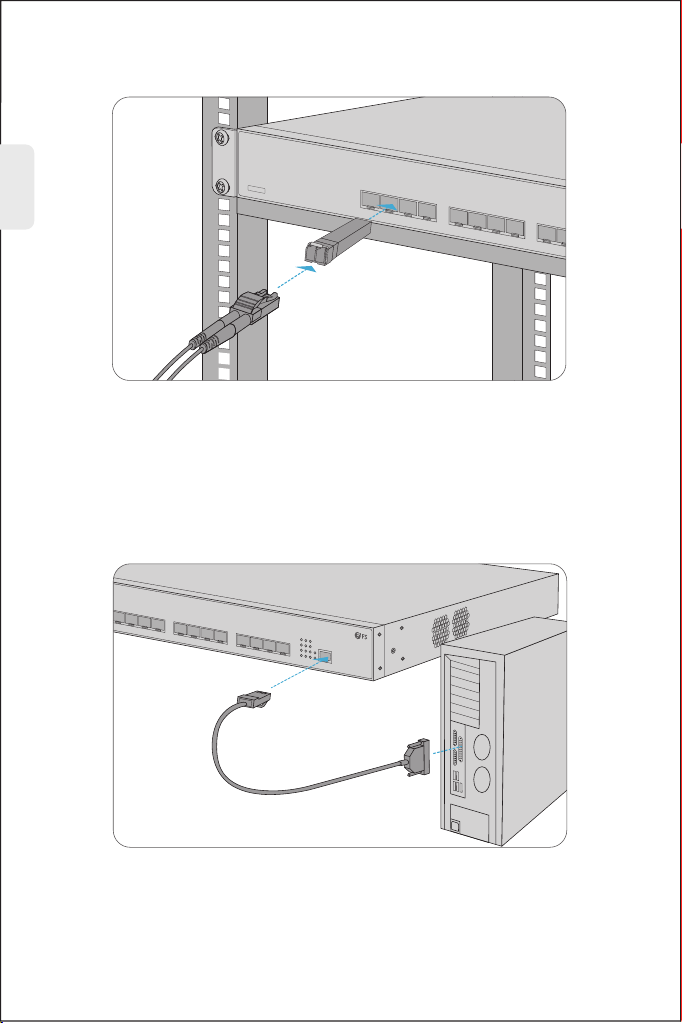

1. Plug the compatible SFP+ transceiver into the SFP+ port.
2. Connect a ber optic cable to the ber transceiver. Then connect the other end of the cable to
another ber device.
1. Insert the RJ45 connector into the RJ45 console port of the switch.
2. Connect the DB9 female connector of the console cable to the serial port on the computer.
Connecting the SFP+ Ports
S5300-12S
1 5 9
4 8 12
PWR
SYS
CONSOLE
2 3 41 6 7 85 10 11 129
Connecting the Console Port
S5300-12S
1 5 9
4 8 12
PWR
SYS
CONSOLE
2 3 41 6 7 85 10 11 129
7
EN
WARNING: Do not install the power cord while the power is on.
1. Plug the AC power cord into the power port on the back panel of the switch.
2. Connect the other end of the power cord to an AC power source.
Connecting the Power
Configuring the Switch
Step 1: Connect a computer to an Ethernet port of the switch using the network cable.
Step 2: Set the IP address of the computer to 192.168.1.x ("x" is any number from 2 to 254). Set the
subnet mask of the computer to 255.255.255.0.
Conguring the Switch Using the Web-Based Interface
POWER
Input: 100-240Vac
Freq:50/60Hz
8
EN
Step 3: Open a web browser, type http://192.168.1.1 and enter the default username and password,
admin/admin.
?x
OK Cancel
General
IP address:
Subnet mask :
Default g a te w a y :
Yo u c an get IP settings assigneda u t omatically i f y o u r n e t w o r k
supports this capabilit y . Othe r wis e , y o u need to a s k y our net w o r k
administrator for thea ppropriate IP settings .
In ter net Protoco l Version 4 ( TC P/IPv4) Proper ties
Use the foll owing IP address:
Obtainan IP addres s automatically
Preferred DNS server:
Alternate DNS server:
Validate settings upon exit Advanced...
. . . 21168192
0255
255255
. . .
. . .
. . .
. . .
ObtainDNS ser ver addre ss automatically
Use the foll owing DNS s erv er addr esses:
Step 4: Click Login to display the web-based conguration page.
Username
Password
Sign in Cancel
admin
*****
*
*
9
EN
Conguring the Switch Using the Console Port
Step 1: Connect a computer to the console port of the switch with the console cable.
Step 2: Start the terminal simulation software, such as HyperTerminal on the computer.
Step 3: Set the parameters of the HyperTerminal: Baud rate to 115200, Data bits to 8, Parity to None,
and Stop bits to 1.
Step 4: After setting the parameters, click Connect to enter.
Troubleshooting
The Power System Is Not Working
x
Quick Connect
Protocol: Serial
Flow Control
DTR/DSR
RTS/CTS
XON/XOFF
Save sessionShow quick connect on startup
The port may be manually entered or selected from the list.
Open in a tab
Cancel
COM3
115200
8
None
1
Port:
Baud rate:
Data bits:
Parity:
Stop bits:
Name of pipe:
Connect
1. Check if the switch power cable is connected correctly.
2. Check if the power supply of the switch matches the required power supply.
