Frigidaire F42WC19E User manual

Product No. F42WC19EB F42WC19EQ F42WC19ES

Market North America North America North America

Color black bisque white

Exhaust-CFM 160 CFM 160 CFM 160 CFM

Volts 120 120 120

Owner's Guide 99043806 99043806 99043806

Installation Instructions 99043806 99043806 99043806

Wiring Diagram 5995459111 5995459111 5995459111

CF30WC.eps F30WC.tif Economy Wiring.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995459111

06/02/03

(EN/SERVICE/KC)

099

RANGE HOOD

Model No.

F42WC19E

Copyright ©2006 Electrolux Home Products, Inc.

All rights reserved.

Publication No: 5995459111 F42WC19E

02/06 2

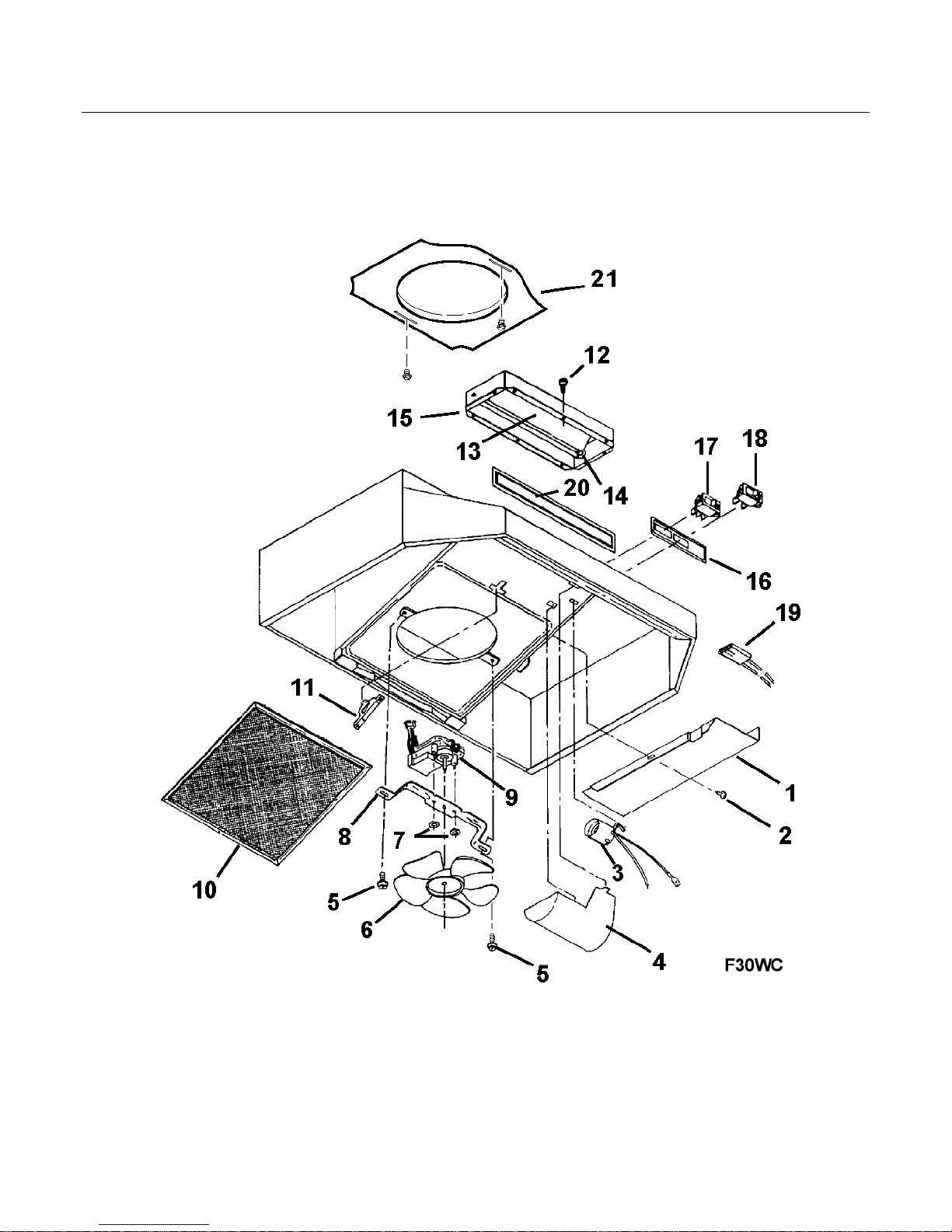

REPLACEMENT PARTS

F42WC19E Publication No: 5995459111

# Functional Parts 3 02/06

* Non-Illustrated Parts

REPLACEMENT PARTS

Model Index: AF42WC19E (F42WC19EB)

BF42WC19E (F42WC19EQ)

CF42WC19E (F42WC19ES)

POS. NO PART NO. DESCRIPTION

1 5304452355 A B C Cover, outlet box(Optional Accessory)

2 5303281950 A B C Screw, sheet metal, 8-18 x 0.375

3 # 5304452356 A B C Receptacle, Lamp holder, w/wires

4 3051767 A B C Lens, lamp, glass

5 5304452357 A B C Fastener Kit, 2-screw & 2-nut

6 # 5304452390 A B C Fan Blade

7 5304452359 A B C Nut, locking, 6-32, (2)

8 3051766 A B C Bracket, motor mount

9 # 5304452360 A B C Motor Assy, fan, includes 6, 7, 8

10 # 5304452031 A B C Filter, aluminum

10 # 5304454054 A B C Filter, duct-free, charcoal, 6-pk(Optional Accessory)

11 5304413743 A B C Clip, filter retainer

12 5303282121 A B C Screw, 8-18B x 0.250, (2)

13 5303281952 A B C Flap, damper door

14 5303281953 A B C Bushing, damper

15 # 5304452361 A B C Damper Assy, incl. 13, 14, 21

16 5304452370 A - - Nameplate, black

16 5304452681 - B - Nameplate, bisque

16 5304452371 - - C Nameplate, white

17 # 5304452392 A - - Switch, motor, black, 2 speed

17 # 5304452394 - B - Switch, motor, bisque, 2 speed

17 # 5304452393 - - C Switch, motor, white, 2 speed

18 # 5304452395 A - - Switch, lamp, black

18 # 5304452397 - B - Switch, lamp, bisque

18 # 5304452396 - - C Switch, lamp, white

19 # 5304452366 A B C Receptacle, motor, with wires

20 5304452398 A - - Cover, louver, black

20 5304452400 - B - Cover, louver, bisque

20 5304452399 - - C Cover, louver, white

21 5304452401 A B C Plate, round duct, 7 inch dia.

Publication No: 5995459111 F42WC19E

02/06 4

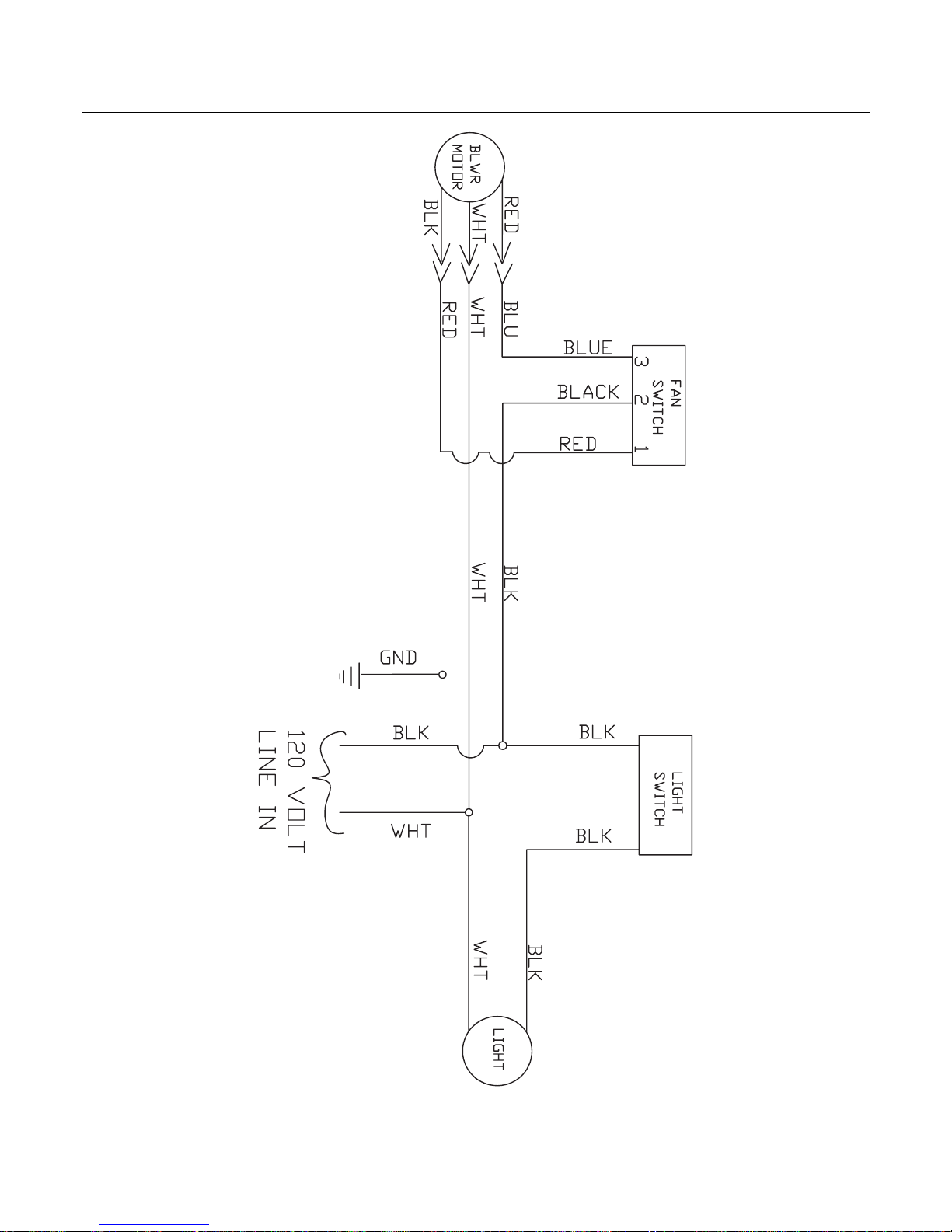

WIRING DIAGRAM
