Frigidaire F30WV16E User manual

Product No. F30WV16EB F30WV16EC F30WV16ES

Market North America North America North America

Color black stainless steel white

Exhaust-CFM 160 CFM 160 CFM 160 CFM

Volts 120 120 120

Owner's Guide 99043804 99043804 99043804

Installation Instructions 99043804 99043804 99043804

Wiring Diagram 5995459061 5995459061 5995459061

CF30WV.eps F30WV.tif Economy Wiring.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995459061

06/02/03

(EN/SERVICE/KC)

099

RANGE HOOD

Model No.

F30WV16E

Copyright ©2006 Electrolux Home Products, Inc.

All rights reserved.

Publication No: 5995459061 F30WV16E

02/06 2

REPLACEMENT PARTS

F30WV16E Publication No: 5995459061

# Functional Parts 3 02/06

* Non-Illustrated Parts

REPLACEMENT PARTS

Model Index: AF30WV16E (F30WV16EB)

BF30WV16E (F30WV16EC)

CF30WV16E (F30WV16ES)

POS. NO PART NO. DESCRIPTION

1 5304452355 A B C Cover, outlet box

2 5303281950 A B C Screw, sheet metal, 8-18 x 0.375

3 # 5304452356 A B C Receptacle, Lamp holder, w/wires

4 3051767 A B C Lens, lamp, glass

5 5304452357 A B C Fastener Kit, 2-screw & 2-nut

6 # 5304452358 A B C Fan Blade

7 5304452359 A B C Nut, locking, 6-32, (2)

8 3051766 A B C Bracket, motor mount

9 # 5304452360 A B C Motor Assy, fan, includes 6, 7, 8

10 # 5304452031 A B C Filter, aluminum

11 5304413743 A B C Clip, filter retainer

12 5303282121 A B C Screw, 8-18B x 0.250, (2)

13 5303281952 A B C Flap, damper door

14 5303281953 A B C Bushing, damper

15 # 5304452361 A B C Damper Assy, incl. 13, 14, 21

16 5304452370 A B - Nameplate, black

16 5304452371 - - C Nameplate, white

17 # 5304452392 A B - Switch, motor, black, 2 speed

17 # 5304452393 - - C Switch, motor, white, 2 speed

18 # 5304452395 A B - Switch, lamp, black

18 # 5304452396 - - C Switch, lamp, white

19 # 5304452366 A B C Receptacle, motor, with wires

20 5303282015 A B C Screw, ground, 10-32 x 0.500

21 5303282013 A B C Bumper, damper

Publication No: 5995459061 F30WV16E

02/06 4

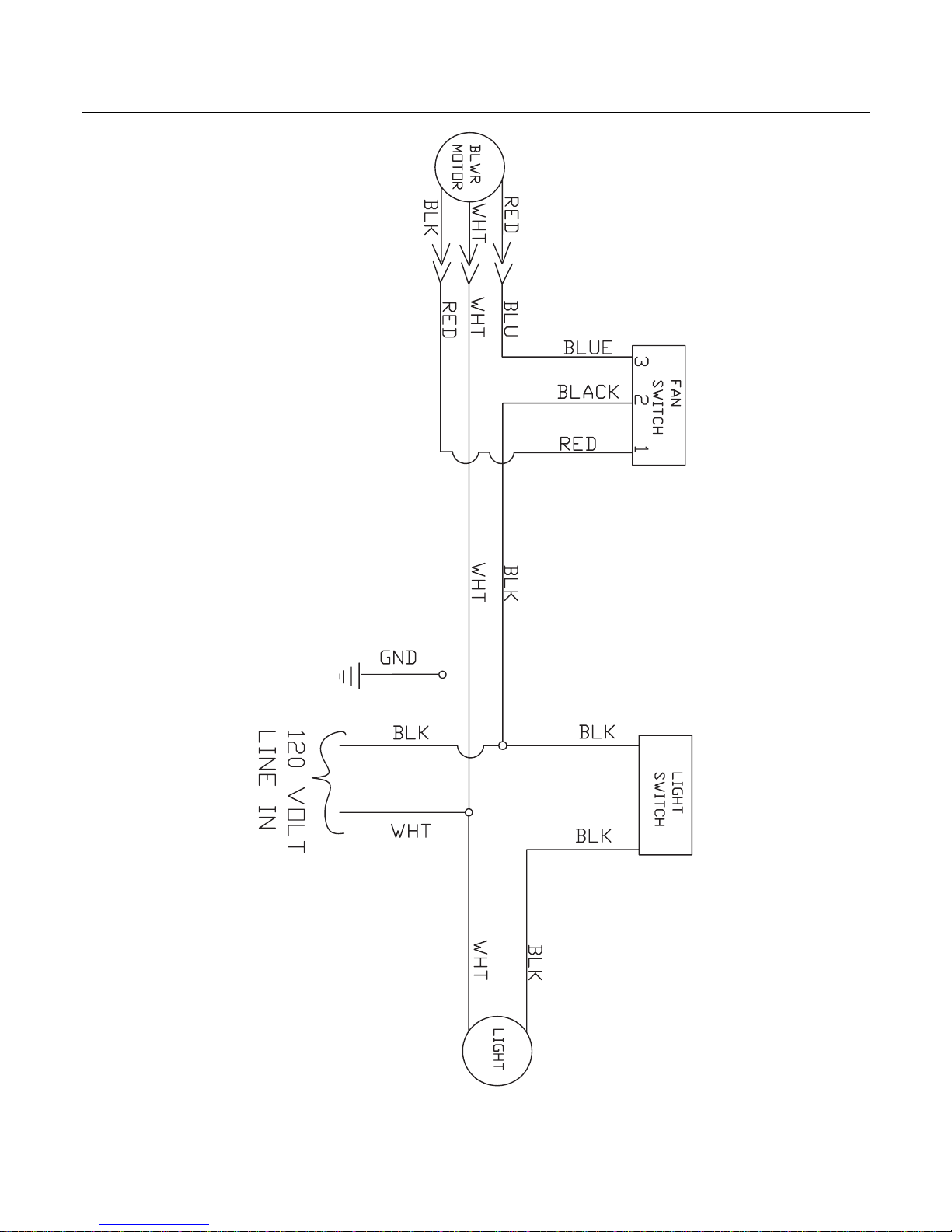

WIRING DIAGRAM

This manual suits for next models

2
