Frigidaire GLRH1779GW Instruction Manual

P08F0092.eps P08D0584.eps P08C1149.eps P08S0472.eps

Product No. GLRH1779GW2

Series Gallery

Color white

Volts 115

Wiring Diagram 297005300

Owner's Guide 297208700

Market North America

Energy Guide 297226503

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995526224

08/10/14

(EN/SERVICE/MLR)

365

REFRIGERATOR

Model No.

GLRH1779GW

Publication No: 5995526224 GLRH1779GW2

10/08 2

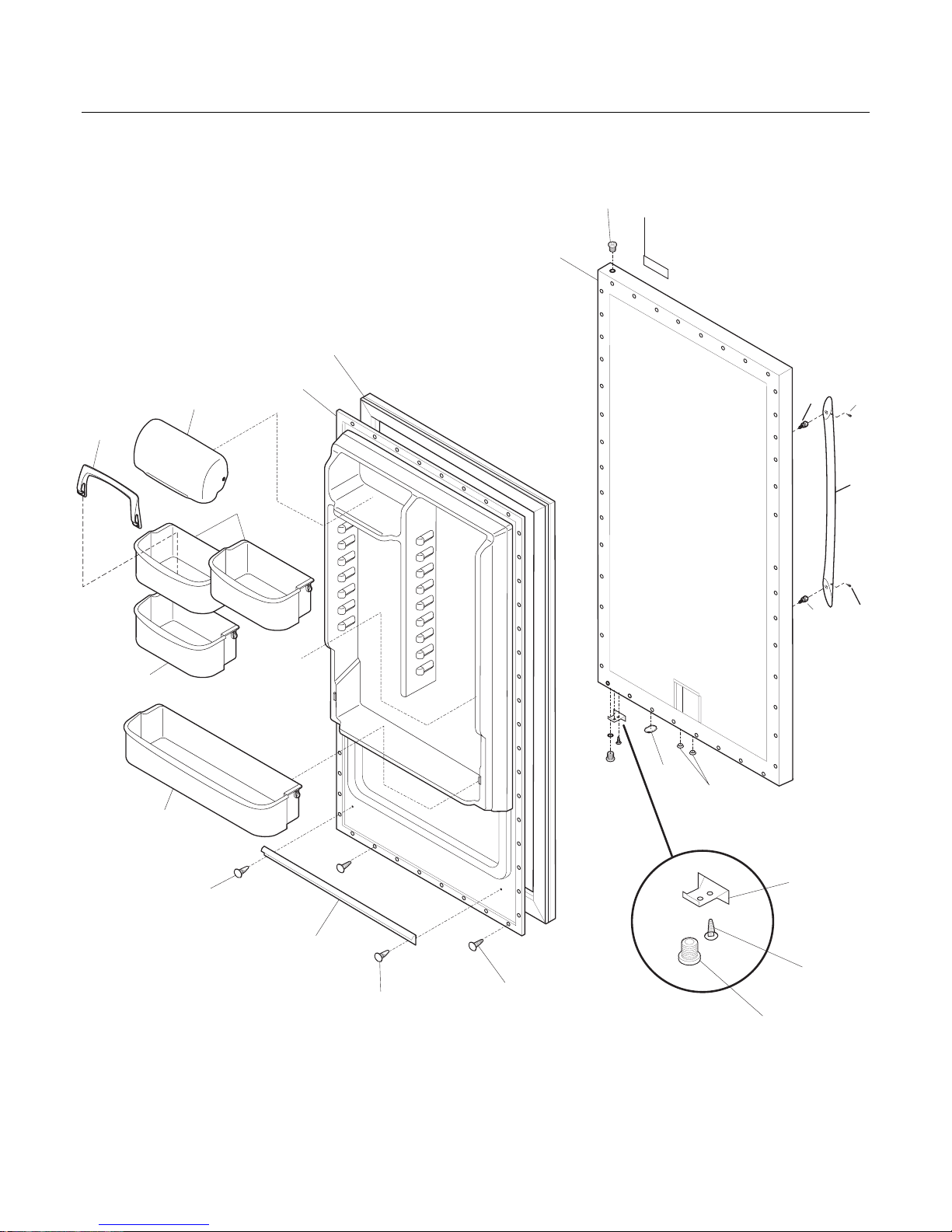

DOOR

27A

48C

P08D0584

21A

22A

GLRH1779GW2 Publication No: 5995526224

# Functional Parts 3 10/08

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522309 Gasket-door, white

7 240338313 Door, dairy, clear

9 216953601 Panel-inner door, refr

11 297245219 Panel-outer door, white

12 241808701 Nameplate

13 297254100 Door Stop, RH

18 240536809 Handle-door, white

* 240537301 Nut-anchor, door hdl screw

* 297048000 Screw, anchor, #8, white

21A 297197500 Screw, door stop mtg, FH38-16X.750, P Twin

22 216970800 Bearing, hinge w/o'ring, top

22A 297006800 Bearing-hinge, btm, w/o'ring

26 216524200 Gasket, secondary

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

27A 240396102 Retainer, tall bottle

32 5309950074 Valve, breather

48C 297108200 Bin-door, gallon

49 297107800 Bin-door, 2-liter

64 216403700 Plug-button, hole filler, door base

79 218755402 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

Publication No: 5995526224 GLRH1779GW2

10/08 4

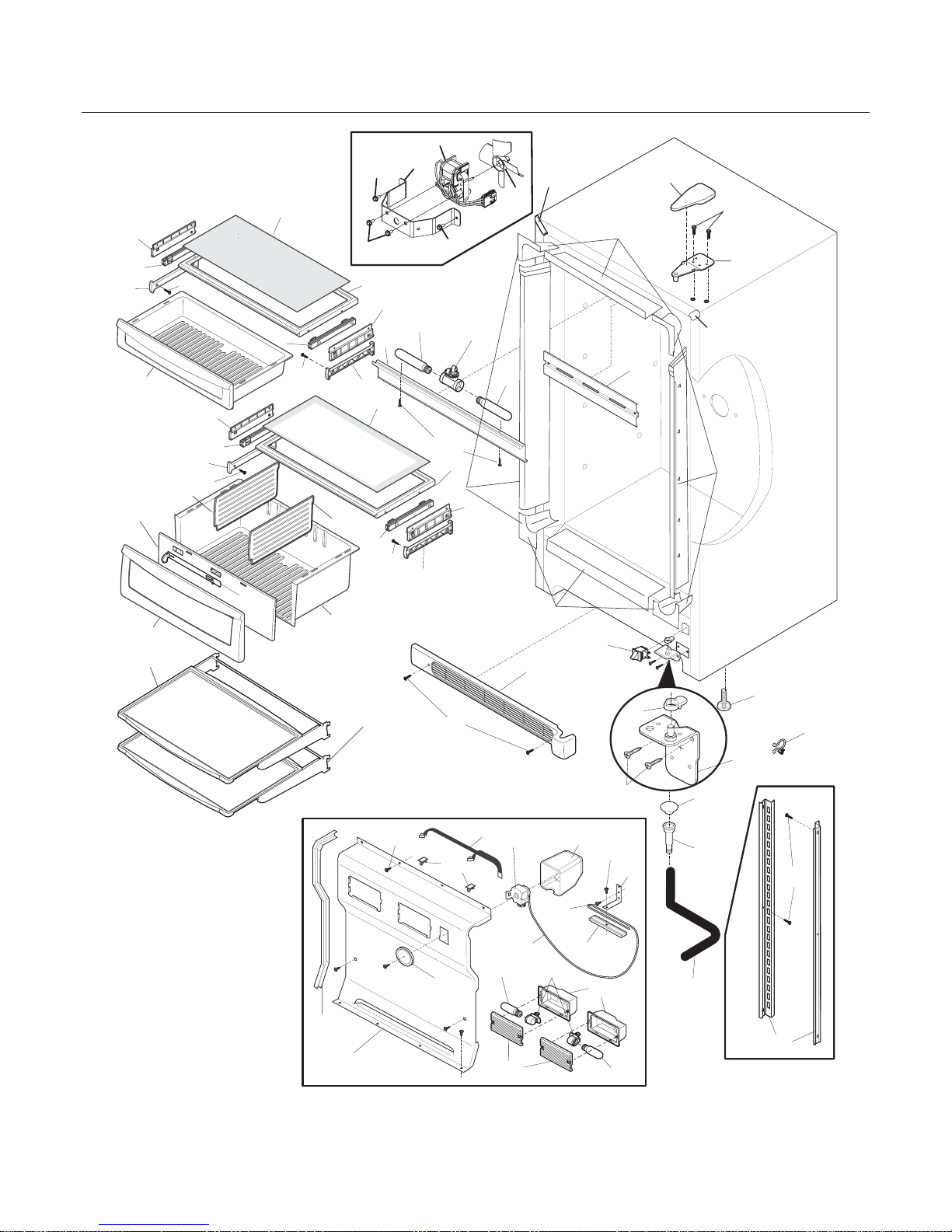

CABINET

93A

169

131

15 16

132

71A 21

155

154 20

93B

22A

15A

34A

15A

16A

34B

P08C1149

26G 175

175

174

173

148B

47A

172

171

26C

26A

27A

26B

26F

175

174

172

175

148A

47B

171

173

GLRH1779GW2 Publication No: 5995526224

# Functional Parts 5 10/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 297200600 Breaker Kit w/corners, no lock slot

9 297200100 Breaker Kit w/corners, 32", top and bottom

13 # 216934100 Motor, fan, 115 V

14 216998000 Switch, light/lamp, ramp

15 216988100 Light Bulb/Lamp, long, blue tint, 40 W, 120V

15A 297048600 Light Bulb/Lamp, short

16 241507803 Socket-light

16* 297109500 Washer, vinyl

16A 216817600 Socket, light/lamp, 25 W

18 216707200 Knob, temp control

19 216204902 Gasket-evap cover

20 216967200 Cover, temp control

21 # 216715500 Control temperature

22 216823500 Clamp, cap tube, cold control

22A 297058500 Tube, 10", plastic

24 5304460604 Screw, type A, 10-24 x 3/8

25 297099256 Cover-evaporator

26 216503300 Ramp, door closer

26A 297091601 Case-crisper, deep

26B 297091800 Panel, crisper window

26C 297091703 Panel, crisper front

26F 297099401 Divider-crisper, deep

26G 297123700 Case-deli

27A 240362201 Control-humidity

28 297240800 Hinge-bottom, stepped pin

29 216313501 Hose-drain

32 5308005500 Drain

34 216816223 Shield-light

34A 297053100 Shield-light

34B 297053200 Lens, light

35 216273000 Clip, drain hose

37 241611301 Trim-cabinet corner, white, (2)

38 297164300 Hinge-upper

40 297164400 Cover-hinge

41 240578902 Screw, hex head, 1/4-20 x 5/8

42 297108900 Shelf-sliding, w/brackets

42* 297107000 Bracket-shelf

47 216661601 Baffle-plate

47A 297102700 Insert-pan cover, glass

47B 297102701 Insert-pan cover, glass, lower

50 216394050 Bracket, fan motor mount

62 297142600 Screw, blunt, 8-32 x 5/8

63 216396900 Screw, leveling foot, plastic, adjustable

71A 297146800 Screw, 8-18AB x 0.470

72 297036900 Grille/Kickplate, 32", white

80 06594601 Bracket, control

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

93A 216629601 Screw, hex washer head, 10-16 x 0.500, tapping

93B 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

Publication No: 5995526224 GLRH1779GW2

10/08 6

CABINET

93A

169

131

15 16

132

71A 21

155

154 20

93B

22A

15A

34A

15A

16A

34B

P08C1149

26G 175

175

174

173

148B

47A

172

171

26C

26A

27A

26B

26F

175

174

172

175

148A

47B

171

173

GLRH1779GW2 Publication No: 5995526224

# Functional Parts 7 10/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

131 297130200 Channel-shelf mtg, side, (2)

132 5304460601 Screw, 6-20AB x 3/8

148A 297092502 Frame-crisper cover, lower

148B 297092503 Frame-deli cover

154 297053000 Wire, jumper

155 5303313703 Clip, (2)

169 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2)

171 297092700 Bracket, crisper cover, RH

172 297092701 Bracket, crisper cover, LH

173 297107600 Slide, crisper, RH

174 297107601 Slide, crisper, LH

175 297099500 Support-crisper

* 297001704 Insulation, 24", drain tube

* 297226503 Energy Guide

Publication No: 5995526224 GLRH1779GW2

10/08 8

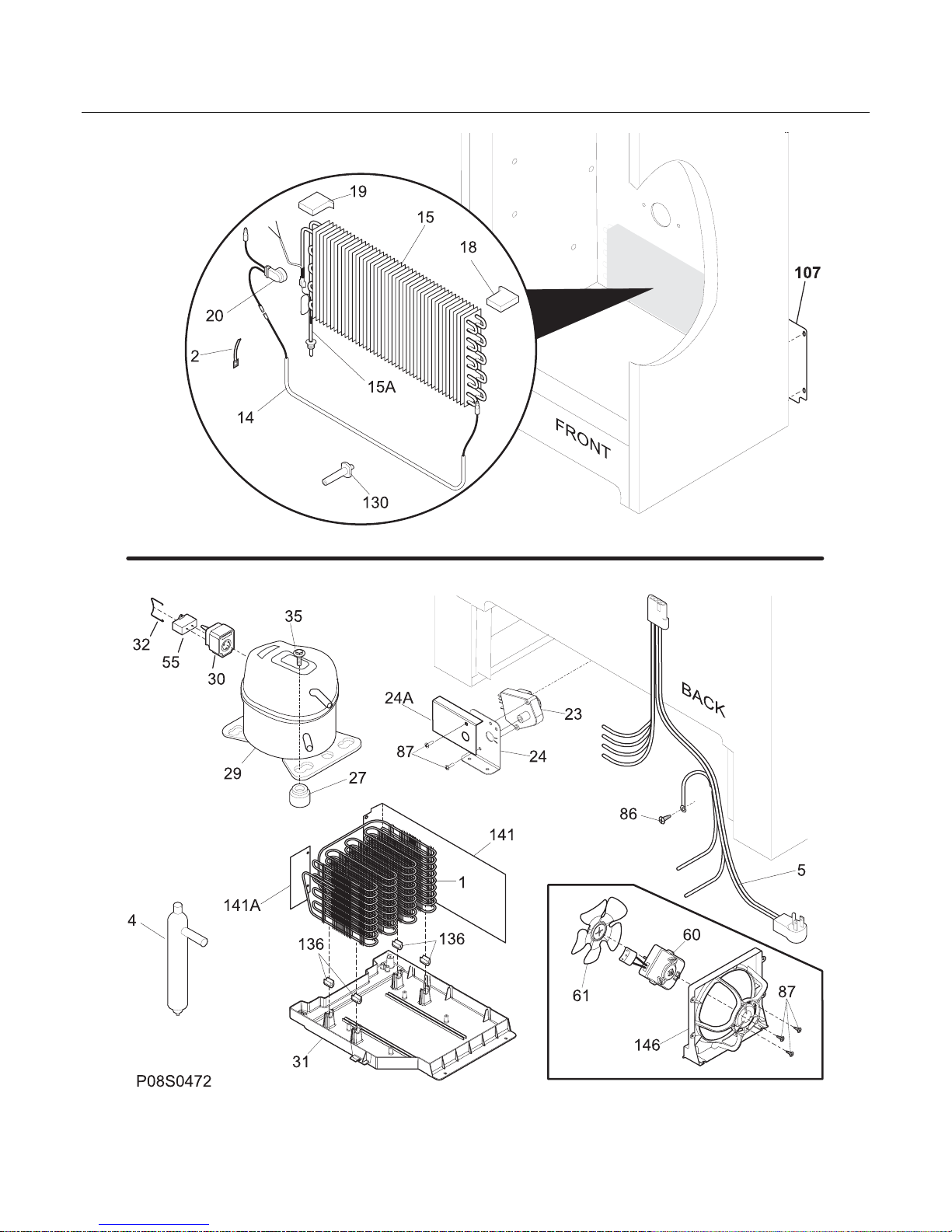

SYSTEM

GLRH1779GW2 Publication No: 5995526224

# Functional Parts 9 10/08

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 297152200 Condenser, dynamic

2 5308000110 Strap-evap/heater, aluminum, (2)

4 # 216938600 Drier-filter

5 # 297171800 Harness-main

5* 240555002 Screw-#8-32 X 3/8

14 216730700 Heater-defrost

15 # 216997300 Evaporator

15A 297231800 Heat Exchanger

18 297078700 Insulator-evap, styrofoam

19 297078800 Insulator-evap, styrofoam

20 216731001 Thermostat, defrost

23 # 216744500 Timer-defrost

24 216968501 Bracket-timer

24A 297207900 Guard, timer

27 5308002681 Grommet, compressor

29 # 297237300 Compressor, w/o electricals

30 216954205 Controller, compressor

31 297165800 Pan-drain

32 216649200 Clip, controller

35 297177200 Bolt, compressor

55 # 218909912 Capacitor, run, 220 VAC, 12 microfarad

60 241584301 Motor-condenser fan

61 241639501 Blade-condenser fan

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

87 5304463290 Screw, hi-lo blunt, #8-18X1/2

107 297165400 Shield, compressor, Compartment

* 5304460605 Screw, ph truss head, 8-18AB x 0.500

130 297244700 Support, evaporator mtg

136 240405201 Grommet, rubber, black, cond tube/wire

141 297164200 Divider, air flow

141A 297194700 Divider, small, air flow

146 297164000 Shroud-fan orfice

146* 216337701 Screw, HWH, 10-24 x 0.500, Swage

* 216502500 Sleeve, suction line

* 297048400 Clip

* # 297169901 Cord-power, flat
