Frigidaire FRT18B6C User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT18B6CB3 FRT18B6C R134a black 115

MARKET

North America

Publication No.

5995398418

031105

-EN/SERVICE /DCS

357

TOP MOUNT

REFRIGERATOR

Model No.

FRT18B6C

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

ENERGY GUIDE - 240572124

OWNER’S GUIDE - 240400109

SERVICE DATA SHEET - 240379012

11/03 2

Publication No. FRT18B6CB3

5995398418

DOOR

# = Fast-moving Parts 3 11/03

* = Non-Illustrated Parts

FRT18B6CB3 Publication No.

5995398418

POS. NO PART NO DESCRIPTION

1 # 240514609 Gasket,frzr door seal ,black ,magnetic

2 # 240514612 Gasket,seal ,black ,refr door ,magnetic

7 240337701 Door-dairy,w/o graphics ,white

10 240381303 Plug-button,black ,hinge brg hole

11 240476203 Panel-frzr door,black ,complete assy

12 240415204 Label-nameplate,black

13 240312405 Door Stop,black ,refr

13A 240312406 Door Stop,black ,frzr

14 240494003 Plug-button,black

14B 240383603 Plug-button,black ,door handle

15 240476303 Panel-refr door,black ,complete assy

18 240339203 Handle-door,black

18A 240339208 Handle-door,black

21 240383401 Screw,truss hd quad ,#10-16 x .500

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240527102 Bearing-hinge,black

48 240338101 Bin-door,pseudo ,bottom

48A 240337901 Bin-door,refr

48B 240338001 Bin-door,pseudo ,gallon ,refr

49 240495804 Bin-door,pseudo ,frzr

DOOR

11/03 4

Publication No. FRT18B6CB3

5995398418

CABINET

# = Fast-moving Parts 5 11/03

* = Non-Illustrated Parts

FRT18B6CB3 Publication No.

5995398418

POS. NO PART NO DESCRIPTION

1 240355401 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut,push-on

4 240367401 Damper-fan cover

5 # 5308000010 Fan Blade,red ,evaporator fan

8 5300157666 Bushing-motor mtg,(2)

9 5303292396 Bracket-motor mtg,front

10 240462010 Cover-evap coil

10* 240568605 Seal-coil cover

10*# 240524701 Wiring Harness,freezer section

11 5303208309 Plug-hole,factory test

12 240366801 Plug-ice maker harness,rectangular

12* 218843800 Screw,hex wshr hd ,8-15A x 0.500

12A 240374401 Plug-wtr inlet tube,round ,1"

13 # 240369701 Motor-evap fan

13* 218931001 Clamp-motor wiring,nylon ,w/adhesive tape

14 5303292397 Bracket-motor mtg,rear

18 240411901 Support-evap cover,(2)

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 215774918 Plug-button,black ,upr hinge holes

28 240335501 Bolt-roller adj,hex wshr hd ,1/4-20 x 4.020,(2) ,special

30 240314003 Bracket-lower hinge,black

34 240311303 Washer,hinge ,nylon ,(2)

35 240313803 Bracket-ctr hinge,black

35A 240336802 Spacer-hinge,center

36 240516401 Pin-center hinge

37 240337603 Trim-cabinet corner,black ,(2)

38 240313701 Bracket-upper hinge

40 240354404 Cover-upper hinge,black

41 5303001609 Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 Grommet,shelf mtg ,1.25" ,LH

42 240578901 Screw-hinge mtg,hex head ,1/4-20 x 5/8

43 240335003 Roller Assy,front ,(2)

56 240516501 Pin-lower hinge

58 5303001343 Screw,hex washer head ,8-15A x 0.500

59 240442703 Screw-#10-32 X 3/4,black

72 240368207 Grille/Kickplate,black

81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

89 240326115 Cover-access,with label

89* 241500301 Screw,hex washer head ,8-18AB x 0.500

92 216850900 Screw,hex washer hd ,1/4 x 7/8 ,hinge mtg

* 240479601 Plug,button ,cab liner holes ,(2)

* 5303305345 Paint,touch-up ,black

CABINET

11/03 6

Publication No. FRT18B6CB3

5995398418

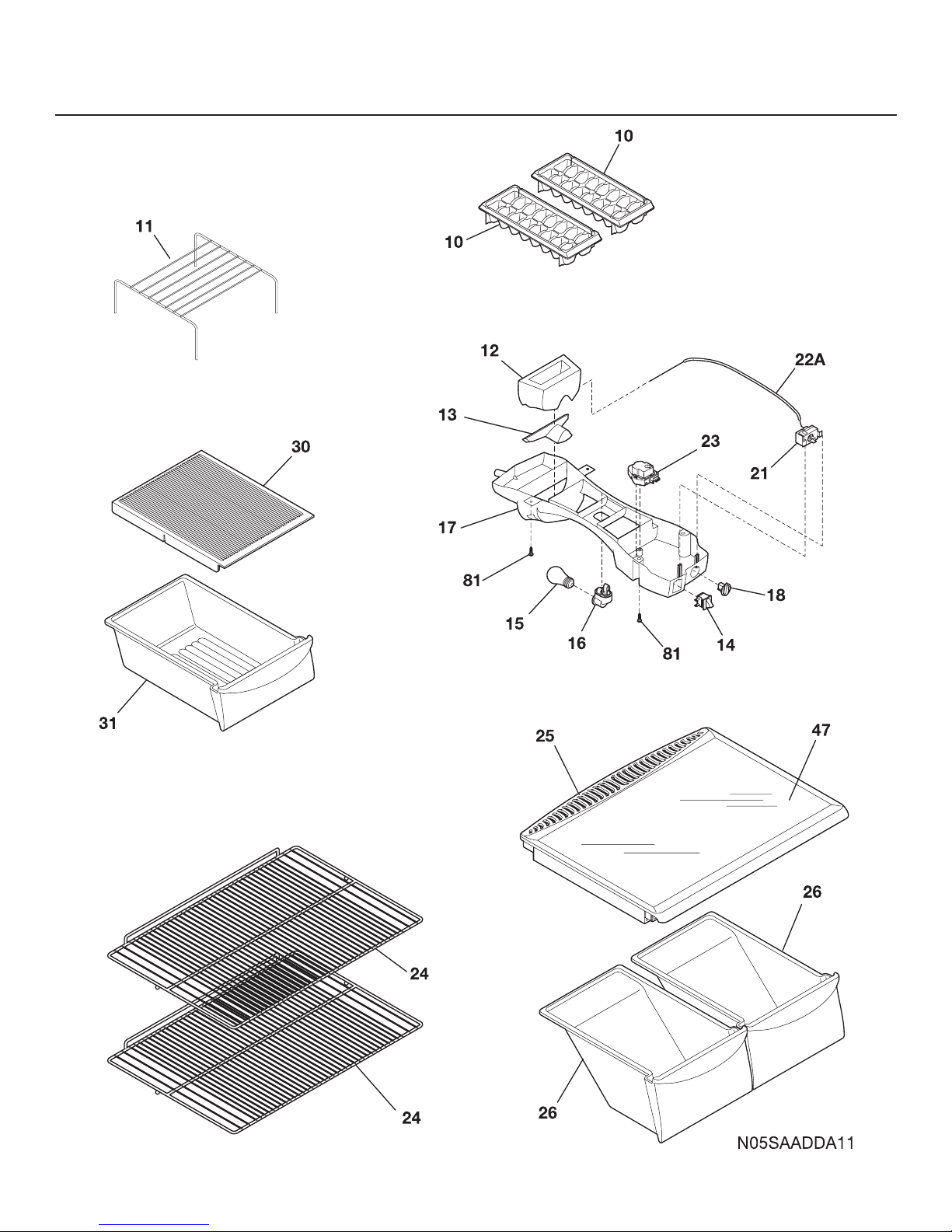

SHELVES

# = Fast-moving Parts 7 11/03

* = Non-Illustrated Parts

FRT18B6CB3 Publication No.

5995398418

POS. NO PART NO DESCRIPTION

10 215667501 Tray,ice cube ,plastic

11 5303282284 Shelf-freezer,"table type"

12 240362502 Diffuser,air ,top

13 240362601 Diffuser,air ,bottom

14 240505801 Switch,light/lamp

15 240436702 Light Bulb/Lamp,A-15 ,clear ,40 W ,120 V,miniature

16 241500701 Socket-light/lamp

17 240352701 Control Box

17*# 240388701 Wiring Harness,control box

18 240360801 Knob,temp control

21 # 5304421256 Control,temperature

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

23 # 215846606 Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 hour/30 min

23* 5303001259 Screw-timer mtg,pan hd ,6-20 x 0.438 ,(2)

24 240360905 Shelf,sliding ,wire

25 240364701 Cover-crisper pan,w/ beam ,less insert

26 240337101 Pan-crisper,white ,(2) ,no graphics

30 240361801 Cover,meat pan hanger ,drop through

31 240530801 Pan-meat,w/o graphics ,white

47 240350608 Insert-pan cover,23.82" x 15.50" ,glass

81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

* 240572124 Label-energy

SHELVES

11/03 8

Publication No. FRT18B6CB3

5995398418

SYSTEM

# = Fast-moving Parts 9 11/03

* = Non-Illustrated Parts

FRT18B6CB3 Publication No.

5995398418

POS. NO PART NO DESCRIPTION

1 240444401 Condenser,dynamic

4 # 218944001 Drier-filter,R134a System

6 # 240581701 Harness-wiring,machine compt

6* # 240388701 Wiring Harness,control box

6* # 240524701 Wiring Harness,freezer section

6* # 240581801 Harness-wiring,compressor

14 # 5303918208 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater,aluminum ,(2)

17 240434004 Trough-drain

20 240518402 Insulation,evap block ,foam ,LH/RH

21 # 5303918202 Thermostat-defrost,kit

22 240330001 Plate-compr mtg

22* 218252200 Screw,#8 truss hd ,10-32CA x 0.500

23 218513300 Grommet-compr mtg,(4)

25 240491501 Screw-compressor mtg,1/4-28 x 1.16 ,shoulder,typ CF

26 240332601 Pan-defrost drain

29 # 5303918297 Compressor,w/electricals

30 # 5304433579 Relay

31 # 5304433578 Overload Protector

34 240405201 Grommet,rubber ,black ,cond tube/wire

41 240555001 Screw-#8-32 X 3/8

44 215174700 Clamp-service cord,strain relief ,galv steel

45 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

56 240582001 Cover-terminal

57 240542601 Clip-wiring harness

58 215004600 Screw,hx serr wshr hd ,8-36 x 7/16 ,cond fan motor,(2)

59 240315501 Shroud-cond fan

59* 240346701 Tape-foam seal,shroud

59* 240359401 Screw-fan shroud,(2)

59A 240346501 Bracket-support,cond mtr ,(3)

59B 240346601 Grommet-bracket,(3)

60 # 240334001 Motor,condenser fan

61 # 240315401 Fan Blade,galv steel ,condenser fan

61A 215004700 Nut,speed

61B 215004800 Grommet-silencer

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

84 240500801 Tube-drain,rubber ,lower

85 240493101 Tube-connector,suction

86 240409302 Spacer-cond tube,black

* # 5303918207 Heat Exchanger Kit,suction line

* # 5303918222 Hot Tube Repair Kit,Service

SYSTEM

11/03 10

Publication No. FRT18B6CB3

5995398418

WIRING SCHEMATIC
