Frigidaire FRT17IB3A User manual

Product No. FRT17IB3AW5

Series R134a, Static

Color white

Volts 115

Wiring Diagram 240398801

Owner's Guide 240400111

Market North America

Energy Guide 218791452

Service Data Sheet 240379015

Installation Instructions 240568300

N05L00004.eps N05DBDCKA0.eps N05BBAABA21.eps N05SACDCA2.eps

N05CBBBAC1.eps 115.eps 240398801.eps 240398601.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995414124

04/08/02

(EN/SERVICE/WC)

390

TOP-MOUNT

REFRIGERATOR WITH

ICE-MAKER

Model No.

FRT17IB3A

Publication No: 5995414124 FRT17IB3AW5

08/04 2

DOOR

FRT17IB3AW5 Publication No: 5995414124

# Functional Parts 3 08/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 # 240554101 Gasket-frzr door, white, magnetic

2 # 240542104 Gasket-refr door, white, magnetic

4 240535101 Rack-door

4B 240535201 Rack-door

7 240337701 Door-dairy, w/o graphics, white

8 240535001 Rack-door

10 240381301 Plug-button, white, hinge brg hole, (2)

11 240420101 Door, frzr, white

12 240415201 Label-nameplate, white

13 240312403 Door Stop, white, ref

13A 240312404 Door Stop, white, frzr

14 240494001 Plug-button, white

15 240420201 Door, refr, white

18A 218428101 Handle-door, white, w/block & screw

21 240383401 Screw, truss hd quad, #10-16 x .500

21A 240521301 Screw, #10-16 x 1/2

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 Bearing-hinge, natural color

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995414124 FRT17IB3AW5

08/04 4

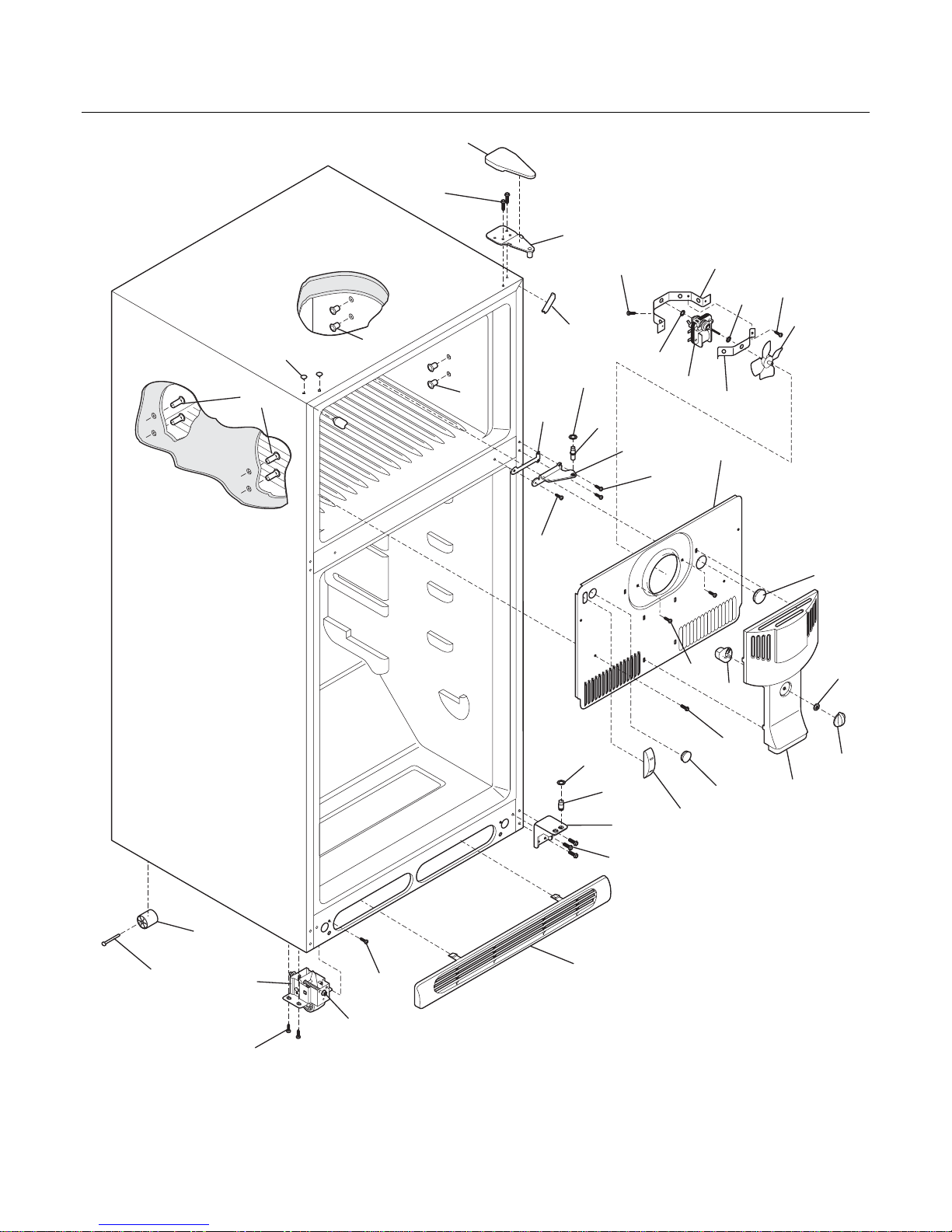

CABINET

12A

35A 36

N05BBAABA21

21C

FRT17IB3AW5 Publication No: 5995414124

# Functional Parts 5 08/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 240355401 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 241523701 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240462011 Cover-evap coil

10* 240568601 Seal-coil cover

11 5303208309 Plug-hole, factory test

12* 218843800 Screw, hex wshr hd, 8-15A x 0.500

13 # 240369701 Motor-evap fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433201 Screw, hex washer head, 8-18 x 0.375

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 Plug-button, white, upr hinge holes

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240357102 Bracket, bottom hinge, white

34 240311303 Washer, hinge, nylon, (2)

35 240357002 Bracket, center hinge, white

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 241611301 Trim-cabinet corner, white, (2)

38 240356901 Bracket, upper hinge

40 240354401 Cover-upper hinge, white

41 5303001609 Grommet, shelf mtg, 0.69", RH

41* 5308009759 Grommet, shelf mtg, 1.25", LH

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43* 241559601 Roller Assy, front RH, (2)

56 240516501 Pin-lower hinge

58 218897002 Screw, hex washer head, 8-32 x 0.375

59 240442702 Screw-#10-32 X 3/4, white

72 240368301 Grille/Kickplate, white

81 240433202 Screw, hex washer head, 8-18 x 5/16

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 5303001479 Screw-hinge mtg, hex hd, 1/4-20 x 0.875

* 218515401 Clip

* 5303305324 Paint, touch-up, white

Publication No: 5995414124 FRT17IB3AW5

08/04 6

SHELVES

FRT17IB3AW5 Publication No: 5995414124

# Functional Parts 7 08/04

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 5303282284 Shelf-freezer, "table type"

12 241542001 Diffuser, air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16 241559801 Socket-light

17 240368001 Control Box

17* 240568607 Seal

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 240371001 Timer-defrost

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360902 Shelf, sliding, wire

25 240364706 Cover, crisper pan

26 240364501 Pan, crisper, (2)

34 240385201 Container, ice bin

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995414124 FRT17IB3AW5

08/04 8

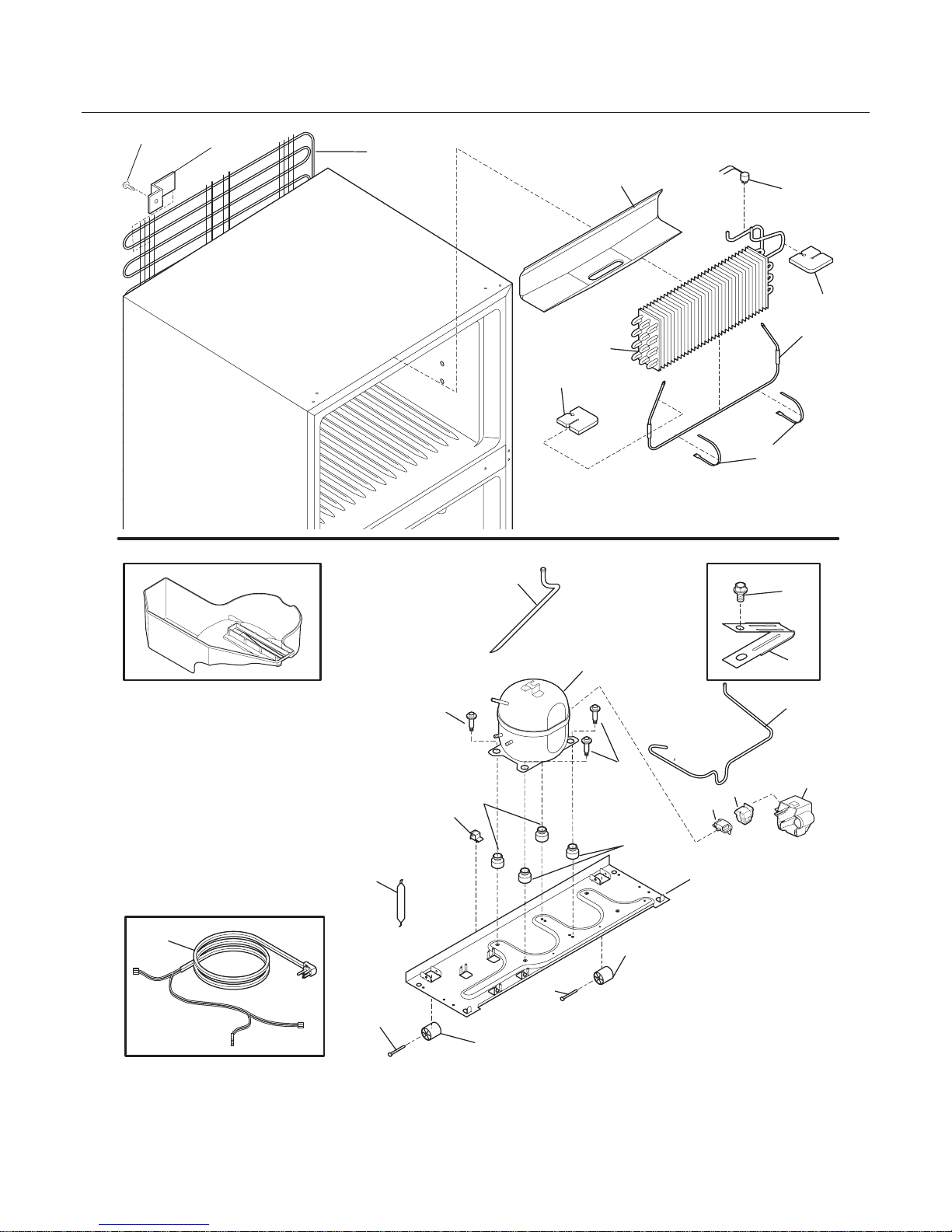

SYSTEM

N05CBBBAC1

30 56

FRT17IB3AW5 Publication No: 5995414124

# Functional Parts 9 08/04

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 240406407 Condenser, static

1* 240405201 Grommet, rubber, black, cond tube/wire

1* 5303208866 Spacer, condenser tube, black

2 5308000296 Bracket, condenser mtg, (4)

4 # 218944001 Drier-filter, R134a System

6 # 240581601 Harness-wiring, machine compt

6* 241520701 Harness-wiring, freezer

6* # 240388701 Wiring Harness, control box

6* # 240581801 Harness-wiring, compressor

14 # 5303918203 Defrost Heater Kit

15 5303918275 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551802 Trough-drain

20 241551901 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 240330005 Base-compressor

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240598501 Pan-defrost drain

26* 5304434992 Thermal Mastic

29 # 5303918297 Compressor, w/electricals

30 # 5304433579 Relay

31 # 5304433578 Overload Protector

41 240433202 Screw, hex washer head, 8-18 x 5/16

44 5303001199 Clamp-wiring harness, strain relief, galv steel

56 240582001 Cover-terminal

57 240542601 Clip-wiring harness

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 241505701 Tube-drain, lower

85 241544301 Tube-connector, suction

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 5303918263 Heat Exchanger Kit, suction line

* # 5303918222 Hot Tube Repair Kit, Service

Publication No: 5995414124 FRT17IB3AW5

08/04 10

ICE MAKER
