Frigidaire FRS6R4E User manual

N58L00001.eps N58FCCBBB2.eps N58RCCBBB11.eps N58BAAAAA0.eps

N58SJCAAB15.eps N58TAAAAA6.eps N58CAAAAA5.eps N58XDAAAA1.eps

N58YBAAAA2.eps N58I1151.eps W241708401.eps S241708401.eps

Product No. FRS6R4EBC

Series R134a

Color black

Volts 115

Wiring Diagram 241708401

Owner's Guide 241695301

Market North America

Energy Guide 241585977

Service Data Sheet 240389629

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995479663

06/11/27

(EN/SERVICE/KHB)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS6R4E

Publication No: 5995479663 FRS6R4EBC

11/06 2

FREEZER DOOR

21C

22C

13A

22A

21A

N58FCCBBB2

FRS6R4EBC Publication No: 5995479663

# Functional Parts 3 11/06

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241674806 Gasket-frzr door, black, magnetic

4A 240334201 Bin-door, frzr-upper

4B 240351601 Bin-door

11 241668151 Door-frzr, black, complete assy

13A 240581906 Door Stop, black, frzr

18 241711705 Handle-door, black

21 218781101 Screw, pan head, 8-18 x 0.625

21A 240598402 Screw, 10-32 x 1/2

21C 240521304 Screw, #8-18 x 3/4

22A 240328204 Bearing-hinge(frz), black, closer

22C 240328404 Bearing-hinge, black, upper

37 241711602 Trim-handle, 30.13", black, lower

68 241525101 Chute-ice

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503204 Screw, cr pan hd, 10-16

* 240352102 Connector-water, straight

* 240552101 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995479663 FRS6R4EBC

11/06 4

REFRIGERATOR DOOR

21C

21A

22B

N58RCCBBB11

FRS6R4EBC Publication No: 5995479663

# Functional Parts 5 11/06

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241674805 Gasket-refr door, black, magnetic

4 240323001 Bin-door, pseudo, bottom

7 240326203 Door-dairy

13 240581905 Door Stop, black, ref

15 240451908 Door-refr, black, complete assy

18 241711702 Handle-door, black

21 218781101 Screw, pan head, 8-18 x 0.625

21A 240598402 Screw, 10-32 x 1/2

21C 240521304 Screw, #8-18 x 3/4

22 240328203 Bearing-hinge, black, closer

22B 240328404 Bearing-hinge, black, upper

37 241711602 Trim-handle, 30.13", black, lower

49 240356401 Bin-door, gallon

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503204 Screw, cr pan hd, 10-16

Publication No: 5995479663 FRS6R4EBC

11/06 6

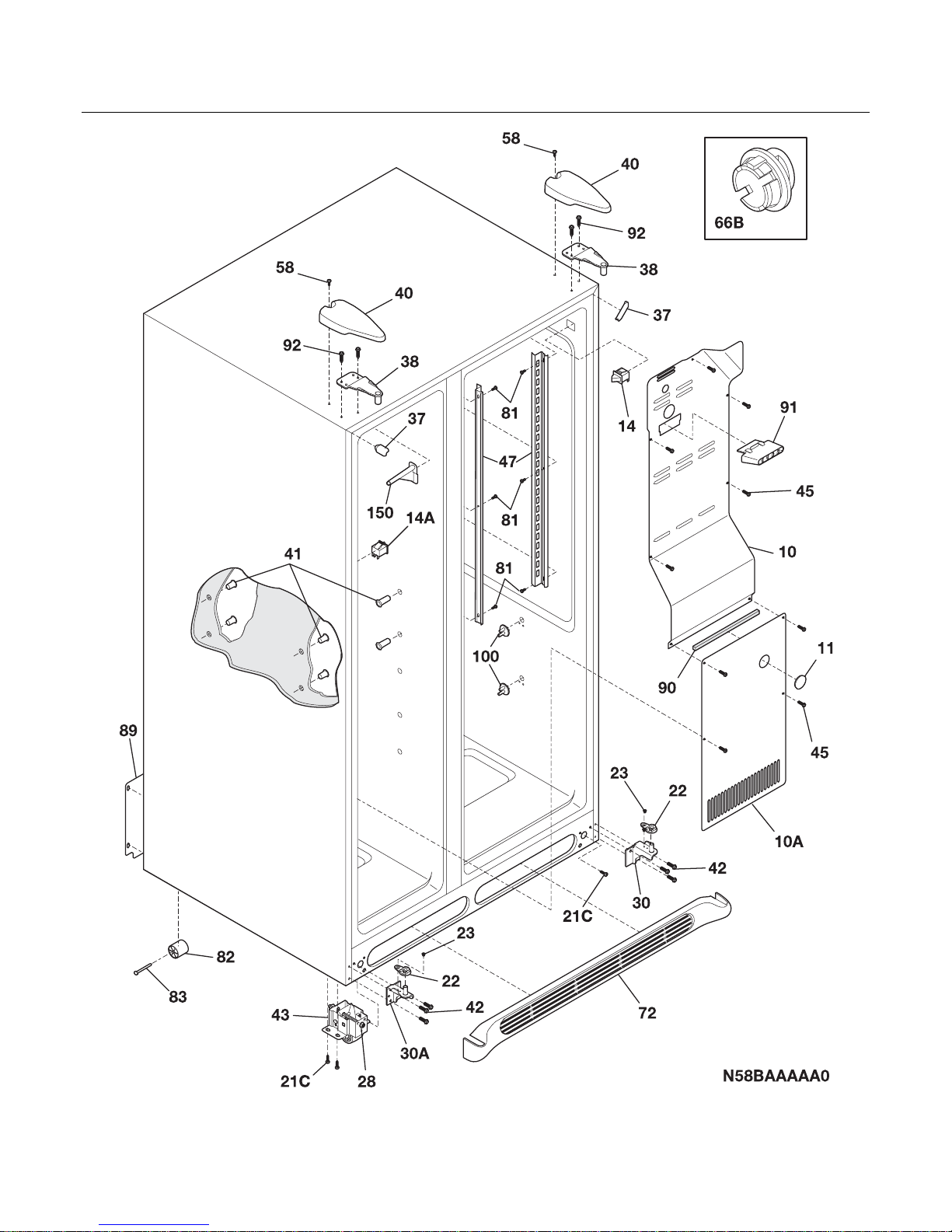

CABINET

FRS6R4EBC Publication No: 5995479663

# Functional Parts 7 11/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435912 Cover-air duct

10A 240475911 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A 241547901 Switch-light/lamp, frzr door

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402702 Screw-#10-32 x 1/4 flat hd

28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 Bracket-lower hinge, ref

30A 241603704 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327207 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335005 Roller Assy, adjustable, front, (2)

45 241500303 Screw, hex washer head, 8-18AB x 0.500

47 218659500 Channel-shelf mtg, side, (2)

58 218781101 Screw, pan head, 8-18 x 0.625

66B 240374301 Diffuser-air

66B* 240518802 Pin-push, push-in, plastic

72 240324411 Grille/Kickplate, black

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733902 Cover-access, w/label

90 218249808 Seal-coil cover

91 240380101 Duct-ice maker

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes

* 5303321321 Paint, touch-up, black

Publication No: 5995479663 FRS6R4EBC

11/06 8

SHELVES

N58SJCAAB15

11B

11A

126

39B

123

25A

47A

101

26A

140

FRS6R4EBC Publication No: 5995479663

# Functional Parts 9 11/06

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 241657602 Shelf, flip up, wire

11A 241657502 Shelf, fixed, freezer

11B 241657504 Shelf, fixed, upper, freezer

21 5303001001 Screw, hx wshr hd sems, 8-15A x 0.625

24 240355208 Shelf-"Spill-Safe", fixed

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351005 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240362201 Control-humidity

27 240351206 Pan-crisper, lower

39 240430706 Trim-shelf, 11.21", front

39B 240430702 Trim-shelf, 12.39", front

42 240356501 Track, meat pan hanger, RH

42 240365401 Track, meat pan hanger, LH

47 240350633 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240564401 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

62 240342806 Pan-meat

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545308 Water Tank

101 218493101 Screw, hex washer head, 8-18AB x 1-3/4

123 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16

126 241674401 Channel, auger mtg, LH

126 241674402 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

* 241585977 Energy Guide

Publication No: 5995479663 FRS6R4EBC

11/06 10

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA6

149
