Frigidaire FRS26ZNH User manual
PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS26ZNHQ2 FRS26ZNH R134a bisque 115
MARKET
North America
Publication No.
5995330692
991206
-EN/SERVICE /ECL
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26ZNH
©1999 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
SIDE BY SIDE
REFRIGERATOR
WIRING DIAGRAM - # 218903201
OWNER’S GUIDE - # 218954000
SERVICE DATA SHEET - # 218909400
101 Masters Blvd.
Anderson, SC 29624
12/99 2
Publication No. FRS26ZNHQ2
5995330692

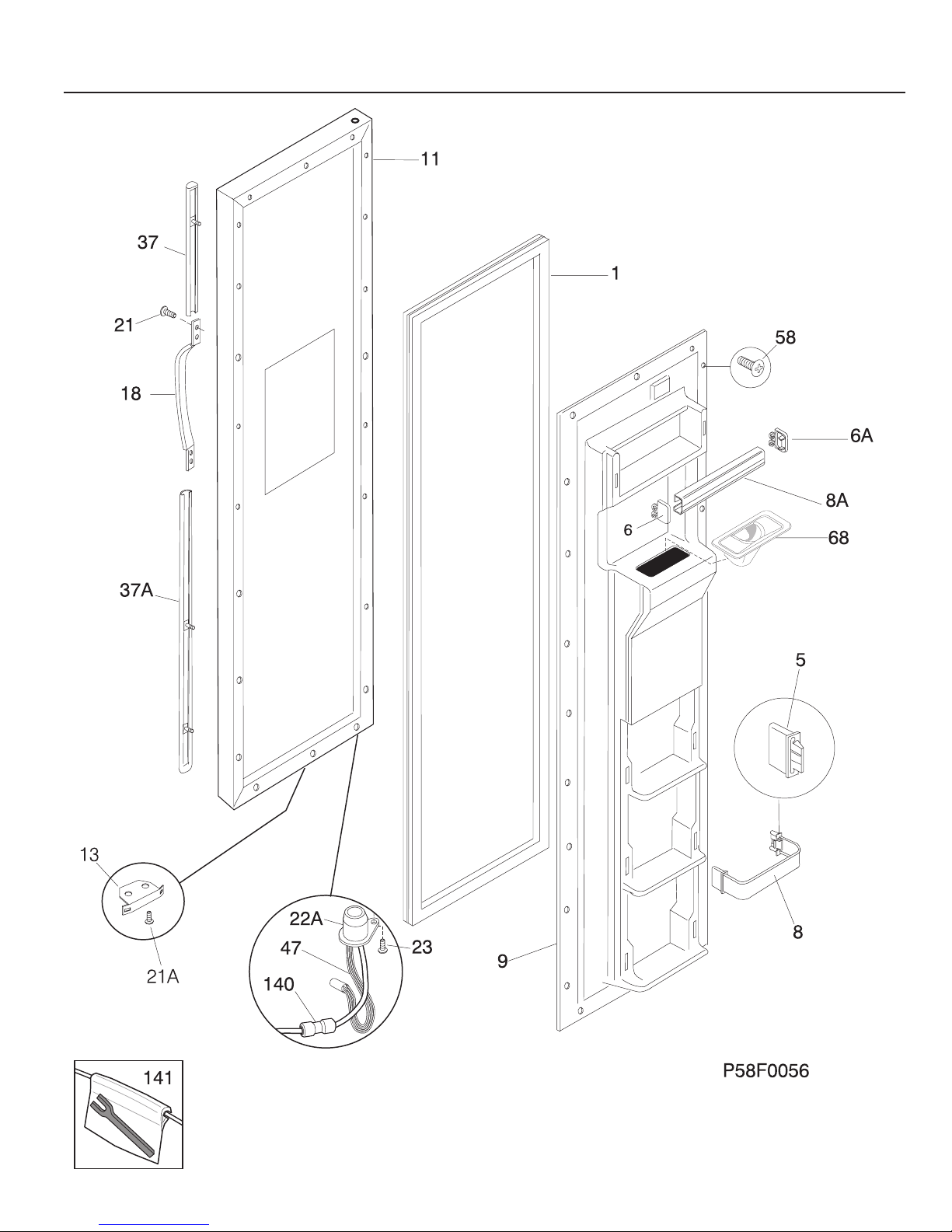

FREEZER DOOR
# = Fast-moving Parts 3 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
FREEZER DOOR
POS. NO PART NO DESCRIPTION
1 # 215734313 Gasket-frzr door,white ,magnetic
5 5303288950 Support-door rack,RH/LH
6 5303323484 Support-door rack,white ,LH
6A 5303323485 Support-door rack,white ,RH
8 218807028 Rack-door,w/end caps
8A 215474052 Rack-door
9 218510401 Panel-inner door,frzr
11 5303918152 Panel-frzr door,bisque ,w/foam insulatn
13 5303289522 Door Stop
18 218762706 Handle-door,bisque
21 218886801 Screw-8-32 X 1/2 #10 Truss ca,8 32 x 1/2 #10
21A 218578600 Screw-door stop mtg,phl truss hd ,10-16 x 3/4
22A 215615300 Bushing-door,bronze
23 5303001020 Screw,cr flat head ,8-32D x 1/2
37 218811632 Trim-handle,bisque ,upper
37A 218811631 Trim-handle,bisque ,lower
37A* 215782300 • Lock-handle trim,snap-in
37A* 218676004 • Band-decorative,satin aluminum ,handle trim
47 218922901 Wiring Harness,frzr door
58 218781100 Screw,pan head ,8-18 x 0.625
68 218495200 Chute-ice
140 218922801 Elbow-water tube
141 218929601 Tool-Push Connector
* 215598900 Washer-flat,.691x1x.05,zinc ,I&W hinge brkt
* 5303917276 Insulation-door,fiberglass ,(bulk)
12/99 4
Publication No. FRS26ZNHQ2
5995330692
REFRIGERATOR DOOR
P58R0078
13
2
3
7
58
15
22
21A
49
37
21
18
37A
# = Fast-moving Parts 5 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
POS. NO PART NO DESCRIPTION
2 # 215734314 Gasket-refr door,white ,magnetic
3 215403201 Panel-inner door,refr
7 5303304563 Door-dairy
13 5303289522 Door Stop
15 5303918151 Panel-refr door,bisque ,w/foam insulatn
18 218762706 Handle-door,bisque
21 218886801 Screw-8-32 X 1/2 #10 Truss ca,8 32 x 1/2 #10
21A 218578600 Screw-door stop mtg,phl truss hd ,10-16 x 3/4
22 5303289320 Bearing-hinge
37 218811632 Trim-handle,bisque ,upper
37A 218811631 Trim-handle,bisque ,lower
37A* 215782300 • Lock-handle trim,snap-in
37A* 218676004 • Band-decorative,satin aluminum ,handle trim
49 218592325 Bin-door,2-liter
58 218781100 Screw,pan head ,8-18 x 0.625
* 5303917276 Insulation-door,fiberglass ,(bulk)
REFRIGERATOR DOOR
12/99 6
Publication No. FRS26ZNHQ2
5995330692
CABINET
# = Fast-moving Parts 7 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
POS. NO PART NO DESCRIPTION
10 215637602 Cover-air duct
10* 5303209814 Nut,"U" type ,8-15(A) ,fan mtr mtg
10A 215637401 Cover-evap coil,lower
10A* 5308009617 Washer,ext tooth lock ,#10 ,grounding
11 5303208309 Plug-hole,factory test
12 215230400 Plug-harness hole
18 5303289043 Support-air duct cvr,2.55" long
18* 5303289044 Support-air duct cvr,1.83" long
28 5303289062 Bolt-roller adj,hex head ,5/16-24 x 7/8
29 215314301 Washer,.40 x .75 x .06 ,nylon
29* 215598900 Washer-flat,.691x1x.05,zinc ,I&W hinge brkt
29* 218871201 Washer,nylon ,0.363 ID w/nibs
30 215008900 Bracket-lower hinge,w/hinge pin
30* 218730800 Tapping Plate,RH
30A 215009100 Bracket-lower hinge,LH ,w/hinge pin
30A* 218730700 Tapping Plate,LH
37 5304413167 Trim-cabinet corner,bisque
38 218215229 Bracket-upper hinge,with closer ,white ,LH
38 218215231 Bracket-upper hinge,with closer ,white ,RH
40 5304414819 Cover-upper hinge,bisque
41 5303001609 Grommet,shelf/rod mtg ,RH
41* 5308009759 Grommet,shelf mtg ,LH
43 218615300 Roller Assy,front ,(2)
43* 5308017044 Screw-roller mtg,spcl ind hex hd ,5/16-18(23)x7/8
44 218738300 Roller Assy,rear ,(2)
47 218659500 Channel-shelf mtg,side ,(2)
52 215454600 Tube-water inlet
58 5308002748 Screw,hex wshr hd ,8-15A x 0.500 ,special
66 215050201 Damper-meat keeper
66A 218171301 Cover-meat kpr dmpr
72 218359616 Grille/Kickplate,bisque
77 5303001216 Washer-nylon,3/16 x 5/8 OD
78 5303274237 Screw-bracket,hex wshr hd ,8-32CA x 0.500
80 218249802 Seal-coil cover,(2)
80* 5303289036 Gasket-coil cover,(2)
80* 5303289037 Gasket-air duct cvr,(2)
81 5308016566 Screw,hex wshr hd ,8-15A x 0.625 ,low profile
85 218922708 Cover-lower hinge,bisque
89 218871501 Cover-machine compt
90 215022602 Seal-foam
90* 5303322647 Tape-foam
91 218770000 Deflector-air,air duct cover
92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 5303288973 Support-pan cover
101 215305702 Seal-foam
101* 218663103 Gasket-air duct cvr
* 218902101 Cap-protector, lower hinge
* 5304414035 Paint,touch-up ,bisque
CABINET
12/99 8
Publication No. FRS26ZNHQ2
5995330692
SHELVES
# = Fast-moving Parts 9 12/99
* = Non-Illustrated Parts
FRS26ZNHQ2 Publication No.
5995330692
POS. NO PART NO DESCRIPTION
2 5303298147 Trim-basket
11 218298003 Shelf-freezer,sliding ,wire
11* 218159700 Spacer-shelf
11A 5304405879 Shelf-freezer,fixed wire
11C 218815501 Shelf-pizza,24B
24 215029009 Shelf-"Spill-Safe",cantilever ,sliding
25 215124343 Cover-storage pan
25* 5303301393 Control-humidity
25* 5304412757 Trim-storage pan cvr,upper ,w/humidity hole
25A 218015302 Trim-storage pan cvr,snap-on ,front
25C 218015402 Trim-storage pan cvr,snap-on ,rear
26 5303289500 Pan-storage,upper
26A 5303289501 Pan-storage,lower
28 08013638 End Cap-shelf,protector ,lower fzr shelf
39 215217543 Trim-frzr shelf
39A 215217558 Trim-frzr shelf
42 215002301 Hanger-pan/tray,LH
42* 215002401 Hanger-pan/tray,RH
46 5304411659 Front-storage pan
47 218498182 Insert-pan cover,glass
47A 215723552 Insert-pan cover,16.31" x 17.32" ,glass
49 5303296573 Basket-sliding
51 5303296575 Hanger-basket,RH
52 215162502 Hanger-basket,LH,with spring
52* 5303299662 • Hanger-basket,LH
57 5303271653 Ferrule-inner
62 5303289517 Tray-deli
67 5304411662 Front-deli tray
81 5308016566 Screw,hex wshr hd ,8-15A x 0.625 ,low profile
96 215192600 Support-water tank
97 218942701 Water Tank
100A 218015501 Support-pan cover,LH
100B 218015601 Support-pan cover,RH
101 215005000 Screw,hex wshr hd ,8-18AB x 0.750 ,gusset/hanger
123 215005100 Screw-roller/hanger,8-10 x 0.438
126 218867401 Channel,auger mtg ,LH
126 218867402 Channel,auger mtg ,RH
* 215328300 Clip-shelf
SHELVES
12/99 10
Publication No. FRS26ZNHQ2
5995330692

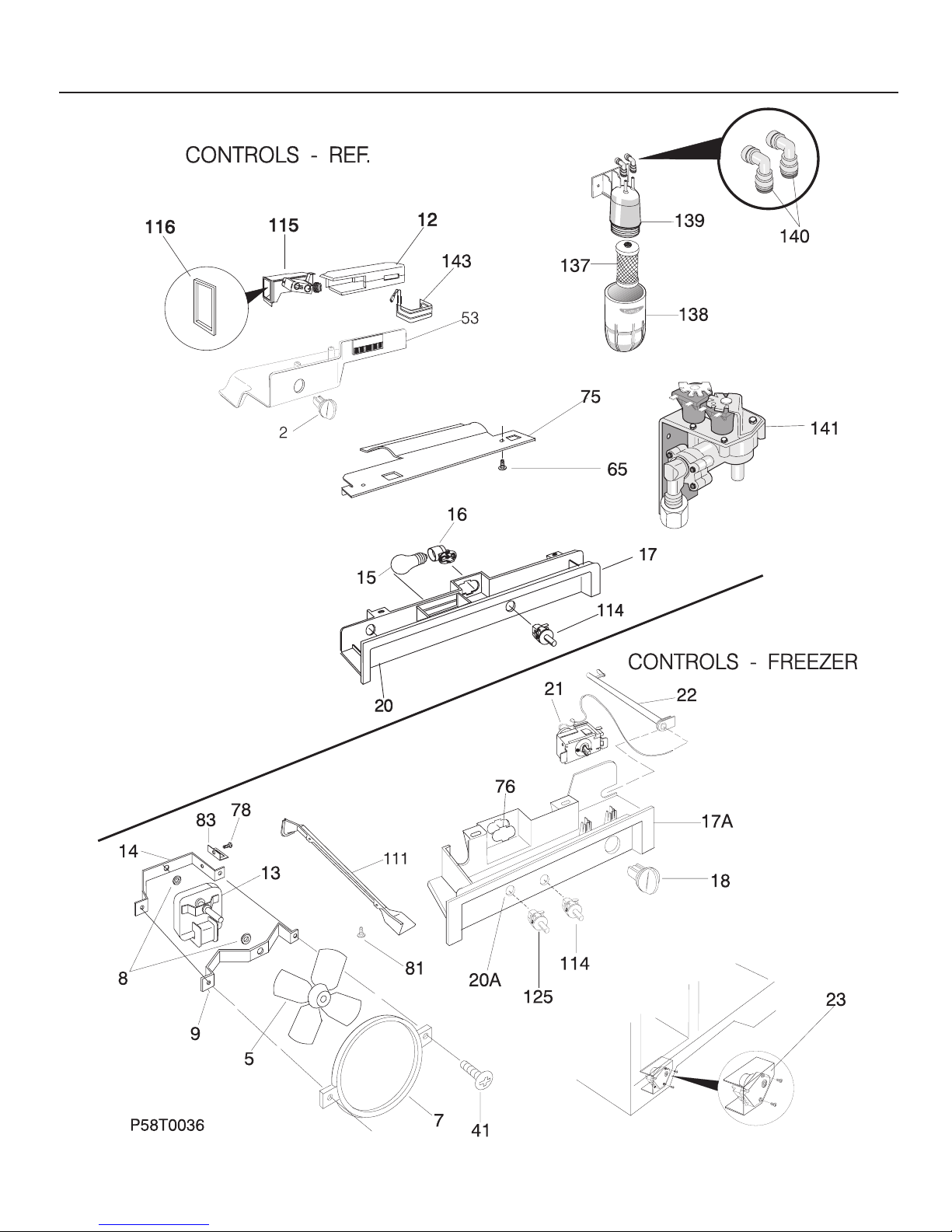

CONTROLS
