Frigidaire FRS23LH5D User manual

Product No. FRS23LH5DW5

Series R134a

Color white

Volts 115

Wiring Diagram 241526901

Owner's Guide 240581300

Market North America

Energy Guide 241538736

Service Data Sheet 240389616

N58L00001.eps N58FACBBB4.eps N58RACBBB7.eps N58BAAAAA0.eps

N58SJCAAB1.eps N58TAAAAA6.eps N58CAAAAA4.eps N58XDAAAA1.eps

N58YBAAAA1.eps N58I115.eps W241526901A.eps S241526901A.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995423471

04/12/06

(EN/SERVICE/KHB)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS23LH5D

Publication No: 5995423471 FRS23LH5DW5

12/04 2

FREEZER DOOR

FRS23LH5DW5 Publication No: 5995423471

# Functional Parts 3 12/04

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 240390604 Gasket-frzr door, white

4A 240367301 Bin-door, frzr-upper

4B 240359001 Bin-door

11 240451819 Door-frzr, white, complete assy

13A 240537102 Door Stop, white, frzr

18 218762701 Handle-door, white

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

21C 218781100 Screw, pan head, 8-18 x 0.625

22C 240328402 Bearing-hinge, natural, upper

37 218811618 Trim-handle, white, upper

37* 218676004 Band-decorative, satin aluminum, handle trim

37A 218811615 Trim-handle, white, lower

37A* 215782300 Lock-handle trim, snap-in

68 241525101 Chute-ice

* 240352102 Connector-water, straight

* 240552101 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995423471 FRS23LH5DW5

12/04 4

REFRIGERATOR DOOR

21A

22B

21C

21C 37A

N58RACBBB7

FRS23LH5DW5 Publication No: 5995423471

# Functional Parts 5 12/04

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 240390603 Gasket-refr door, white, magnetic

4 240363701 Bin-door, 2-liter

7 240338303 Door, dairy, clear

12 240572601 Label-nameplate

13 240537101 Door Stop, white, ref

15 240451912 Door-refr, white, complete assy

18 218762701 Handle-door, white

21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

21C 218781100 Screw, pan head, 8-18 x 0.625

22 240328201 Bearing-hinge(ref), closer

22B 240328401 Bearing-hinge(ref), natural, upper

37 218811618 Trim-handle, white, upper

37* 218676004 Band-decorative, satin aluminum, handle trim

37A 218811615 Trim-handle, white, lower

37A* 215782300 Lock-handle trim, snap-in

49 240324502 Bin-door, gallon

Publication No: 5995423471 FRS23LH5DW5

12/04 6

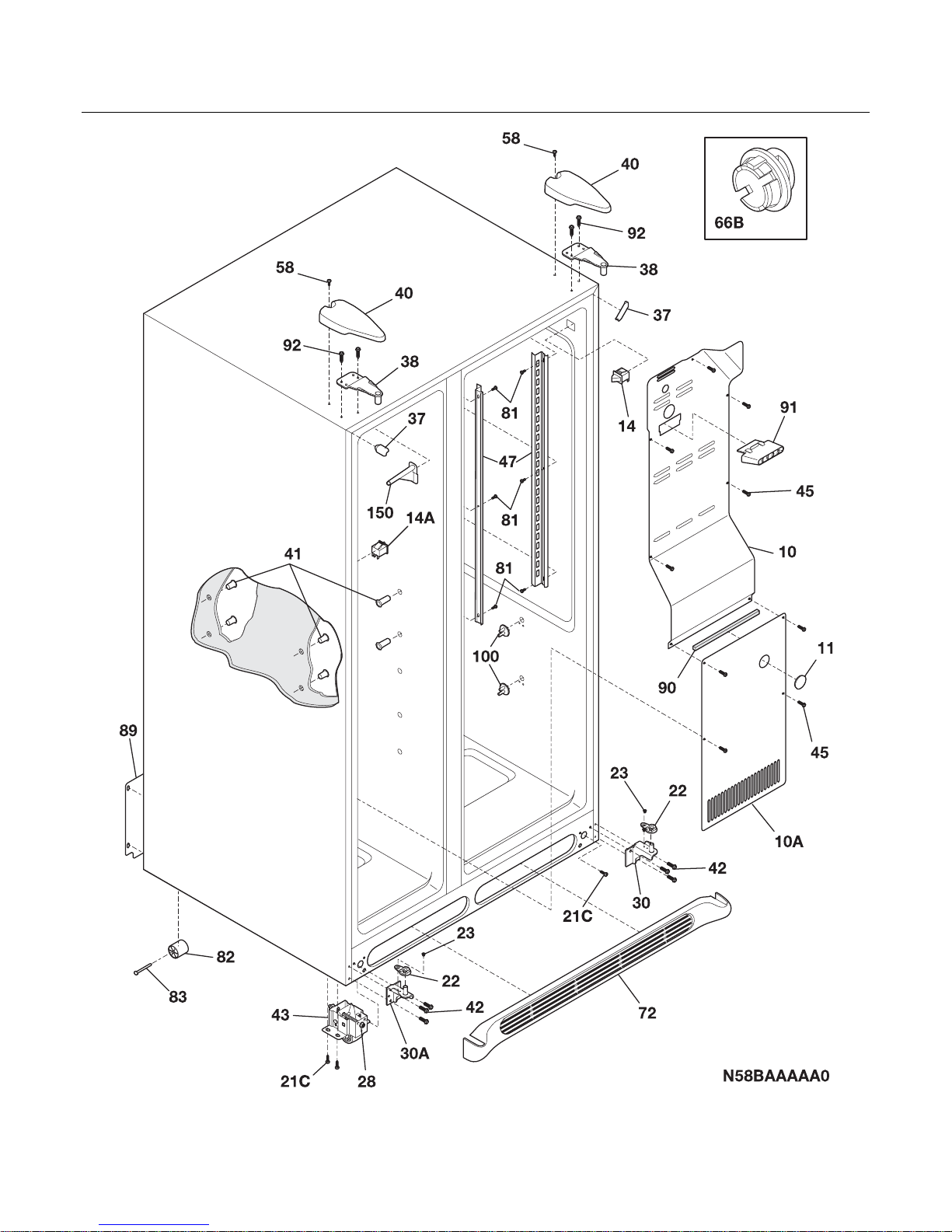

CABINET

FRS23LH5DW5 Publication No: 5995423471

# Functional Parts 7 12/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435905 Cover-air duct

10A 240475906 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 # 240505801 Switch, light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419101 Bracket-lower hinge, ref

30A 240419102 Bracket-lower hinge

37 240337601 Trim-cabinet corner, white, (2)

40 240327005 Cover-upper hinge, white

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 218659500 Channel-shelf mtg, side, (2)

58 218781100 Screw, pan head, 8-18 x 0.625

66B 240374301 Diffuser-air

66B* 240518802 Pin-push, push-in, plastic

72 240324401 Grille/Kickplate, white

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574601 Cover access

90 218249807 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 218515401 Clip

* 240481601 Shim-lower hinge

* 5303305324 Paint, touch-up, white

Publication No: 5995423471 FRS23LH5DW5

12/04 8

SHELVES

FRS23LH5DW5 Publication No: 5995423471

# Functional Parts 9 12/04

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 240338801 Shelf-freezer, flip-up

11A 240338701 Shelf-freezer, fixed wire

11B 240338703 Shelf-freezer, fixed wire

24 240355211 Shelf-"Spill-Safe", fixed

25 240354502 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240354602 Cover-crisper pan, lower

26 240354705 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240351101 Control-humidity

27 240354807 Pan-crisper, lower

39 240430705 Trim-shelf, front

39B 240430701 Trim-shelf, front

42 240356501 Track, meat pan hanger, RH

42 240365401 Track, meat pan hanger, LH

47 240350635 Insert-pan cover, glass

47A 240350614 Insert-pan cover, glass

49 240564301 Basket-sliding

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

62 240355506 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545302 Water Tank Assy, coiled tubing, rear filter

100 240326301 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

126 218867405 Channel, auger mtg, LH

126 218867406 Channel, auger mtg, RH

140 240430501 Channel, wtr tube cover

Publication No: 5995423471 FRS23LH5DW5

12/04 10

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA6

149
