Frigidaire FRS23BH6C User manual

N58L00001.eps N58FCCBBB2.eps N58RCCBBB9.eps N58BAAAAB1.eps

N58SKBEBE1.eps N58TAAAAB3.eps N58CAAAAC0.eps N58XBAAAB0.eps

N58YAAAAA0.eps N58I115.eps W241526901A.eps S241526901A.eps

Product No. FRS23BH6CS2

Series R134a

Color stain/blk

Volts 115

Wiring Diagram 241526901

Owner's Guide 240389311

Market North America

Energy Guide 240592237

Service Data Sheet 240389616

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995405353

04/03/05

(EN/SERVICE/DCS)

357

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS23BH6C

Publication No: 5995405353 FRS23BH6CS2

03/04 2

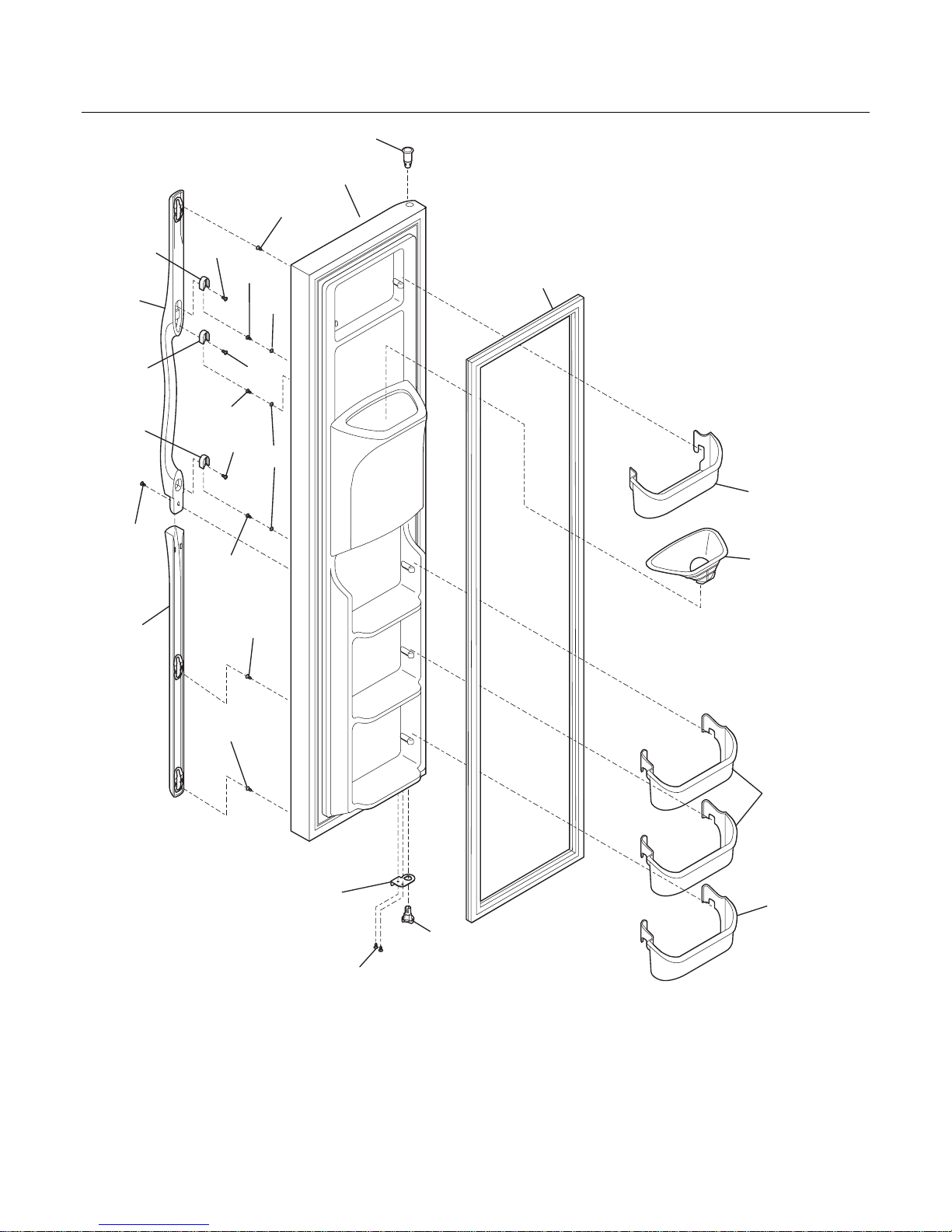

FREEZER DOOR

21C

22C

13A

22A

21A

N58FCCBBB2

FRS23BH6CS2 Publication No: 5995405353

# Functional Parts 3 03/04

* Non-Ilustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 240390608 Gasket-frzr door, black, magnetic

4A 240367301 Bin-door, frzr-upper

4B 240359001 Bin-door

11 240554224 Door-frzr, stainless steel, complete assy

13A 240581906 Door Stop, black, frzr

18 240359108 Handle-door, black, LH

21 218781100 Screw, pan head, 8-18 x 0.625

21A 240598401 Screw, 10-32 x 1/2

21C 240521302 Screw, #8-18 x 3/4

22A 240328204 Bearing-hinge, closer

22C 240328404 Bearing-hinge, black, upper

37 240359203 Trim-handle, 30.13", black, lower

68 241525101 Chute-ice

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

* 218490900 Cleaner, stainless steel

* 240352102 Connector-water, straight

* 240552102 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995405353 FRS23BH6CS2

03/04 4

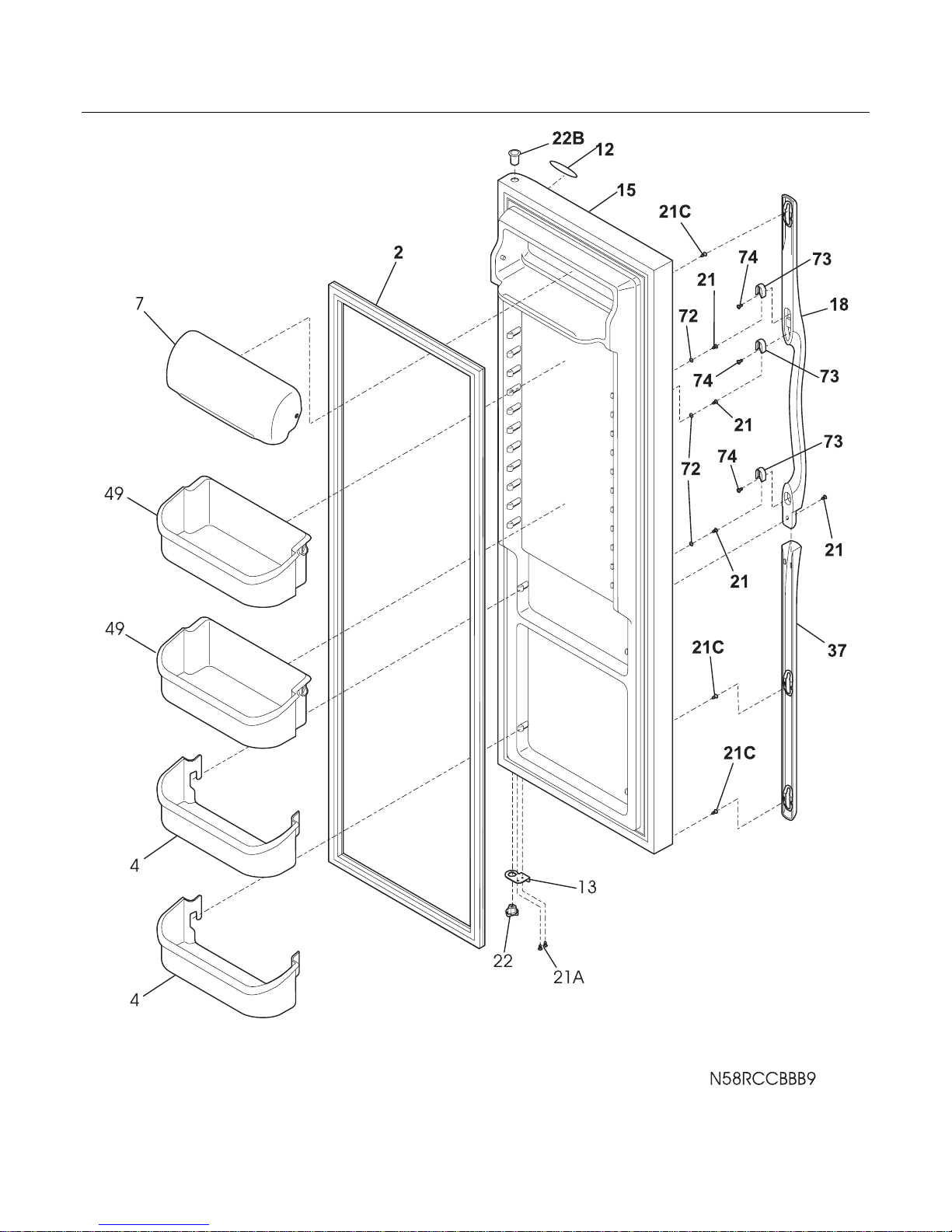

REFRIGERATOR DOOR

FRS23BH6CS2 Publication No: 5995405353

# Functional Parts 5 03/04

* Non-Ilustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 240390607 Gasket-refr door, black, magnetic

4 240363702 Bin-door, 2-liter

7 240338303 Door, dairy, clear

12 240449707 Nameplate, black

13 240581905 Door Stop, black, ref

15 240451940 Door-refr, stainless steel, complete assy

18 240359103 Handle-door, black, RH

21 218781100 Screw, pan head, 8-18 x 0.625

21A 240598401 Screw, 10-32 x 1/2

21C 240521302 Screw, #8-18 x 3/4

22 240328203 Bearing-hinge, closer

22B 240328404 Bearing-hinge, black, upper

37 240359203 Trim-handle, 30.13", black, lower

49 240324502 Bin-door, gallon

72 240421701 Button-handle mtg, dovetail

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

* 218490900 Cleaner, stainless steel

Publication No: 5995405353 FRS23BH6CS2

03/04 6

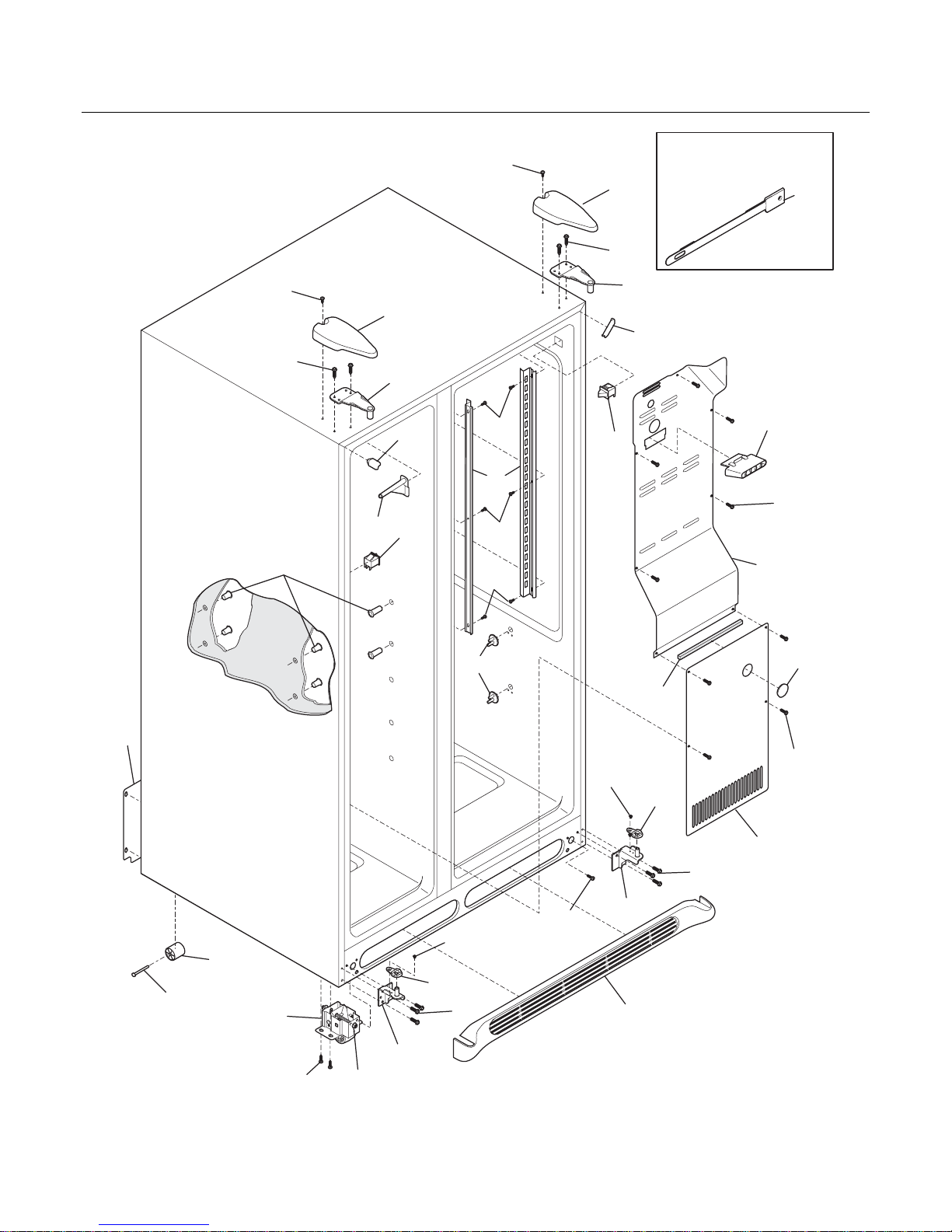

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB1

150

FRS23BH6CS2 Publication No: 5995405353

# Functional Parts 7 03/04

* Non-Ilustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435905 Cover-air duct

10A 240475906 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 # 240505801 Switch, light/lamp

14A# 215486600 Switch-light/lamp

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457701 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240419103 Bracket-lower hinge, ref

30A 240419104 Bracket-lower hinge

37 240337603 Trim-cabinet corner, black, (2)

38 240327202 Bracket-upper hinge

40 240327007 Cover-upper hinge, black

41 240358701 Grommet-shelf mtg, 1.40" long

41* 240358801 Grommet-shelf mtg, .875" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 240349402 Channel-shelf mtg, side, (2)

58 218781100 Screw, pan head, 8-18 x 0.625

66 5304424968 Damper Cover Assy

72 240324405 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 240326103 Cover, access, system compt, with label

90 218249807 Seal-coil cover

91 240380101 Duct-ice maker

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

150 240368701 Guide-control bulb

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 240479601 Plug, button, cab liner holes, (2)

* 240481601 Shim-lower hinge

* 5303305345 Paint, touch-up, black

Publication No: 5995405353 FRS23BH6CS2

03/04 8

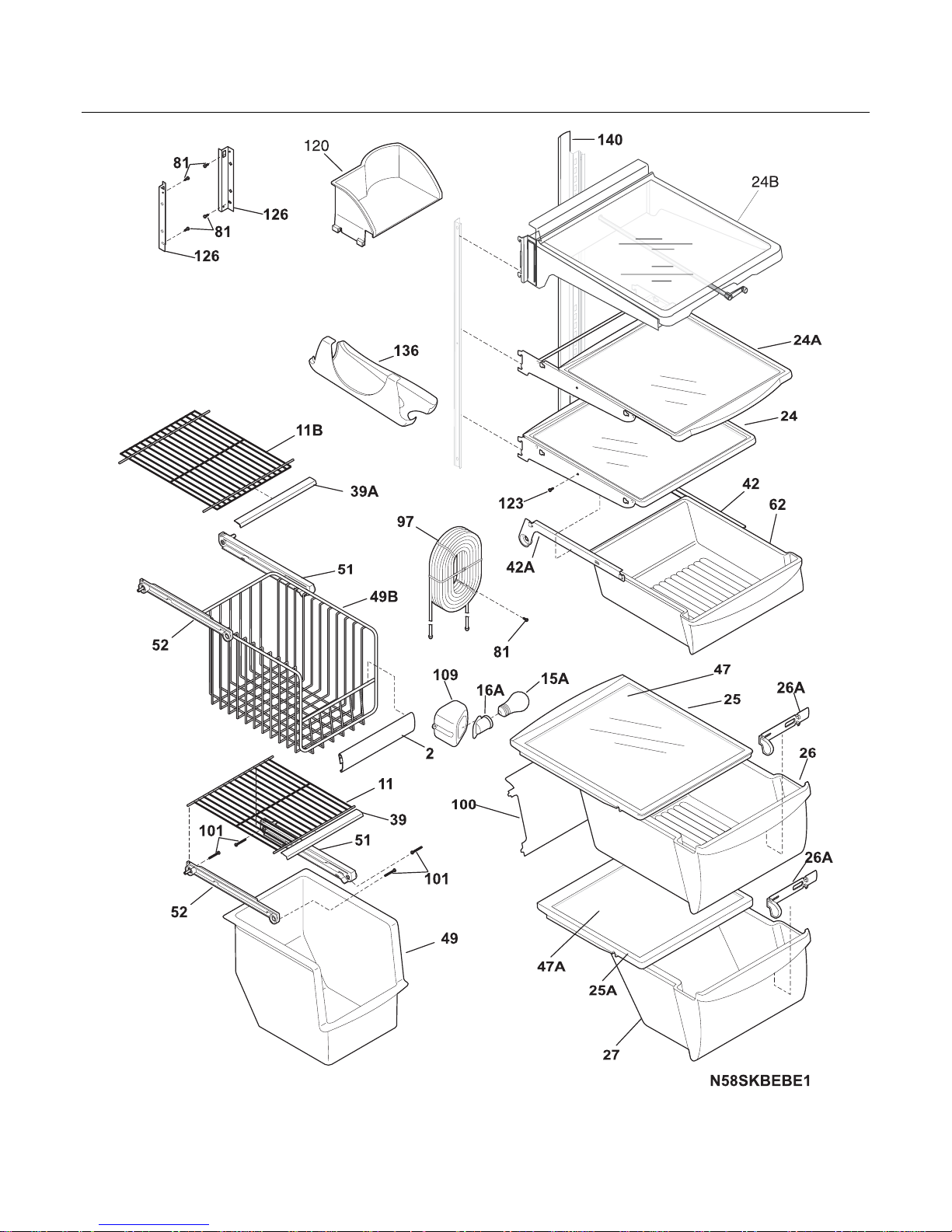

SHELVES

FRS23BH6CS2 Publication No: 5995405353

# Functional Parts 9 03/04

* Non-Ilustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510603 Trim-basket

11 240338801 Shelf-freezer, flip-up

11B 240338703 Shelf-freezer, fixed wire

15A 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature

16A 241513901 Socket-light

16A* 241537602 Harness-wiring

24 240355201 Shelf-"Spill-Safe", fixed, (1)

24A 240350103 Shelf-"Spill-Safe", sliding, (2)

24B 240424603 Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240354502 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240354602 Cover-crisper pan, lower

26 240354705 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26A 240351101 Control-humidity

27 240354805 Pan-crisper, lower

39 240430705 Trim-shelf, front

39A 240430701 Trim-shelf, front

42 240356501 Track, meat pan hanger, RH

42A 240349701 Hanger-meat pan, LH

42A* 240349901 Block-meat pan rail, LH

42A* 240350001 Spring-meat pan rail

47 240350613 Insert-pan cover, glass

47A 240350614 Insert-pan cover, glass

49 240564301 Basket-sliding

49B 240530503 Basket-sliding, upper, full

51 240343002 Hanger-basket, RH

52 240343102 Hanger-basket, LH

62 240355505 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 Water Tank Assy, coiled tubing, front filter

100 240326301 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 Base-crisper light socket

120 240342902 Shelf-ice cream

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

126 218867405 Channel, auger mtg, LH

126 218867406 Channel, auger mtg, RH

136 240424502 Dispenser-can, clear

140 240430501 Channel, wtr tube cover

* 240592237 Energy Guide

Publication No: 5995405353 FRS23BH6CS2

03/04 10

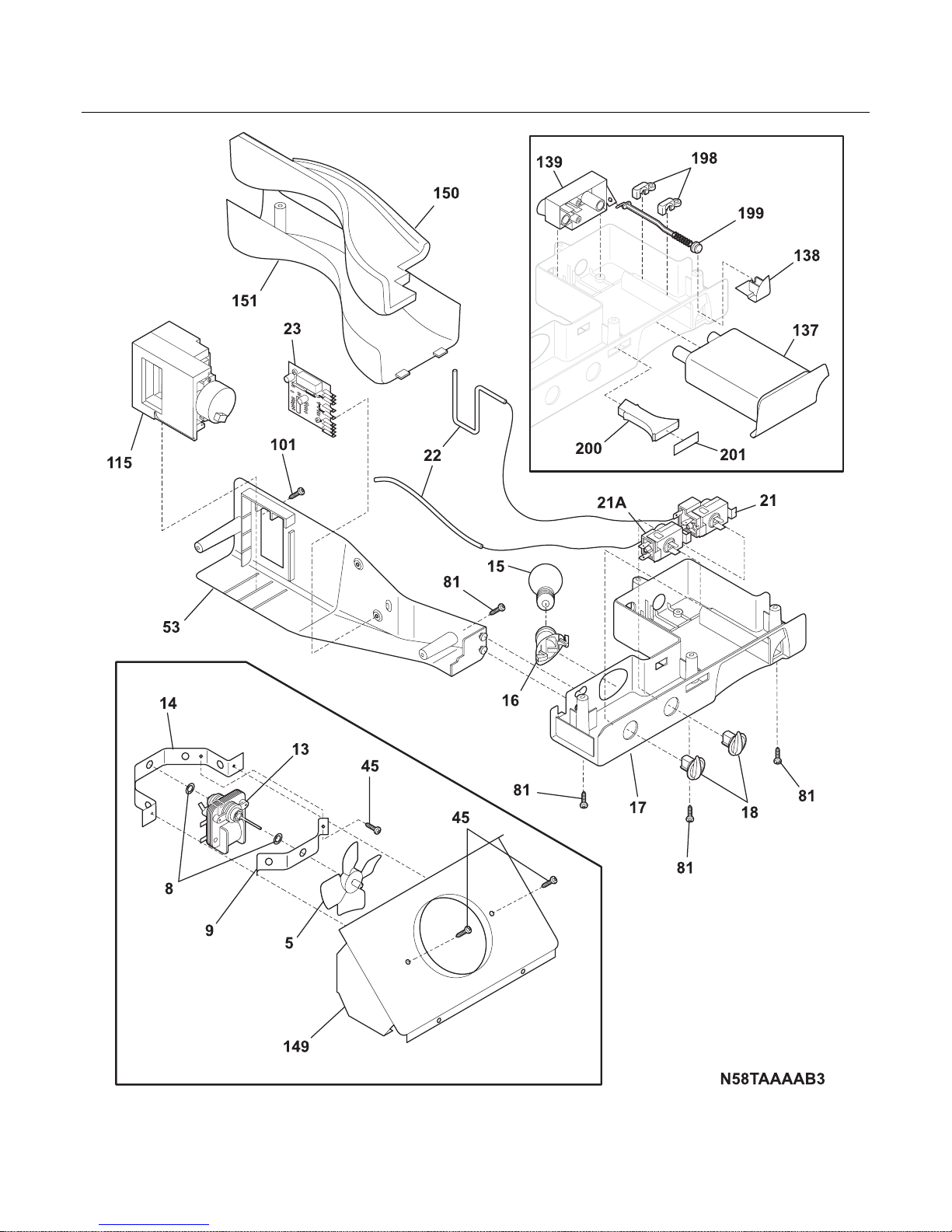

CONTROLS
