Frigidaire Gallery FGEC3045K B Instruction Manual

FGEC3045K.eps CFGEC3045K.eps MFGEC3045K.eps 387621700-1.eps

387621700-2.eps

Product No. FGEC3045KB1 FGEC3045KS1 FGEC3045KW1

Series 30" elec 30" elec 30" elec

Color black stainless white

Market North America North America North America

Wiring Diagram 387621700 387621700 387621700

Owner's Guide 318203628 318203628 318203628

Installation Instructions 318205403 318205403 318205403

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995537882

09/04/13

(EN/SERVICE/ECL)

377

30” ELECTRIC COOK-

TOP RANGE

Model No.

FGEC3045K

Publication No: 5995537882 FGEC3045K

04/09 2

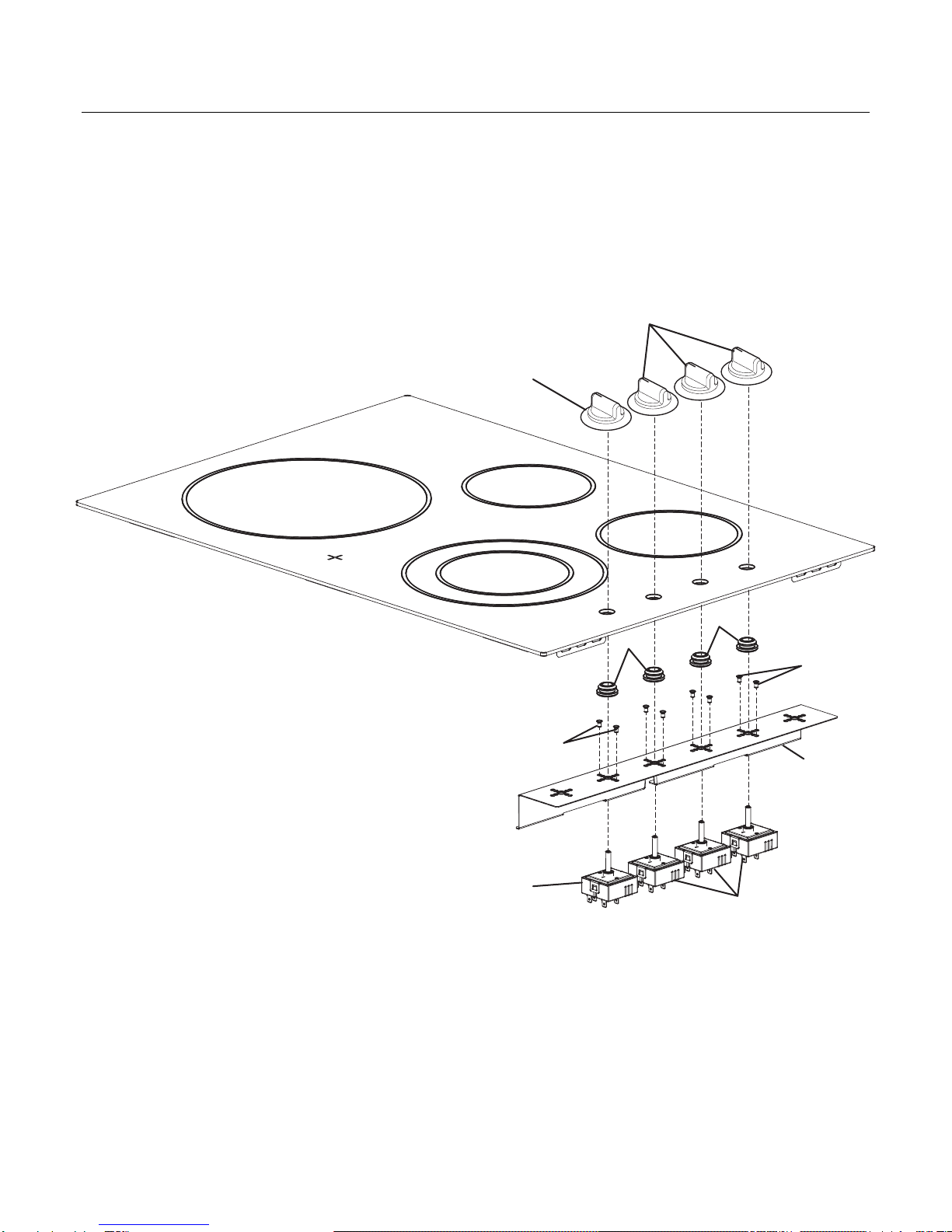

CONTROL PANEL

CFGEC3045K 5

FGEC3045K Publication No: 5995537882

# Functional Parts 3 04/09

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFGEC3045K (FGEC3045KB1)

BFGEC3045K (FGEC3045KS1)

CFGEC3045K (FGEC3045KW1)

POS. NO PART NO. DESCRIPTION

2 316564618 A B - Knob, control, black, single

2 316545117 - - C Knob, control, white, single

2A 316564614 A B - Knob, control, black, dual

2A 316545115 - - C Knob, control, white, dual

3 387316100 A B C Bushing, knob, sealing

4 387559700 A B C Bracket, support, switch mtg.

5 # 305458905 A B C Switch, surface element

5A # 305458904 A B C Switch, surface element, dual

7 319224001 A B C Screw, switch mtg., M4 x 7

Publication No: 5995537882 FGEC3045K

04/09 4

MAIN TOP/SURFACE UNITS

11 6

14 14

MFGEC3045K

FGEC3045K Publication No: 5995537882

# Functional Parts 5 04/09

* Non-Illustrated Parts

MAIN TOP/SURFACE UNITS

Model Index: AFGEC3045K (FGEC3045KB1)

BFGEC3045K (FGEC3045KS1)

CFGEC3045K (FGEC3045KW1)

POS. NO PART NO. DESCRIPTION

1 305379368 A - - Maintop Assembly, glass/steel, black

1 305379366 - B - Maintop Assembly, glass/steel, black/stainless

1 305379367 - - C Maintop Assembly, glass/steel, white

6 387372900 A B C Spring, surface element

8 # 374063522 A B C Element, surface, 6", 1200W

9 # 389087201 A B C Element, surface, 12", 2700W

10 # 318178104 A B C Element, surface, 7”, 1500W

11 # 389087401 A B C Element, dual surface, 6/9", 1600/3000W

12 # 387812000 A B C Light Assembly, indicator, hot surface

13 387774200 A B C Box, inner

14 330447900 A B C Screw, B4, 2 x 9, 5

15 387683500 A B C Support, burner box

* 305351200 A B C Rivet, 3, 2 x 6

16 387627600 A B C Spacer, burner box, plastic

17 387559400 A B C Box, burner, outer

18 387174602 A B C Bracket, spring, cooktop mtg.

* 387627700 A B C Bracket, retainer, cooktop

* 305376102 A B C Screw

* 305309606 A B C Screw

19 387683300 A B C Bracket, surface element

* 305376101 A B C Screw, bracket, surface element

20 387727700 A B C Retainer, wiring

* # 318078564 A B C Box & wires assy

* # 387861400 A B C Harness, wiring, main

* 305452800 A B C Screw, ground

Publication No: 5995537882 FGEC3045K

04/09 6

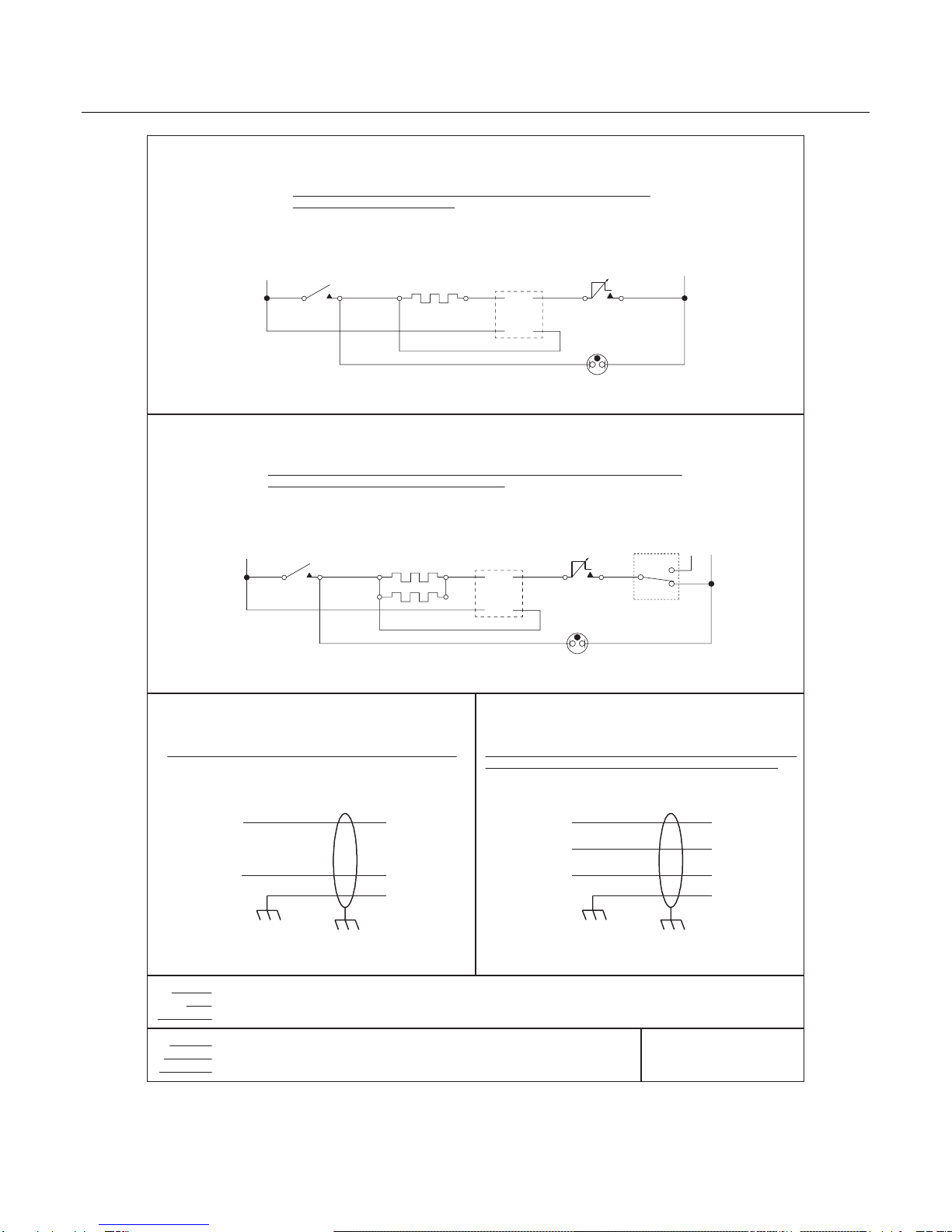

WIRING DIAGRAM

387 6217 00 REV. B

Page 1

CAUTION: DISCONNECT POWER BEFORE SERVICING UNIT.

ATENCION: DESCONECTE LA ENERGIA ANTES DE REALIZAR EL MANTENIMIENTO DEL ELECTRODOMESTICO.

ATTENTION: COUPER LE COURANT AVANT D´EFFECTUER LAREPARATION.

BL - BLUE /AZUL/ BLEU

BK - BLACK / NEGRO / NOIR

W - WHITE / BLANCO / BLANC

O - ORANGE / NARANJA / ORANGE

BR - BROWN / MORENO / BRUN

COLOR CODE / CODIGOS /

CODE COULEUR

G - GREEN / VERDE / VERT

SW. - SWITCH

INTERRUPTOR

INTERRUPTEUR

P. L. - PILOT LIGHT

LAMPARA PILOTO

LAMPE TEMOIN

R. F. - RIGHT FRONT

FRENTE DERECHO

AVANT DROIT

R. R. - RIGHT REAR

TRASERO DERECHO

ARRIERE DROIT

L. F. - LEFT FRONT

FRENTE IZQUIERDO

AVANT GAUCHE

L. R. - LEFT REAR

TRASERO IZQUIERDO

ARRIERE GAUCHE

R. C. - REAR CENTER

TRASERO CENTRO

ARRIERE CENTRE

L. C. - LEFT CENTER

CENTRO DE IZQUIERDO

CENTRE GAUCHE

H. S. - HOT SURFACE

SUPERFICIE CALIENTE

SURFACE CHAUDE

LEGEND 1 / LEYENDA 1 / LEGENDE 1

4(3) 2(1)

LIMITER / LIMITADOR / LIMITEUR

E. G. O. / A. K. O.

1A 2A

1B 2B

LIMITER / LIMITADOR / LIMITEUR

CERAMASPEED / EIKA

CODE / CODIGO /

CODE STYLE / ESTILO / STYLE

CODE

GAUGE /

MEDIDA

TEMP.

CALIBRE

200°C

150°C

cUL

UL3122 or UL3135

3321

NOTE: USE PAGE 2 FOR GAGE AND

WIRE COLOR.

NOTA: UTILIZAR LA PAGINA 2 PARA EL

CALIBRE Y ELCOLOR DE LOS CABLES.

NOTE: UTILISER LA PAGE 2 POUR LE

CALIBRE ET LACOULEUR DU FIL.

***

R - RED / ROJO / ROUGE

MODEL WITH BRIDGE ELEMENT / MODELO Y ELEMENTO RADIANTE

SUPERIOR DE PUENTE / MODELE AVEC ELEMENT PONT

R-6

P. L.

H. S.

BL-2

LIMITER /

LIMITADOR /

LIMITEUR

UNIT /

ELEMENTO /

ELEMENT

BK-6

BL-2

*** ***

BK(BR)-1 BK(BR)-1

BK-2

L. F. SW.

L. F.

R-6

P. L.

H. S.

BL-2

LIMITER /

LIMITADOR /

LIMITEUR

UNIT /

ELEMENTO /

ELEMENT

4P2

SW.

BK-6

P12

BL-2

W-1 W-1

BK-2

L. R. L. R. SW.

L. R.

UNIT /

ELEMENTO /

ELEMENT

L. C.

4aP2

SW.

BL-1

L. F.

P12

MODEL WITH DOUBLE ELEMENT / MODELO Y ELEMENTO DE DOBLE /

MODELE AVEC ELEMENT DOUBLE

R-6

P. L.

H. S.

BL-2

LIMITER /

LIMITADOR /

LIMITEUR

BK-6

BL-2

*** ***

BR-1 BR-1

BK(BL)-2

BK-2

SW.

L. F.

UNIT /

ELEMENTO /

ELEMENT

4aP2

SW.

BL-1

P12

OUTER / EXTERIOR / EXTERIEUR

INNER / INTERIOR / INTERIEUR

MODEL WITH 4 UNITS / MODOLO Y4 ELEMENTOS / MODELEAVEC 4 ELEMENTS

MODEL WITH REGULAR ELEMENT / MODELO Y ELEMENTO REGULARE /

MODELE AVEC ELEMENT REGULIER

R-6

P. L.

H. S.

BL-2

LIMITER /

LIMITADOR /

LIMITEUR

UNIT /

ELEMENTO /

ELEMENT

4P2

SW.

BK-6

P12

BL-2

*** ***

BK(BL)-2

BK-2

SW.

SEE LEGEND 2 / VER LEYENDA 2 / VOIR LEGENDE 2

POSITION / POSICION / POSITION

BK ON / EN / SUR L. F.

BK ON / EN / SUR R. R.

BR ON / EN / SUR R. F.

ON / EN / SUR L. R.

LEGEND 2 / LEYENDA 2 / LEGENDE 2

MODEL WITH 5 UNITS / MODOLO Y5 ELEMENTOS / MODELEAVEC 5 ELEMENTS

POSITION / POSICION / POSITION

BR ON / EN / SUR L. F.

BK ON / EN / SUR R. R.

BR ON / EN / SUR R. F.

ON / EN / SUR L. R.

FGEC3045K Publication No: 5995537882

# Functional Parts 7 04/09

* Non-Illustrated Parts

WIRING DIAGRAM

387 6217 00 REV. B

Page 2

MODEL WITH OTHERS / OTROS MODELOS / AUTRE MODELES MODEL WITH SIMMER SELECT / LOS MODELOS CON SELECTOR DE

HIRVEA FUEGO LENTO / MODELEAVEC SELECTEUR MIJOTANT

CAUTION: DISCONNECT POWER BEFORE SERVICING UNIT.

ATENCION: DESCONECTE LA ENERGIA ANTES DE REALIZAR EL MANTENIMIENTO DEL ELECTRODOMESTICO.

ATTENTION: COUPER LE COURANT AVANT D´EFFECTUER LAREPARATION.

INSIDE

INTERIOR

INTERIEUR

GND

OUTSIDE

EXTERIOR

EXTERIEUR

BK-3

R-3

G-3

INSIDE

INTERIOR

INTERIEUR

GND

OUTSIDE

EXTERIOR

EXTERIEUR

BK-3

R-3

G-3

NW-4

BK-4

R-6

W-6

MODEL WITH REGULAR ELEMENTAND SELECTOR / MODELO Y ELEMENTO Y SELECTOR /

MODELE AVEC ELEMENT REGULIER ET SELECTEUR

SELECTOR /

SELECTEUR

NL2

R-6

O-6

SW.

P. L.

H. S.

BL-2

LIMITER /

LIMITADOR /

LIMITEUR

UNIT /

ELEMENTO /

ELEMENT

4P2

SW.

BK-5

P12

BL-2

MODEL WITH WARMING ELEMENT / MODELO Y ELEMENTO DE CALENTADOR /

MODELE AVEC ELEMENT RECHAUD

*** ******

BK-1 BK-1

BK-2

P. L.

H. S.

BL-2

LIMITER /

LIMITADOR /

LIMITEUR

WARMING UNIT /

ELEMENTO DE CALENTADOR /

ELEMENT RECHAUD

4P2

SW.

BL-2

P12

BL-2

*** ***

BK-2 BK-2

BK-2

R. C. R. C. SW.

R. C.

REMARK: FOR CONNECTING THE PLATFORM SEE INSTALLATION SHEET OR USEAND CARE GUIDE.

NOTA: PARACONECTAR LAPARRILLADE COCINAR, VER LA HOJA DE INSTALACION O EL MANUALDEL USUARIO.

REMARQUE: POUR BRANCHER LATABLE DE CUISSON VOIR LE FEUILLET D´ INSTALLATION OU LE MANUEL D` UTILISATION ET D´ ENTRETIEN.
