Frigidaire FGEF3041KF - Electric Range 5.4 Cu.ft User manual

frigidaire.com

Signature Features

Eortless Performance

Even Baking Technology

Auto Shut-O

Quick Clean Option

Performance-Driven Style

Fits-More™ Cooktop

More Easy-To-Use Features

One-Touch Self Clean

Delay Start

Smoothtop Ceramic Glass Cooking Surface

Broil Option ( 3,600W )

Hidden Bake Element

Extra-Large Window

Storage Drawer

Capacities

5.4 Cu. Ft. Oven Capacity

Overall Exterior Dimensions

Height 47"

Width 29-7/8"

Depth 28-1/4"

Available in:

Freestanding Range

FGEF3041K F

30" Electric

Stainless

(F)

Quick Boil

Boil water faster with our

3,000-watt element.

Express-Select™ Controls

Easily go from warm to boil.

Real Stainless Steel

Real stainless steel with a protective

coating that reduces fingerprints and

smudges so it's easy to clean.

Keep Warm Zone

Keep food warm until everything —

and everyone — is ready.


To Come

Specifications

subject to change.

FRIGIDAIRE®

USA

•

250 Bobby Jones Expressway

•

Martinez, GA 30907

•

1-800-FRIGIDAIRE •frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Range Specifications

•Product Shipping Weight (approx.) – 205 Lbs.

•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,

fused on both sides of line with ground.

•Connected Load (kW Rating) @ 240 / 208 Volts = 12.5 / 9.5 kW

•Recommended Circuit Breaker – 40 Amps

•Always consult local and national electric codes.

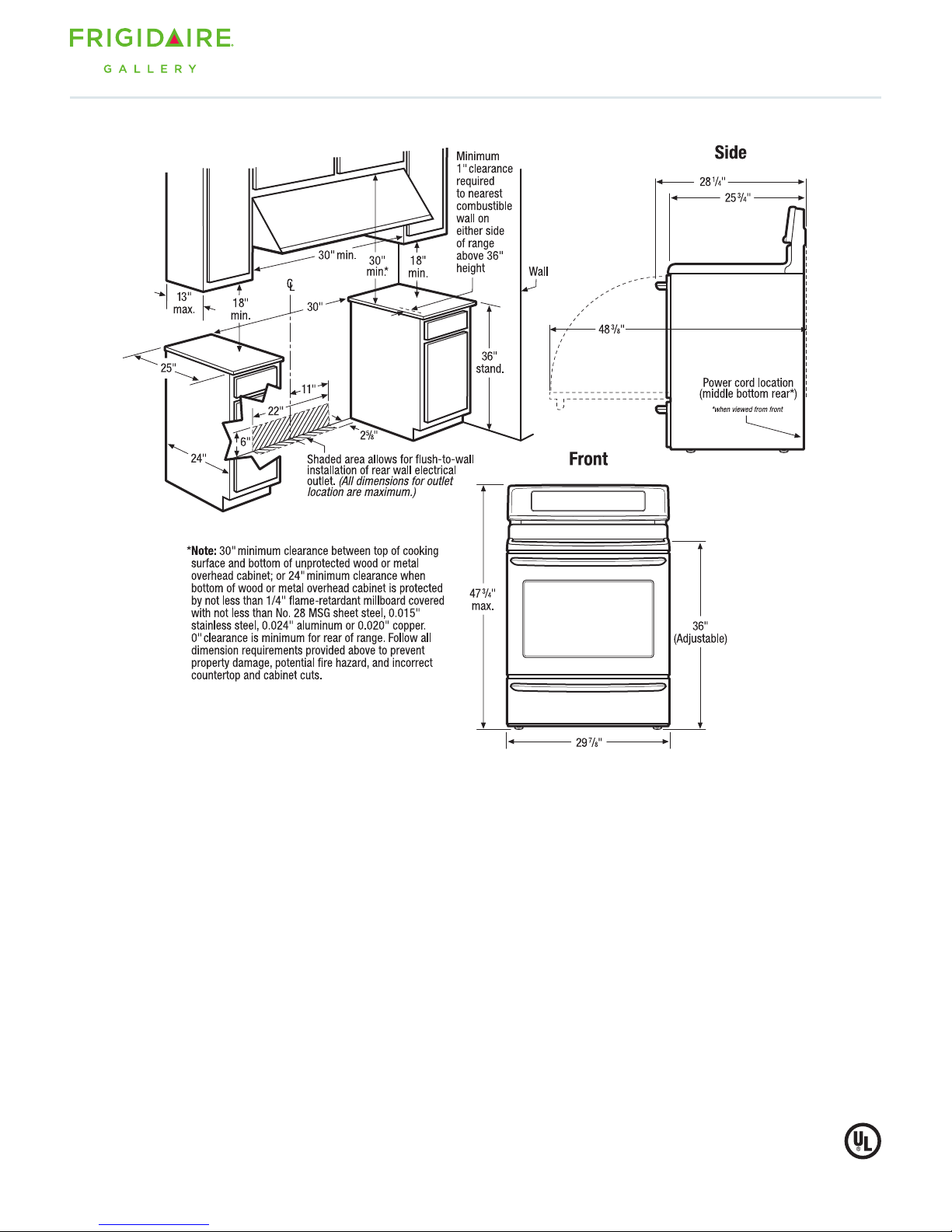

•Floor beneath range MUST be solid and level.

•Overhead cabinetry should not exceed a 13" maximum depth.

•Absolute minimum horizontal distance between overhead cabinets

installed to either side of appliance must be no less than maximum

width of appliance.

•Range can be installed flush to wall with 0" minimum rear clearance.

•Minimum 1" clearance required from edge of rangetop to nearest

combustible wall on either side of range above 36" height.

•Allow 30" minimum clearance between top of cooking surface and

bottom of unprotected wood or metal overhead cabinet; or 24"

minimum clearance when bottom of wood or metal overhead cabinet

is protected by not less than 1/4" flame retardant millboard covered

with not less than No. 28 MSG sheet steel, 0.015" stainless steel,

0.024" aluminum or 0.020" copper.

•To reduce risk of fire when using overhead cabinetry, install

range hood that projects horizontally a recommended minimum

of 5" beyond bottom of cabinets.

•Follow all dimension requirements provided to prevent property

damage, potential fire hazard, and incorrect countertop and

cabinet cuts.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

30" Electric Freestanding Ranges

Gallery

Freestanding Range

FGEF3041K F 30" Electric
