Frigidaire FEF351SGWB User manual

FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF351SGWB FEF351SG WHITE USA

FEF351SGWC FEF351SG WHITE USA

Publication No.

5995321790

990427

-EN/SERVICE /SBR

369

WIRING DIAGRAM # - 316002622

OWNER’S GUIDE # - 316000263

INSTALLATION GUIDE # - 316003025,316003018 ELECTRIC - RANGE

FEF351SGWB,

FEF351SGWC

06/99 2

Publication number

5995321790 FEF351SGWB, FEF351SGWC

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FEF351SGWB, FEF351SGWC 5995321790

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A= FEF351SGWB

B= FEF351SGWC

POS. NO PART NODESCRIPTION

* 316021105 A B Screw,hex ,8-18 x 0.375 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316071902 A B Gasket-edge

* 316085600 A B Insulator-shield thermostt

* 316112500 A B Template, Anti-tip bracket

* 5303292005 A B Screw-switch/handle,8-32 x 5/32

1 316081601 A B Shield-backguard,rear wall

2 316015907 A B Shield-backguard,inner

11 316061851 A B Trim-wrapper,textured ,black

14 316022504 A B Light-indicator,250v

15 316023108 A B Support-backguard,RH

15A 316023109 A B Support-backguard,LH

19 316024494 A B Panel-control,metal

20 # 316101101 A B Clock/Timer,Trimline,dial

20* 316101521 A B Overlay-clock

23 316100300 A B Bracket-clock mtg

32 316101400 A B Knob-thermostat

36 316025108 A B Knob-control, infinite sw, black

40 316025800 A B Panel-manifold

46 316040201 A B Lens-light/lamp,indicator ,red

54 # 316021500 A B Switch-infinite, 6" element

54A# 316021501 A B Switch-infinite, 8" element

06/99 4

Publication number

5995321790 FEF351SGWB, FEF351SGWC

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 06/99

Publication number

FEF351SGWB, FEF351SGWC 5995321790

CAUTION: Use the part number on all orders, not the position number.

BODY

A= FEF351SGWB

B= FEF351SGWC

POS. NO PART NO DESCRIPTION

* 3203550 A B Plug-button

* 316021105 A B Screw,hex ,8-18 x 0.375 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 5303051099 A B Nut,hex ,#10-32

* 5308014215 A B Screw,8-X 1/2 ,(4)

1 316080804 A B Back-main, short,dipped ,black

3 316081034 A B Panel-bodyside, white ,RH

3 316081035 A B Panel-bodyside, white , LH

4 5303271756 A B Burner Box

5 316107300 A B Screw-leveling

6 316067902 A B Rack-oven

7 316007003 A B Hinge-oven door,assembly

8 3203540 A B Panel-oven bottom

9 316073800 A B Pan-broiler

10 3205234 A B Insert-broiler pan

12 # 316027701 A B Switch-oven light

13 316026800 A B Rod-light switch /door

14 316116400 A B Socket-light

15 5303013071 A B Light Bulb/Lamp

16 08011086 A B Lens-light/lamp, glass , oven

17 316087500 A B Retainer-lens

18 # 316036300 A B Latch-door

21 3014099 A B Spacer-bodyside, (8)

25 3200848 A B Shield-heat,lower

29 3051162 A B Glide-drawer,front

30 5303283574 A B Bracket-hinge,main top RH

30A 5303283575 A B Bracket-hinge,main top LH

37 # 316111200 A B Probe-oven temp

41 3131570 A B Cover-hinge cutout

44 3131903 A B Bumper-door/drawer, rubber

57 316081101 A B Cover-access

58 3200847 A B Insulation,oven bottom

58A 316047707 A B Insulation, 1" ,oven wrapper

58A 316047708 A B Insulation, 2" ,oven wrapper

58B 316054200 A B Insulation, 2" ,oven back

58B 316054202 A B Insulation, 1" ,oven back

59 316073600 A B Tube-oven vent

62 # 5303935061 A B Terminal Block

63 5301145190 A B Plate-ground strap

66 # 5303051140 A B Element-broil

67 # 316075102 A B Element-bake,lower oven

68 316075300 A B Support-element, broil

71 316015805 A B Shield-rear wall

72 5303285692 A B Cover-light/switch rod

82 5303289913 A B Shield-insulation

87 316081200 A B Bracket-cable mtg

88 316026400 A B Rod-latch,auto

89 # 316028101 A B Motor-latch/lock

170 316107200 A B Anti-tip bracket

170* 316116000 A B Screw-Anti tip, 1.75" concrete

06/99 6

Publication number

5995321790 FEF351SGWB, FEF351SGWC

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 7 06/99

Publication number

FEF351SGWB, FEF351SGWC 5995321790

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A= FEF351SGWB

B= FEF351SGWC

POS. NO PART NO DESCRIPTION

* 316001725 A B Harness-wiring,surface element

* 316021105 A B Screw,hex ,8-18 x 0.375 ,back\bodyside

* 316021108 A B Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316021112 A B Screw-8-18x1/2 Tr Sqd White

* 316058600 A B Clip-surface element,(4)

* 316089600 A B Spacer-drawer,(2)

* 5303280311 A B Screw, waf hd sdr , 10-32 x 5/16 , (2)

* 5308014215 A B Screw,8-X 1/2 ,(4)

1 316011501 A B Drawer-utility

2 3131975 A B Shield-panel

4 316084405 A B Panel-drawer,white

7 3051163 A B Glide-drawer,rear

15 # 3051450 A B Element-surface, 8" , large

15A# 3051449 A B Element-surface, small

16 316020907 A B Main Top,white

17 316057601 A B Rod-maintop support

18 5303273062 A B Hinge-main top,RH

18A 5303273063 A B Hinge-main top,LH

19 5303935054 A B Pan-surface element,large/8 inch

19A 5303935057 A B Pan-surface element,small/6 inch

27 # 5303912666 A B Terminal Block Kit,surface element

28 5303017715 - B Medallion,1 1/2"dia ,black ,

surface element

28 3017801 A - Medallion,1 1/2”dia ,stainless steel

06/99 8

Publication number

5995321790 FEF351SGWB, FEF351SGWC

CAUTION: Use the part number on all orders, not the position number.

DOOR

# - Fast Moving Parts

* - Non Illustrated Parts 9 06/99

Publication number

FEF351SGWB, FEF351SGWC 5995321790

CAUTION: Use the part number on all orders, not the position number.

DOOR

A= FEF351SGWB

B= FEF351SGWC

POS. NO PART NO DESCRIPTION

* 3203618 A B Rivet-pop,warning-plate

* 316021110 A B Screw-8-18x1/2 Tr Sqd black

* 316065301 A B Plate warning/caution

* 5303212671 A B Screw,cr pan hd sems ,8-32BP x 1.00

* 5303271648 A B Screw, wafer hd sq dr , 8-18AB x 1/2

* 5303280311 A B Screw, waf hd sdr , 10-32 x 5/16 , (2)

* 5303292005 A B Screw-switch/handle,8-32 x 5/32

3 316067802 A B Trim-oven door,black

4 316089001 A B Glass-oven door,black ,outer

6 316091402 A B Shield-wool

7 316076400 A B Insulation,oven door

7 316076404 A B Insulation,oven door

9 316066611 A B Liner-oven door

10 5303280308 A B Screw-handle mtg,wafer head ,10-24T x 2

12 # 5303131601 A B Seal-oven door

39 316091114 A B Handle-door,black ,oven

39* 316008401 A B Washer,3/4 x 1/4 ,steel

52 316081303 A B Shield-oven door,black ,top

06/99 10

Publication number

5995321790 FEF351SGWB, FEF351SGWC

CAUTION: Use the part number on all orders, not the position number.

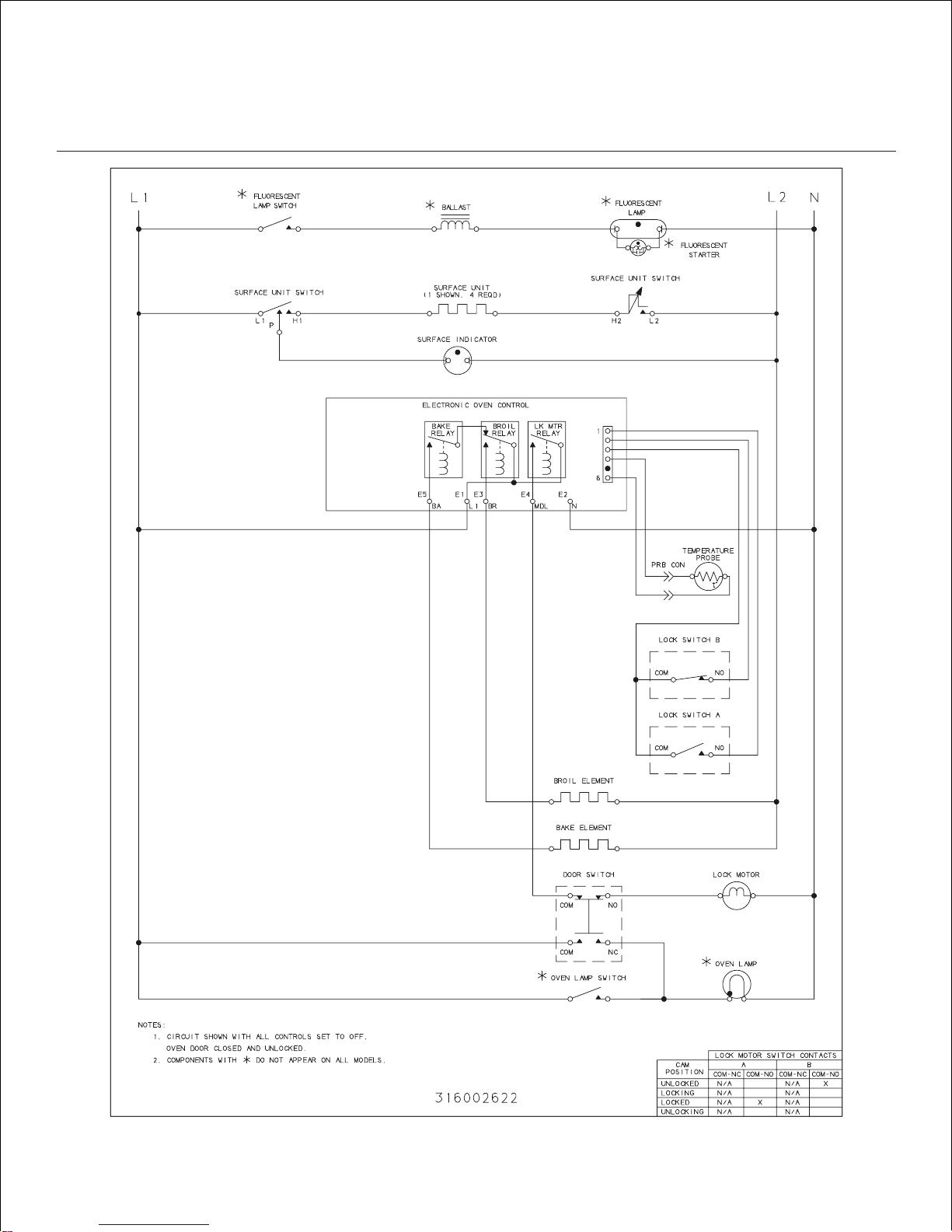

WIRING DIAGRAM
