Frigidaire FEC32S6ABE Instruction Manual

FEC32S6A.eps LA01CP80323-1B.eps LA01CT80323-1A.eps 318046807-1.eps

318046807-2.eps

Product No. FEC32S6ABE FEC32S6ASE

3805432341065 3805433341015

Series 32" elec 32" elec

Color black white

Market North America North America

Wiring Diagram 318046807 318046807

Owner's Guide 318200612 318200612

Installation Instructions 318201410 318201410

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995434486

05/04/15

(EN/SERVICE/ECL)

377

ELECTRIC COOK-TOP

RANGE

Model No.

FEC32S6A

Publication No: 5995434486 FEC32S6A

04/05 2

CONTROL PANEL

FEC32S6A Publication No: 5995434486

# Functional Parts 3 04/05

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFEC32S6A (FEC32S6ASE)

BFEC32S6A (FEC32S6ABE)

POS. NO PART NO. DESCRIPTION

16 318096300 A B Plate, instrument mtg

36 318196633 A - Knob, control, white

36 318196634 - B Knob, control, black

51 # 318044820 A - Light, indicator, red

51 # 318044822 - B Light, indicator, clear

54 # 318220071 A B Switch, surface unit, small

54A# 318220072 A B Switch, surface unit, large

69 5303323134 A B Screw, 8-32 x 0.188

74 318148900 A B Bushing, switch

* 5303300265 A B Screw, 8-18 x 0.500, chrome, (3)

* 5303323140 A B Screw, ground, 10-32 x 0.375

Publication No: 5995434486 FEC32S6A

04/05 4

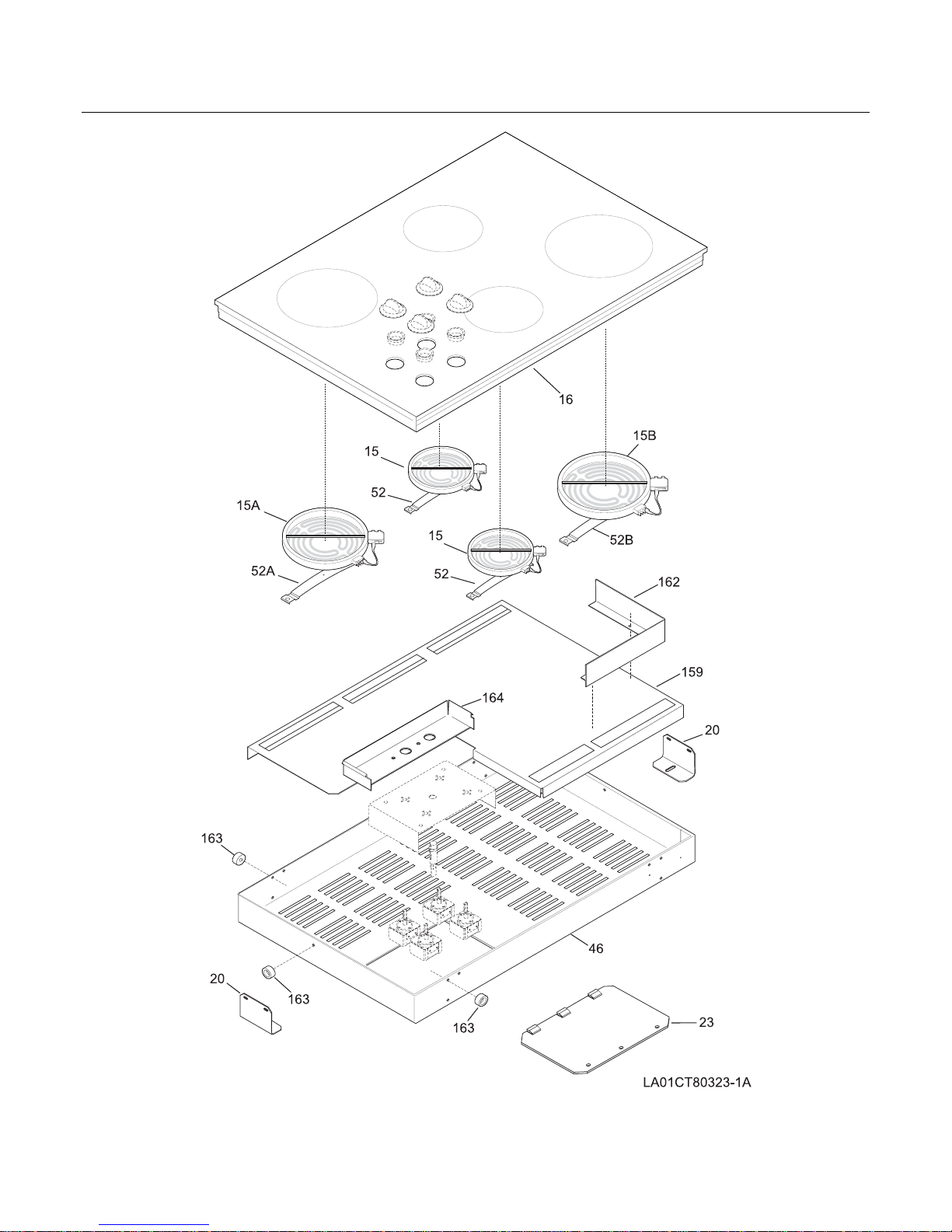

MAIN TOP/SURFACE UNITS

FEC32S6A Publication No: 5995434486

# Functional Parts 5 04/05

* Non-Illustrated Parts

MAIN TOP/SURFACE UNITS

Model Index: AFEC32S6A (FEC32S6ASE)

BFEC32S6A (FEC32S6ABE)

POS. NO PART NO. DESCRIPTION

15 # 318198817 A B Element, surface, small/6", 1200 W

15A# 318198818 A B Element, surface, large/8", 2200 W

15B# 318198819 A B Element, surface, 9", 2500 W

16 318079349 A - Main Top Assy, glass/steel, white

16 318079350 - B Main Top Assy, glass/steel, black

20 318121902 A B Bracket, retainer

23 5303297401 A B Panel, service

46 318077201 A B Burner Box

52 318122006 A B Spring, element mtg, small

52A 318122007 A B Spring, element mtg, large

52B 318122010 A B Spring, element mtg, 1000W/2500W

159 318125101 A B Deflector

162 318125200 A B Deflector

163 318014110 A B Spacer

164 318125302 A B Plate, connection

* # 318078525 A B Box & wires assy

* 08016432 A B Screw, truss head, 8-18 x 0.375

* 5303300265 A B Screw, 8-18 x 0.500, chrome, (3)

* 5303323129 A B Screw, 8 X 0.750

* 5303323140 A B Screw, ground, 10-32 x 0.375

Publication No: 5995434486 FEC32S6A

04/05 6

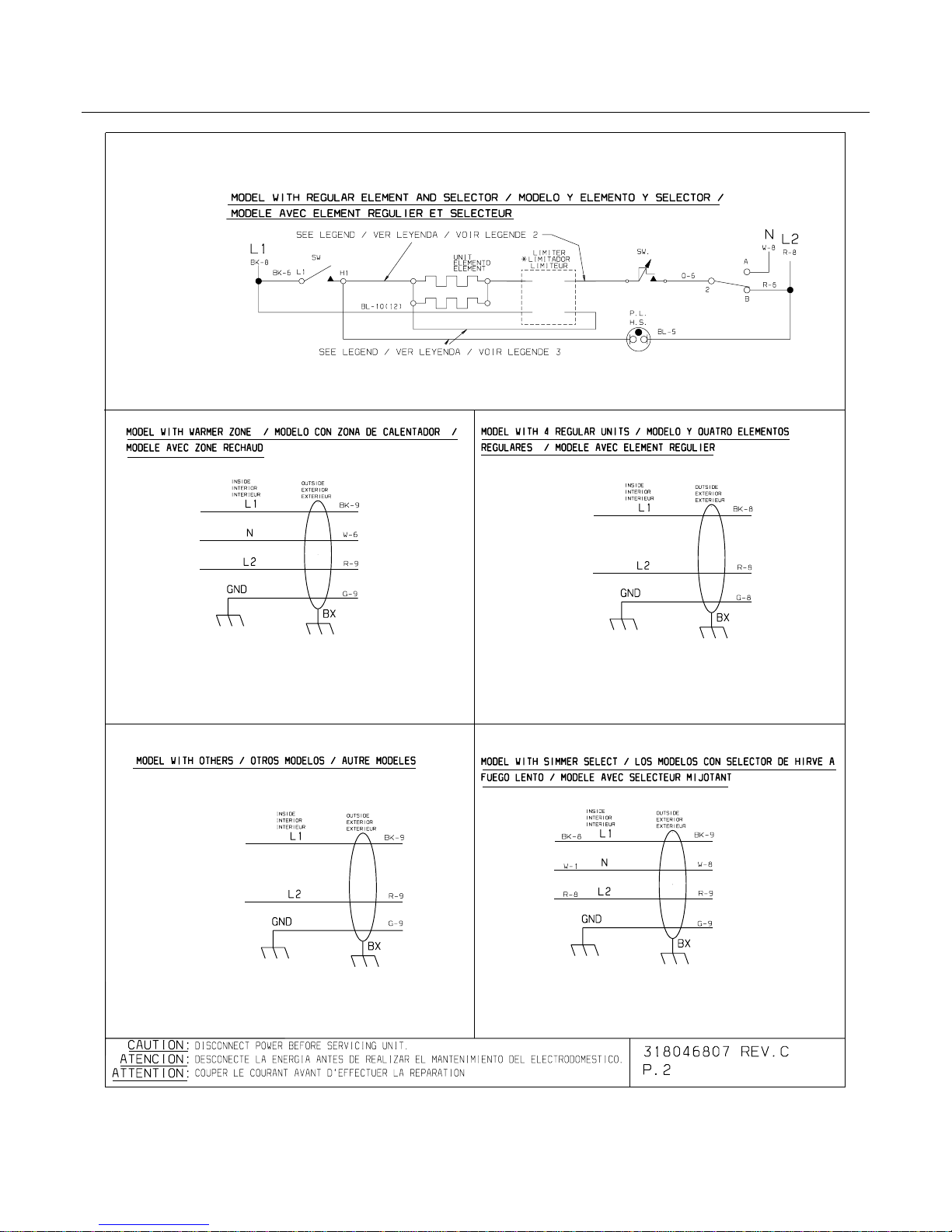

WIRING DIAGRAM

FEC32S6A Publication No: 5995434486

# Functional Parts 7 04/05

* Non-Illustrated Parts

WIRING DIAGRAM
