Frigidaire PLEB30T8A User manual

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

PLEB30T8ACA PLEB30T8A 37057393H10S1 stainless North America

Publication No.

5995361036

011114

-EN/SERVICE /ECL

377

ELECTRIC

WALL OVEN

Model No.

PLEB30T8A

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318046110

OWNER’S GUIDE - # 318200919

TIMER INSTRUCTION SHEET - # 318200130

INSTALLATION INSTRUCTIONS - # 318201509

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

11/01 2

Publication No. PLEB30T8ACA

5995361036

CONTROL PANEL

# = Functional Parts 3 11/01

* = Non-Illustrated Parts

PLEB30T8ACA Publication No.

5995361036

CONTROL PANEL

POS. NO PART NO DESCRIPTION

19 318030214 Panel,control ,black ,back

19A 318192811 Panel,control ,stainless ,front

20 # 318010501 Clock/Timer,EOC

21 318029700 Trim,top ,stainless

23 318015110 Bracket,clock mtg

42 318027410 Trim,vent ,black

80 # 318022001 Relay Board

81 # 318022002 Relay Board,w/transformer

82A 5303317199 Support,snap-in ,(3)

99 5303300265 Screw,8-18 x 0.500 ,chrome

* 3201861 Screw,6 x 0.375

* 218490900 Cleaner,stainless steel

* 5303211311 Screw,8 x 0.500

* 5303320848 Screw,6-20 x 0.250

11/01 4

Publication No. PLEB30T8ACA

5995361036

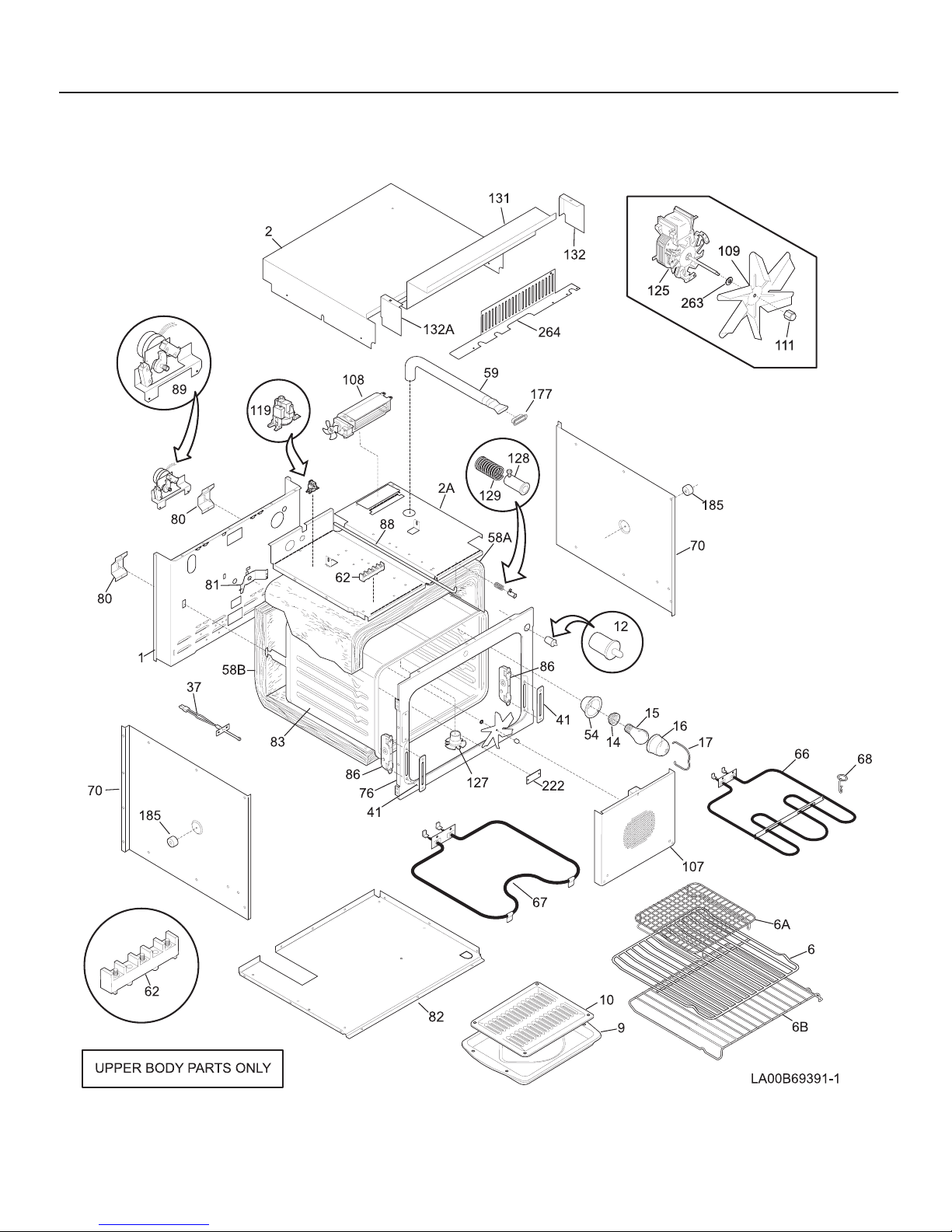

UPPER OVEN

# = Functional Parts 5 11/01

* = Non-Illustrated Parts

PLEB30T8ACA Publication No.

5995361036

UPPER OVEN

POS. NO PART NO DESCRIPTION

1 318066402 Panel,main back

2 318102101 Shield,oven top

2A 318071705 Shield,oven top

6 318025304 Rack,oven

6A 5303311206 Shelf,broiler pan

6B 318025402 Shelf,oven

9 5303317977 Pan,broiler

10 5303317976 Insert,broiler pan

12 318089910 Switch,oven light ,door frame

14 # 5308011085 Receptacle,oven light

15 # 3201908 Light,oven

16 3201911 Cover,oven light ,glass

17 5304400195 Retainer,light cover

37 # 316111203 Sensor,oven temp probe

41 5303310526 Cover,hinge cutout

54 5303310514 Housing,oven light

58A 318133744 Insulation,oven wrapper

58B 318133769 Insulation,oven back

59 318072506 Tube,oven vent

62 # 5303310518 Terminal Block

66 # 5303310513 Element,broil ,2750 W

67 # 5303310512 Element,bake ,3000 W

68 5304403015 Support,element hanger

70 5303300142 Shield,insulation

76 318056202 Front,oven

80 318192400 Spring,oven

81 5303320846 Plate,oven mtg

82 318072301 Shield,oven bottom

83 318089609 Liner,oven

86 5303310524 Receptacle,hinge

88 5303311222 Rod,latch

89 # 318095934 Motor,latch assy ,w/brkt & switch

89*# 318120710 Switch,cooktop shutoff

107 318119600 Cover,fan

108# 318073012 Motor,blower

109 5303311203 Blade,fan

111 5303311205 Nut,fan retainer

119# 318004900 Switch,thermal

125# 5303311202 Motor,convection

127 5303310542 Adapter,vent tube ,with converter

128 5303311163 Bushing

129 5303311164 Spring

131 318102301 Cover,control housing

132 318101700 End,cover ,RH ,control housing

132A 318101701 End,cover ,LH ,control housing

177 318053800 Gasket,vent

185 318014700 Spacer,oven shield

222 318080000 Plate,oven temp probe

263 5303322885 Spacer,fan blade

264 318143815 Shield,wire

* # 318078507 Box & wires assy

* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 5303211311 Screw,8 x 0.500

* 5303302745 Screw,10-16x1-1/8 ,square drive

* 5303311528 Screw,oval hd sq dr ,6-20AB x 0.625 ,black

* 5303323139 Screw,10-24 x 0.906

11/01 6

Publication No. PLEB30T8ACA

5995361036

LOWER OVEN

# = Functional Parts 7 11/01

* = Non-Illustrated Parts

PLEB30T8ACA Publication No.

5995361036

LOWER OVEN

POS. NO PART NO DESCRIPTION

1 318066402 Panel,main back

2A 318071704 Shield,oven top

6 318025304 Rack,oven

6B 318025402 Shelf,oven

12 318089910 Switch,oven light ,door frame

14 # 5308011085 Receptacle,oven light

15 # 3201908 Light,oven

16 3201911 Cover,oven light ,glass

17 5304400195 Retainer,light cover

37 # 316111203 Sensor,oven temp probe

41 5303310526 Cover,hinge cutout

54 5303310514 Housing,oven light

56 318029111 Trim,bodyside ,stainless ,RH

56A 318029110 Trim,bodyside ,stainless ,LH

58A 318133744 Insulation,oven wrapper

58B 318133769 Insulation,oven back

58C 318106002 Insulation

58D 318133757 Insulation

59 318072504 Tube,oven vent

59A 5303320844 Tube,oven vent

66 # 5303310513 Element,broil ,2750 W

67 # 5303310512 Element,bake ,3000 W

68 5304403015 Support,element hanger

70 5303300142 Shield,insulation

71 318071211 Shield,wire

76 318056202 Front,oven

80 318192400 Spring,oven

81 5303320846 Plate,oven mtg

82 318072302 Shield,oven bottom

83 318089607 Liner,oven

86 5303310524 Receptacle,hinge

88 5303311222 Rod,latch

89 # 318095934 Motor,latch assy ,w/brkt & switch

89*# 318120710 Switch,cooktop shutoff

96 5303317197 Duct,oven vent ,assy

96A 3016325 Duct,oven vent ,center

99 318055410 Support,adjustable ,(2)

102 318090900 Support,oven front ,(2)

103 318028500 Trim,base ,black

103A 318027700 Trim,base ,stainless ,outer

107 318119600 Cover,fan

109 5303311203 Blade,fan

111 5303311205 Nut,fan retainer

119# 318004900 Switch,thermal

124 318076903 Box,vent

125# 5303311202 Motor,convection

127 5303310542 Adapter,vent tube ,with converter

128 5303311163 Bushing

129 5303311164 Spring

150 318072204 Bracket,support ,RH

150A 318072205 Bracket,support ,LH

156 5303317198 Bracket,oven vent

177 318053800 Gasket,vent

185 318014700 Spacer,oven shield

188 08007817 Spacer,(6)

209 318086200 Plate,retainer

222 318080000 Plate,oven temp probe

263 5303322885 Spacer,fan blade

* 08002868 Screw,10-24 x 0.500 ,probe,thrm brkt ,shield,drwr,box

* 5303211311 Screw,8 x 0.500

11/01 8

Publication No. PLEB30T8ACA

5995361036

DOOR

# = Functional Parts 9 11/01

* = Non-Illustrated Parts

PLEB30T8ACA Publication No.

5995361036

DOOR

POS. NO PART NO DESCRIPTION

4 318210301 Glass,oven door ,black

6 318056813 Baffle,door

7 318133754 Insulation,oven door

9 318048610 Liner,oven door

10 5303311217 Screw,handle ,door

12 318053103 Gasket,oven door seal

13 318009211 Panel,oven door ,stainless ,exterior

15 318091101 Bracket,glass ,(3)

16 318041603 Panel,glass ,inner oven door

17 318042102 Spacer,glass

18 318053001 Seal,window

20 318086020 Spacer,handle ,(2)

23 318024700 Hinge,oven door

29 318014400 Spacer,door

31 318065102 Latch,door

32 318056703 Deflector,4.25" x 17"

32A 318056701 Deflector,4" x 18.43"

39 318197901 Handle,oven door ,stainless

54 5303300265 Screw,8-18 x 0.500 ,chrome

* 5303316982 Foam seal,(3)

* 5303211311 Screw,8 x 0.500

* 5303323277 Screw (8-18X13/32)

11/01 10

Publication No. PLEB30T8ACA

5995361036

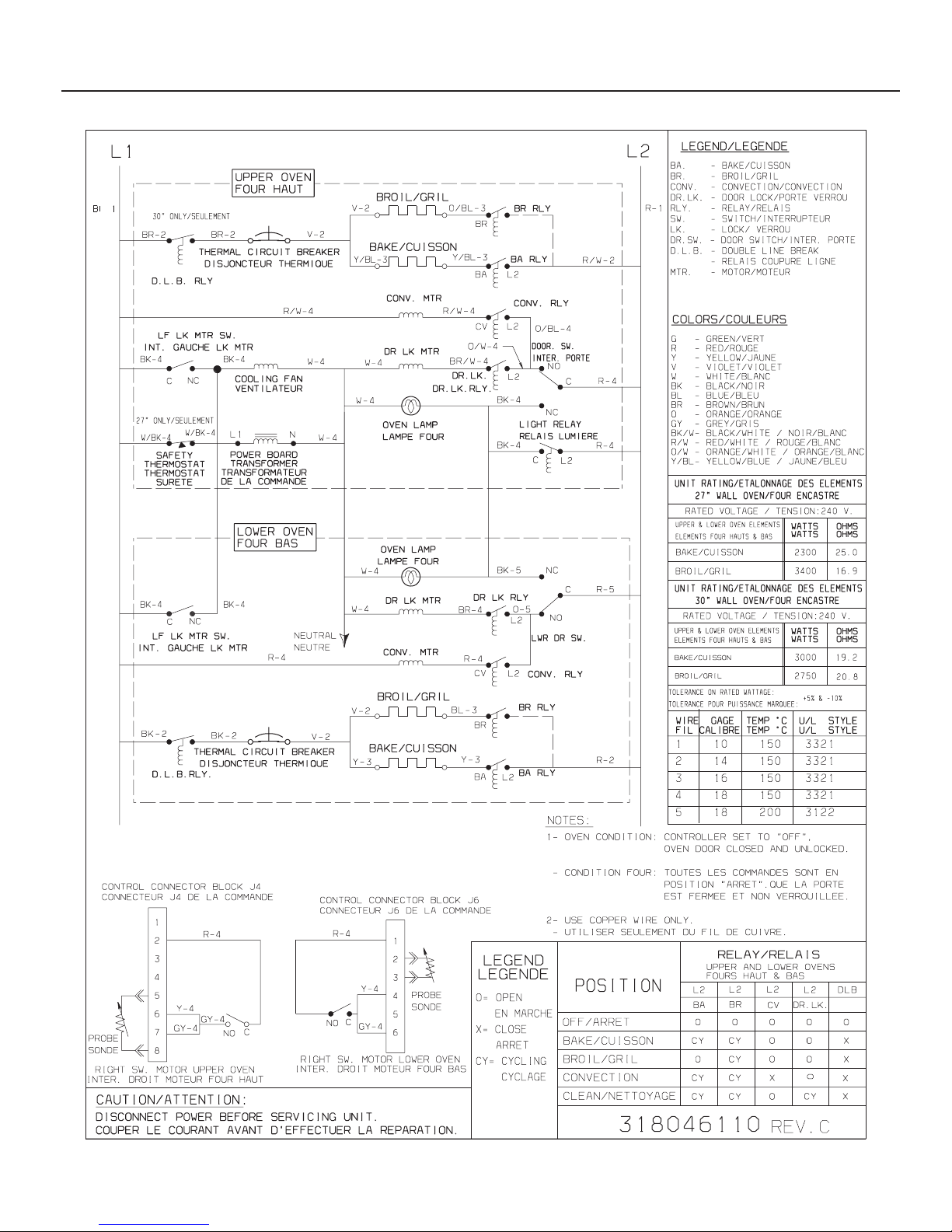

WIRING DIAGRAM
