Frigidaire FGET2765KFA User manual

FGET2765KF.jpg CFPET2785KFA.eps BUFPET2785KFA.eps BLFPET2785KFA.eps

DFGET2765KFA.eps 318046134.eps

Product No. FGET2765KFA

37056776C90S1

Series 27" double

Color stainless

Market North America

Wiring Diagram 318046134

Owner's Guide 318205303

Installation Instructions 318201532

Service Data Sheet 318047450

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995544946

09/07/07

(EN/SERVICE/ECL)

377

27” DOUBLE ELECTRIC

WALL OVEN

Model No.

FGET2765K

Publication No: 5995544946 FGET2765KFA

07/09 2

CONTROL PANEL

2B 2A

CFPET2785KFA

77A

FGET2765KFA Publication No: 5995544946

# Functional Parts 3 07/09

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257301 Shield, oven top

2B 318260101 Cover, box

19 # 318575106 Panel Assembly, control, black/stainless

20 # 316443844 Control, electronic, ES610W6, dual oven

* 5303311306 Screw, 8-18 x 0.375, (6)

77 316247900 Spacer, power board

77A 316114100 Spacer

97 # 316443911 Board, relay, dual oven

* # 318370374 Wiring Harness, timer, to relay board

* 5303211311 Screw, 8 x 0.500

* 5304401490 Screw, 6-18 x 1, (2)

* 5304436875 Screw, 8-18 X 1/2, black

* 5304454881 Screw, #8-18 x 3/8

Publication No: 5995544946 FGET2765KFA

07/09 4

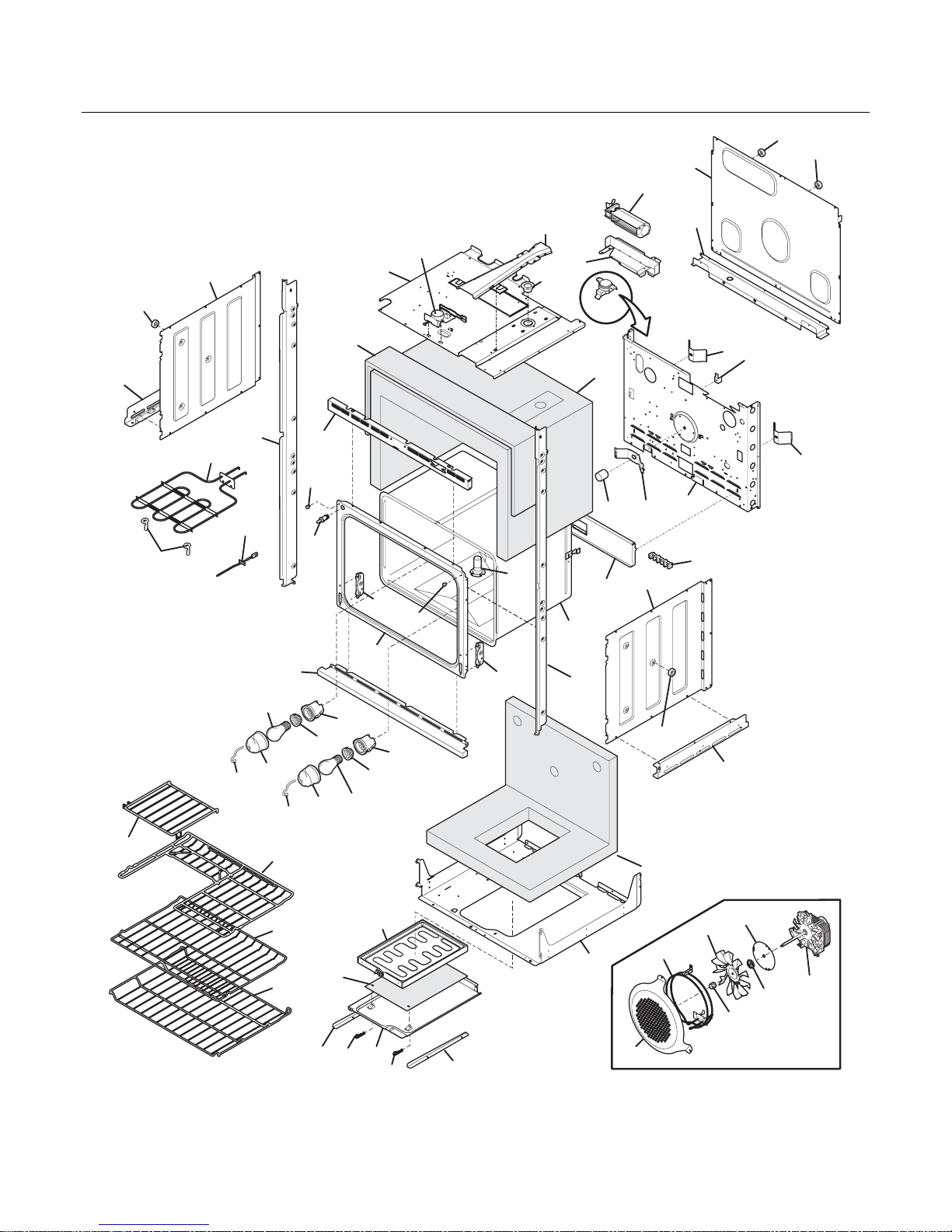

UPPER OVEN

272

119

143

264

131

132

58D

133

108

108A

185

163

142

58A

127

BUFPET2785KFA

185

58B

107

161

111

109

125

FGET2765KFA Publication No: 5995544946

# Functional Parts 5 07/09

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

1 318259213 Back, main

2 318258920 Shield, insulation, upper

6 318922300 Rack, oven

6A 318926804 Rack, half, oven

6B 318919800 Rack, oven

6C 318929703 Insert, half rack

7 318368300 Pin, locking, (2)

8 318361801 Bracket, element, (2)

9 5303317977 Pan, broiler, OPTIONAL ACCESS0RY

10 5303317976 Insert, broiler pan, OPTIONAL ACCESS0RY

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

15* 318268099 Insulation, oven light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

18 318222400 Housing, oven light

18* 318368501 Seal, housing, flat washer

20 318389400 Plate, retainer

21 318389000 Seal, ring

29 316517600 Spacer, oven door

37 # 316217002 Probe, oven temp

57 318902701 Panel, service

58 318330503 Insulation, service panel

58A 318386110 Insulation, oven wrapper

58B 318330510 Insulation, back & bottom, oven

58D 318372006 Insulation, 1/2" thick, 43 x 9.5

59 318072577 Duct, oven vent

66 # 318255601 Element, broil, 3400W

67 # 318902502 Element, hidden bake, 1450W

* # 318231870 Wiring Harness, bake element

* 5303323130 Screw, 8 x 1/4, (6)

68 5304403015 Support, hanger, (4), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

76 318056224 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

82 318258720 Shield, insulation, lower

83 318261810 Liner, oven

86 318561100 Receptacle, hinge, (2)

89 # 318261215 Motor, latch assy

* # 318402206 Wiring Harness, main, latch

* # 318199768 Wiring Harness, latch, BAS

* 5303324184 Screw, 8-18 x 5/16, black, (4)

99 318252804 Support, side

107 318219405 Cover, fan

108# 318073028 Motor, blower

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

Publication No: 5995544946 FGET2765KFA

07/09 6

UPPER OVEN

272

119

143

264

131

132

58D

133

108

108A

185

163

142

58A

127

BUFPET2785KFA

185

58B

107

161

111

109

125

FGET2765KFA Publication No: 5995544946

# Functional Parts 7 07/09

* Non-Illustrated Parts

UPPER OVEN

POS. NO PART NO. DESCRIPTION

109 318398300 Fan Blade

111 318399800 Nut, fan retainer

119# 318004900 Switch, thermal

125# 318398200 Motor, fan

125* 318142100 Washer, motor, convection

127 318357001 Adapter Assembly, w/vent tube, and catalyst

131 318272901 Box, vent

132 318003000 Plate, shield

* 5304436875 Screw, 8-18 X 1/2, black

133 318347800 Chimney

142 318123910 Deflector

143 318172904 Support, wire

161# 318255504 Element, convection, 350 W

163 318531703 Spacer, (4)

185 318531800 Spacer, oven shield, (2)

* 5303323139 Screw, 10-24 x 0.906

264 318257721 Trim, oven, black, front

272 318249409 Tube, protector

* 318165800 Spacer

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, silver, (4)

* 5303323277 Screw, 8-18 X 13/32

* 5304415832 Screw, 8-18 x 0.406

* 5304461333 Screw, 10-32 x 17/32

* 5304470882 Screw, anti-tip, 8 - 5/8, black, (2)

Publication No: 5995544946 FGET2765KFA

07/09 8

LOWER OVEN

58B

272

119

143

264

58D

133

108

108A

185

163

142

58A

127

BLFPET2785KFA

185

56A

107

161

111

109

125

FGET2765KFA Publication No: 5995544946

# Functional Parts 9 07/09

* Non-Illustrated Parts

LOWER OVEN

POS. NO PART NO. DESCRIPTION

1 318259213 Back, main

2 318258920 Shield, insulation, upper

6 318922300 Rack, oven

6A 318926804 Rack, half, oven

6B 318919800 Rack, oven

6C 318929703 Insert, half rack

7 318368300 Pin, locking, (2)

8 318361801 Bracket, element, (2)

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

15 5303013071 Bulb/Lamp, light

15* 318268099 Insulation, oven light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

18 318222400 Housing, oven light

18* 318368501 Seal, housing, flat washer

20 318389400 Plate, retainer

21 318389000 Seal, ring

29 316517600 Spacer, oven door

37 # 316217002 Probe, oven temp

56 318903604 Trim, side filler, black, RH

56A 318903605 Trim, side filler, black, LH

57 318902701 Panel, service

58 318330503 Insulation, service panel

58A 318386110 Insulation, oven wrapper

58B 318330510 Insulation, back & bottom, oven

58D 318372006 Insulation, 1/2" thick, 43 x 9.5

59 318072577 Duct, oven vent

62 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255601 Element, broil, 3400W

67 # 318902502 Element, hidden bake, 1450W

* # 318231870 Wiring Harness, bake element

* 5303323130 Screw, 8 x 1/4, (6)

68 5304403015 Support, hanger, (4), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260001 Panel, rear box

76 318056224 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

* 5303323129 Screw, 8 X 0.750

82 318258720 Shield, insulation, lower

83 318261810 Liner, oven

86 318561100 Receptacle, hinge, (2)

* 5304461333 Screw, 10-32 x 17/32

87 318260601 Bracket, cable mtg.

* 5303323136 Screw ground

89 # 318261215 Motor, latch assy

* # 318402206 Wiring Harness, main, latch

* # 318532135 Harness, wiring, latch, NO BAS

Publication No: 5995544946 FGET2765KFA

07/09 10

LOWER OVEN

58B

272

119

143

264

58D

133

108

108A

185

163

142

58A

127

BLFPET2785KFA

185

56A

107

161

111

109

125
