Frigidaire FFEF3013L M User manual

frigidaire.com

Drop-In Cooktop

FPEC3085K S

30" Electric30" Electric

Signature Features

Ready-Select® Controls

Select options or control cooking

temperature with our easy-to-use

controls.

Product Dimensions

Height (Max.) 47-1/2"

Width 29-7/8"

Depth (Including Handle) 28-1/2"

More Easy-To-Use Features

Extra-Large Window

Our extra-large oven window lets

you easily see what’s inside.

Hi /Lo Broil Option

Offers two-position broiling and

variable temperature control for

more control.

Smoothtop Cooking Surface

Timed Cook Option

Electronic Kitchen Timer

Bright Lighting

Our bright lighting makes it easy

to see what’s inside.

Manual Clean Oven

Available in:

White

(W)

Silver Mist

(M)

Black

(B)

Freestanding Ranges

FFEF3013L M / W / B

Elements

Right Front

Right Rear

Left Front

Left Rear

Watts

1,200 /

2,500

1,200

2,500

1,200

Size

6"/ 9"

Expandable

Store-More™

Storage Drawer

Our convenient drawer gives you

extra storage space in your kitchen.

Even Baking Technology

Our latest technology ensures

even baking every time.

SpaceWise®

Expandable Element

Flexible element expands to your

cooking needs.

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

NOTE: For planning purposes only. Always consult local and national electric codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Features

Oven Control / Timing System

Surface Type

Window

Exterior Door Finish

Handle Design

Exterior Finish (Side Panels)

Convection System

Oven Cleaning System

Drawer Functionality

Oven Controls

Bake

Broil

Add-a-Minute

Delay Bake

Self-Clean

Quick Clean Option

Delay Clean

Kitchen Timer

Timed Cook Option

Auto Oven Shut-O

Cooktop Features

Right Front Element (Watts)

Right Rear Element (Watts)

Left Front Element (Watts)

Left Rear Element (Watts)

Center Element (Watts)

Hot Surface Indicator Light

Coil Cooktop / Drip Bowls

Oven Features

Capacity (Cu. Ft.)

Oven Light

Hidden Bake Element

Rack Conﬁguration

Even Baking System

Broiling System

Bake Element / Broil Element (Watts)

Speciﬁcations

Oven Interior ( H x W x D )

Power Supply Connection Location

Voltage Rating

Connected Load

(kW Rating) @ 240 / 208 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Ready-Select® Controls

Black Ceramic Glass

Extra-Large

Silver Mist (M),

Color-Coordinated (W / B)

Black ( M ),

Color-Coordinated (W / B)

Black ( M ),

Color-Coordinated (W / B)

Manual Clean

Storage

Yes

Low and High

Yes

SpaceWise® Expandable

6"/ 9" – 1,200 / 2,500

6" – 1,200

9" – 2,500

6" – 1,200

4.8

2 Standard

Vari-Broil™ Hi / Lo

2,600 / 3,000

21" x 24-3/8" x 19-1/8"

Middle Bottom Rear

240V / 208V / 60Hz

11.5 / 8.5

138 Lbs.

30" Electric Freestanding Ranges

Frigidaire Baseline

36"

(Adjustable)

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Ranges

FFEF3013L M / W/ B 30" Electric

Product Dimensions

A - Height (Max.)

B - Width

C - Depth (Including Handle)

Depth with Door Open 90˚

47-1/2"

29-7/8"

28-1/2"

48-3/8"

Cabinet Cutout Dimensions

Height (Standard)

Width (Min.)

Depth (Min.)

36"

30"

24"

Specifications

subject to change.

30" Electric Freestanding Ranges with Storage Drawers

Baseline

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Range Specifications

• Product Shipping Weight (approx.) – 138 Lbs.

• Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,

fused on both sides of line with ground.

• Connected Load (kW Rating) @ 240 / 208 Volts = 11.5 / 8.5 kW

• Recommended Circuit Breaker – 40 Amps

• Always consult local and national electric codes.

• Make sure wall coverings around range can withstand heat generated

by range.

• Floor beneath range MUST be solid and level.

• Overhead cabinetry should not exceed a 13" maximum depth.

• Absolute minimum horizontal distance between overhead cabinets

installed to either side of appliance must be no less than maximum

width of appliance.

• Range can be installed flush to wall with 0" minimum rear clearance.

• Minimum 1" clearance required from edge of rangetop to nearest

combustible wall on either side of range above 36" height.

•

• Allow 30" minimum clearance between top of cooking surface and

bottom of unprotected wood or metal overhead cabinet; or 24"

minimum clearance when bottom of wood or metal overhead cabinet

is protected by not less than 1/4" flame retardant millboard covered

with not less than No. 28 MSG sheet steel, 0.015" stainless steel,

0.024" aluminum or 0.020" copper.

• To reduce risk of fire when using overhead cabinetry, install

range hood that projects horizontally a recommended minimum

of 5" beyond bottom of cabinets.

• Follow all dimension requirements provided to prevent property

damage, potential fire hazard, and incorrect countertop and

cabinet cuts.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

Freestanding Ranges

FFEF3013L M / W/ B 30" Electric

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

General Installation Guidelines

with French Door Refrigerator

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with All Refrigerator or All Freezer

This manual suits for next models

Table of contents

Other Frigidaire Oven manuals

Frigidaire

Frigidaire FEB27T5ABB Instruction Manual

Frigidaire

Frigidaire PLEB27M9E User manual

Frigidaire

Frigidaire FEB398WECC Control User manual

Frigidaire

Frigidaire GCWS2438A Owner's manual

Frigidaire

Frigidaire FEB27S5G Instruction Manual

Frigidaire

Frigidaire PLEB27S9F User manual

Frigidaire

Frigidaire PLEB30T9F User manual

Frigidaire

Frigidaire PLEB30M9EC - 30 Microwave / Oven Combo SS User manual

Frigidaire

Frigidaire FGB24S5DC - 24 Inch Single Gas Wall Oven User manual

Frigidaire

Frigidaire FEB30T5DCC Instruction Manual

Frigidaire

Frigidaire 703 User manual

Frigidaire

Frigidaire GCWG2438AW User manual

Frigidaire

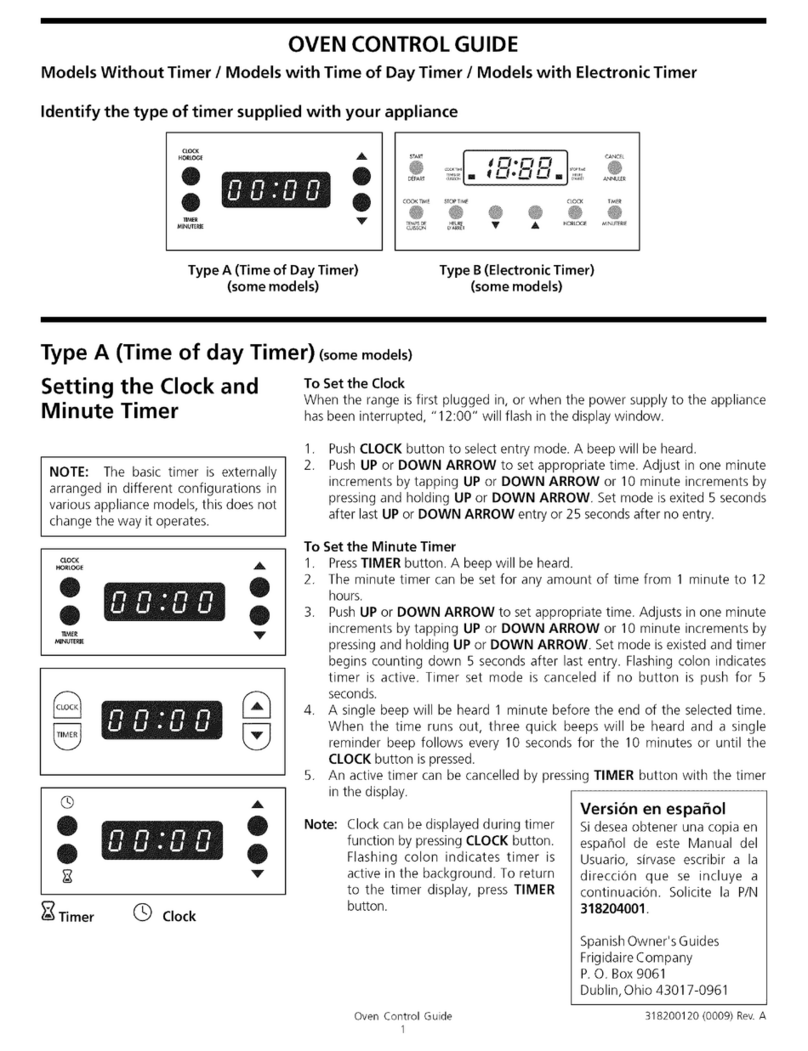

Frigidaire CFEF210CS7 Control Use and maintenance manual
