Frigidaire FMV156EM User manual

Product No. FMV156EMA

Market North America

Color silver

Volts 120

Watts 950

Wiring Diagram 5995457826

Owner's Guide TINSEB445MRR0

Installation Instructions 316137333

FMV156D.tif FMV156EMA Cabinet.eps FMV156D Controls.eps FMV156EMA

wiring schematic.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995457826

06/01/10

(EN/SERVICE/KC)

099

OVER-RANGE

MICROWAVE

Model No.

FMV156E

Publication No: 5995457826 FMV156EMA

01/06 2

OVEN,CABINET

FMV156EMA Publication No: 5995457826

# Functional Parts 3 01/06

* Non-Illustrated Parts

OVEN,CABINET

POS. NO PART NO. DESCRIPTION

1 # 5304441844 Rectifier, high voltage

2 # 5304440342 Capacitor, high voltage

3 # 5304448488 Motor, turntable

4 # 5304440032 Thermal Cutout, oven cavity

5 # 5304440023 Thermal Cutout, hood

6 # 5304453726 Transformer, power

7 # 5304441846 Magnetron

8 # 5304440026 Switch, interlock, door sensor

9 # 5303319559 Switch, monitor, with CT fuse

10 # 5304440028 Power Cord, electric

11 # 5303319561 Receptacle, lamp socket, oven

12 # 5304441847 Motor, hood fan

13 # 5304441848 Motor, cooling fan

14 5304440031 Lamp, incandescent, 20 W, (3)

15 5304441849 Plate, rear stay

16 5304453717 Grille, exhaust louver, silver

17 5304441853 Base, transformer mtg, right side

18 5304453718 Panel, front trim, silver, LS

19 5304441858 Cabinet, outer casing, black

20 5304451814 Wiring Diagram, schematic, label

21 5303319573 Lens/Frame Assy, lamp

22 5304451815 Cover, unit base, black

30 5304440284 Support Assy, turntable

31 5304441872 Tray, turntable, glass

32 5304441873 Retainer, capacitor strap

33 5304441874 Duct, magnetron

34 # 5304451818 Filter, noise, electronic

35 5303322975 Bracket, noise filter, angle

36 5304440288 Bushing, motor shaft, turntable

37 5304440289 Latch Hook

38 5304441833 Bracket, unit mtg plate, rear

39 # 5304440843 Fan Blade, cooling fan

40 5303319605 Bushing, power cord

41 5304441875 Lever, unit mounting, release

42 5304441876 Duct, hood intake, right side

43 5304440845 Cover, waveguide

44 5304440316 Spring, door latch

45 5304441877 Support, chassis

46 5304441878 Duct, hood intake, right side

47 5304441879 Duct, exhaust hood, left side

48 5304451819 Duct, cooling fan

49 5304441881 Ring, fan orifice

50 5304441882 Cushion, transformer pad

74 5304441900 Label, Caution-DHHS

75 5304440334 Label, Caution-monitor

76 5304440333 Label, Caution-DHHS

77 5304441901 Filter, inside exhaust, charcoal

78 5303319568 Filter, grease, (2)

79 5304440283 Damper Assy, exhaust

80 5303319640 Screw, vent grille, black

81 5304451553 Screw, 4 mm x 12 mm

82 5304453725 Screw, 3mm x 8mm

83 5304450253 Screw, 4 mm x 8 mm

84 5303319641 Screw

85 5303319636 Screw

86 # 5303319550 Fuse, magnetron

Publication No: 5995457826 FMV156EMA

01/06 4

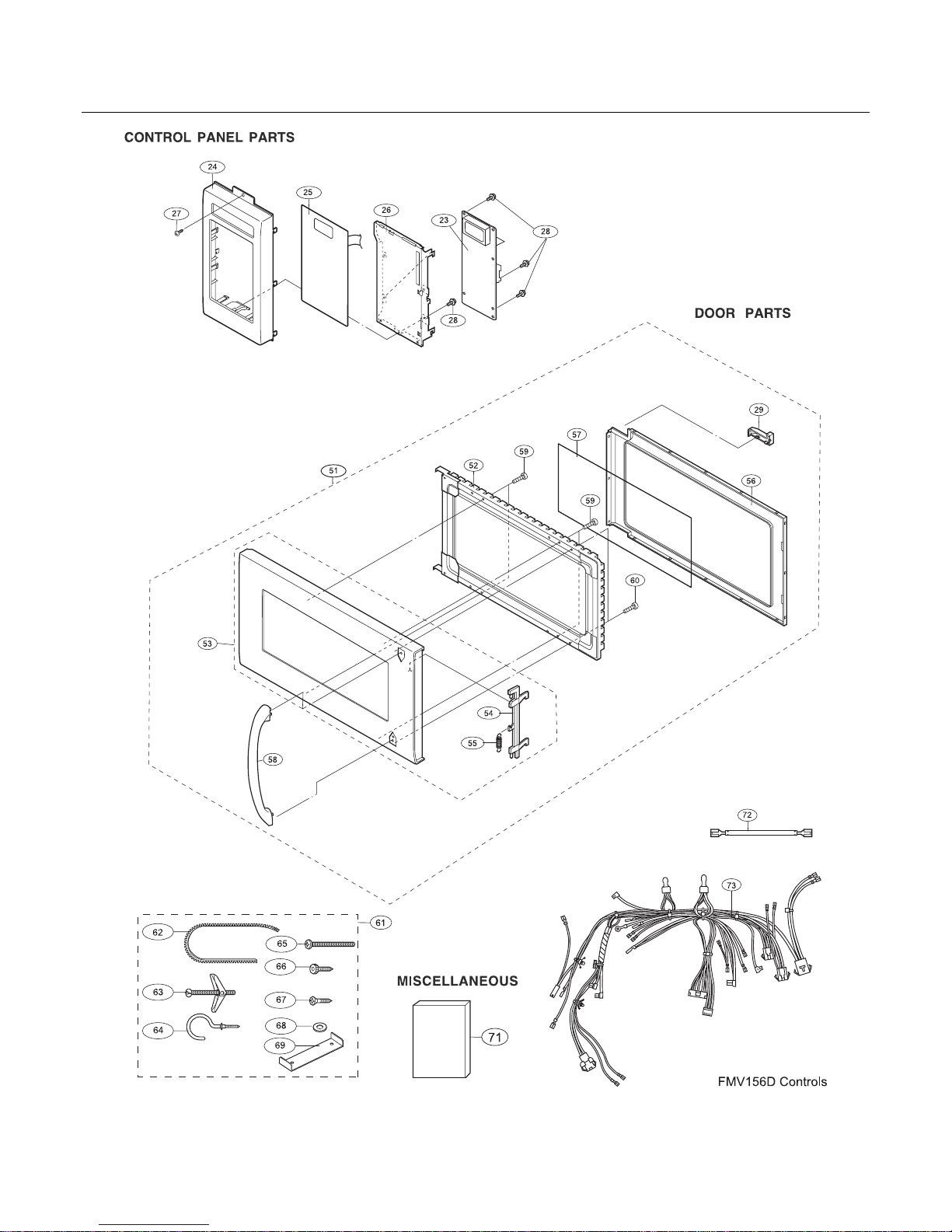

CONTROL PANEL,DOOR,MISC.

FMV156EMA Publication No: 5995457826

# Functional Parts 5 01/06

* Non-Illustrated Parts

CONTROL PANEL,DOOR,MISC.

POS. NO PART NO. DESCRIPTION

23 # 5304441863 Control Board, printed circuit

24 5304453719 Frame, control panel, silver

25 # 5304441868 Switch, touch pad, black

26 5304440281 Panel, control mount

27 5303319584 Screw, control panel, 3mm x 10mm

28 5304440282 Screw, control board, 3mm x 10mm

29 5304441871 Door Stop

51 5304453720 Door Assy, silver, w/handle

52 5304441887 Panel, inner door, black

53 5304453721 Frame, outer door, silver

54 5304441893 Latch, door

55 5304440316 Spring, door latch

56 5304441894 Frame, choke cover, inner door

57 5304440860 Seal, door, film

58 5304440323 Handle, door, black

59 5303319634 Screw, 4mm x 8mm

60 5304441895 Screw

61 5304441832 Hardware, installation, kit

62 5303318761 Sleeve, power cord, grommet

63 5303318762 Screw, toggle

64 5303322979 Hook, screw-in, cord holder

65 5304453722 Screw, 5mm x 60mm

66 5304451553 Screw, 4 mm x 12 mm

67 5304453723 Screw, 5mm x 35mm

68 5304453724 Washer

69 5304441896 Bracket, scale plate

71 5304441897 Template, installation, top

72 # 5304441898 Wire, high voltage-A

73 # 5304451820 Wiring Harness, main

Publication No: 5995457826 FMV156EMA

01/06 6

WIRING SCHEMATIC
