Frigidaire EFIC108-C User manual

ICE MAKER

26LBS

12KGS

IMPORTANT SAFEGUARDS ......................................................

TECHNICAL PARAMETERS.........................................................

4KNOW YOUR ICE MAKER............................................................

TABLE OF CONTENTS

EFIC108-C-RED

USE YOUR ICE MAKER...............................................................

CLEANING AND MAINTENANCE.................................................

TROUBLESHOOTING ..................................................................

WARRANTY CARD.........................................................................10

IMPORTANT SAFEGUARDS

When using an electrical appliance, basic safety precautions should always be

followed to reduce the risk of fire, electric shock, and/or injury, including the

following:

1. Read all instructions before using.

2. Remove all packing material and carefully check your ice maker to ensure

it is in good condition and that there is no damage to the ice maker or

power cord and plug.

3. Before using the Ice maker for the first time, please wait 2 hours after

positioning it, and keep the transparent lid open for at least 2hours

4. Pure water is not allowed to be used on this unit, spring water is

recommended.

5. Ensure the voltage is compliant with the voltage range stated on the rating

label, and ensure the earthing of the socket is in good condition.

6. If the supply cord is damaged, it must be replaced by the manufacturer or

its service agent or a similarly qualified person in order to avoid a hazard.

7. Do not upend this product or incline it over a 45 angle.

8. To protect against risk of electric shock, do not pour water on cord, plug

and ventilation, immerse the appliance in water or any other liquid.

9. Unplug the appliance after using or before cleaning.

10. Keep the appliance 15cm from other objects to ensure the good heat

releasing.

11. Do not use the accessories which are not recommended by Manufacturer.

12. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the

appliance.

13. Do not use the appliance close by flames, hot plates or stoves.

14. Do not switch on the power button frequently (ensure 5min. interval at

least) to avoid the damage of compressor.

15. Metal sheet or other electric objects are not allowed to be inserted into the

appliance to avoid fire and short circuit.

16. Do not use outdoors.

17. Never clean with scouring powders or hard implements.

18. Please keep the instruction manual.

19. Warning: Do not store explosive substances such as aerosol cans with a

flammable propellant in this appliance.

20. This appliance is intended to be used in household and similar applications

such as

–Staff kitchen areas in shops, offices and other working environments;

–Farm houses and by clients in hotels, motels and other residential type

environments;

–Bed and breakfast type environments;

–Catering and similar non-retail applications

21. When positioning the appliance, ensure the supply cord is not trapped or

damaged.

22. Do not locate multiple portable socket-outlets or portable power supplies at

the rear of the appliance

23. Children aged from 3 to 8 years are not allowed to load and unload

refrigerating appliances.

24. The refrigerant and insulation blowing gas is flammable, when disposing of

the appliance, do so only at an authorized waste disposal centre. Do not

expose to flame.

This symbol indicates the refrigerant R600a and the non-metallic

materials of the appliance are flammable. It’s a warning symbol.

Warning: Risk of fire / flammable materials.

FEATURE

Quick ice making

Prompt when the ice is full and water is insufficient

Bullet ice

9 pcs ice can be made in eight minutes

1. During transportation, do not tilt the machine more than 45 degrees, do not

reverse the machine. This maydamage the compressor and the sealing

system.

2. Remove all packing materials, check the machine carefully and make sure

that the machine, power cord and plug are normal.

3. The machine should be on a level surface. To ensure sufficient ventilation,

the distance of the back of ice maker to the wall should be at least 150 mm,

it should be away from the oven, radiator or other heat source.

4. Before using the machine for the first time, place the machine and leave the

transparent cover open for at least two hours.

5. Make sure that the home voltage is consistent with the voltage indicated by

the machine.

6. Distilled water is not allowed. Mineral water is recommended.

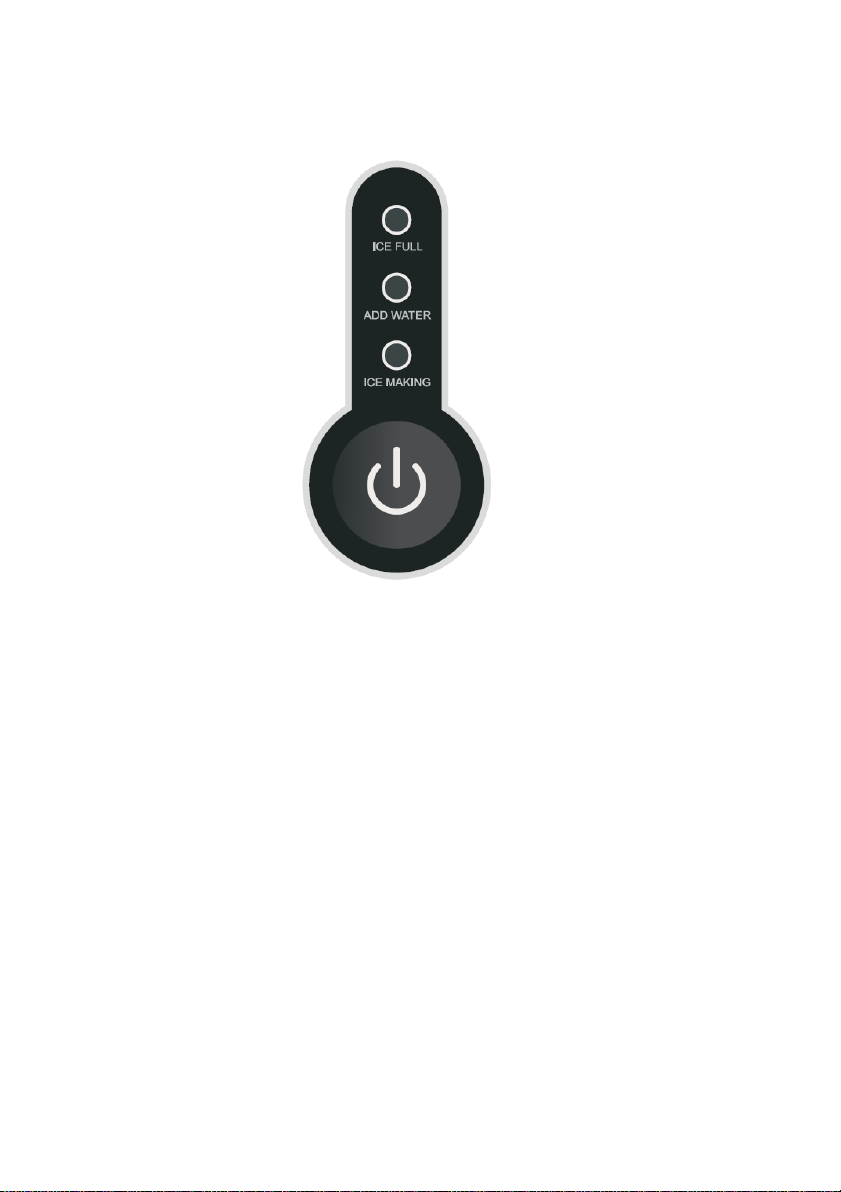

CONTROL PANEL OPERATION

ICE FULL: Ice full alarm

ADD WATER: Water shortage alarm

ICE MAKING: Ice making

1) Plug in the power, the "ICE MAKING " indicator flashes, and the machine

will start the deicing function. Press the power button, the "ICE MAKING"

indicator light is always on and then the ice block will be made

automatically. After the ice making is completed, the deicing will be carried

out, and then the ice shoveling function will be entered, and so on.

2) ADD WATER: water shortage alarm

When the “ADD WATER”light turns red, it means that there is water

shortage in the water tank. You need to add water and press the power

button to restart the machine.

3) ICE FULL: Ice full alarm

When the ice reaches the maximum capacity of the ice storage container,

the "ICE FULL" light flashes, and the machine stops. At this time, the ice

needs to be poured out. When the ice position is lower than the full sensor

position, the machine will restart automatically.

4) ICE MAKING: Ice making

When this light is always on, it means that the ice maker is making ice.

USE YOUR ICE MAKER

Step 1

Open the lid and take out the basket and add water to the reservoir.

Note: There is a maximum scale MAX in the reservoir. The water should not

exceed the MAX position. If the water exceeds the maximum scale MAX,

you need to open the bottom drain plug, release the excess water, and

cover with a transparent cover.

Step 2

Plug in the power and press the power button to start the machine.

When the ice basket is full, please take out the ice immediately, do not let the

ice overflow the ice basket.

1. When the indoor temperature is lower than 15 degrees, please choose

small ice. When the indoor temperature is higher than 30 degrees, it is

recommended to choose big ice.

2. The three cycles used for the first time, the ice produced is small and

irregular.

3. When the ice basket is full, please take out the ice immediately, do not let

the ice overflow the ice basket.

CLEANING AND MAINTENANCE

1. Clean the inner liner, ice collecting tray, water box, ice shovel and

evaporator frequently. When cleaning, unplug the unit and remove the ice

cubes. Use a diluted solution of water and vinegar to clean the inside and

the outside surface of the Ice maker. Do not spray Ice maker with

chemicals or diluted agents such as acids, gasoline or oil. Rinse

thoroughly before starting.

2. Keep ventilation openings in the appliance enclosure, or in the built-in

structure, clear of obstruction. Do not use mechanical devices or other

means to accelerate the defrosting process, other than those

recommended by the manufacturer.

3. Reuse the machine after being idled for a period of time, it may not have

enough water to pump for air retard, in this case, the water shortage

indicator “ADD WATER”will light up, repress power button to restart the

ice maker is okay.

4. To ensure the cleanness of ice, please change water for water reservoir at

least once one day. If do not use for a long time, please drain the water

out and clean it up.

5. If the compressor takes a strike action for shortage water, fully water or

interruption of power supply, it will delay for 3mins to start up after

restarted.

6. Always use fresh water before starting ice production either at initial

installation or after a long shut-off period.

TROUBLESHOOTING

1. Please note, if a power failure occurs due to disconnection of the power

cord, or the power button has been pushed off during an ice making cycle,

small ice chips mayformed and lodge in the automatic shovel causing it to

jam. If this occurs, the ice chips may be removed by disconnecting the

power cord and gently pushing the shovel to the rear of the cabinet and

removing the ice chips, then restarting.

2. Please check if the water reservoir is flat when the ice shovel can not

remove the ice to ice basket. If not, please push the ice shovel gently by

finger, then press POWER button to restart.

PROBLEM

POSSIBLE CAUSE
