Frigidaire FFU20IC8CW User manual

Product No. FFU20IC8CW2

Series 134A

Color white

Volts 115

Wiring Diagram 216917400

Owner's Guide 216933800

Market North America

Energy Guide 216795508

P08F0061.eps P08D0366.eps P08C0750.eps P08S0362.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995413779

04/07/26

(EN/SERVICE/MLR)

365

UPRIGHT FREEZER

Model No.

FFU20IC8CW

Publication No: 5995413779 FFU20IC8CW2

07/04 2

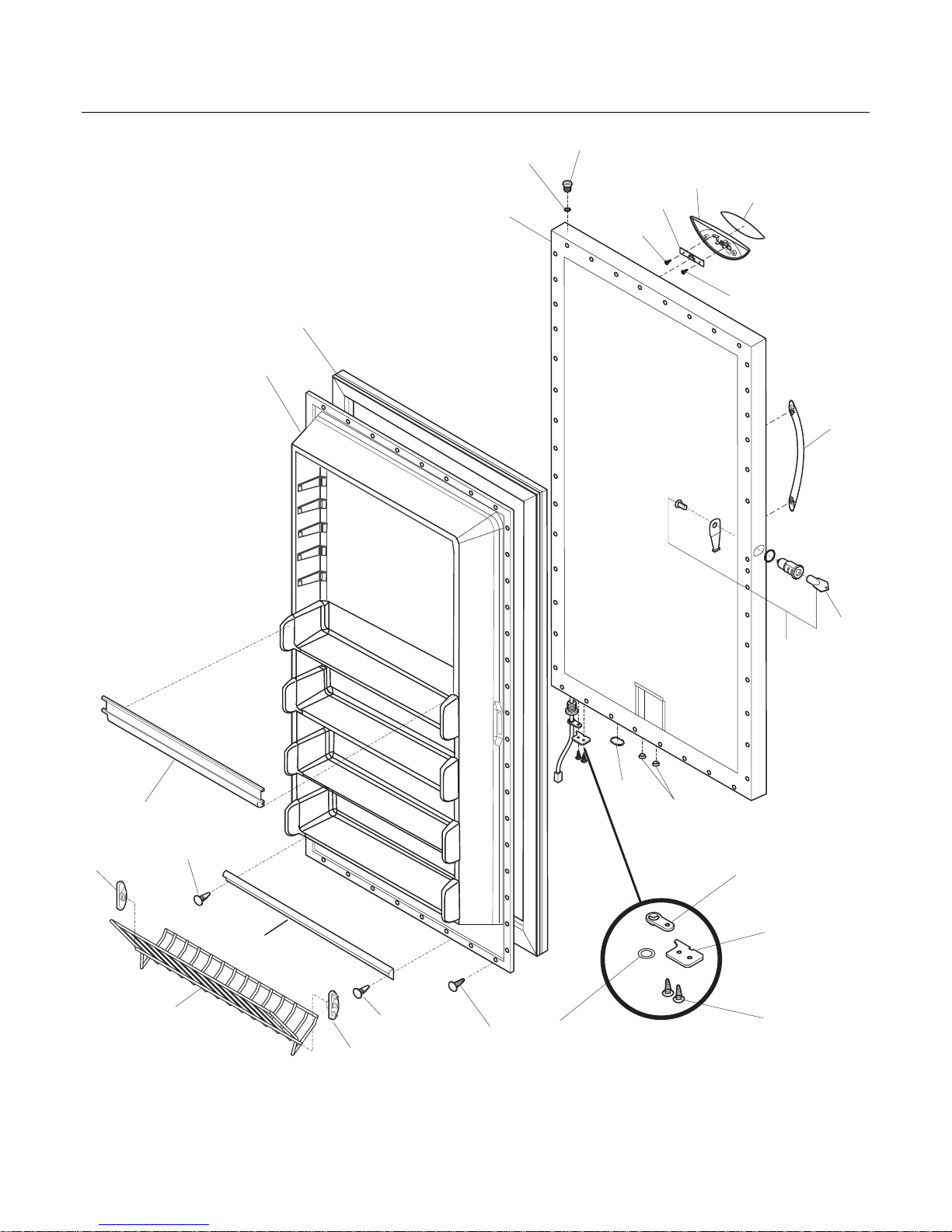

DOOR

73 59

21A

133

77 57

133

P08D0366

FFU20IC8CW2 Publication No: 5995413779

# Functional Parts 3 07/04

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522312 Gasket-door, white

2 5303925107 Lock Assy

5 # 216702900 Key, lock

9 216528113 Panel-inner door, frzr

11 216531230 Panel-outer door, white

13 5303271076 Door Stop

14 5303313518 Washer, sealing

18 216921200 Handle, white

* 216932500 Nut, flange locking, handle

21A 5303271077 Screw, flat head, #1/4-20, door stop/hng

22 5303925197 Bearing, hinge, top

26 216524200 Gasket, secondary

27 5303212828 Clip, panel mtg

28 216806100 Rack-door, contour, (4)

32 5309950074 Valve, breather, door base

57 216899600 Overlay

59 5303271072 Bearing-door, closer ramp

64 216403700 Plug-button, hole filler, door base

72 216514100 Shelf, tilt out, wire

73 216513900 End Cap, shelf, LH, tilt-out

74 216514000 End Cap, shelf, RH, tilt-out

77 216897700 Bezel

79 # 216898700 Control Board, electronic

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

133 216905300 Screw, control board, #3-24 x .25, (3)

Publication No: 5995413779 FFU20IC8CW2

07/04 4

CABINET

132

71A 21

143

131

93 93

93A

13 5

101

P08C0750

144

FFU20IC8CW2 Publication No: 5995413779

# Functional Parts 5 07/04

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604100 Breaker Kit w/corners

7 216603600 Breaker Kit w/corners, lock catch

9 216603300 Breaker Kit w/corners, 32", top or bottom

13 # 216914200 Motor, fan, 115 V

* 216912400 Screw, hex washer head, #8-32 x .500, bracket fan mtr, (2)

14 # 216822900 Switch, light/lamp, ramp

15 216846400 Light Bulb/Lamp

16 # 216817600 Socket, light/lamp, 25 W

18 216707200 Knob, temp control

19 216204901 Gasket-cover evap

20 216230300 Cover, temp control

21 # 216844500 Control-temperature

25 216820300 Cover-evaporator

29 216313500 Hose-drain

* 09948773 Insulation, drain tube

32 5308005500 Drain

34 216816212 Shield-light

35 216629700 Clip

38 216808900 Hinge, plate, top

39 5303294372 Nut-insert, 1/4-20 UNC, hinge

40 216809000 Cover-hinge

41 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

47 216661600 Plate, baffle, snap fit

49 5303212704 Screw, channel door

50 216394000 Bracket, fan motor mount

59 216880100 Basket, (2)

60 5303212693 Slide-basket, (4)

62 131420300 Screw, cr truss head, 8-18AB x 0.750

63 216396900 Screw, leveling foot, plastic, adjustable

69 5305878546 Bumper-basket, (4)

71A 5304416289 Screw, ph truss head, 8-18AB x 0.47, EVAP PANEL

72 216174000 Grille/Kickplate, white

79 3017666 Nut-insert

93 5303161215 Screw, ph truss head, 8-18AB x 0.500

93A 216629600 Screw, hex washer head, 10-16 x 0.500, tapping

101 216835200 Top Hinge Kit

131 216484900 Channel-shelf mtg, back

132 5303283898 Screw, 6-20AB x 3/8

143 216904400 Shelf, cantilever, (3), complete assy

144 216922300 Shelf-assy, fixed, glass, complete

* 216502400 Grommet-shelf mtg

* 240479601 Plug, button, cab liner holes, (2)

* 216795508 Energy Guide

* 5303305324 Paint, touch-up, white

* 216893800 Cover, external, ICE MAKER, (2)

Publication No: 5995413779 FFU20IC8CW2

07/04 6

SYSTEM

FRONT

BACK

105

43A

130

15A

P08S0362

FFU20IC8CW2 Publication No: 5995413779

# Functional Parts 7 07/04

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 216634500 Drier-filter

5 # 216888700 Harness-main

14 # 216730700 Heater-defrost

15 # 216737300 Evaporator

15A# 216783200 Heat Exchanger, suct/cap tube

18 216727600 Insulator-evap, styrofoam

19 216727700 Insulator-evap, styrofoam

20 216731000 Thermostat, defrost

27 5308002681 Grommet, compressor

29 # 216784600 Compressor, w/o electricals

30 216649315 Controller

32 216649100 Clamp, elec cont mtg, compressor

34 5306594529 Sleeve-compressor, (3)

35 5303272328 Screw, Ind hex sems, 1/4-28 unfx, compressor, (3)

43A 216629700 Clip

54 # 216833800 Electronics, high voltage, w/o battery

55 218909913 Capacitor-run, 220 VAC, 15 microfarad

86 5303161215 Screw, ph truss head, 8-18AB x 0.500

93 216036600 Screw, ph washer head, 8-32CA x 0.500, thread forming

105 216854000 Cup-drain

130 216486800 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 5303298960 Spacer-tube, 0.237" ID
