Frigidaire FFU17F9GW User manual

FREEZER

Model No.

FFU17F9GW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216751900

OWNER’S GUIDE - # 216768600

SERVICE DATA SHEET - #216751900

ELECTROLUX HOME PRODUCTS NORTH AMERICA.

P.O.Box 212378, Augusta, GA 30917

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU17F9GW5 FFU17F9GW 134A white 115

MARKET

North America

Publication No.

5995351409

010320

-EN/SERVICE /GS

365

05/01 2

Publication No. FFU17F9GW

5995351409

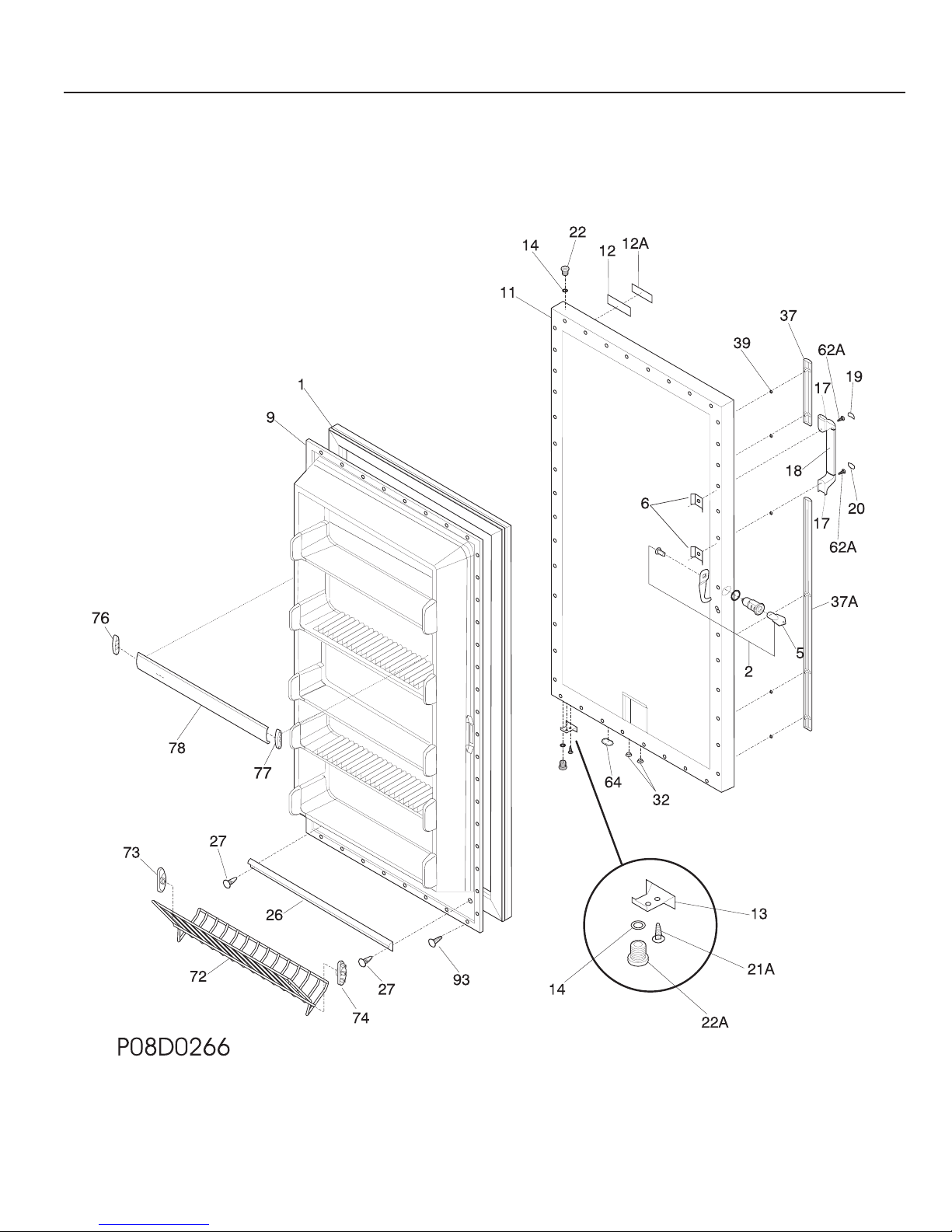

DOOR

# = Fast-moving Parts 3 05/01

* = Non-Illustrated Parts

FFU17F9GW Publication No.

5995351409

DOOR

POS. NO PART NO DESCRIPTION

1 216522309 Gasket-door,white

2 # 5303925107 Lock Assy

5 # 216702900 Key,lock

6 5300158222 Screw-anchor,8-18

9 216527806 Panel-inner door,white

11 5303925471 Panel-door,white

12 218364004 Frame-nameplate,white

12A 216315100 Nameplate

13 08016354 Door Stop

14 5303313518 Washer,sealing

17 216087400 End Cap,white ,(2)

18 216518000 Handle,center

19 216208900 Insert,handle top

20 216209001 Insert,handle bottom

21A 08005520 Screw-door stop mtg,flat hd metric , 4.0 x 0.7-19.7

22 216443600 Bearing

22A 216503200 Bearing-hinge,btm

26 216524200 Gasket,secondary

27 5303212828 Clip,panel

32 5309950074 Valve-breather

37 216373300 Trim-handle,upper

37A 216087600 Trim-handle,bottom

39 08016809 Fastener,door strip

62A 131420300 Screw,cr truss head ,8-18AB x 0.750

64 216403700 Plug-button,base door

72 216514100 Shelf,tilt out ,wire

73 216513900 End Cap,tiltout ,LH

74 216514000 End Cap,tiltout ,RH

76 216521800 Support psuedo bin,LH

77 216522100 Support psuedo bin,RH

78 216579500 Rack shelf,psuedo ,32

93 5303161215 Screw

* 216485600 Label-frozen food

05/01 4

Publication No. FFU17F9GW

5995351409

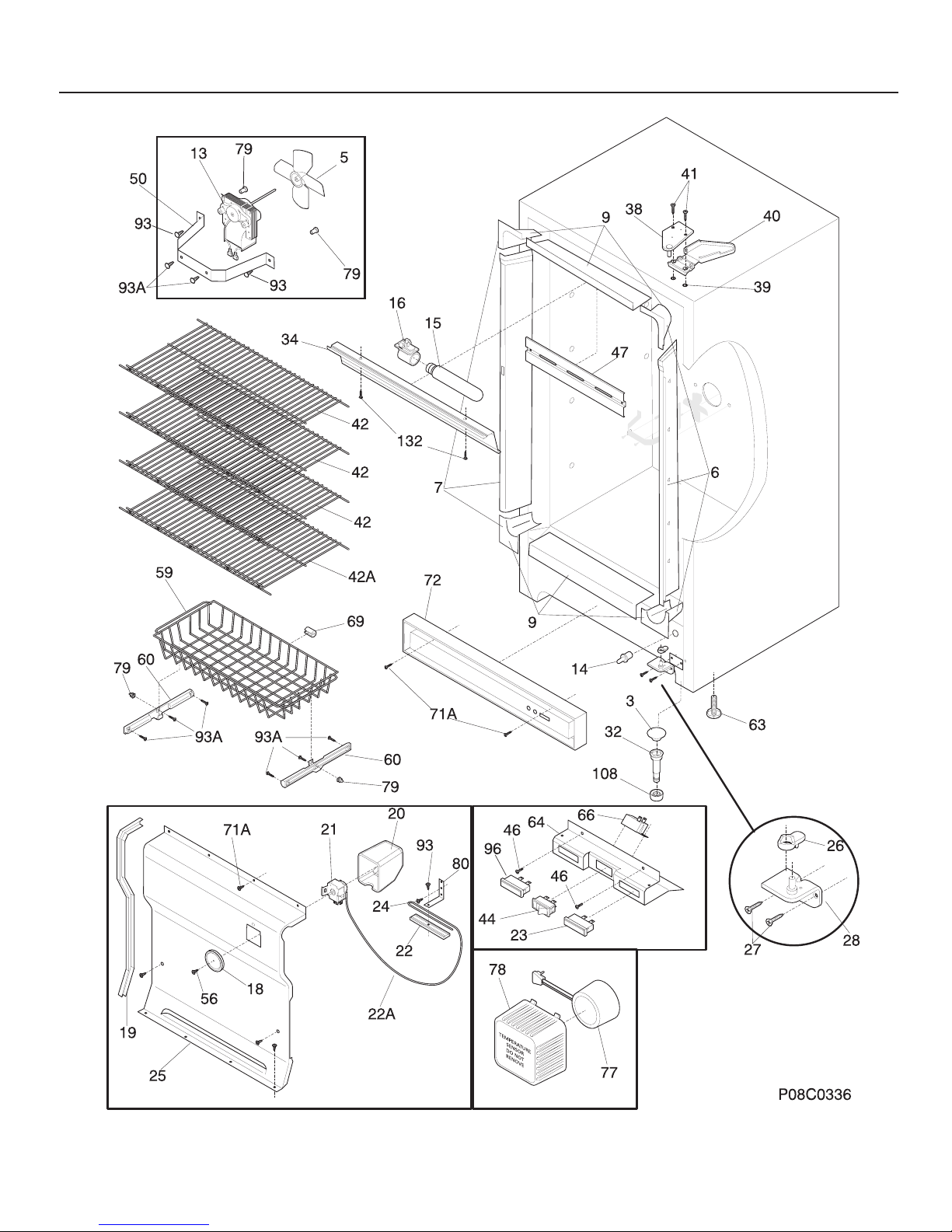

CABINET

# = Fast-moving Parts 5 05/01

* = Non-Illustrated Parts

FFU17F9GW Publication No.

5995351409

CABINET

POS. NO PART NO DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604200 Breaker Kit w/corners

7 216603700 Breaker Kit w/corners,lock catch

9 216603300 Breaker Kit w/corners, 32", top or bottom

13 # 216690400 Motor-fan

14 # 216472300 Switch-light plunger

15 # 216608600 Lamp,light bulb ,40 W ,120 V

16 # 5300136117 Socket-light/lamp

18 216707200 Knob-control cold

19 216204900 Gasket,evap cover

20 216230300 Cover,temp control

21 # 216715200 Control-temperature

22 05878562 Clamp,cap tube ,cold control

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

23 5308002706 Light-signal,amber

24 5300052943 Screw-clamp,truss hd cr ,control

25 216737100 Cover-evaporator

26 216503300 Ramp,closer ,door

27 5303205738 Screw-hinge,cr ,1/4-20 x 1.000 ,btm

28 216247400 Hinge-bottom

32 5308005500 Drain

34 216557606 Shield-light

38 5303925086 Hinge-upper

39 5303294372 Nut-insert,hinge

40 5303212912 Cover-hinge

41 5303212937 Screw-top hinge

42 216458400 Shelf,14.50x27.88 ,WH

42A 216458200 Shelf,12.50x27.88 ,white

44 # 5303017178 Switch-rocker

46 08037851 Screw,PH type AB ,8-32x1/2 , wiring harness

47 216661600 Baffle-plate

50 216394000 Bracket-motor mtg fan

56 09950853 Screw-control knob,phillips ,4-40 x 3/8

59 216372800 Basket,(2)

60 5303212693 Slide-basket

63 216396900 Foot-adjustable

64 08016369 Bracket

66 # 216713700 Buzzer,alarm

69 5305878546 Bumper-basket

71A 216347500 Screw,quadrex

72 216591118 Grille/Kickplate,32"

77 5303313631 Sensor Assy

78 3205349 Housing-sensor

79 3017666 Nut-insert

80 06594601 Bracket,control

93 5303161215 Screw

93A 5303302760 Screw

96 08016772 Light-signal,red

108 216388600 Trap-drain

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216502400 Grommet-shelf mtg

* 216539100 Wiring Harness,alarm

* 5303305324 Paint,touch-up ,white

05/01 6

Publication No. FFU17F9GW

5995351409

SYSTEM

# = Fast-moving Parts 7 05/01

* = Non-Illustrated Parts

FFU17F9GW Publication No.

5995351409

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 # 216747900 Harness-main

14 216730700 Heater-defrost

15 216737300 Evaporator

15A 216751000 Heat Exchanger

18 216727600 Insulator-evap,styrofoam

19 216727700 Insulator-evap,styrofoam

20 216731000 Thermostat-defrost

23 216744400 Timer-defrost

24 08016580 Bracket

26 216511900 Spacer tube,(3)

27 216498900 Grommet,compressor

29 # 216639700 Compressor,Service

30 216649308 Controller-regulator LP

31A 216517800 Pan-drain

32 216731900 Clip-controller

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx , compressor

43 09950610 Clip,cord

43A 216629700 Clip-harness

86 216036600 Screw,rwhd (gx-ca) ,8-32 x 1/2

87 08037849 Screw

130 216730400 Support-evaporator

* 216502500 Sleeve-tube insert
