Frigidaire FFU14FK1CW0 User manual

CHEST FREEZER

Model number:

FFU14FK1CW0

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216857900

OWNER’S GUIDE - # 216802800 ENERGY GUIDE - # 216795308

SERVICE DATA SHEET - # 216857900

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFU14FK1CW0 FFU14FK1CW 134A white 115

MARKET

North America

Publication No.

5995385928

030217

-EN/SERVICE /MLR

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

02/03 2

Publication No FFU14FK1CW0

5995385928

DOOR

# = Fast-moving Parts 3 02/03

* = Non-Illustrated Parts

FFU14FK1CW0 Publication No.

5995385928

DOOR

POS. NO PART NO DESCRIPTION

1 216522306 Gasket,door seal ,white

9 216527617 Panel-inner door,frzr

11 216557801 Panel-outer door,white

12A 216892800 Nameplate

13 08016354 Door Stop

14 5303313518 Washer,sealing

18 216140200 Handle,recessed ,white

21A 08005520 Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric

22 216443600 Bearing,hinge

22A 216503200 Bearing,hinge ,bottom

26 216524300 Gasket,secondary

27 5303212828 Clip,panel mtg

28 216806001 Rack-door,narrow ,4

32 5309950074 Valve,breather ,door base

64 216403700 Plug-button,hole filler ,door base

93 5303161215 Screw,ph truss head ,8-18AB x 0.500

02/03 4

Publication No FFU14FK1CW0

5995385928

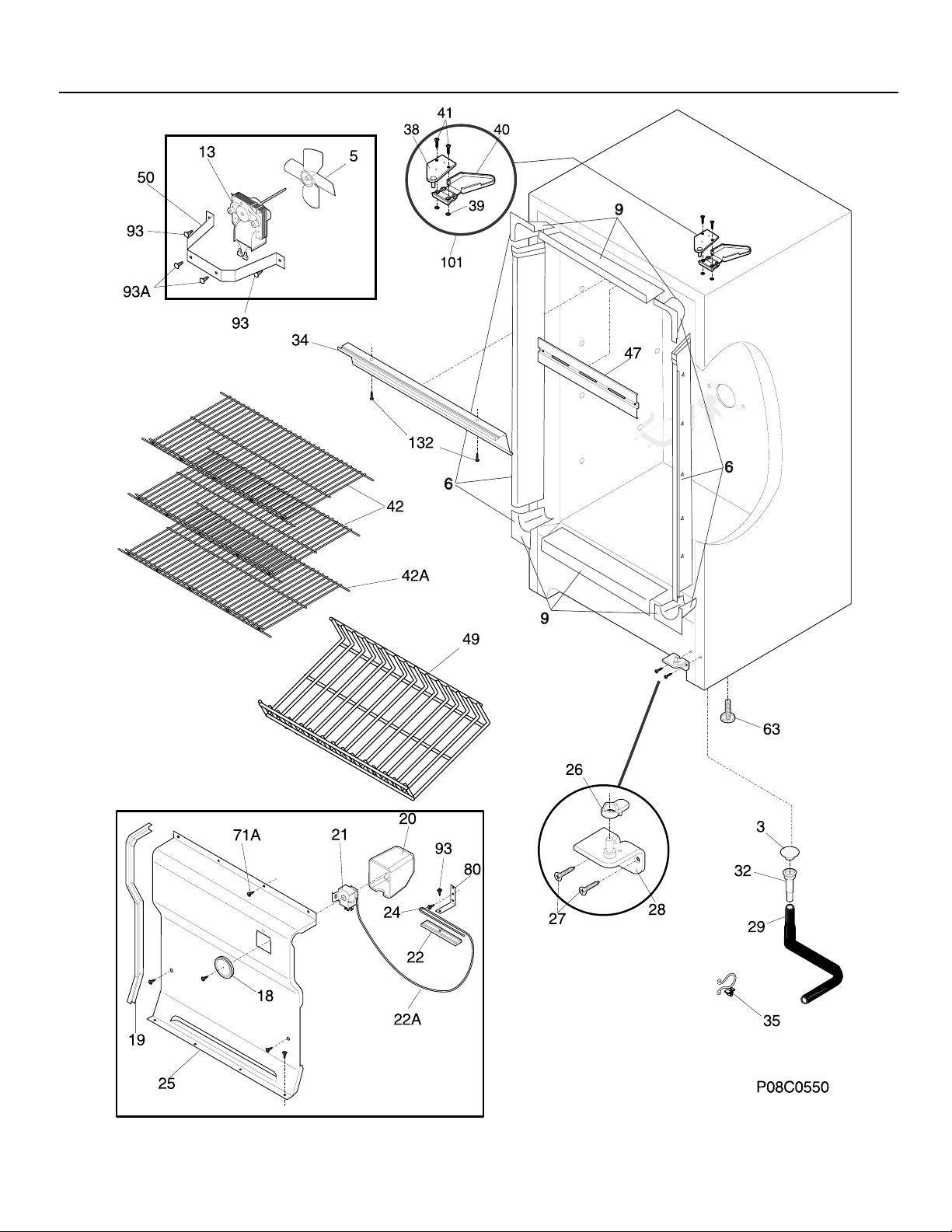

CABINET

# = Fast-moving Parts 5 02/03

* = Non-Illustrated Parts

FFU14FK1CW0 Publication No.

5995385928

POS. NO PART NO DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 216604300 Breaker Kit w/corners,45.13" long ,no lock slot

9 216603400 Breaker Kit w/corners,22.13" long ,top or bottom

13 216822500 Motor,evaporator fan ,115 V

18 216707200 Knob,temp control

19 216204900 Gasket,evap cover

20 216230300 Cover,temp control

21 # 216788000 Control,temperature

22 216823500 Clamp,cap tube ,cold control

22A 5303916855 Tube,sensor sleeve ,plastic ,clear

24 5300052943 Screw-clamp,truss hd cr ,control

25 216820100 Cover,evaporator

26 216503300 Ramp,door closer

27 5303205738 Screw,hinge mtg ,10 (A) x 0.875 ,btm

28 216247400 Hinge,bottom

29 216313500 Hose-drain

32 5308005500 Drain

34 216816204 Shield-light

35 216273000 Clip,drain hose

38 216808900 Hinge,plate ,top

39 5303294372 Nut-insert,1/4-20 UNC ,hinge

40 216809000 Cover-hinge

41 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

42 216546100 Shelf,16.69 X 23.88 WH,16.69x23.88 ,white

42A 216546200 Shelf,14.50 X 23.88 WH,14.50x23.88 ,white

47 216661600 Plate,baffle ,snap fit

49 216278800 Trivet

50 216394000 Bracket,fan motor mount

63 216396900 Screw,leveling foot ,plastic ,adjustable

71A 216347500 Screw,quadrex ,8-32 x 0.300

80 06594601 Bracket,control

93 5303161215 Screw,ph truss head ,8-18AB x 0.500

93A 5303302760 Screw,round head sems ,10-32 x 0.375

101 216835200 Top Hinge Kit

132 5303283898 Screw,6-20AB x 3/8

* 09948773 Insulation,drain tube

* 216502400 Grommet-shelf mtg

* 5303305324 Paint,touch-up ,white

CABINET

02/03 6

Publication No FFU14FK1CW0

5995385928

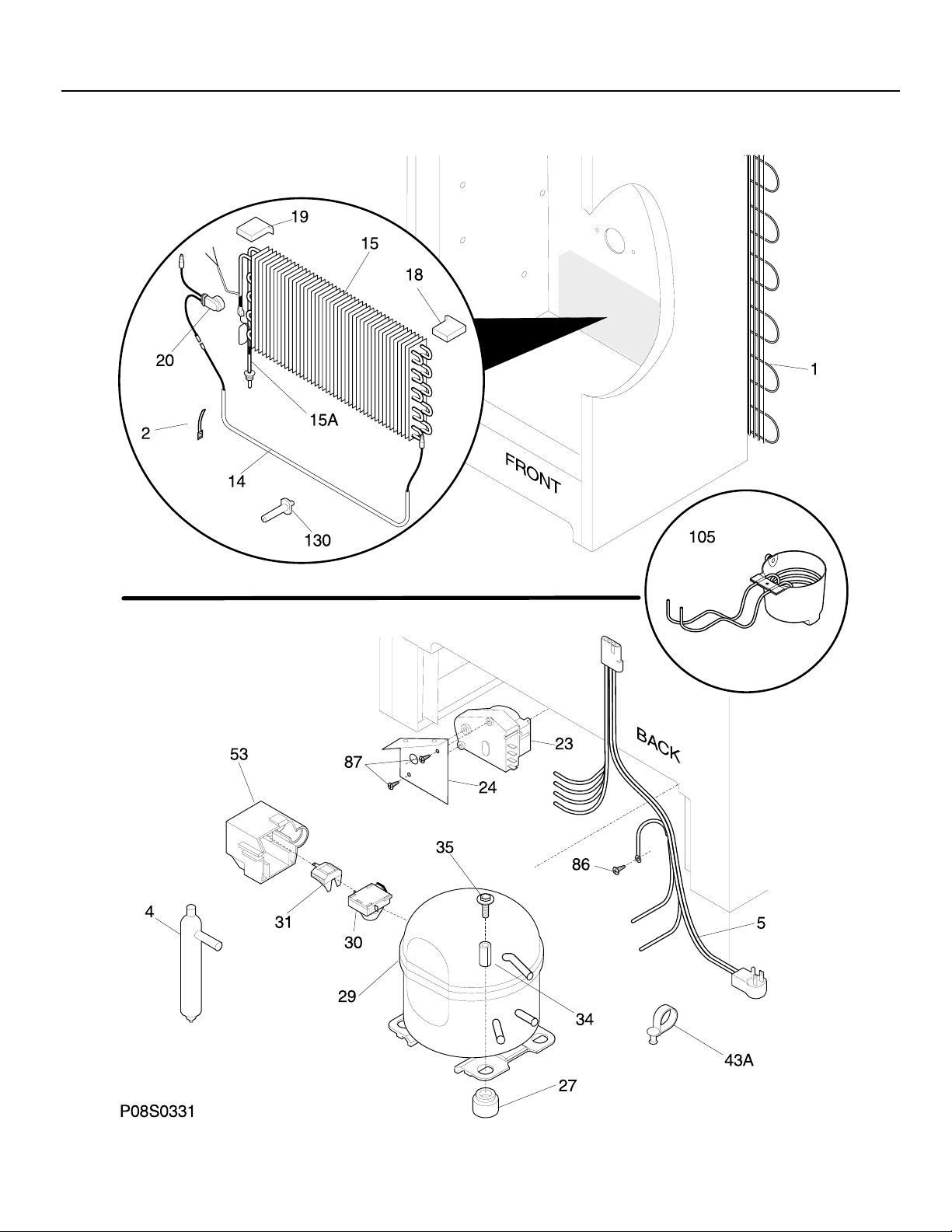

SYSTEM

# = Fast-moving Parts 7 02/03

* = Non-Illustrated Parts

FFU14FK1CW0 Publication No.

5995385928

SYSTEM

POS. NO PART NO DESCRIPTION

1 # 5300123788 Condenser

2 5308000110 Strap-evap/heater,aluminum ,(2)

4 216634500 Drier-filter

5 # 216899200 Harness-main

14 216740000 Heater-defrost

15 216737400 Evaporator

15A 216565700 Heat Exchanger

18 216727600 Insulator-evap,styrofoam

19 216727700 Insulator-evap,styrofoam

20 216731000 Thermostat,defrost

23 # 216744400 Timer,defrost ,12 hour

24 08016580 Bracket

27 5308002681 Grommet,compressor

29 # 216888100 Compressor,w/o electricals

30 216596800 Starter,relay

31 # 216100106 Overload Protector

34 5306594529 Sleeve-compressor

35 5303272328 Screw,Ind hex sems ,1/4-28 unfx ,compressor

43A 216629700 Clip-harness

53 216347800 Cover terminal,cover-comp term

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming

87 08037849 Screw,ph truss head ,6-32(T) x 0.500 ,thread cutting

105 216854001 Cup-drain

130 216486800 Support,evaporator mtg

* 216502500 Sleeve,suction line
