Frigidaire FFC15C4AW User manual

CHEST FREEZER

Model numbers:

FFC15C4AW

FACTORY PARTS CATALOG

FREEZER

WIRING DIAGRAM - # 216908200

OWNER’S GUIDE - # 216802800

SERVICE DATA SHEET - # 216908200

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FFC15C4AW3 FFC15C4AW 134A white 115

MARKET

North America

Publication No.

5995388336

030403

-EN/SERVICE /MLR

365

ELECTROLUX HOME PRODUCTS, INC.

P.O BOX 212378, AUGUSTA , GA 30917

09/02 2

Publication No FFC15C4AW3

5995388336

DOOR

# = Fast-moving Parts 3 09/02

* = Non-Illustrated Parts

FFC15C4AW3 Publication No.

5995388336

DOOR

POS. NO PART NO DESCRIPTION

1 216481201 Gasket-door,white

2 5303925107 Lock Assy

5 # 216702900 Key,lock

9 216829104 Panel-lid

10 216141101 Plug button,white

11 216129920 Lid,white

12A 216816801 Insert-nameplate

14 216822900 Switch,light/lamp ,ramp

15 216846400 Light Bulb/Lamp

16 216817600 Socket,light/lamp ,25 W

18 216446600 Handle

23 5308002706 Light-signal,amber

27 5303212828 Clip,panel mtg

34 5303296969 Shield,lid lamp

40 5309948647 Fastener,handle

47 216819900 Wiring Harness,lid/defrost ,with light

56 216694200 Cap,sig light seal

* 5303925098 Insulation

09/02 4

Publication No FFC15C4AW3

5995388336

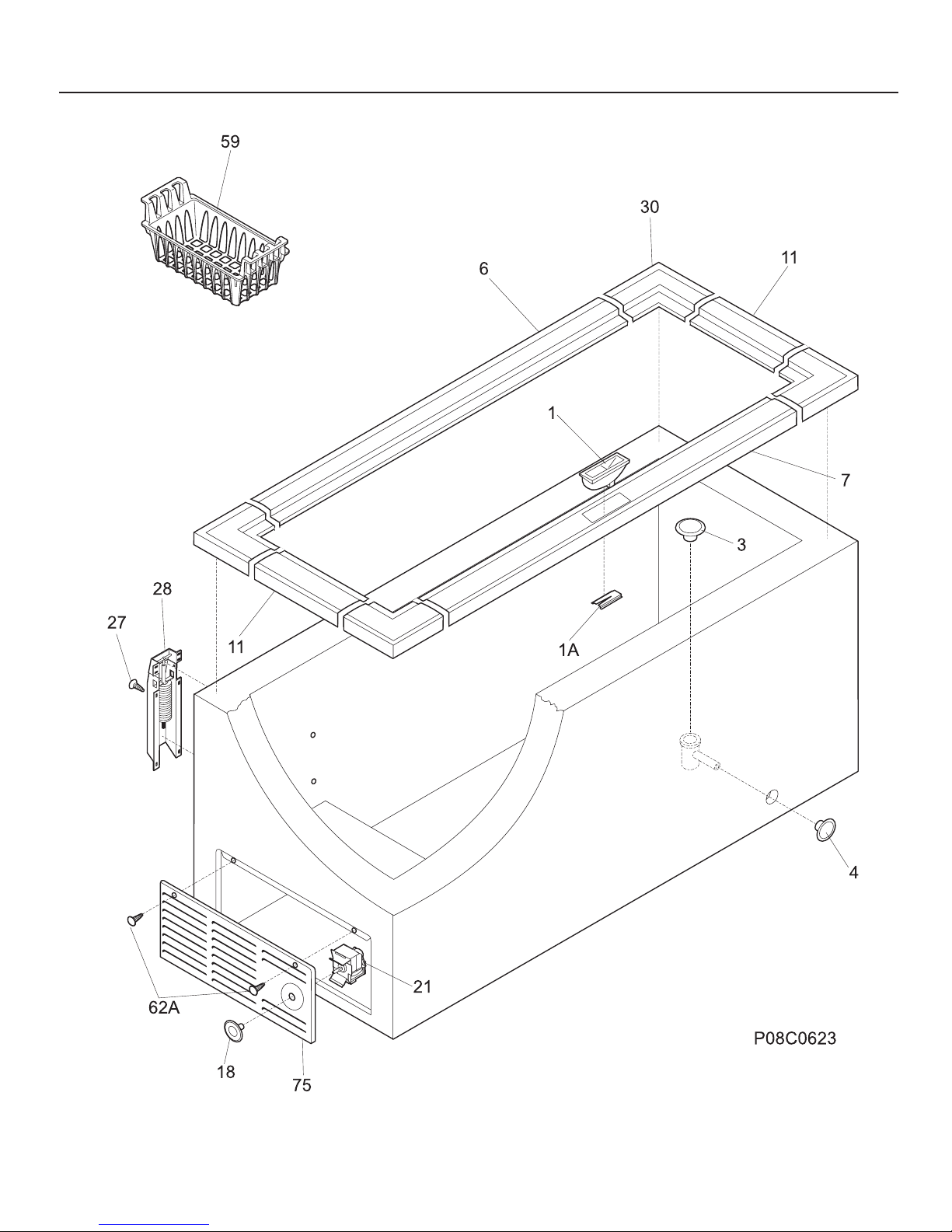

CABINET

# = Fast-moving Parts 5 09/02

* = Non-Illustrated Parts

FFC15C4AW3 Publication No.

5995388336

POS. NO PART NO DESCRIPTION

1 216909800 Catch-lock,white

1A 216818900 Support,lock catch clip

3 216502600 Plug,drain ,interior

4 216073905 Plug-drain,exterior

6 216111000 Breaker,Plain ,white

7 216111600 Breaker,lock side

11 216110800 Breaker,chest end ,(2)

18 216707200 Knob,temp control

21 # 216714601 Control temperature

27 216629600 Screw,hex washer head ,10-16 x 0.500 ,tapping

28 216035200 Hinge

30 216110700 Breaker,corners

59 216867300 Basket,upper

62A 5303302714 Screw,8-18x3/4 ,(2)

75 216034301 Panel,access ,white

* 5303305324 Paint,touch-up ,white

* 216794201 Energy Guide

CABINET

09/02 6

Publication No FFC15C4AW3

5995388336

SYSTEM

# = Fast-moving Parts 7 09/02

* = Non-Illustrated Parts

FFC15C4AW3 Publication No.

5995388336

SYSTEM

POS. NO PART NO DESCRIPTION

1 5303925238 Condenser

4 216634500 Drier-filter

5 # 216906200 Harness-main

22 216056400 Clip,compressor mtg ,SPRING

27 5308002681 Grommet,compressor

28 5303212615 Support,compressor

29 # 216888100 Compressor,w/o electricals

30 216596800 Starter,relay

31 # 216100106 Overload Protector

42 216232700 Washer,flat ,1"OD x 0.531"ID

43 5303212614 Clip,harness mount

47 216629600 Screw,hex washer head ,10-16 x 0.500 ,tapping

53 216347800 Cover terminal,cover-comp term

85 216533500 Wire,ground

86 216036600 Screw,ph washer head ,8-32CA x 0.500 ,thread forming
