Frigidaire FPEC3685KSA Instruction Manual

FPEC3685KSA.eps CFPEC3685KSA.eps MFPEC3685KSA.eps 318046854.eps

Product No. FPEC3685KSA

38057423790S1

Series 36" elec

Color stainless

Market North America

Wiring Diagram 318046854

Owner's Guide 318203624

Installation Instructions 318205408

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995539789

09/05/08

(EN/SERVICE/ECL)

377

36” ELECTRIC

COOK-TOP

Model No.

FPEC3685K

Publication No: 5995539789 FPEC3685KSA

05/09 2

CONTROL PANEL

FPEC3685KSA Publication No: 5995539789

# Functional Parts 3 05/09

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

16 318079230 Main Top Assembly, glass, black/stainless, w/trim & frame

20 # 316543603 Board, user interface, rotary, w/potentiometer

23 318194726 Panel, service

* 5303307980 Screw, 8-32 x 0.437, (8)

* 5303323140 Screw, ground, 10-32 x 0.375

24 318319205 Deflector, service panel

* 5303311306 Screw, 8-18 x 0.375, (6)

33 318146012 Bushing, control, (4)

34 316247700 Nut, mounting

35 318086007 Washer, flat, (4), control

36 316564609 Knob, control, stainless, single

36A 316564612 Knob, control, stainless, dual

46 318319020 Lens, indicator light, (6)

47 318367101 Clamp, lens, (6)

48 318337101 Gasket, O'ring, (6)

51 # 318337201 Light, indicator, red, (2)

58 318346009 Insulation

* 5304415832 Screw, 8-18 x 0.406

77 318293702 Spacer, control, (4)

77A 316114100 Spacer

97 # 316442066 Board, user interface, (UIB)

97A# 316442119 Board, power, 7 relay

* # 318402330 Harness, wiring, interface, to display

* # 318402334 Harness, wiring, interface, to relay board

* # 318402332 Harness, wiring, pilot light

* 5303308449 Fastener, wire tie

* 08016432 Screw, truss head, 8-18 x 0.375

Publication No: 5995539789 FPEC3685KSA

05/09 4

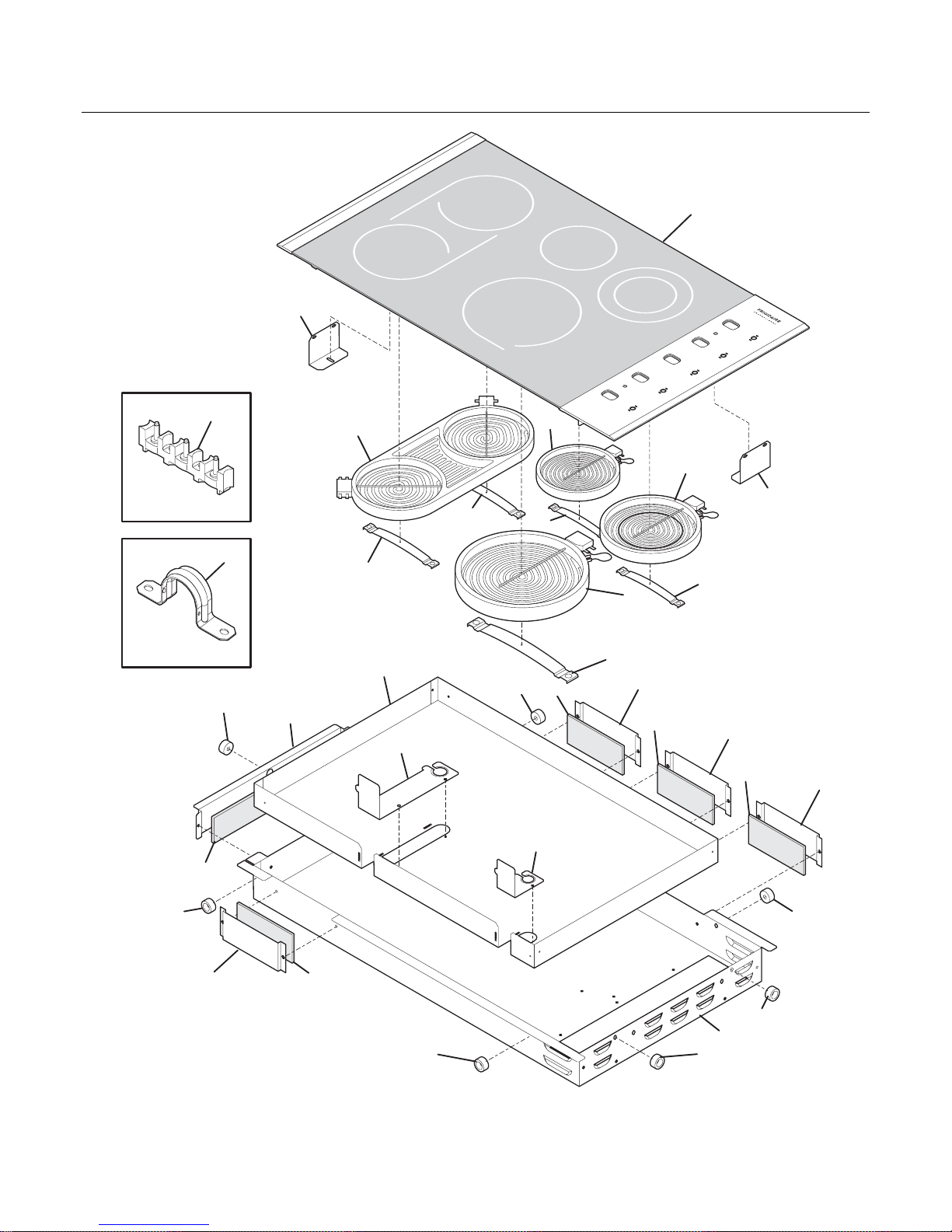

MAIN TOP/SURFACE UNITS

171

150

171

150

171

150

163

172

151

15A

15B

15C

52A

52C

163

150

163

171

163

MFPEC3685KSA

FPEC3685KSA Publication No: 5995539789

# Functional Parts 5 05/09

* Non-Illustrated Parts

MAIN TOP/SURFACE UNITS

POS. NO PART NO. DESCRIPTION

1 318354146 Shield, heat

3 318371401 Cover, deflector, (2)

3A 318371402 Cover, deflector

15 # 318198936 Element, surface, 750/1800W, dual radiant

15A# 318258203 Element, bridge, 1800/2600

15B# 316530000 Element, surface, 9", Turbo, 3200W, radiant

15C# 318198830 Element, surface, 6", 1200 W, (2)

16 318079230 Main Top Assembly, glass, black/stainless, w/trim & frame

20 318121902 Bracket, retainer

* 5303307980 Screw, 8-32 x 0.437, (8)

46 318354048 Box, burner

51 318389600 Bracket, conduit mtg.

52 318122008 Spring, element mtg, 1800W/3000W

52A 318122006 Spring, element mtg, small

52C 318122010 Spring, element mtg, 3000W

62 # 316056000 Terminal Block

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

150 318106051 Insulation, 2 x 5.75, (2)

151 318106066 Insulation, 15 x 2.37, w/aluminum foil

163 318531702 Spacer, (6)

163* 3131048 Screw, 8 x 5/8

171 318124912 Screen, thermal

172 318124915 Screen, thermal

* # 318394475 Box & wires assy

* # 318402412 Harness, wiring, main

* 5303308449 Fastener, wire tie

* 318163601 Cleaner-cooktop

* 318163602 Cleaner, stainless steel

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303323140 Screw, ground, 10-32 x 0.375

Publication No: 5995539789 FPEC3685KSA

05/09 6

WIRING DIAGRAM
