Frigidaire FGC36C4H User manual

PRODUCT NO. FACTORY NO. COLOR MARKET

FGC36C4HWA 3775441160011 WHITE U.S.A.

FGC36C4HDA 3775441160031 ALMOND U.S.A.

FGC36C4HCA 37754411600C1 CHROME U.S.A.

GAS COOKTOP

Model No.

FGC36C4H

Inc.

FACTORY PARTS CATALOG

GAS COOKTOP

WIRING DIAGRAM # - 318047105

OWNER’S GUIDE # - 318068140

INSTALLATION INSTR. # - 318201404

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995332326

000127

-EN/SERVICE

377

Publication No. FGC36C4H

5995332326

01/00 2

COOKTOP

45A

LA00CT77411-1

19 19

FGC36C4H Publication No.

5995332326

# = Functional Part 301/00

* = Non-Illustrated Part

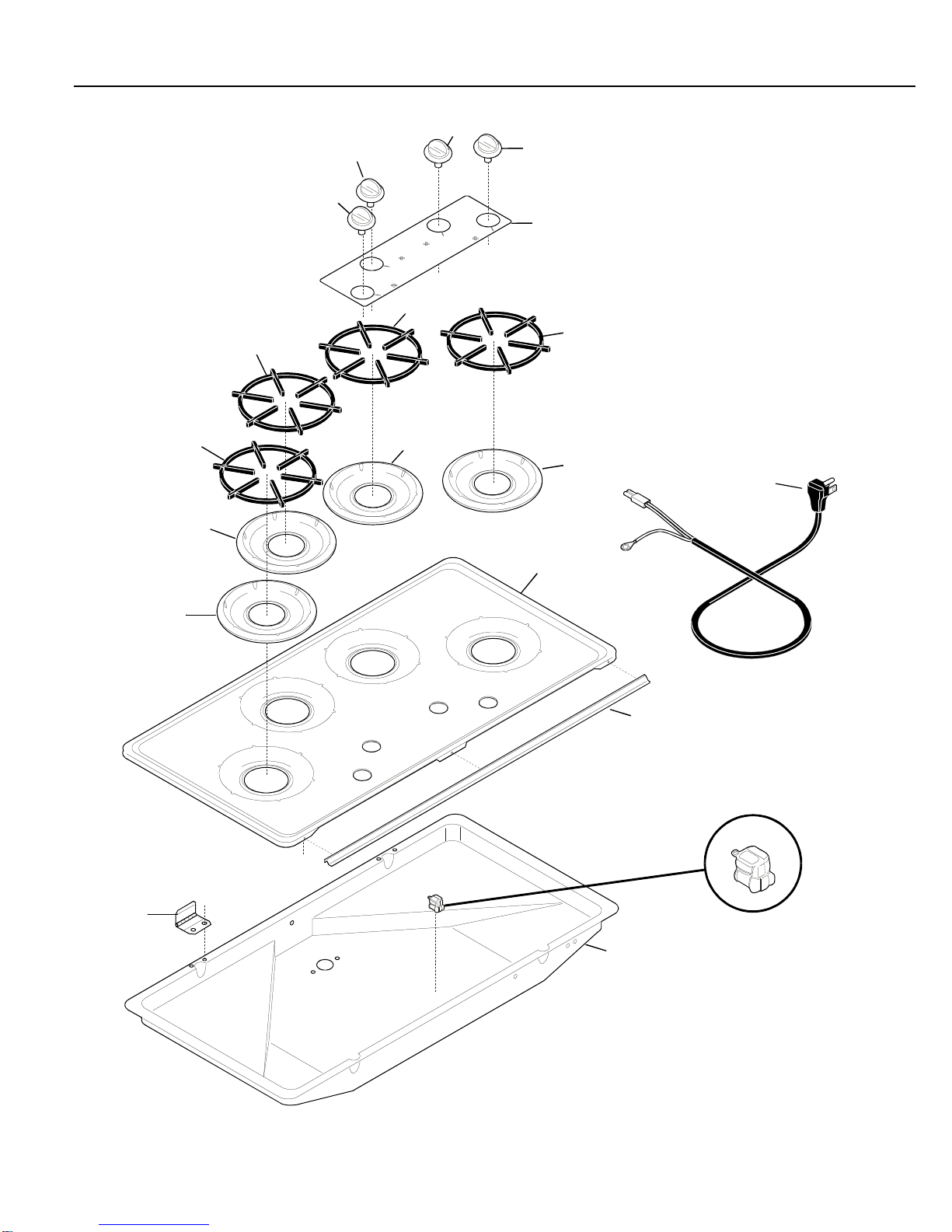

COOKTOP

POS. NO. PART NO. DESCRIPTION

16 318159311 AMain Top white

16 318159312 BMain Top almond

16 318159313 CMain Top chrome

18 318074310 ABCHinge-maintop (2)

19# 318067300 ABCPan-burner black

20 316040807 ABCGrate

23 318021700 ABCPanel-control

42 5303311316 ABCHandle

43 318164705 ABCKnob-control black

45A 3201437 ABCStrain relief

46 318077111 ABCBurner Box

47# 5303311311 ABCCord,electric

*5303311306 ABCScrew, 8-18 X 3/8

*5303311333 ABCScrew, 8-32 X 3/8

*5303311532 ABCScrew, 6-32 X 1/4

A= FGC36C4H (FGC36C4HWA)

B= FGC36C4H (FGC36C4HDA)

C= FGC36C4H (FGC36C4HCA)

FGC36C4H Publication No.

5995332326

01/00 4

BURNER

LA00BR77411-2

FGC36C4H Publication No.

5995332326

# = Functional Part 501/00

* = Non-Illustrated Part

BURNER

POS. NO PART NO DESCRIPTION

1 # 3017002 ABCManifold Pipe

2 # 318087030 ABCValve-top burner

3 # 316032001 ABCSwitch-igniter

8 # 5303912606 ABCSpark Module

10 # 5303323981 ABCBurner-top, LF & RR

10A# 5303323982 ABCBurner-top, RF & LR

11# 318148501 ABCIgniter-burner, 16.25”

12 3016993 ABCRetainer-igniter

14 # 5308007974 ABCRegulator-pressure

33 5303311317 ABCChannel-burner support

35 318146300 ABCBushing

*08016432 ABCScrew, 8-18 X 3/8

*5303311306 ABCScrew, 8-18 X3/8

*5303311532 ABCScrew, 6-32 X 1/4

*5303324191 ABCWasher

*5304403070 ABCScrew, 6-32 X 5/16

A= FGC36C4H (FGC36C4HWA)

B= FGC36C4H (FGC36C4HDA)

C= FGC36C4H (FGC36C4HCA)

FGC36C4H Publication No.

5995332326

01/00 6

WIRING DIAGRAM
