Frigidaire FGC30S4H User manual

PRODUCT NO. FACTORY NO. COLOR MARKET

FGC30S4HCA 37754212490C1 WHITE U.S.A.

GAS COOKTOP

Model No.

FGC30S4H

Inc.

FACTORY PARTS CATALOG

GAS COOKTOP

WIRING DIAGRAM # - 318047105

OWNER’S GUIDE # - 318068130

INSTALLATION INSTR. # - 318201408

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995334181

000229

-EN/SERVICE

377

RIGHT FRONT

LEFT FRONT

LEFT REAR

RIGHT REAR

Publication No. FGC30S4H

5995334181

02/00 2

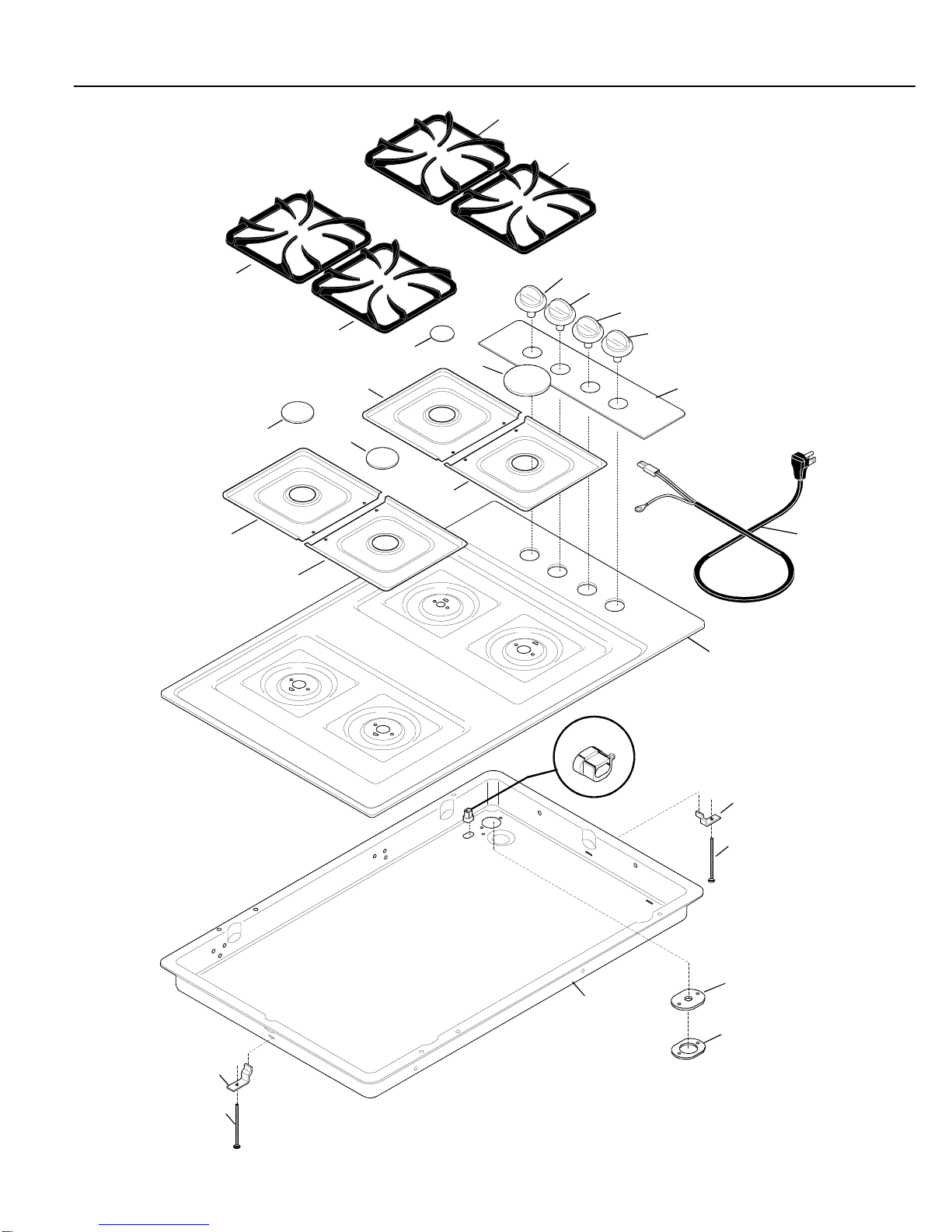

COOKTOP

132

136

137

LA00CT77490-1

22 22

22A

22B 43

19B

19A

FGC30S4H Publication No.

5995334181

# = Functional Part 302/00

* = Non-Illustrated Part

COOKTOP

POS. NO PART NO DESCRIPTION

16 318159141 AMain top chrome

19 318167903 APan-burner medium black

19A 318167904 APan-burner large black

19B 318167905 APan-burner black

20 316085305 AGrate black

22 318076410 ACap-burner medium black

22A 318076420 ACap-burner large black

22B 318076400 ACap-burner small black

23 318021600 AInsert (black)

43 318164721 AKnob-control black

46 318156000 ABurner Box

47 5303303991 ACord-electric power

64 5303304033 ARetainer/ bracket

65 5303304032 ASeal, rubber

132 3201437 ABushing-snap

136 5303935029 AFixation support

137 5303323138 AScrew, 10-24 X 2 ½/

*5303323140 AScrew ground/

*5303300265 AScrew, 8-18 x ½/

*318052107 AWire harness

A = FGC30S4H (FGC30S4HCA)

Publication No. FGC30S4H

5995334181

02/00 4

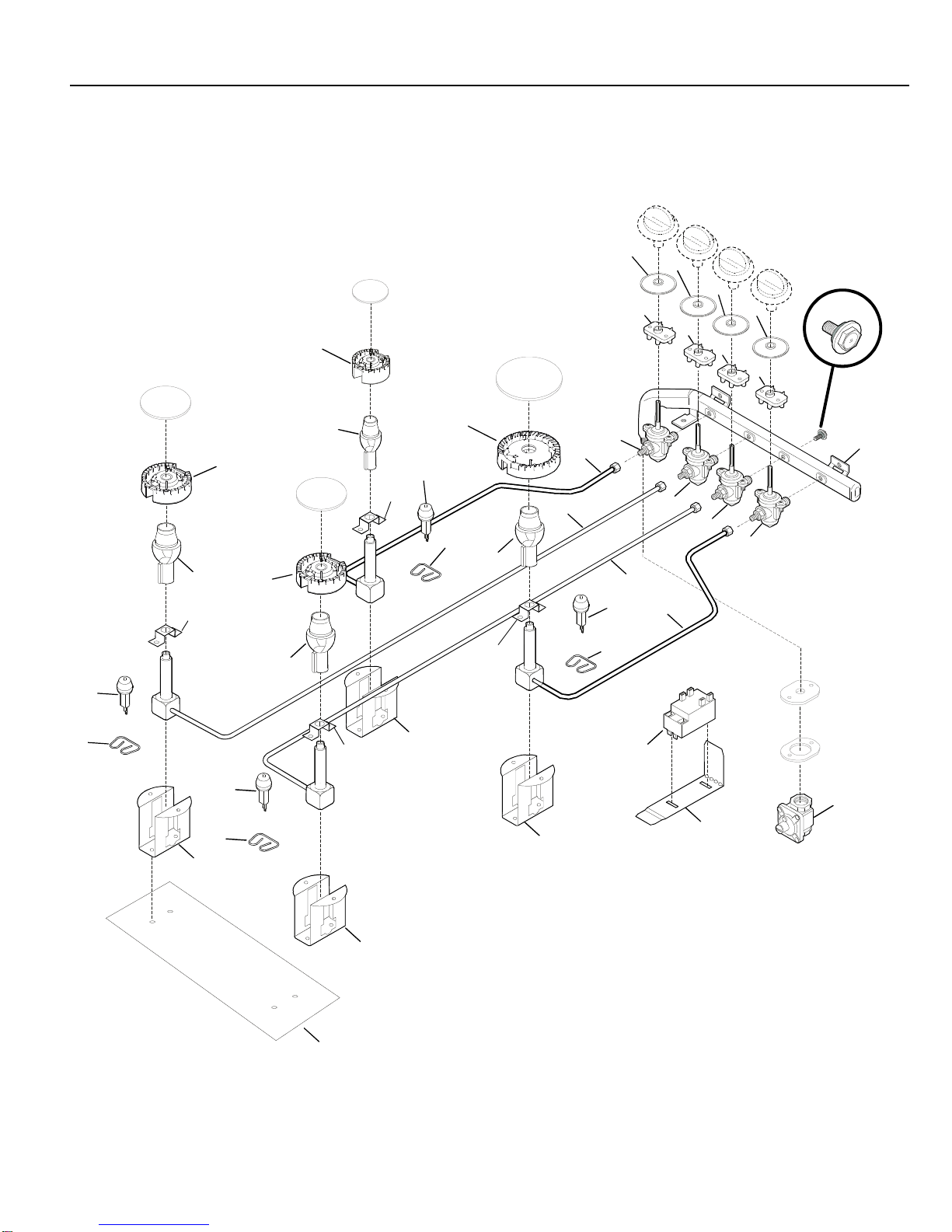

BURNER

10B

10A

222B

75 76

76A

77A

333

LA00BR77490-1

77B

FGC30S4H Publication No.

5995334181

# = Functional Part 502/00

* = Non-Illustrated Part

BURNER

POS. NO PART NO DESCRIPTION

1 318177003 AManifold Pipe

2 # 5303935042 AValve-top burner, 9100 BTU

2A 318087001 AValve-top burner, 5000BTU

2B 318087040 AValve-top burner, 13000BTU

3 # 316032002 ASwitch-ignitor

4 # 318167714 ATube-burner

5 # 318167700 ATube-burner

6318167702 ATube-burner

7318167701 ATube-burner

8 # 5303280394 ASpark Module

10 318148001 AMedium burner

10A 318148002 ALarge burner

10B 318148000 ASmall burner

14 # 5308007974 ARegulator-pressure

35 318146300 ABushing-insulation

72 5303323141 AScrew valve 1/4-20 X 5/16/

73 318024200 ABracket spark module

74 318148700 AIgnitor gourmet assy

75 318148800 AClip

76 318167801 AMixing tube

76A 318167800 AMixing tube

77 318112010 ABracket burner

77A 318112000 ABracket-burner

77B 318180900 ASupoort

78 318160900 ADeflector

*5303307980 AScrew, 8-32 X 7/16

*08011955 AScrew, 10-24 X 3/8

*5304403558 AScrew, 10-16 X ¼

*318127407 ALP kit

*5303311532 AScrew, 6-32 X 1/4

A = FGC30S4H (FGC30S4HCA)

Publication No. FGC30S4H

5995334181

02/00 6

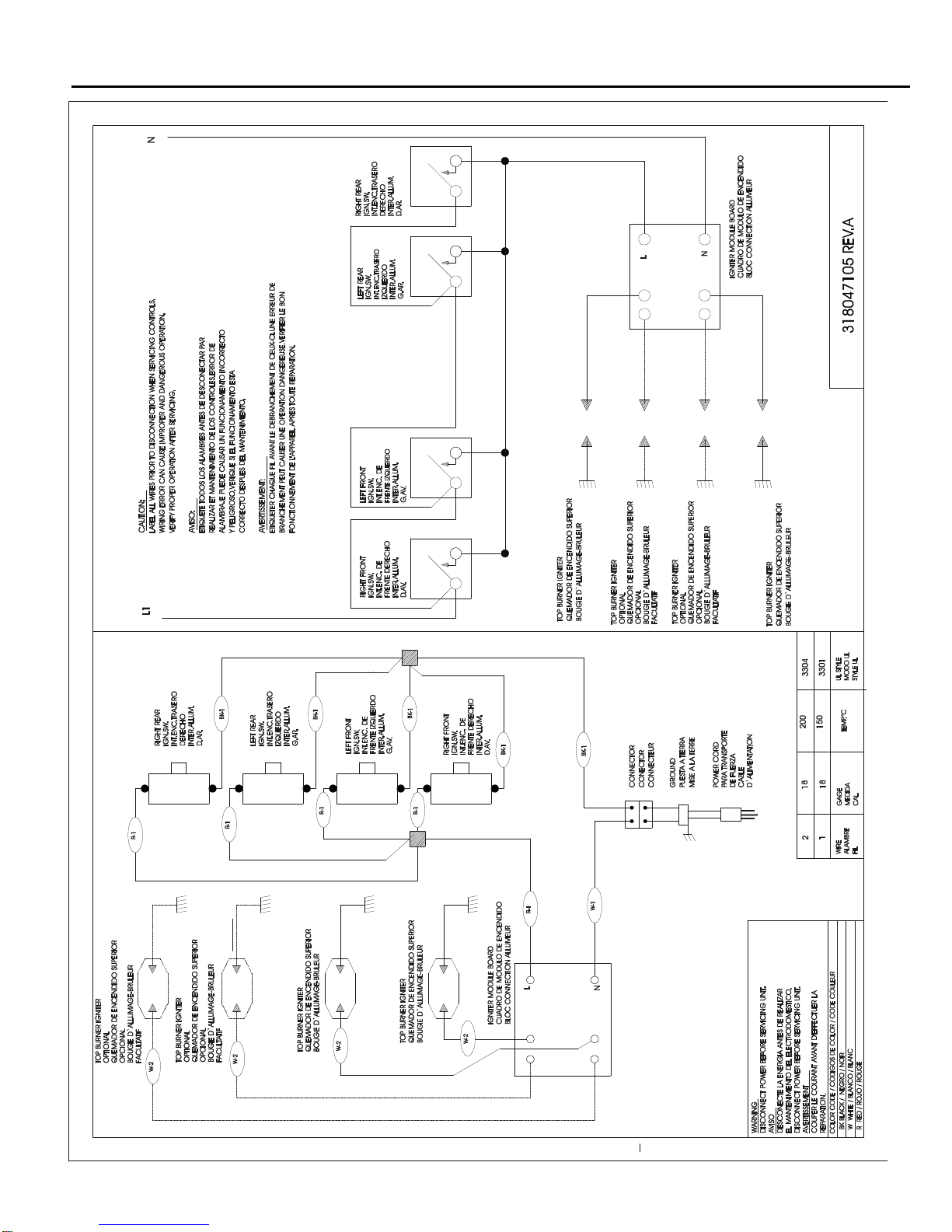

WIRING DIAGRAM
