Frigidaire FFEC3024LB Installation instructions

frigidaire.com

Drop-In Cooktop

FPEC3085K S

30" Electric

Signature Features

Product Dimensions

Width 30-34"

Depth 21-1/2"

Height 2-5/8"

Available in:

Elements

Right Front

Right Rear

Left Front

Left Rear

Watts

2,500

1,200

2,500

Size

White

(W)

Black

(B)

30" Electric

Drop-In Cooktops

FFEC3024L W/ B

Ceramic Glass Cooktop

For a more beautiful cooktop that’s

easy to clean.

Hot Surface Indicator

Alerts you when your cooktop may be

too warm to touch.

Approved Over Frigidaire®

Electric Wall Ovens

Cooktops are approved for installation

above any of our Electric Single Wall

Ovens.

Ready-Select™ Controls

Select options or control cooking

temperature with our easy-to-use

controls.

Accessories information available

on the web at frigidaire.com

Granite Countertop

Installation Kit available.

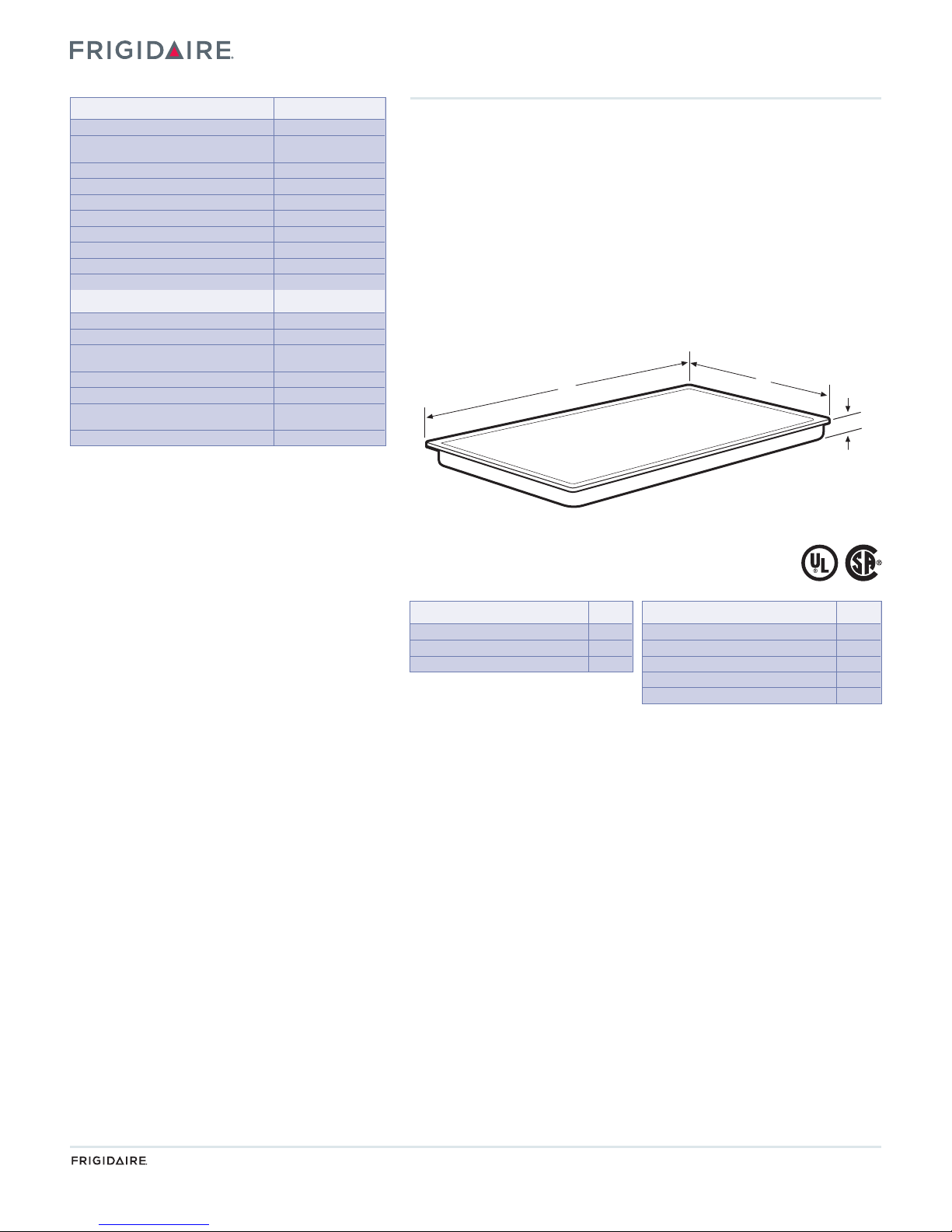

Product Dimensions

A - Width

B - Depth

C - Height

Cutout Dimensions

Width (Min.)

Width (Max.)

Depth (Min.)

Depth (Max.)

Height

29-5/8"

29-3/4"

20-1/4"

20-1/2"

30-3/4"

21-1/2"

2-5/8"

NOTE: Always consult local and national electric codes. Refer to Product Installation

Guide for detailed installation instructions on the web at frigidaire.com.

Drop-In Electric Cooktops

Frigidaire Baseline

1Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz AC

only electrical supply with ground required on separate circuit fused on

both sides of line.

2Cooktops are approved for installation above any of our Electric Single

Wall Ovens.

Features

Controls

Surface Type

Right Front Element (Watts)

Right Rear Element (Watts)

Left Front Element (Watts)

Left Rear Element (Watts)

Hot Surface Indicator

Control Location

Knob Color

Knob Type

Speciﬁcations

Power Supply Connection Location

Voltage Rating

Connected Load

(kW Rating) @ 240 / 208 Volts1

Amps @ 240 / 208 Volts

Minimum Circuit Required (Amps)

Approved for Electric Single Wall Oven

Combination Installation2

Shipping Weight (Approx.)

Ready-Select™

Color-Coordinated

Ceramic Glass

9" - 2,500

6" - 1,200

9" - 2,500

Yes

Right Side

Color-Coordinated

Plastic

Right Rear

240V /208V / 60Hz

7.4 / 5.6

31.0 / 27.0

Yes

45 Lbs.

USA

•

10200 David Taylor Drive •

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Specifications

subject to change.

Drop-In Cooktops

FFEC3024L W/ B 30" Electric

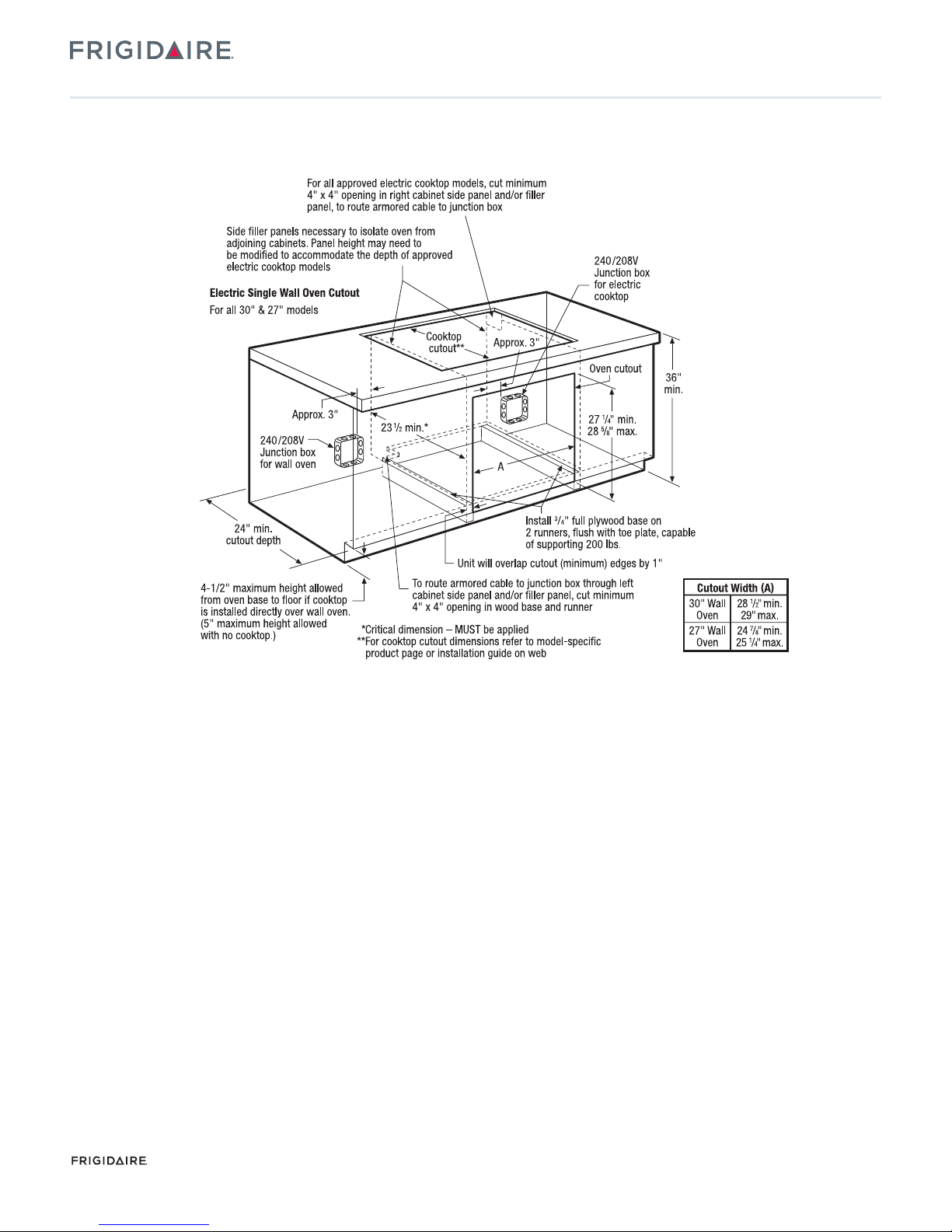

Electric Cooktop Installation

Over 30"/27" Electric Single Wall Oven

Combination Frigidaire Electric Cooktop/

27" & 30" Electric Wall Oven Under-Counter Installation

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

30"/ 27" Electric Single Wall Oven

Under-Counter Installation Specifications

•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz

AC only electrical supply with ground required on separate circuit

fused on both sides of line.

•For detailed electrical requirements, refer to model-specific product

page and installation guide on web.

•Always consult local and national electric codes.

•Minimum 21" clearance for oven door depth when open.

•Minimum 23-1/2" deep cutout dimension is critical for proper

installation, to ensure that oven’s faceplate will fit flush against

cabinet front.

•Full oven base of solid plywood or similar material required,

capable of supporting 200 Lbs. Install over two runners and flush

with toe plate.

•Base must be level and cabinet front must be square.

•Allow 5" maximum height from oven base to floor, if NO cooktop is

installed directly over wall oven.

Electric Cooktop Installation Over

30"/ 27" Electric Single Wall Oven Specifications

All Frigidaire® Electric Single Wall Ovens are approved to be used

beneath any approved Frigidaire® Electric Cooktop.

For detailed Electric Cooktop installation, refer to model-specific

product page and installation guide on web.

•Side filler panels necessary to isolate oven from adjoining cabinets.

Panel height may need to be modified to accommodate the depth

of approved electric cooktop models.

•To route armored cable to junction box, cut minimum 4" x 4" opening

in right cabinet side panel.

•Allow 4-1/2" maximum height from oven base to floor, if cooktop is

installed directly over wall oven.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.
