Frigidaire FEC36C4H User manual

PRODUCT NO. FACTORY NO. COLOR MARKET

FEC36C4HSA 3805441159011 WHITE U.S.A.

FEC36C4HTA 3805441159031 ALMOND U.S.A.

FEC36C4HCA 38054411590C1 CHROME U.S.A.

ELECTRIC - COOKTOP

Model No.

FEC36C4H

Inc.

FACTORY PARTS CATALOG

ELECTRIC COOKTOP

WIRING DIAGRAM # - 318046901

OWNER’S GUIDE # - 318200602

INSTALLATION SHEET #- 318097900

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995324455

990607

-EN/SERVICE

377

LEFT

REAR

LEFT

FRONT

RIGHT

REAR

RIGHT

FRONT

FOF

Publication No. FEC36C4H

5995324455

06/99 2

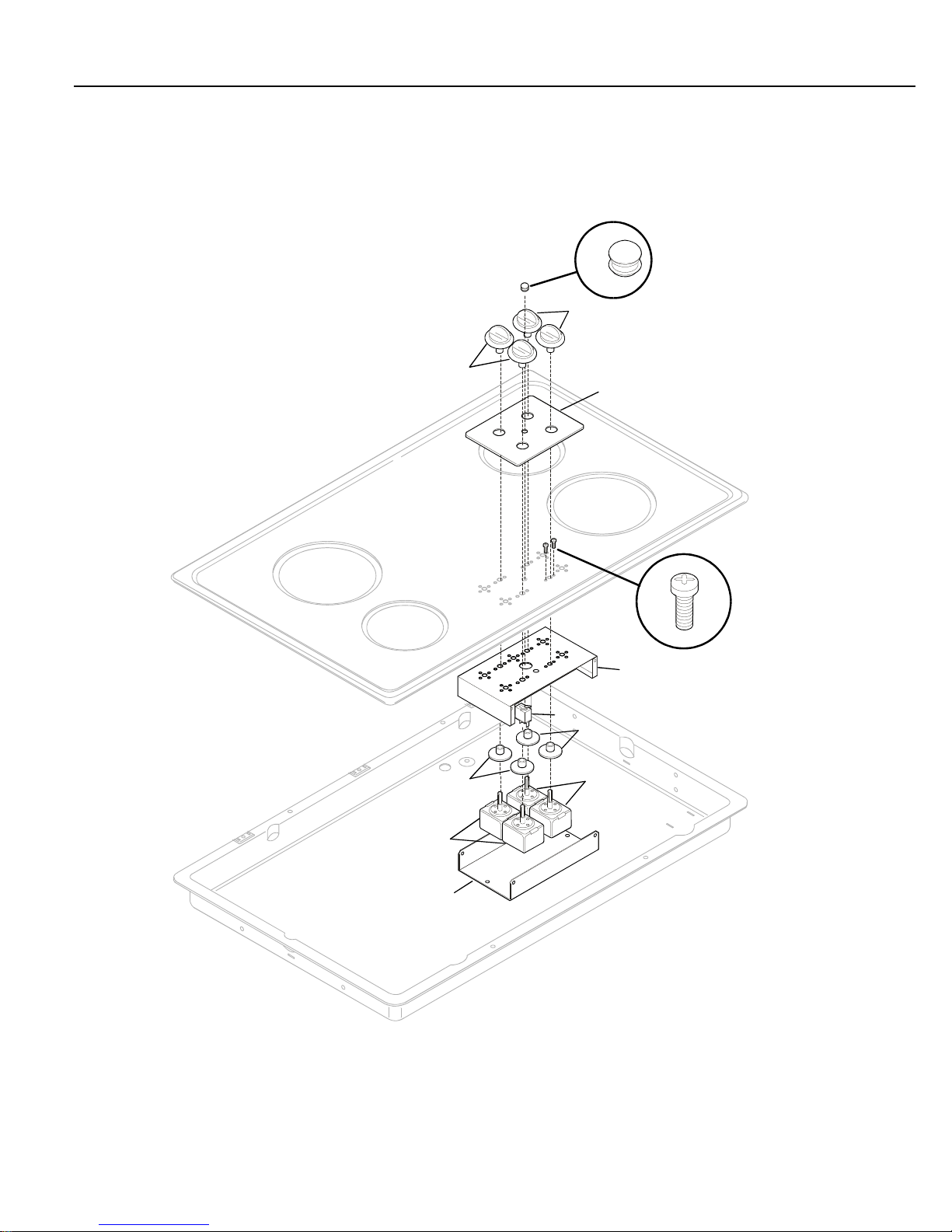

CONTROL PANEL

LA9923G39

16A

FEC36C4H Publication No.

5995324455

# = Functional Part 306/99

* = Non-Illustrated Part

CONTROL PANEL

A=FEC36C4H (FEC36C4HSA)

B=FEC36C4H (FEC36C4HTA)

C=FEC36C4H (FEC36C4HCA)

POS. NO PART NO DESCRIPTION

14 5303323991 AB C Light-indicator,hot surface

16 3200422 AB C Plate instrument mtg

16A 3200430 AB C Cover instrument mtg

19 318183500 AOverlay panel white

19 318183501 BOverlay panel almond

19 5303299755 C Overlay panel black

36 318164500 AKnob-surface white

36 318164503 BKnob-surface unit almond

36 318164505 C Knob-surface unit black

46 5303200418 AB C Lens-light

54 # 318120504 AB C Switch-surface unit,small

69 5303305528 AB C Screw, 8-32 X 1/4

74 318146010 AB C Bushing, (4)

*5304410665 AB C Screw, 10-32 X 5/8

*5303323140 AB C Screw ground

Publication No. FEC36C4H

5995324455

06/99 4

MAINTOP/SURFACE UNITS

183

15A

19A

LA9923V40

136

137

136

137

140

FEC36C4H Publication No.

5995324455

# = Functional Part 506/99

* = Non-Illustrated Part

A=FEC36C4H (FEC36C4HSA)

B=FEC36C4H (FEC36C4HTA)

C=FEC36C4H (FEC36C4HCA)

POS. NO PART NO DESCRIPTION

15# 5308011964 AB C Element-surface, 2100W

15A# 5303299749 AB C Element-surface, 1250W

16 318159031 AMain top white

16 318159032 BMain top almond

16 318159034 C Main top chrome

17 3016817 AB C Rod-maintop support

18 318074310 AB C Hinge main top

19 318067020 AB C Pan-surface element large

19A 318067021 AB C Pan-surface element small

27 5303323704 AB C Terminal block

28 5303301461 AB C Medaillon surface element

46 318077011 AB C Box-burner

93 318122500 AB C Support terminal bloc

136 5303935029 AB C Support

137 5303323138 AB C Screw, 10-24 x 2 ½

140 3205315 AB C Support installation

183 5304410665 AB C Shoulder screw, 10-32 X 5/8

*5303324187 AB C Screw, 10-24 X 1 ½

*5303311366 AB C Bx & wires ay

*5303311532 AB C Screw, 6-32 X ¼

*5303317085 AB C Screw, 6-32 X 5/16

*5303324512 AB C Screw, 6-32 X 5/16

*5303325982 AB C Nut (10-32)

MAINTOP/SURFACE UNITS

Publication No. FEC36C4H

5995324455

06/99 6

WIRING DIAGRAM
