Frigidaire FEC32S6ABC Instruction Manual

PRODUCT NO. BASE MODEL NO. FACTORY NO. COLOR MARKET

FEC32S6ABC FEC32S6A 3805432341063 black North America

FEC32S6ASC FEC32S6A 3805433341013 white North America

Publication No.

5995373395

020603

-EN/SERVICE /ECL

377

ELECTRIC

COOKTOP

Model No.

FEC32S6A

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - # 318047019

OWNER’S GUIDE - # 318200612

INSTALLATION INSTRUCTIONS - # 318201410

ELECTROLUX HOME PRODUCTS, INC.

P.O. BOX 212378, Augusta, GA 30917

06/02 2

Publication No. FEC32S6A

5995373395

CONTROL PANEL

# = Functional Parts 3 06/02

* = Non-Illustrated Parts

FEC32S6A Publication No.

5995373395

CONTROL PANEL

A = FEC32S6A (FEC32S6ASC)

B = FEC32S6A (FEC32S6ABC)

POS. NO PART NO DESCRIPTION

16 318096300 A B Plate,instrument mtg

36 318196633 A - Knob,control ,white

36 318196634 - B Knob,control ,black

51 # 318044820 A - Light,indicator ,red

51 # 318044822 - B Light,indicator ,clear

54 # 318220011 A B Switch,surface unit ,small

54A# 318220012 A B Switch,surface unit ,large

69 5303323134 A B Screw,switch mtg. ,8-32 x 0.188

74 5303321205 A B Bushing

* 5303323140 A B Screw,ground ,10-32 x 0.375

* 5303300265 A B Screw,8-18 x 0.500 ,chrome

06/02 4

Publication No. FEC32S6A

5995373395

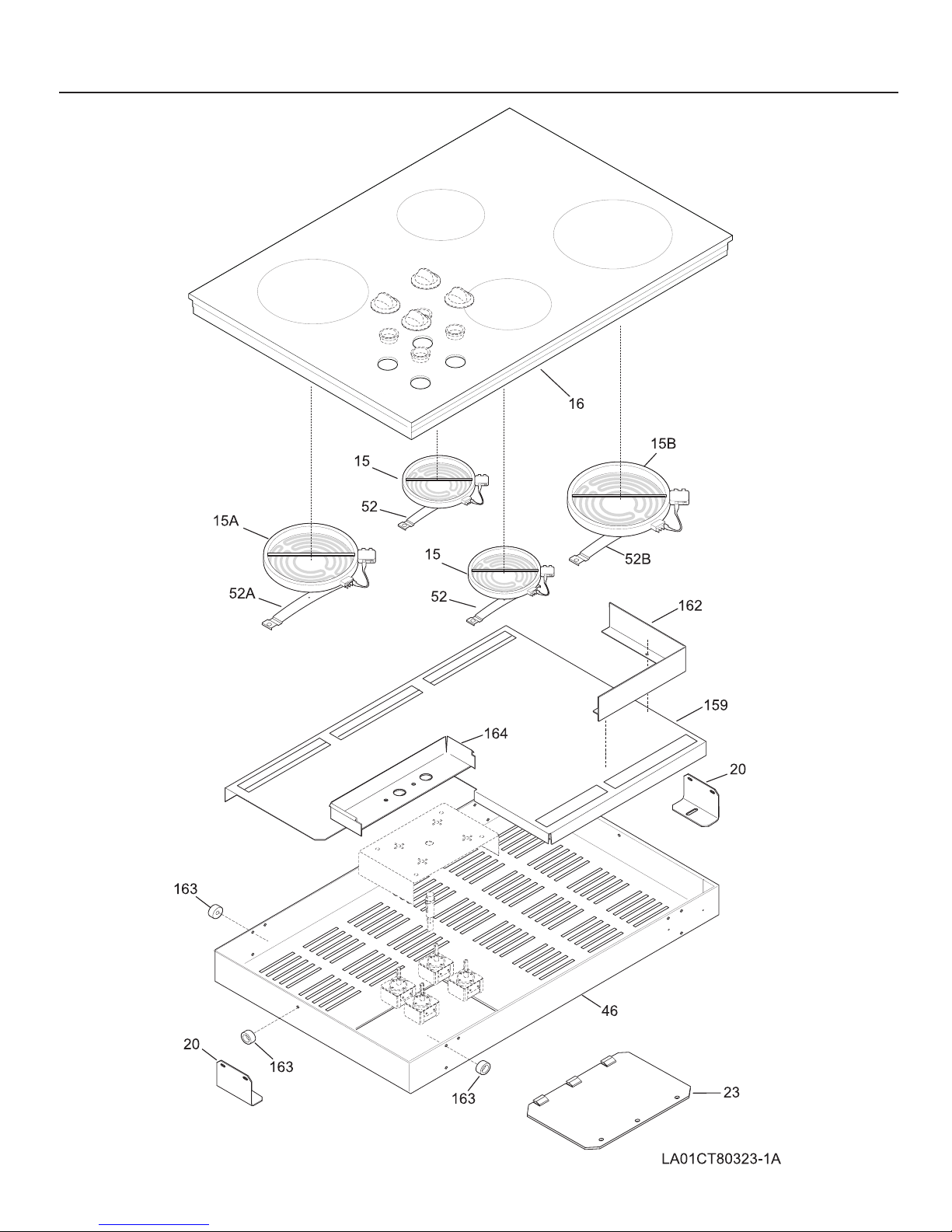

MAINTOP / SURFACE UNITS

# = Functional Parts 5 06/02

* = Non-Illustrated Parts

FEC32S6A Publication No.

5995373395

MAINTOP / SURFACE UNITS

A = FEC32S6A (FEC32S6ASC)

B = FEC32S6A (FEC32S6ABC)

POS. NO PART NO DESCRIPTION

15 # 318198810 A B Element,surface ,6" ,1200 W

15A# 318198812 A B Element,surface ,8" ,2200 W

15B# 316224200 A B Element,surface ,9" ,2500W ,radiant

16 318079349 A - Main Top Assy,glass/steel ,white

16 318079350 - B Main Top Assy,glass/steel ,black

20 318121902 A B Bracket,retainer

23 5303297401 A B Panel,Service

46 318077201 A B Burner Box

52 318122006 A B Spring,element mtg ,small

52A 318122007 A B Spring,element mtg ,large

52B 318122010 A B Spring,element mtg ,1000W/2500W

159 318125101 A B Deflector

162 318125200 A B Deflector

163 08007817 A B Spacer,(6)

164 318125302 A B Plate,connection

* # 5303323364 A B Box & wires assy

* 08016432 A B Screw,truss head ,8-18 x 0.375

* 5303323129 A B Screw,8 X 0.750

* 5303323140 A B Screw,ground ,10-32 x 0.375

* 5303300265 A B Screw,8-18 x 0.500 ,chrome

06/02 6

Publication No. FEC32S6A

5995373395

WIRING DIAGRAM
