Frico RDS Series User manual

RDS

.... 15

SE .... 19

GB .... 23

NO .... 27

DE .... 31

.... 35

ES .... 39

IT .... 43

NL .... 47

PL .... 51

Original instructions

RDS

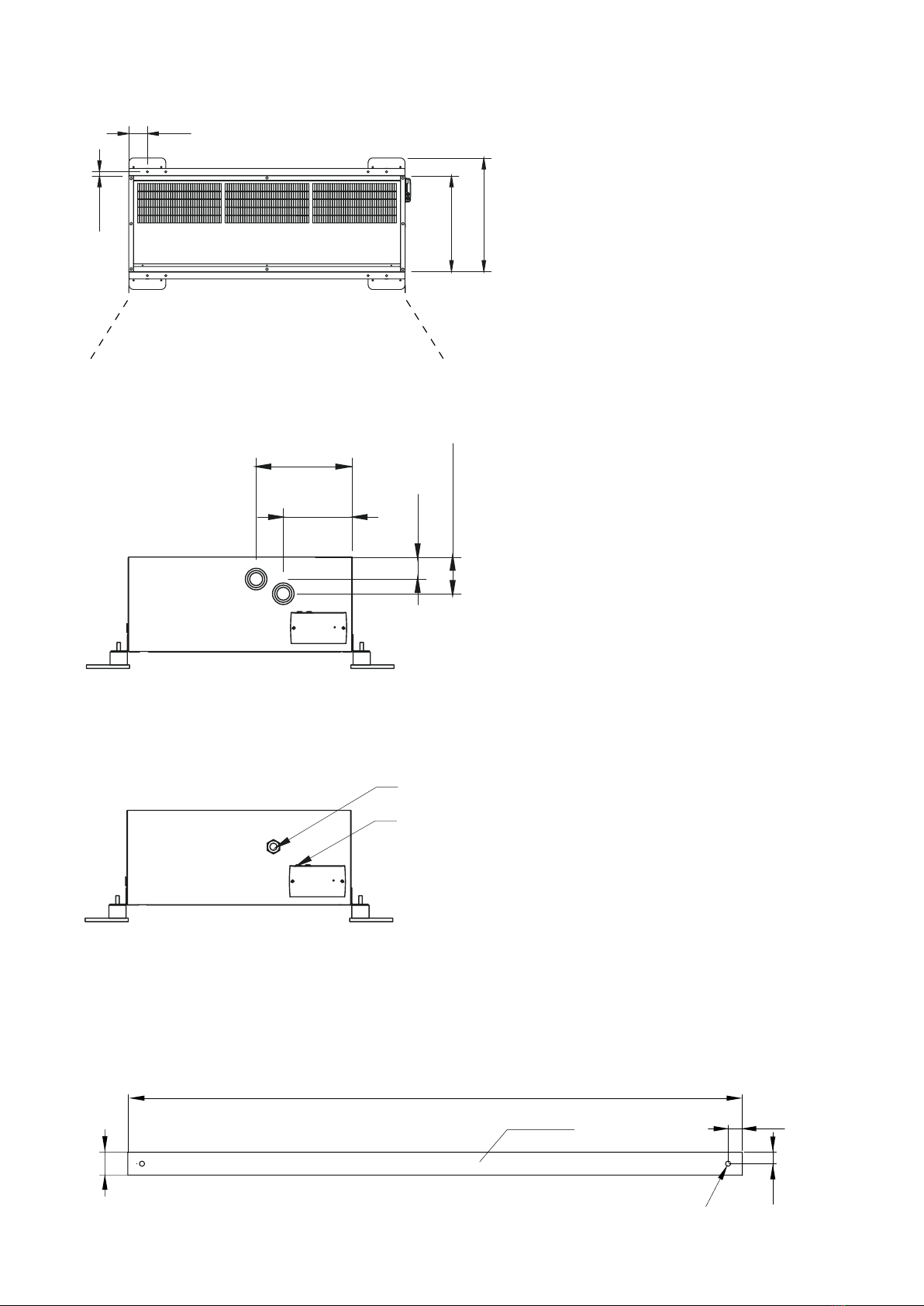

Top view

Side view

[mm]

RDS23 1000

RDS29 1000

RDS38 1500

RDS56 2000

RDS65 2500

270

Min. 800

520

115

125

220

RDS

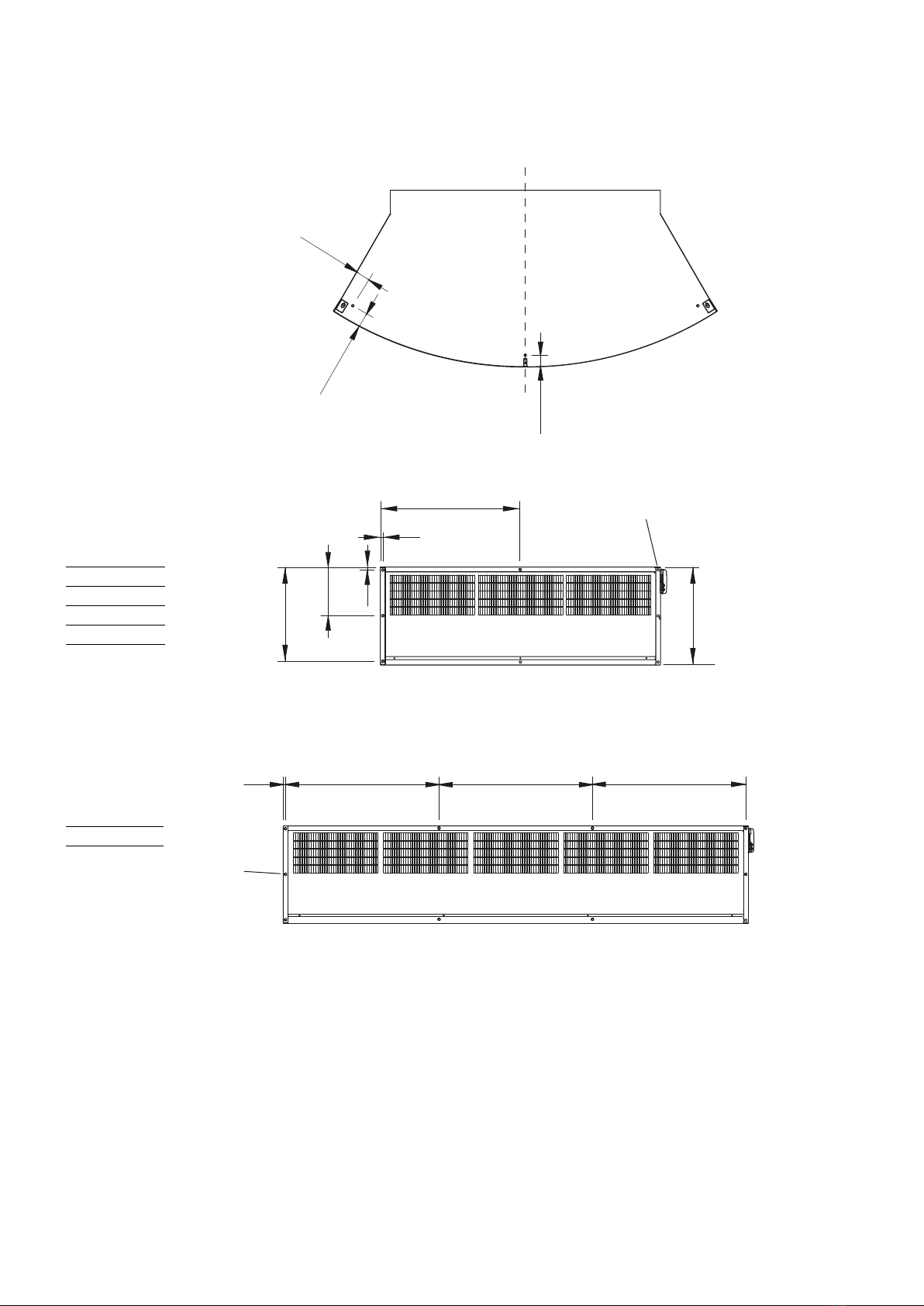

Suspended from ceiling

825 825 825

L/2

505

260

520

ca 75

ca 80

ca 65

x M8

8 x M8

RDS65E/WL

RDS23E/WL

RDS29E/WL

RDS38E/WL

RDS56E/WL

RDS

223

160

400V 3

230V

Connections position W

Connections position E

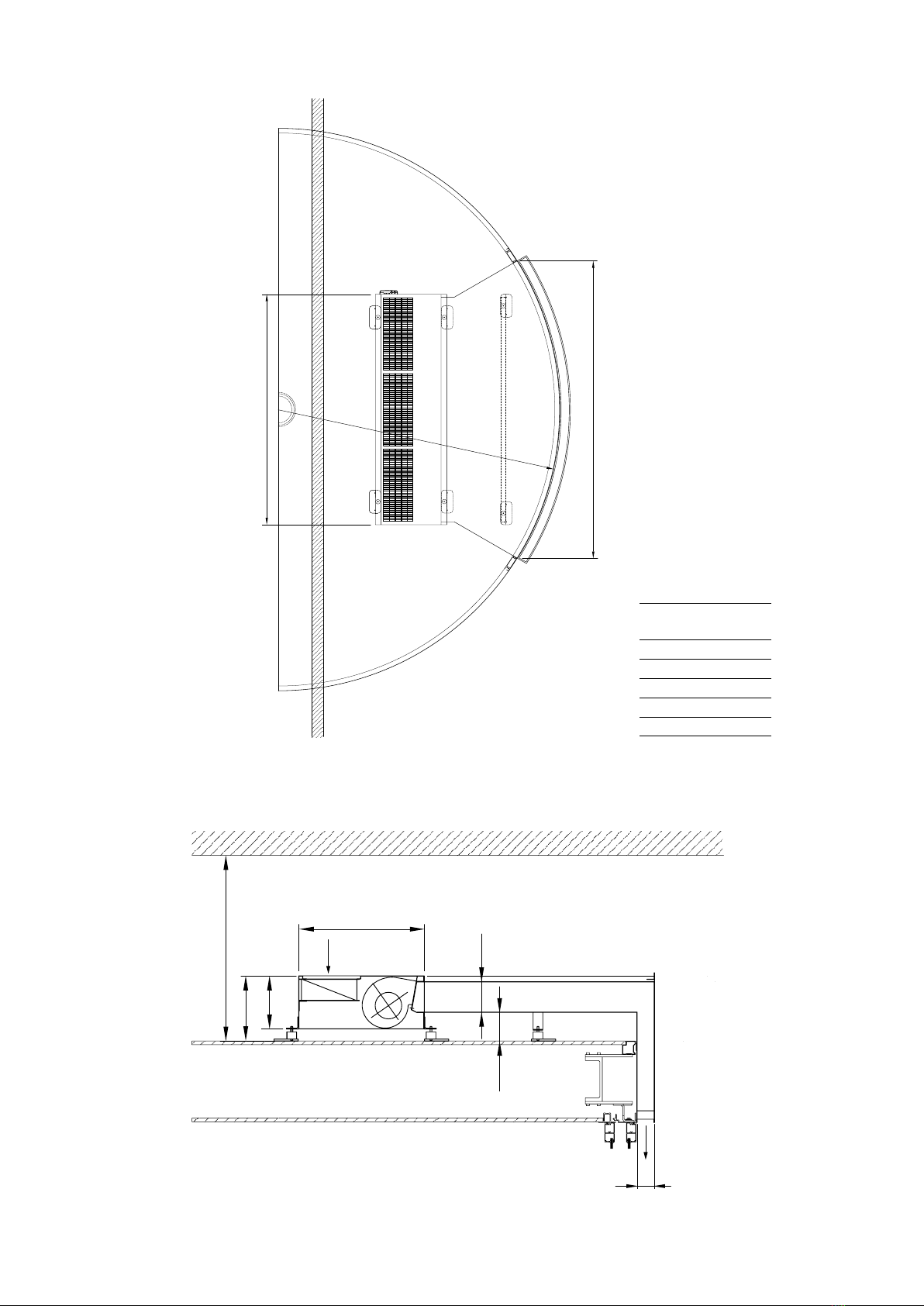

Mounted on revolving door

RDSB

100

520

617

Ø9

40x80

RDS

SIReB

SIReAC

SIReAA

SIReRTX 673 09 22 70x33x23 mm

SIReUR 673 09 21 114x70x50 mm

SIReWTA

SIReCJ4

SIReCJ6

SIReCC603 673 09 23 3 m

SIReCC605 673 09 24 5 m

SIReCC610 673 09 25 10 m

SIReCC615 673 09 26 15 m

SIReCC403 673 09 27 3 m

SIReCC405 673 09 28 5 m

SIReCC410 673 09 29 10 m

SIReCC415 673 09 30 15 m

Type RSK-nr Connection

VMO15LF

673 09 47 DN15

VMO15NF

673 09 48 DN15

VMO20

673 09 49 DN20

VMO25

673 09 50 DN25

VMOP15LF

673 09 51 DN15

VMOP15NF

673 09 52 DN15

VMOP20

673 09 53 DN20

VMOP25

673 09 54 DN25

VOS15LF 673 09 35 DN15

VOS15NF

673 09 36 DN15

VOS20

673 09 37 DN20

VOS25

673 09 38 DN25

VOSP15 LF

673 09 43 DN15

VOSP15NF

673 09 44 DN15

VOSP20

673 09 45 DN20

VOSP25

673 09 46 DN25

VOT15 DN15

VOT20 DN20

VOT25 DN25

VMT15 DN15

VMT20 DN20

VMT25 DN25

VAT

482 98 30

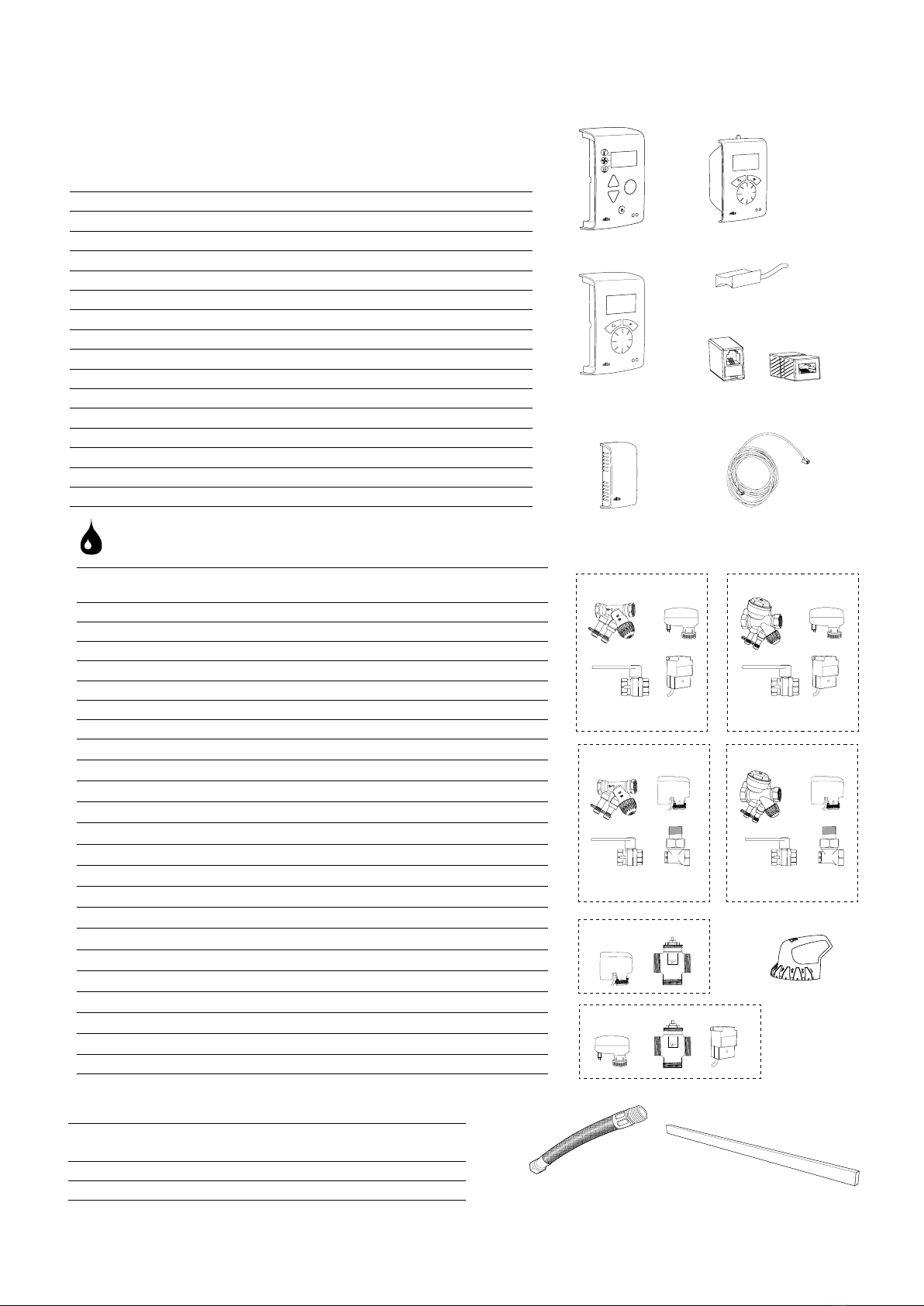

Accessories

SIRe

SIReB

SIReAC/SIReAA

SIReRTX

SIReUR

SIReWTA

SIReCC

SIReCJ4/SIReCJ6

VOS VOSP

VMO VMOP

VOT VAT

Accessories

Type

FH1025 Flexible hose DN25, inside thread, length 1 m

RDSB Beam 40x80 mm

VMT

FH1025 RDSB

RDS

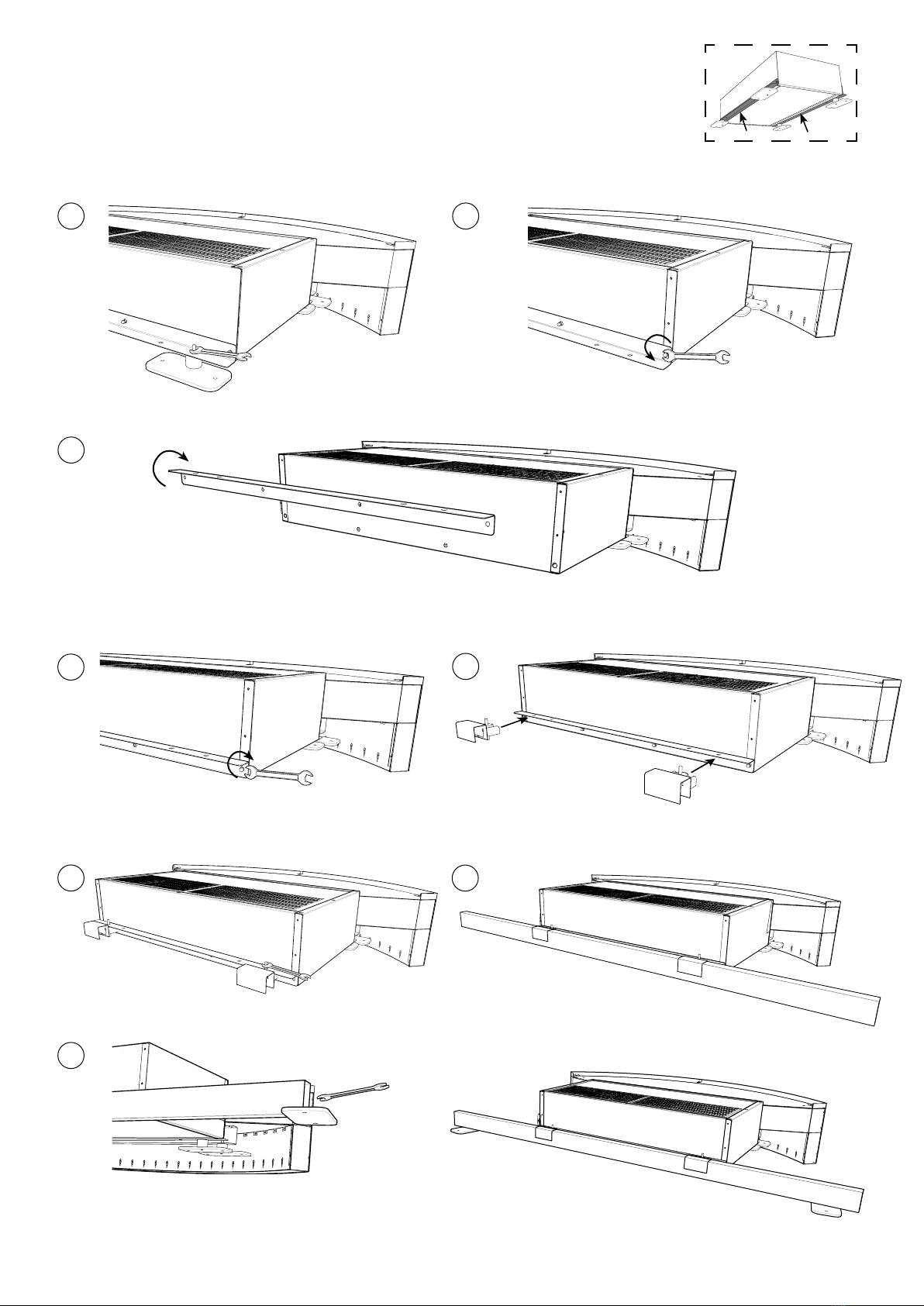

RDS + RDSB (beam)

x2 x4

1 2

RDS

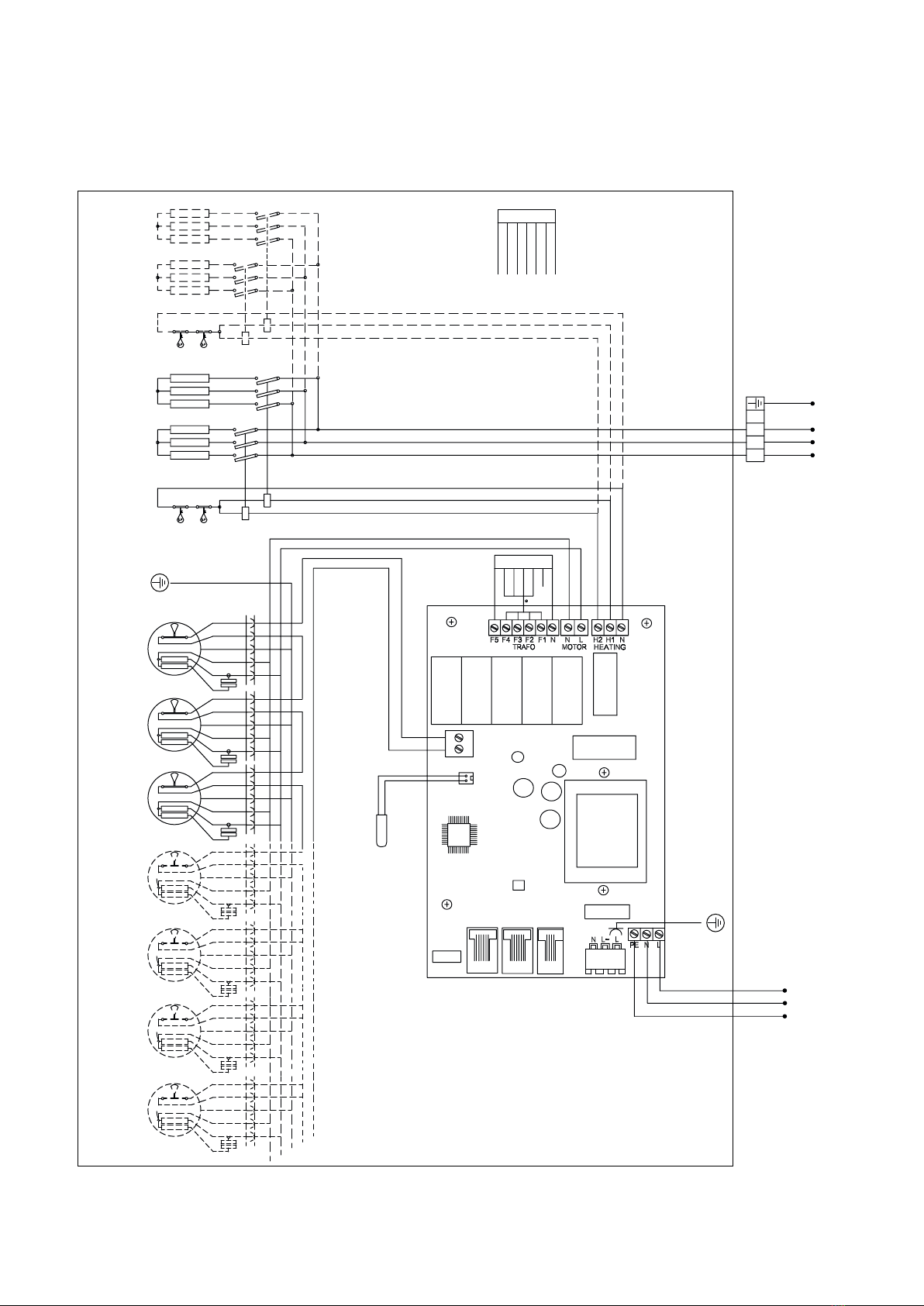

RDS E

RDS23/29E

RDS56/65E

RDS23/29/38E

SIReB1

Actuator

230V~

Transformer

230V

200V

170V

145V

120V

100V

Black

Grey

Blue

White

Supply

230V~

C2 C1 ROOM

Internal

sensor

Motor

protection

°C°C°C

Transformer

230V

200V

170V

145V

120V

100V

Yellow

Orange

Red

Brown

Black

Green

Blue

RDS38E

°C°C°C°C

RDS65E RDS56E

400V3~

230V~

L1L2L3

RDS

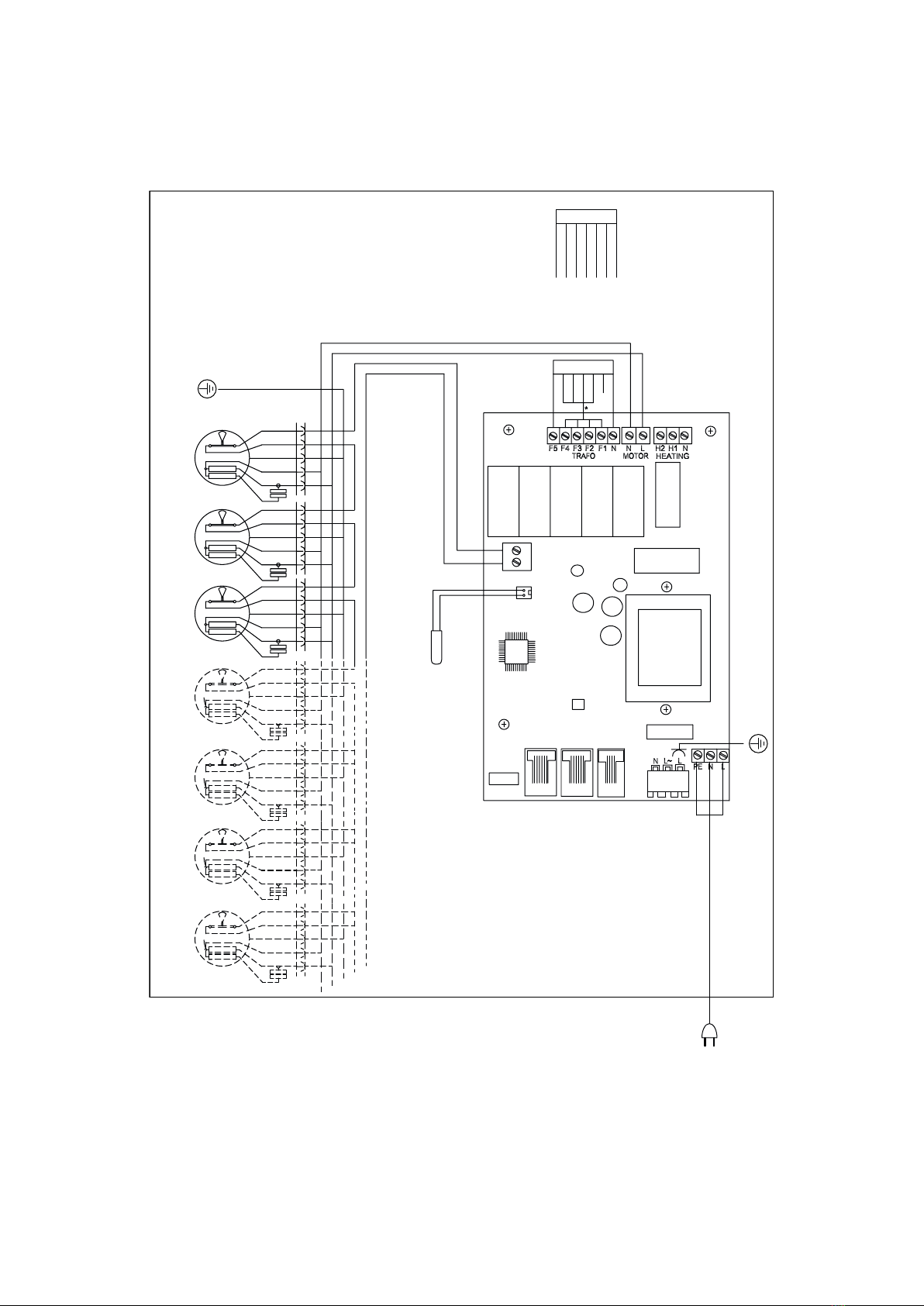

RDS W

RDS23/29W

SIReB1

Actuator

230V~

Transformer

230V

200V

170V

145V

120V

100V

Black

Blue

White

Supply

230V~

C2 C1 ROOM

Internal

sensor

Motor

protection

°C°C°C

Transformer

230V

200V

170V

145V

120V

100V

Yellow

Orange

Red

Brown

Black

Green

Blue

RDS38W

°C°C°C°C

RDS65W RDS56W

230V~

RDS

SIReB1 SIReB1

SIReRTX

(optional)

SIReUB1

230V~ 230V~

ROOM

Pot.

Unit ID

N L

ACTUATORSUPPLY

ROOM

Pot.

Unit ID

N L

ACTUATORSUPPLY

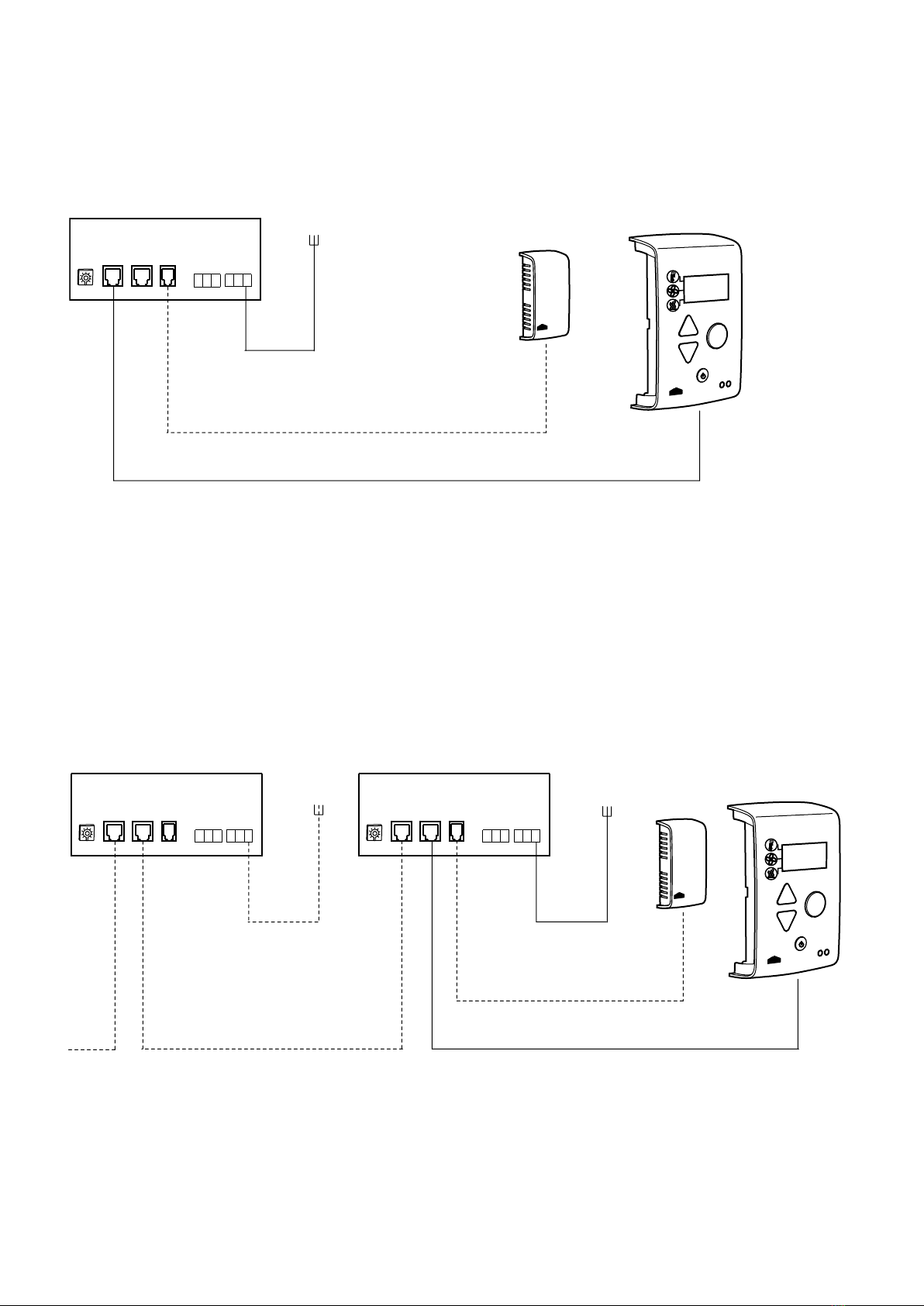

SIReB Basic

RDS E

SIReB Basic - Parallel connection

Wiring diagrams for SIReAC Competent and SIReAA Advanced, see manuals for SIRe.

SIReB1 SIReRTX

(optional)

SIReUB1

230V~

ROOM

Pot.

Unit ID

N L

ACTUATOR SUPPLY

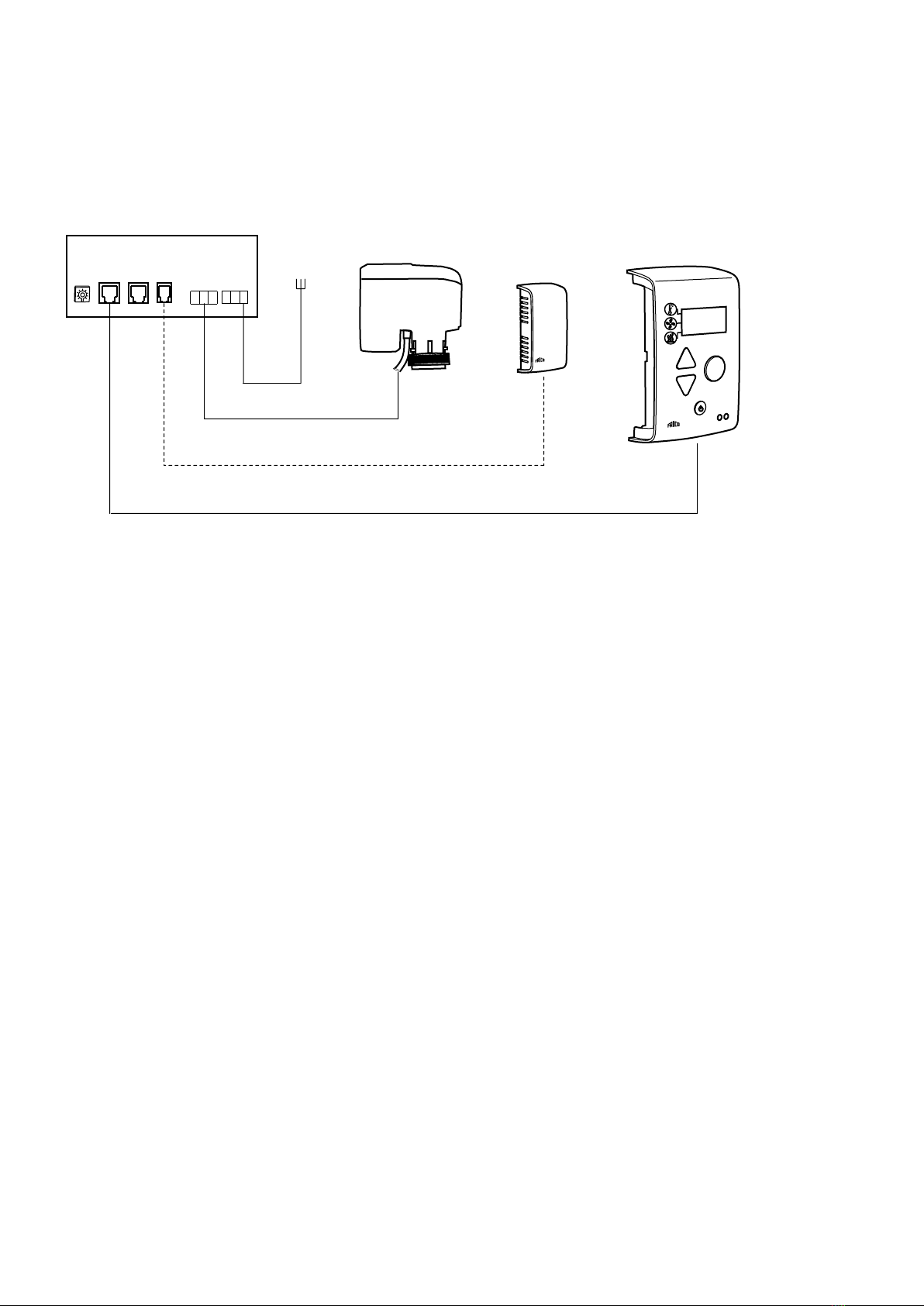

RDS

SIReB Basic

RDS W

SIReB1 SD230 SIReRTX

(optional)

SIReUB1

ROOM

Pot.

Unit ID

N L

ACTUATOR SUPPLY

230V~
