Franke FDMO 607 I Operation manual

Instructions for use and installation

Cooker Hood

Istruzioni per l’uso e l’installazione

Cappa

Mode d’emploi et installation

Hotte de Cuisine

Bedienungsanleitung und Einrichtung

Dunstabzugshaube

Kullan

ım ve montaj talimatları

Davlumbaz

FDMO 607 I

Instructions Manual

INDEX

RECOMMENDATIONS AND SUGGESTIONS......................................................................................................................7

CHARACTERISTICS..............................................................................................................................................................8

INSTALLATION....................................................................................................................................................................10

USE.......................................................................................................................................................................................14

MAINTENANCE....................................................................................................................................................................15

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance. Accord-

ingly, you may find descriptions of individual features that do not apply to your

specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incor-

rect or improper installation.

• The minimum safety distance between the cooker top and the extractor hood

is 650 mm.

• Check that the mains voltage corresponds to that indicated on the rating plate

fixed to the insideof thehood.

• For Class I appliances, check that the domestic power supply guarantees ade-

quate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter

120 mm.The route of the flue must be asshort aspossible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes

(boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas

burning appliances), a sufficient degree of aeration must be guaranteed in the

room in order to prevent the backflow of exhaust gas. The kitchen must have

an opening communicating directly with the open air in order to guarantee the

entryof clean air.

USE

• The extractor hood has been designed exclusively for domestic use to elimi-

nate kitchen smells.

• Never use the hood for purposesotherthan forwhich it hasben designed.

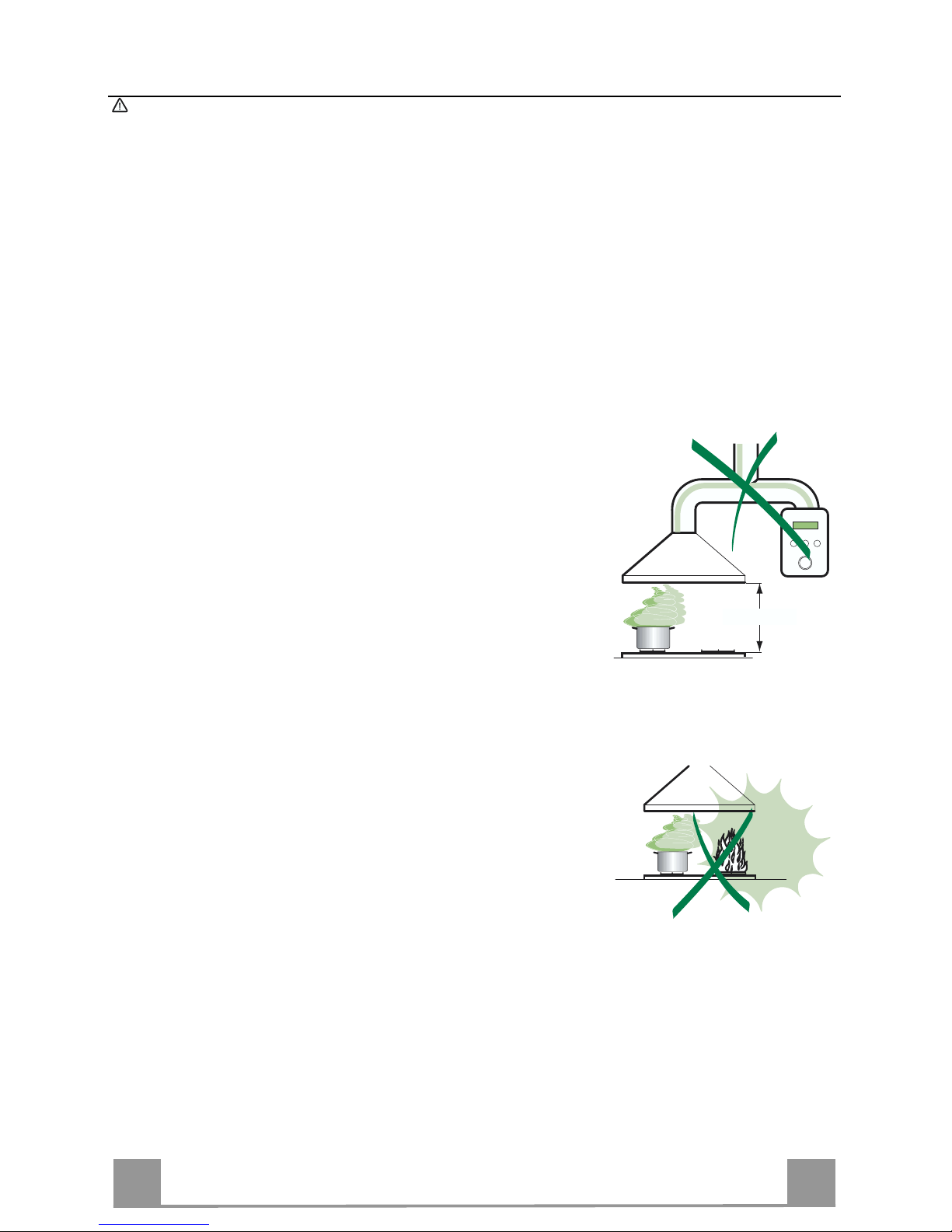

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making

sure that it does not engulf the sides.

• Deep fat fryers mustbe continuously monitored during use: overheated oil can

burst into flames.

• Do not flambè under the range hood; risk of fire

• This appliance is not intended for use by persons (including children) with re-

duced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use ofthe appliance by a person responsible fortheir safety.

• Children should be supervised to ensure that they do not play with the appli-

ance.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out

any maintenance work.

• Clean and/orreplace the Filters after the specified time period.

• Clean the hood using a damp cloth and a neutralliquid detergent.

650 mm min.

CHARACTERISTICS

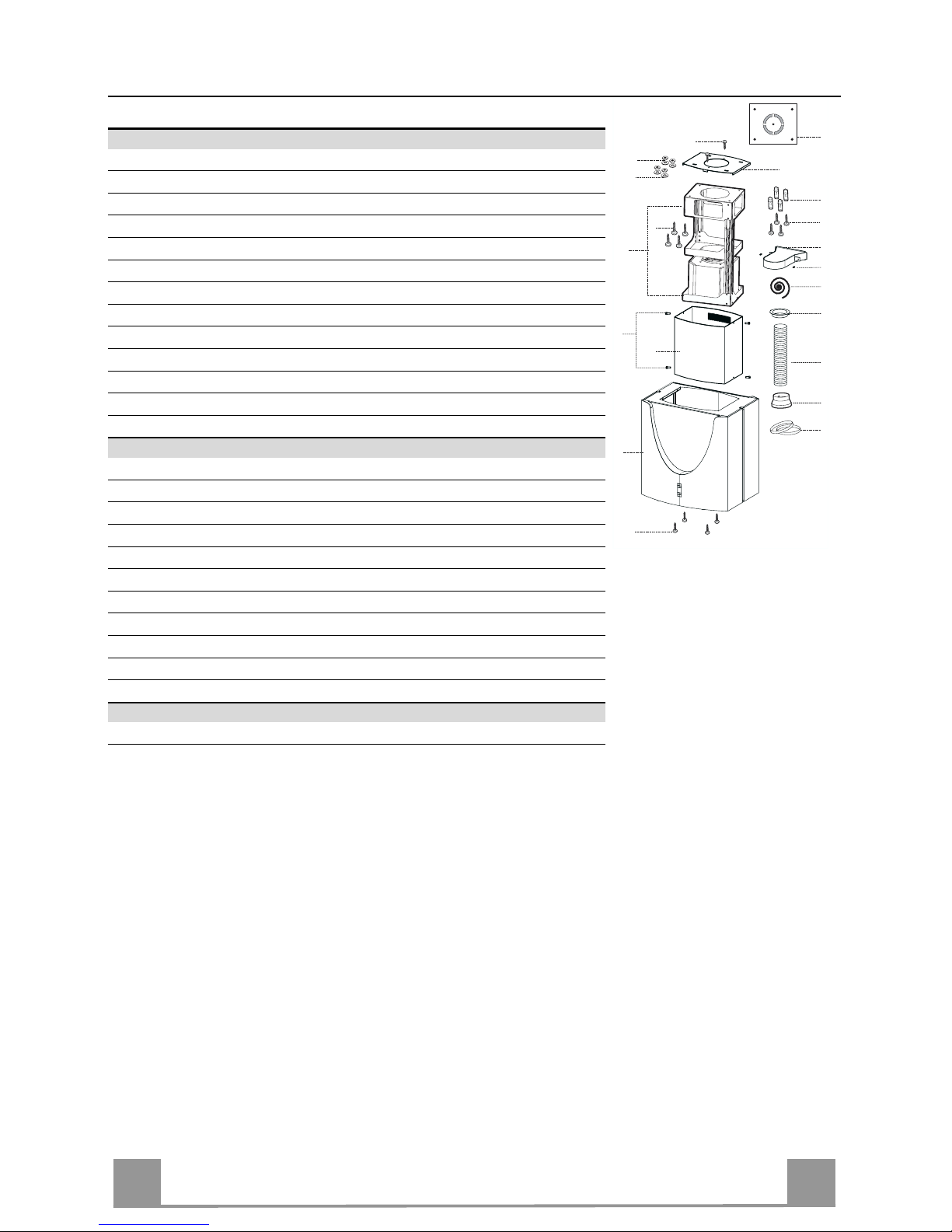

Components

Ref. Q.ty Product Components

11 Hood Body, complete with: Controls, Light, Blower, Filters

21 Upper Chimney

7.1 1 Telescopic frame complete with extractor, consisting of:

7.1a 1 Upper frame

7.1b 1 Lower frame

91 Reducer Flange ø 150-120 mm

13 1 Gasket

14 1 Hood Body Air Outlet Extension Piece

15 1 Air Outlet Connection

25 2 Pipe clamps

26 1 Fixing Part of the upper Chimney

29 1 Air outlet connection tube

Ref. Q.ty Installation Components

11 4 Wall Plugs ø 10

12c 4 Screws 2,9 x9,5

12f 4 ScrewsM6 x15

12g 4 Screws M6 x 80

12h 4 Screws 5,2 x70

12w 2 Screws M3 x 8

21 1 Drilling template

22 4 6.4 mm int. dia washers

23 4 M6 nuts

24 2 Fixing knobs for the air outlet connectionpiece

Q.ty Documentation

1 Instruction Manual

12c

12h

7.1

7.1b

7.1a

12g

12f

12w

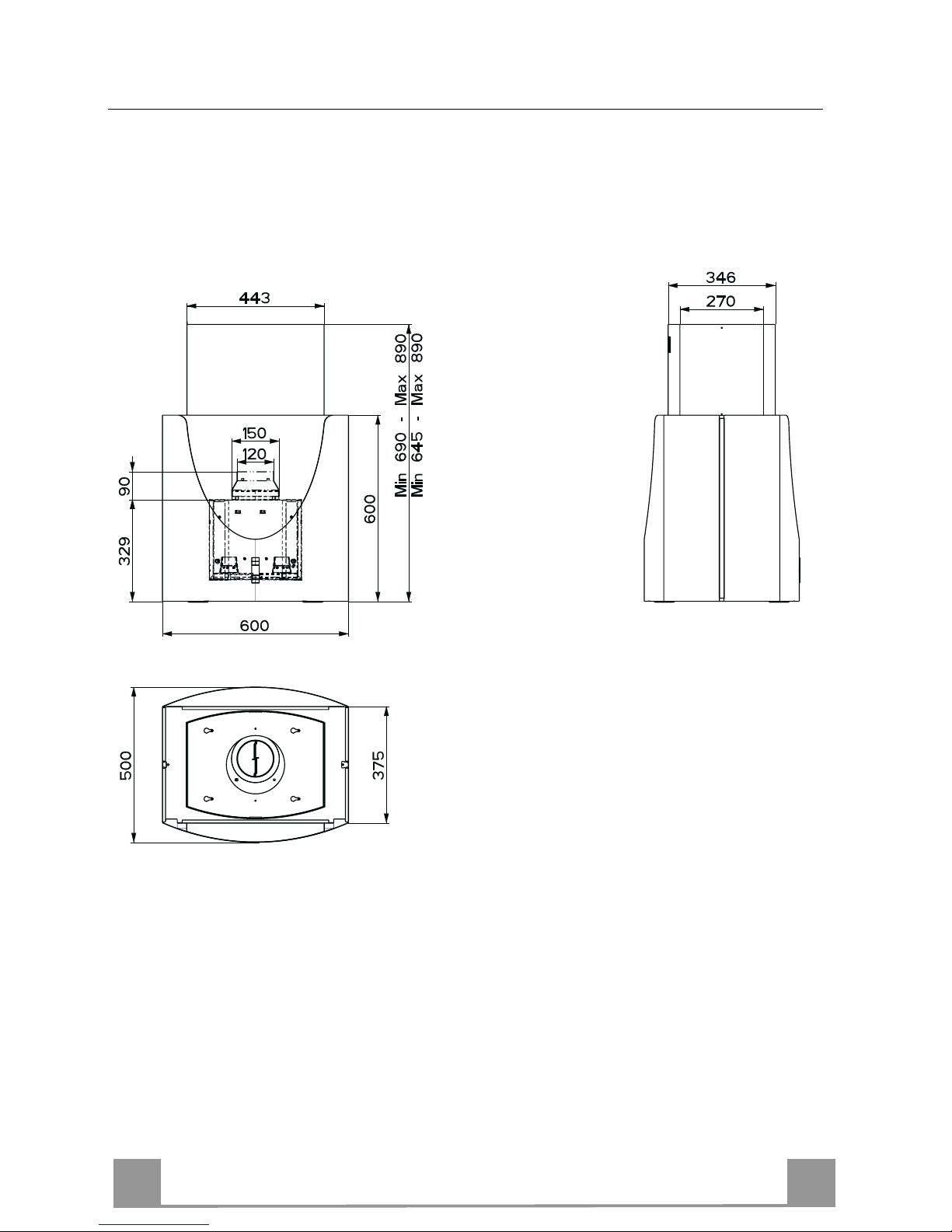

Dimensions

* Dimensions of the hood in ducting version.

** Dimensions of the hood in recycling version.

INSTALLATION

Drilling the Ceiling/shelf and fixing the frame

DRILLING THE CEILING/SHELF

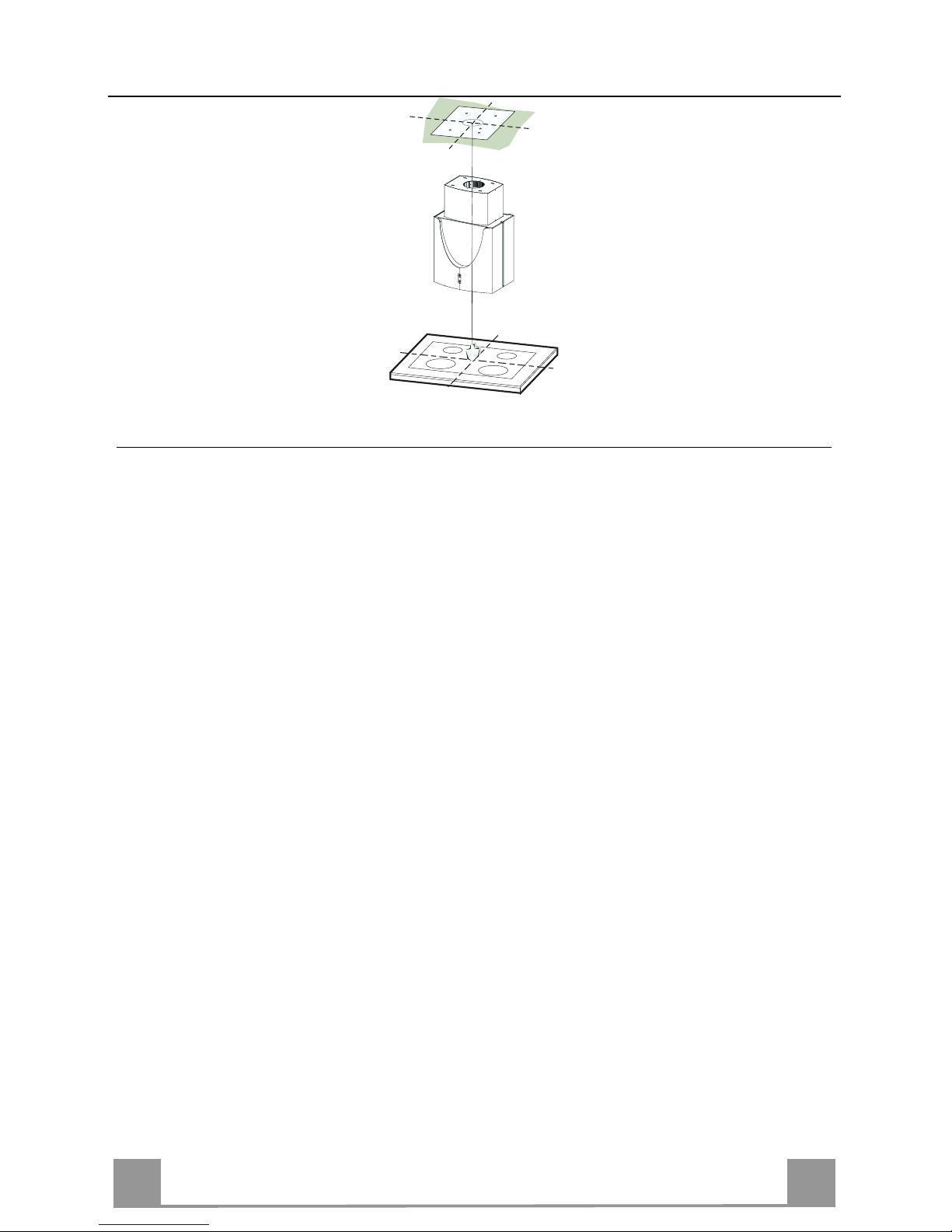

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.

• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the

template is in the correct position by lining up the axes of the template with those of the hob.

• Mark the centres of the holes in the template.

• Drill the holes at the points marked:

• For concrete ceilings, drill for plugs appropriate to the screw size.

• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert

the Dowels 11 supplied).

• For wooden beam ceilings, drill according to the wood screws used.

• For wooden shelf, drill ø 7 mm.

• For the power supply cable feed, drill ø 10 mm.

• For the air outlet (Ducted Version), drill according to the diameter of the external air ex-

haust duct connection.

• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:

• For concrete ceilings, use the appropriate plugs for the screw size (not provided).

• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h,

supplied.

• For wooden beam ceilings, use 4 wood screws (not provided).

• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

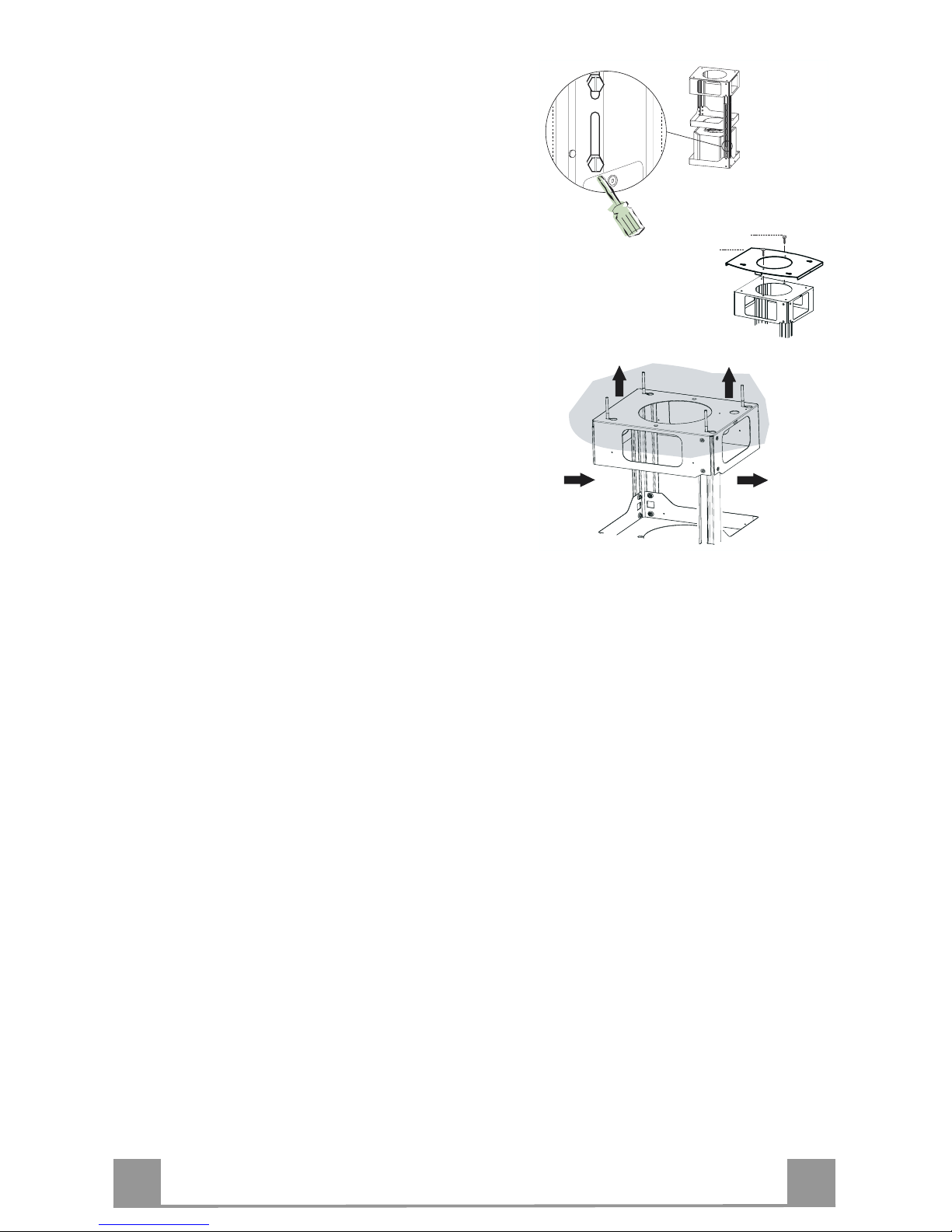

FIXING THE FRAME

If you wish to adjust the height of the frame, proceed

as follows:

• Unfasten the metric screws joining the two columns,

located at the sides of the frame.

• Adjust the frame to the height re

quired, then

replace all the screws removed as above.

• Fix the Fixing Part of the Upper Chimney 26 to the

hanging kit using the 2 screws 12w (M3 x 8).

• Lift up the frame, fit the frame slots onto the screws

up to the slot end positions.

• Tighten the two screws and fasten the other two

screws provided; before locking the screws com-

pletely, it is possible to adjust the frame by turning it,

making sure that the screws do not come out of their

housing in the adjustment slot.

• The Frame must be securely fastened so as to support

both the weight of the Hood and the stress caused by

occasional axial pressure against the fitted Appli-

ance. After fixing, make sure that the base is stable

even when the Frame is subjected to lateral stress.

• If the Ceiling is not strong enough in the area where

the hood is to be fixed, the Installer must strengthen

the area using suitable plates and counterplates an-

chored to resistant structures.

12w

Ducted version air exhaust system Connection

When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe ø 150 or 120 mm,

the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the re-

ducer flange 9on the hood body outlet.

• Fix the pipe using the pipe clamps 25 provided.

• Remove any activated charcoal filters.

ø 150 ø 120

AIR OUTLET – RECIRCULATION VERSION

• Fasten the Air Outlet Connector 15 to the upper frame using

the 2 knobs 24.

• Attach the Air Outlet Connector Flange 14 to the Air Outlet

Connector 15.

• Connect the two outlets using the Air Outlet Connector Pipe

29.

Fitting the Chimney and Fixing the Hood Canopy

• Insert the Top chimney with the slots facing upwards when

installing the recirculation version, or vice versa with the slots

facing downwards when installing the ducting version, then fix

the top part to the Upper Chimney Connector using the screws

12c (2.9 x 9.5) provided.

Recirculation version

• Make sure that the Air Outlet Connector 15 is positioned in

correspondence with the Chimney Grill.

• If this is not the case, remove the chimney and adjust the posi-

tion of the Air Outlet Connector 15; replace the components as

described above.

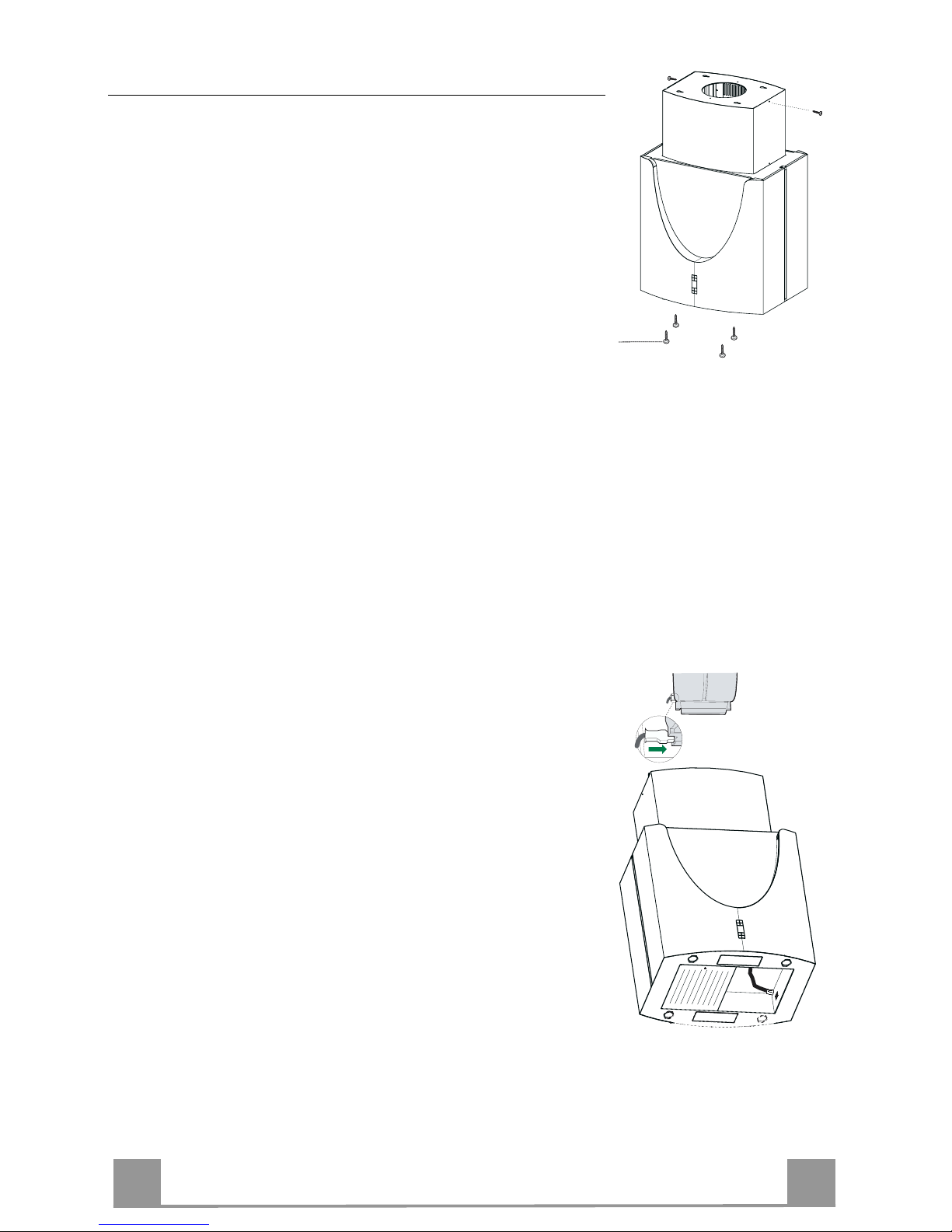

Before fixing the Hood Canopy to the Frame:

• Remove the metal grease filters from the hood canopy.

• Remove any activated charcoal odour filters.

• Fix the hood canopy to the frame provided, working from be-

low and using the 4 screws 12f supplied.

12c

12f

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch hav-

ing a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Maintenance) being

sure that the connector of the feeding cable is correctly inserted

in the socket placed on the side of the fan.

• Join the connectors.

• Install the odour filter and the charcoal filter in case the hood is

to be used in recycling version.

• Install the grease filter again.

USE

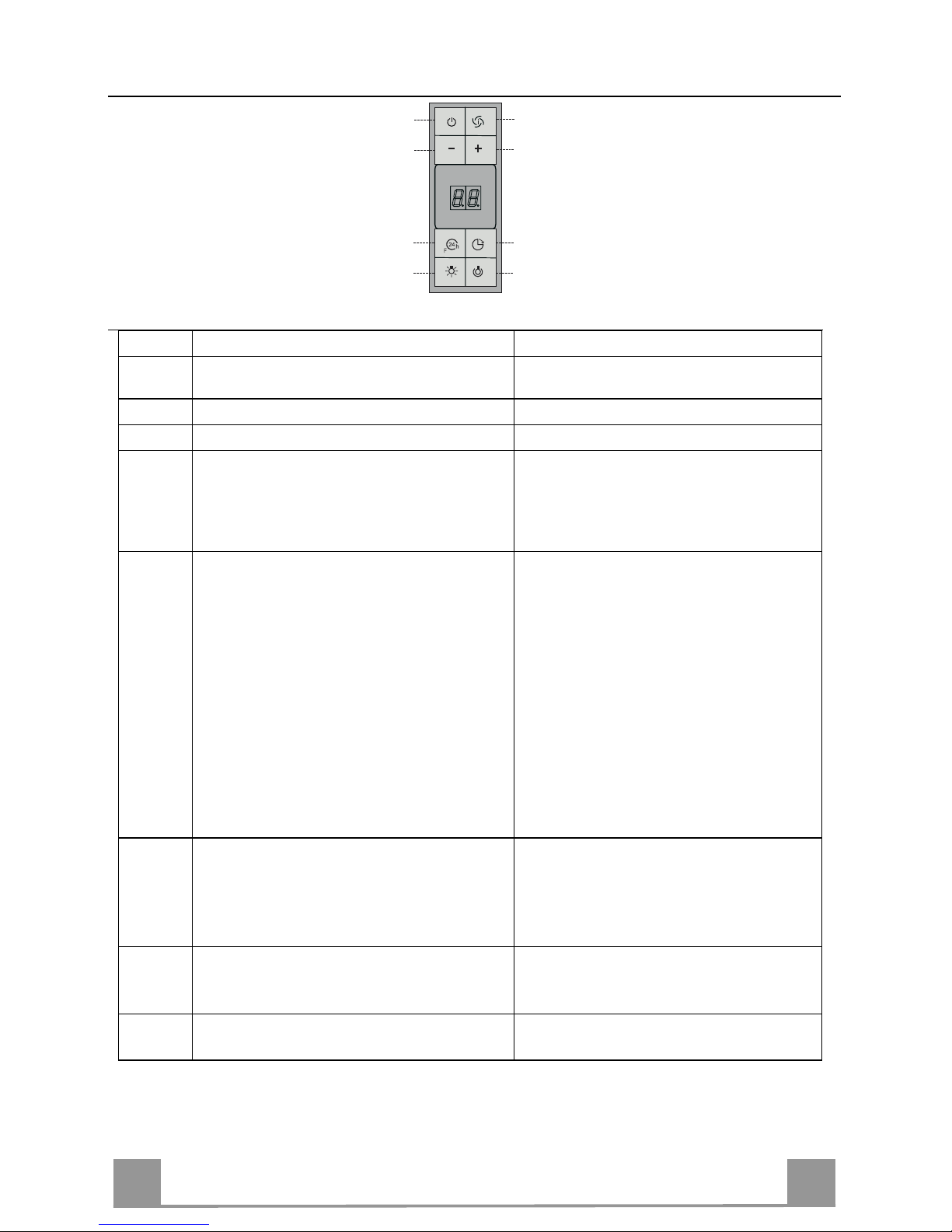

Control panel

Button Function Display

ATurns the suction motor on and off at the last

speed used. Displays the speed set

BDecrease the working speed.

CIncrease the working speed.

DActivates intensive speed from any other

speed even with the motor off. This speed is

timed to run for 10 minutes, after which the

system returns to the previous speed. Suitable

to deal with maximum cooking fumes.

Displays HI and the bottom right hand spot

flashes once a second.

EActivates the motor at a speed that allows

extraction of 100 m3/h for 10 minutes every

hour, after which the motor stops.

When the filter alarm is on, press the button

for approximately 3 seconds to reset the

alarm. These indications are only visible

when the motor is turned off.

Displays 24 and the bottom right hand spot

flashes, while the motor is turned on

On completing the procedure the previous

indicator is turned off:

FF indicates that the metal grease filters

need washing. The alarm is triggered

after the Hood has been in operation

for 100 hours.

EF indicates that the activated charcoal

filter needs changing and the metal

grease filters need washing. The

alarm is triggered after the Hood has

been in operation for 200 hours.

FActivates automatic shutdown after 30’. Suit-

able to complete elimination of residual

odours. Can be activated from any position,

and is turned off by pressing the button or

switching the motor off.

Alternately displays the working speed and

the time remaining before the hood turns

off. The bottom right hand spot flashes.

GTurns the lighting system (spots) on and off.

Press and hold for 2 seconds to turn the Room

Lights on and off.

HTurns the reduced intensity lighting system

(spots) on and off.

Table of contents

Other Franke Ventilation Hood manuals

Franke

Franke FFC 905-P XS LED0 Operation manual

Franke

Franke FCL 90 A2 EGC User manual

Franke

Franke FCMY 120 C WHG A AH User manual

Franke

Franke FDF H45 9354 I XS LED0 Operation manual

Franke

Franke FMA 2.0 PRO 907 BK User manual

Franke

Franke FPJ 915 V BK A User manual

Franke

Franke Turn FTU 3805 Design Inox User manual

Franke

Franke FDF EV8 60 User manual

Franke

Franke FVR 605 XS Operation manual

Franke

Franke Maris 2.0 User manual

Franke

Franke FSTP NG 1205 X User manual

Franke

Franke Evolia 610 User manual

Franke

Franke FTCO 55 WH CH User manual

Franke

Franke ALLIANCE HOOD COMFORT PLUS 1243B-10 User manual

Franke

Franke FTC 601 WH/GL User manual

Franke

Franke FCR 925 TC User manual

Franke

Franke TRENDLINE PLUS 70 User manual

Franke

Franke REGATTA FDL 367 I User manual

Franke

Franke FPJ 615 V WH User manual

Franke

Franke FSMS F42 SS/BK MATT User manual

Franke

Franke FTC 612 XBW LED1 User manual

Franke

Franke FCMY 90 C WHG A FL User manual

Franke

Franke FGL 925 I XS NP User manual

Franke

Franke 1240B-10 User manual

Popular Ventilation Hood manuals by other brands

emmeti

emmeti RECUPA MED A-140 Installation and use manual

Nibe

Nibe F135 user manual

Kuppersberg

Kuppersberg INTRO 60 Technical Passport

Zephyr

Zephyr Spruce AK9834BS Use, care and installation guide

Hisense

Hisense MH6INBG manual

Miele

Miele DA 1255 Operating and installation instructions

Broan

Broan 46000 Specification sheet

GE Profile PV977 Owner's Manual & Installation Instructions

FALMEC

FALMEC FFRIA24W5FS Instruction booklet

Whirlpool

Whirlpool RH2600XL-1 SERIES installation instructions

Küppersbusch

Küppersbusch DX ISLA instruction manual

ETNA

ETNA AV360RVS Instructions for use

JUNO

JUNO JDF603E6 installation manual

Miele

Miele DA 6708 D Operating and installation instructions

Tricity Bendix

Tricity Bendix LE 150 Installation & operating instructions

AEG

AEG X68163BV1 user manual

AEG

AEG 125 D operating instructions

Smeg

Smeg KSEV97X instruction manual
