Fostex PD-4 User manual

Other manuals for PD-4

1

Table of contents

Popular Recording Equipment manuals by other brands

KV2 Audio

KV2 Audio 500 Series user guide

Robotics Technologies

Robotics Technologies microBus-Cam II installation manual

Seca

Seca 460 quick start guide

Cognex

Cognex MVS-8000 Series Hardware manual

Mect

Mect MPNC006 Series user manual

Bad Caf

Bad Caf THE LEASH operating manual

Strymon

Strymon NIGHTSKY user manual

Mitsubishi Electric

Mitsubishi Electric 16CH DIGITAL RECORDER DX-TL5000U user manual

Tews Technologies

Tews Technologies TPMC465 user manual

Honeywell

Honeywell Excel 50 user guide

SeaLevel

SeaLevel COMM+8.LPCI user manual

Arturia

Arturia AUDIOFUSE STUDIO user manual

Rukra

Rukra RK-1240 quick start guide

Samson

Samson SCOM owner's manual

Dynacord

Dynacord DPS260 owner's manual

Nice

Nice Core user manual

Pyle Pro

Pyle Pro PSS8 manual

RF-System

RF-System TinyGate Assembly and user's manual

ff#?'

Owner’s

Manual

FOStOX

CAUTION:

TO

REDUCE

THE

RISK

OF

ELECTRIC

SHOCK,

DO

NOT

REMOVE

COVER

(OR

BACK).

NO

USER

-

SERVICEABLE

PARTS

INSIDE.

REFER

SERVICING

TO

QUALIFIED

SERVICE

PERSONNEL

CAUTION:

TO

PREVENT

ELECTRIC

SHOCK,

MATCH

WIDE

BLADE

OF

PLUG

TO

WIDE

SLOT,

FULLY

INSERT.

ATTENTION:

POUR

EVITER

LES

CHOCS

ELECTRIQUES,

INTRODUIRE

LA

LAME

LA

PLUS

LARGE

DE

LA

FICHE

DANS

U

BORNE

CORRESPONDANTE

DE

LA

PRISE

ET

POUSSER

JUSQU’

AU

FOND.

A

The

lightning

flash

with

arrowhead

symbol,

within

an

equilateral

triangle,

is

intended

to

alert

the

user

to

the

presence

of

uninsulated

"dangerous

voltage"

within

the

product's

enclosure

that

may

be

of

sufficient

magnitude

to

constitute

a

risk

of

electric

shock

to

persons.

"WARNING"

"TO

REDUCE

THE

RISK

OF

FIRE

OR

ELECTRIC

SHOCK,

DO

NOT

EXPOSE

THIS

APPLIANCE

TO

RAIN

OR

MOISTURE."

The

exclamation

point

within

an

equilateral

triangle

is

intended

to

alert

the

user

to

the

presence

of

important

operating

and

maintenance

(servicing)

instructions

in

the

literature

accompanying

the

appliance.

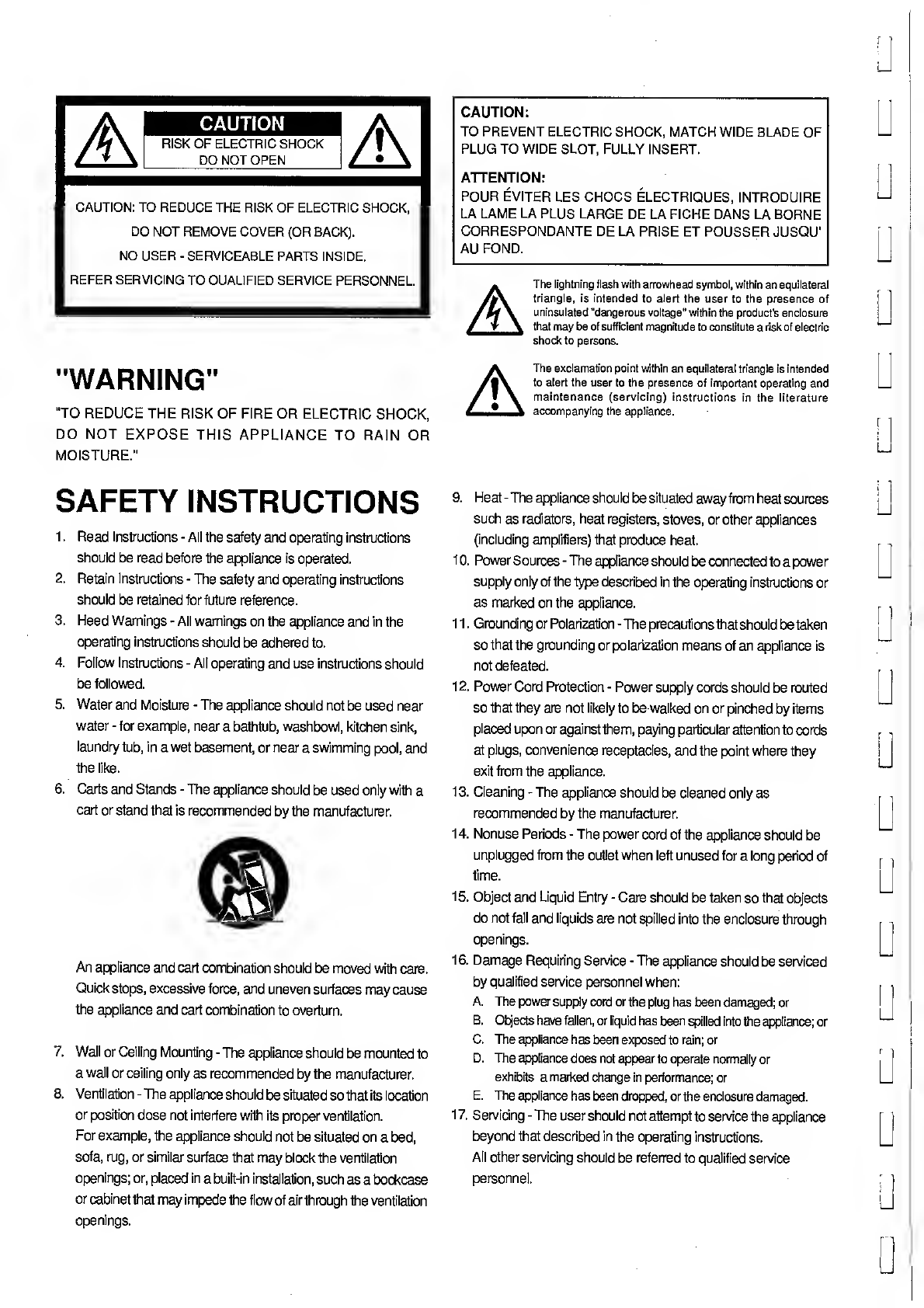

SAFETY

INSTRUCTIONS

1.

Read

Instructions

-

All

the

safety

and

operating

instructions

should

be

read

before

the

appliance

is

operated.

2.

Retain

Instructions

-

The

safety

and

operating

instructions

should

be

retained

for

future

reference.

3.

Heed

Warnings

-

Ali

wa'nings

on

the

appliance

and

in

the

operating

instructions

should

be

adhered

to.

4.

Follow

Instructions

-

Ail

operating

and

use

instructions

should

be

followed.

5.

Water

and

Moisture

-

The

appiiance

shouid

not

be

used

near

water

-

for

example,

near

a

bathtub,

washbowl,

kitchen

sink,

laundry

tub,

in

a

wet

basement,

or

near

a

swimming

pool,

and

the

like.

6.

Carts

and

Stands

-

The

appliance

should

be

used

only

with

a

cart

or

stand

that

is

recommended

by

the

manufacturer.

An

appliance

and

cart

combination

should

be

moved

with

care.

Quicksteps,

excessive

force,

and

uneven

surfaces

may

cause

the

appliance

and

cart

combination

to

overturn.

7.

Wall

or

Ceiling

Mounting

-

The

appliance

should

be

mounted

to

a

wall

or

ceiling

only

as

recommended

by

the

manufacturer.

8.

Ventilation

-

The

appliance

should

be

situated

so

that

its

location

or

position

dose

not

interfere

with

its

proper

ventilation.

For

example,

the

appliance

should

not

be

situated

on

a

bed,

sofa,

rug,

or

similar

surface

that

may

block

the

ventilation

openings;

or,

placed

in

a

built-in

installation,

such

as

a

bookcase

or

cabinet

that

may

impede

the

fiow

of

air

through

the

ventilation

openings.

9.

Heat

-

The

appliance

should

be

situated

away

from

heat

sources

such

as

radiators,

heat

registers,

stoves,

or

other

appliances

(including

amplifiere)

that

produce

heat.

10.

Power

Sources

-

The

appliance

should

be

connected

to

a

power

supply

only

of

the

type

described

in

the

operating

instaictions

or

as

marked

on

the

appiiance.

11.

Grounding

or

Polarization

-

The

precautions

that

should

be

taken

so

that

the

grounding

or

polarization

means

of

an

appliance

is

not

defeated.

12.

Power

Cord

Protection

-

Power

supply

cords

should

be

routed

so

that

they

are

not

likely

to

be

walked

on

or

pinched

by

items

placed

upon

or

against

them,

paj^ng

particula'

attention

to

cords

at

plugs,

convenience

receptacles,

and

the

point

where

they

exit

from

the

appliance.

13.

Cleaning

-

The

appliance

should

be

cleaned

only

as

recommended

by

the

manufacturer.

14.

Nonuse

Periods

-

The

power

cord

of

the

appliance

should

be

unplugged

from

the

outlet

when

left

unused

for

a

long

period

of

time.

15.

Object

and

Liquid

Entry

-

Care

should

be

taken

so

that

objects

do

not

fall

and

liquids

are

not

spilled

into

the

enclosure

through

openings.

16.

Damage

Requiring

Service

-

The

appliance

should

be

serviced

by

qualified

service

personnel

when:

A.

The

power

supply

cord

or

the

plug

has

been

damaged;

or

B.

Objects

have

fallen,

or

liquid

has

been

spilled

into

Uie

appliance;

or

C.

The

appliance

has

been

exposed

to

rain;

or

D.

The

appliance

does

not

appear

to

operate

normally

or

exhibits

a

marked

change

in

performance;

or

E.

The

appliance

has

been

dropped,

or

the

enclosure

damaged.

17.

Servicing

-

The

user

should

not

attempt

to

service

the

appliance

beyond

that

described

in

the

operating

instructions.

All

other

servicing

should

be

referred

to

qualified

service

personnel.

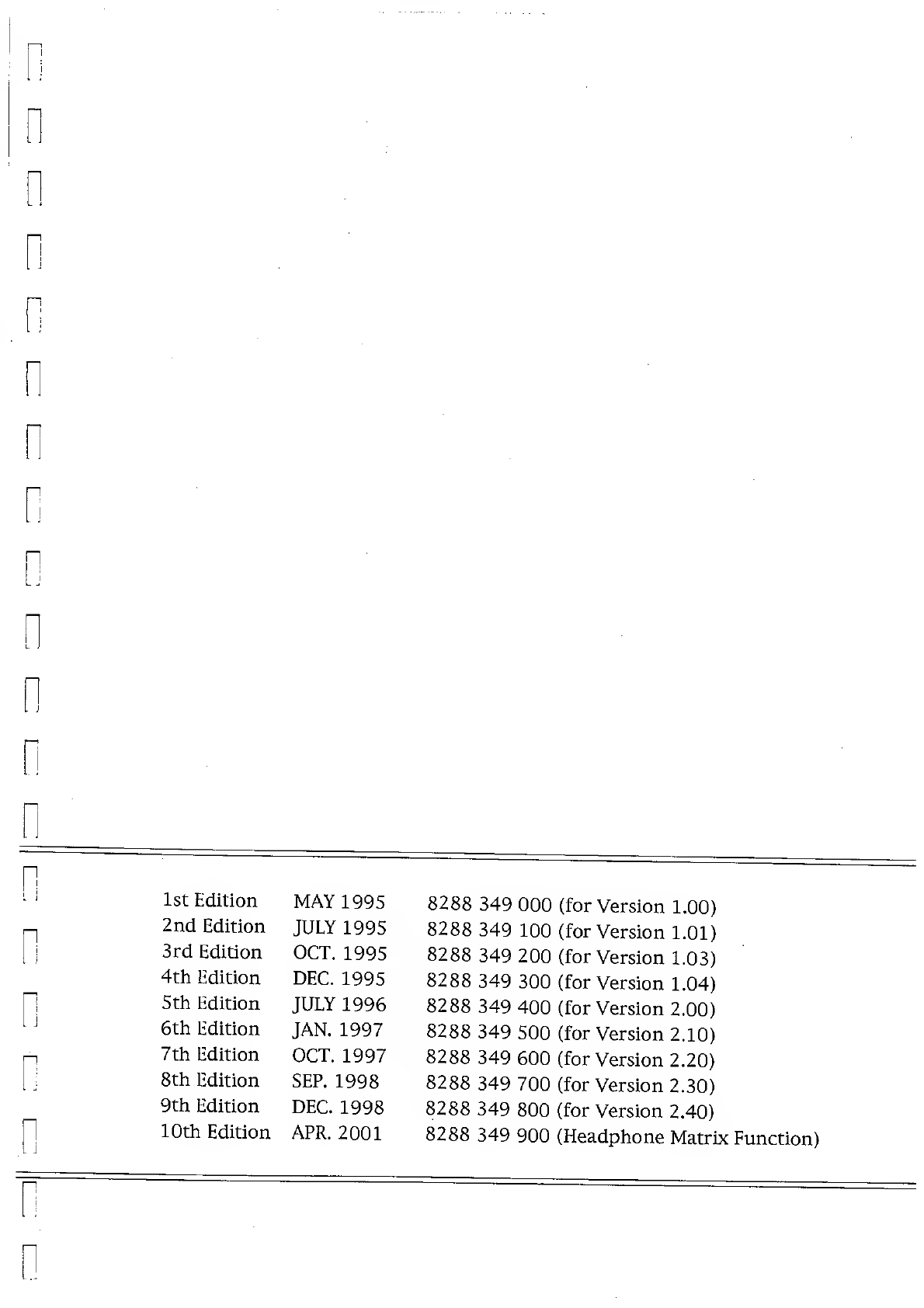

1st

Edition

MAY

1995

2nd

Edition

JULY

1995

3rd

Edition

OCT.

1995

4th

Edition

DEC.

1995

5

th

Edition

JULY

1996

6th

Edition

JAN.

1997

7

th

Edition

OCT.

1997

8th

Edition

SEP.

1998

9th

Edition

DEC.

1998

10th

Edition

APR.

2001

8288

349

000

(for

Version

1.00)

8288

349

100

(for

Version

1.01)

8288

349

200

(for

Version

1.03)

8288

349

300

(for

Version

1.04)

8288

349

400

(for

Version

2.00)

8288

349

500

(for

Version

2.10)

8288

349

600

(for

Version

2.20)

8288

349

700

(for

Version

2.30)

8288

349

800

(for

Version

2.40)

8288

349

900

(Headphone

Matrix

Function)

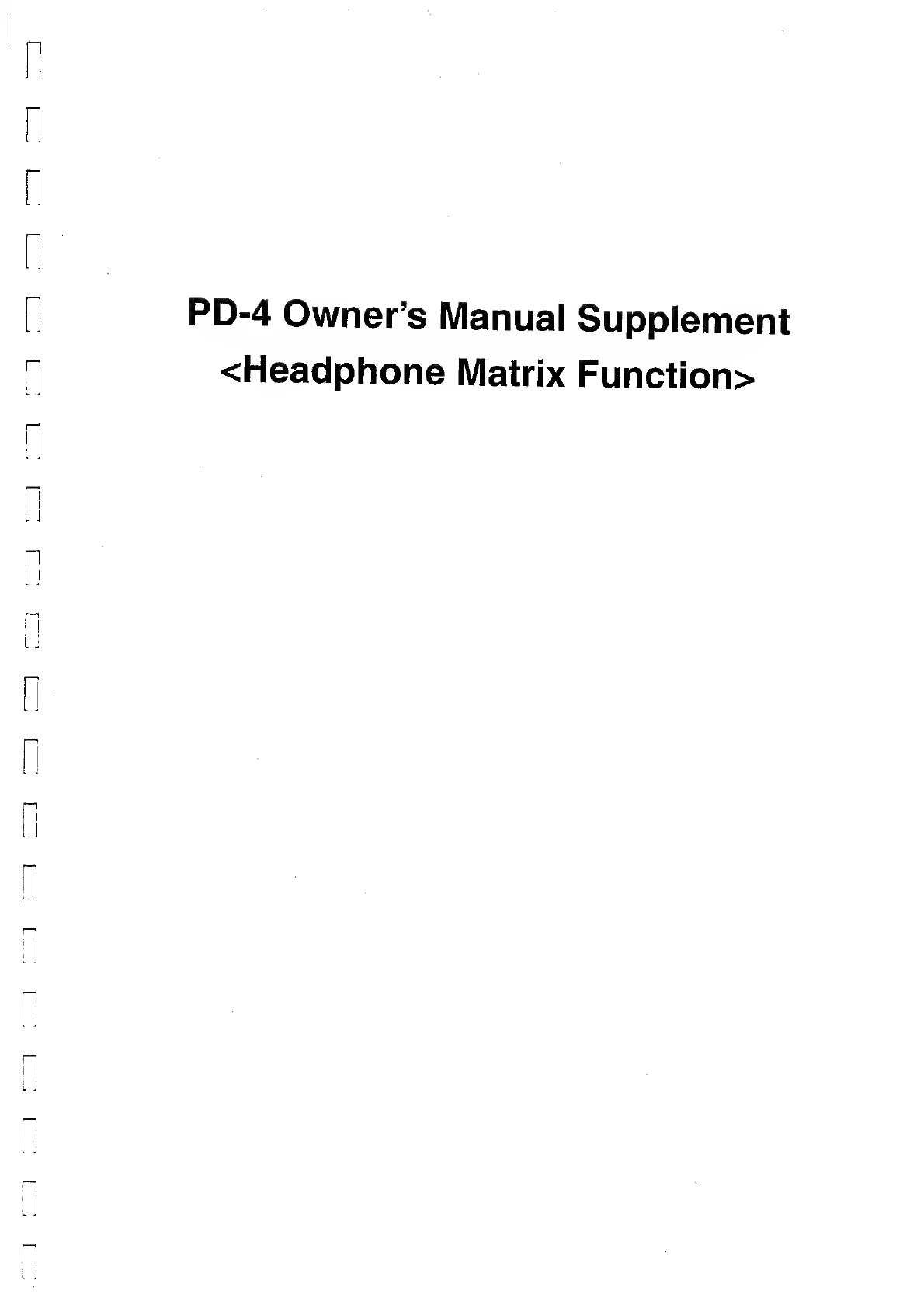

PD-4

Owner’s

Manual

Supplement

<Headphone

Matrix

Function>

_

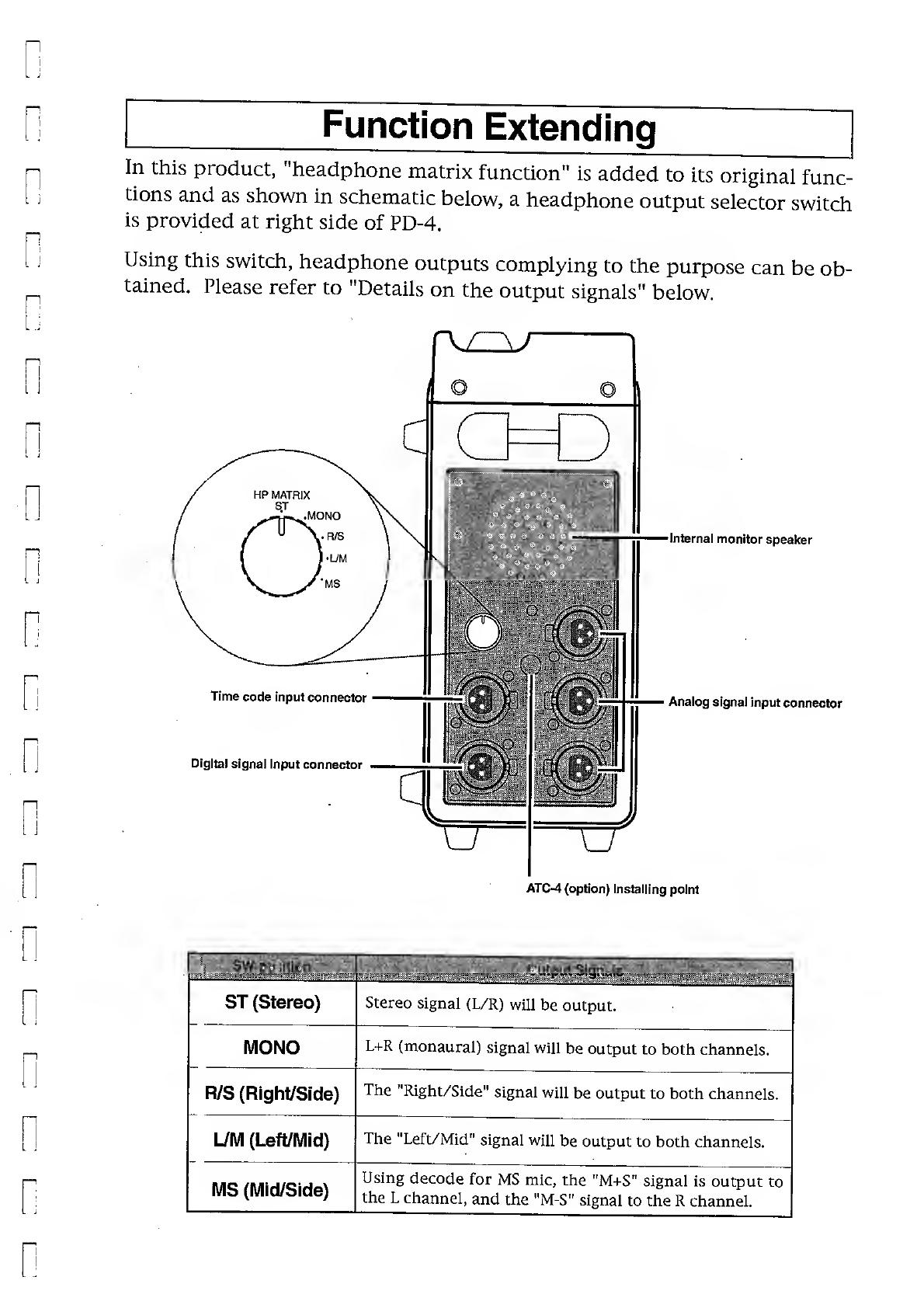

Function

Extending

_

In

this

product,

"headphone

matrix

function"

is

added

to

its

original

func¬

tions

and

as

shown

in

schematic

below,

a

headphone

output

selector

switch

is

provided

at

right

side

of

PD-4.

Using

this

switch,

headphone

outputs

complying

to

the

purpose

can

be

ob¬

tained.

Please

refer

to

"Details

on

the

output

signals"

below.

SW

position

Output

Signals

ST

(Stereo)

Stereo

signal

(L/R)

will

be

output.

MONO

L+R

(monaural)

signal

will

be

output

to

both

channels.

R/S

(Righl/Side)

The

"Right/Side"

signal

will

be

output

to

both

channels.

L/M

(Left/Mid)

The

"Left/Mid"

signal

will

be

output

to

both

channels.

MS

(Mid/Side)

Using

decode

for

MS

mic,

the

"M+S"

signal

is

output

to

the

L

channel,

and

the

"M-S"

signal

to

the

R

channel.

PD-4

Owner’s

manual

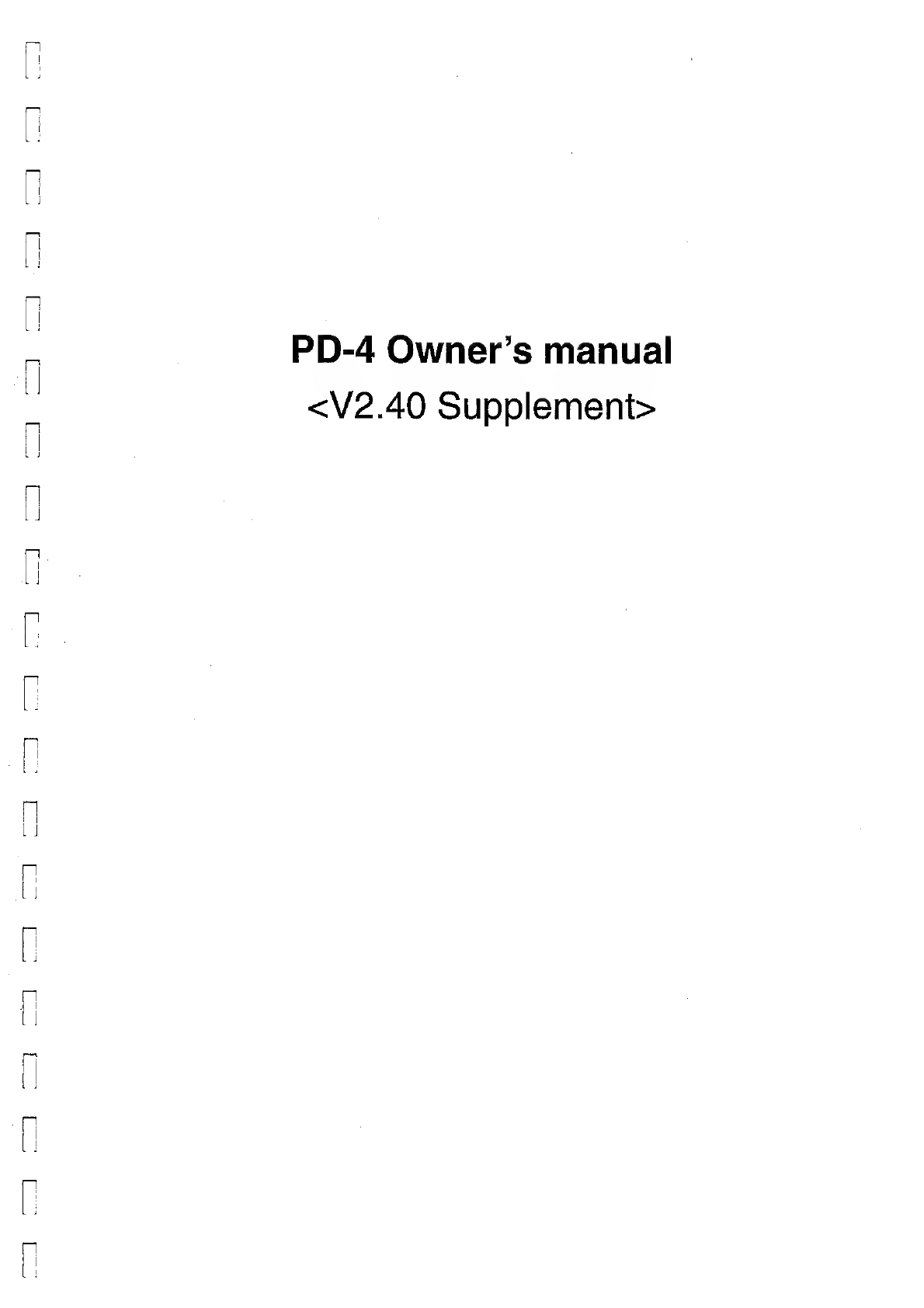

<V2.40

Supplement>

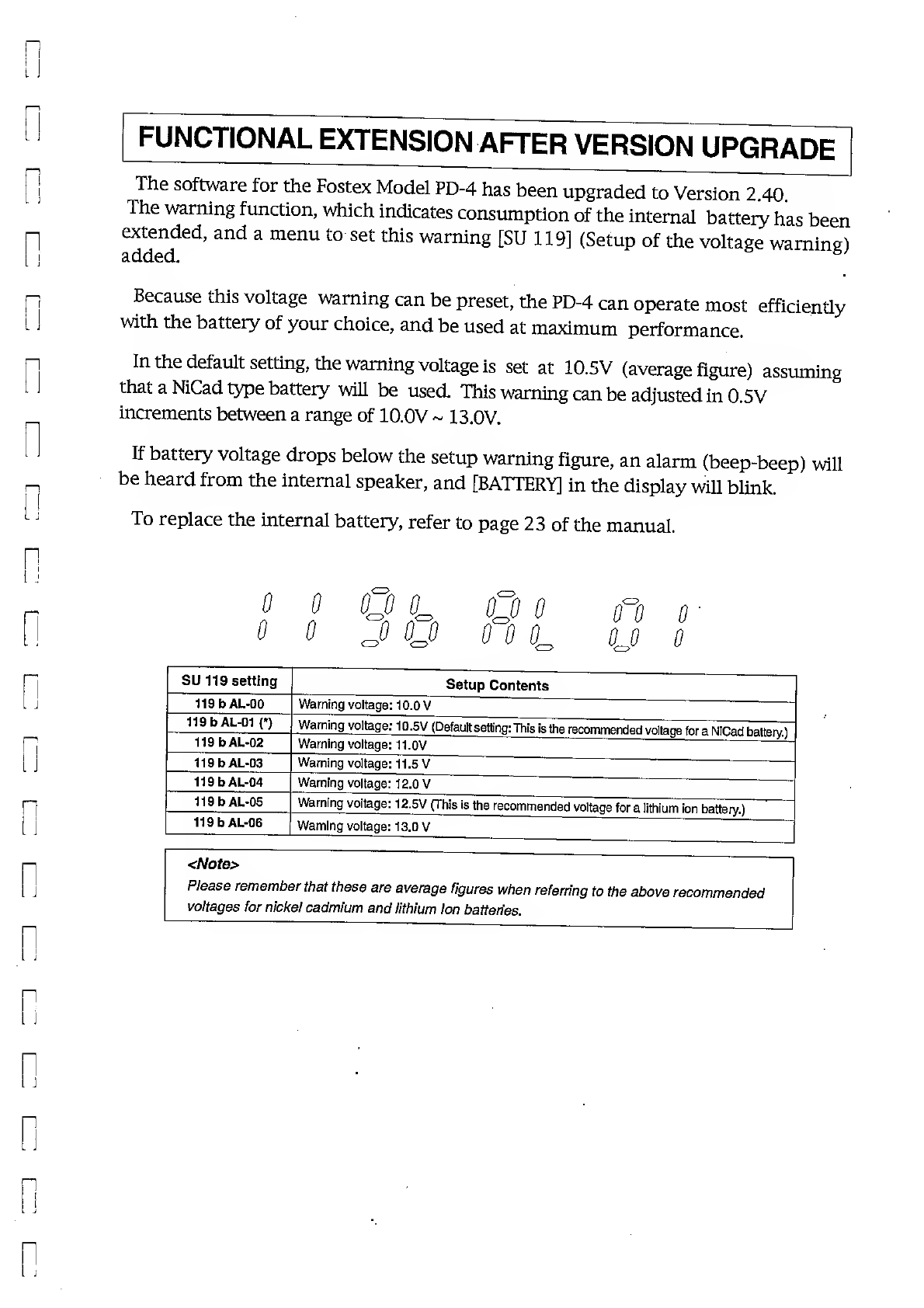

FUNCTIONAL

EXTENSION

AFTER

VERSIO

N

UPGRADE

The

software

for

the

Fostex

Model

PD-4

has

been

upgraded

to

Version

2.40.

The

warning

function,

which

indicates

consumption

of

the

internal

batteiy

has

been

extended,

and

a

menu

to

set

this

warning

[SU

119]

(Setup

of

the

voltage

warning)

added.

Because

this

voltage

warning

can

be

preset,

the

PD-4

can

operate

most

efficiently

with

the

battery

of

your

choice,

and

be

used

at

maximum

performance.

In

the

default

setting,

the

warning

voltage

is

set

at

10.5V

(average

figure)

assuming

that

a

NiCad

type

battery

will

be

used.

This

warning

can

be

adjusted

in

0.5V

increments

between

a

range

of

lO.OV

~

13.0V.

If

batteiy

voltage

drops

below

the

setup

warning

figure,

an

alarm

(beep-beep)

will

be

heard

from

the

internal

speaker,

and

[BATTERY]

in

the

display

will

blink.

To

replace

the

internal

batteiy,

refer

to

page

23

of

the

manual.

0

0

0

OJ

0^

0

J

OJ

OJ

0

0

0

0

to

0

O

0

SU

119

setting

Setup

Contents

119bAL-00

Warning

voltage:

10.0

V

119bAL-01

(*)

Warning

voltage;

10.5V

(Default

setting:

This

is

the

recommended

voltaae

for

a

NiCarihaiten/l

119

bAL-02

Warning

voltage:

11

.OV

119bAL-03

Warning

voltage:

11.5

V

119bAL-04

Warning

voltage:

12.0

V

119bAL-05

warning

voltage:

12.5V

(This

is

the

recommended

voltage

for

a

lithium

ion

battervi

119bAL-06

Warning

voltage:

13.0

V

—1

<Note>

1

Please

remember

that

these

are

average

figures

when

referring

to

the

above

recommended

voltages

for

nickel

cadmium

and

lithium

Ion

batteries.

PD-4

Owner’s

manual

<V2.30

Supplement>

PD-4

Owner's

Manual

(V2.30

Supplement)

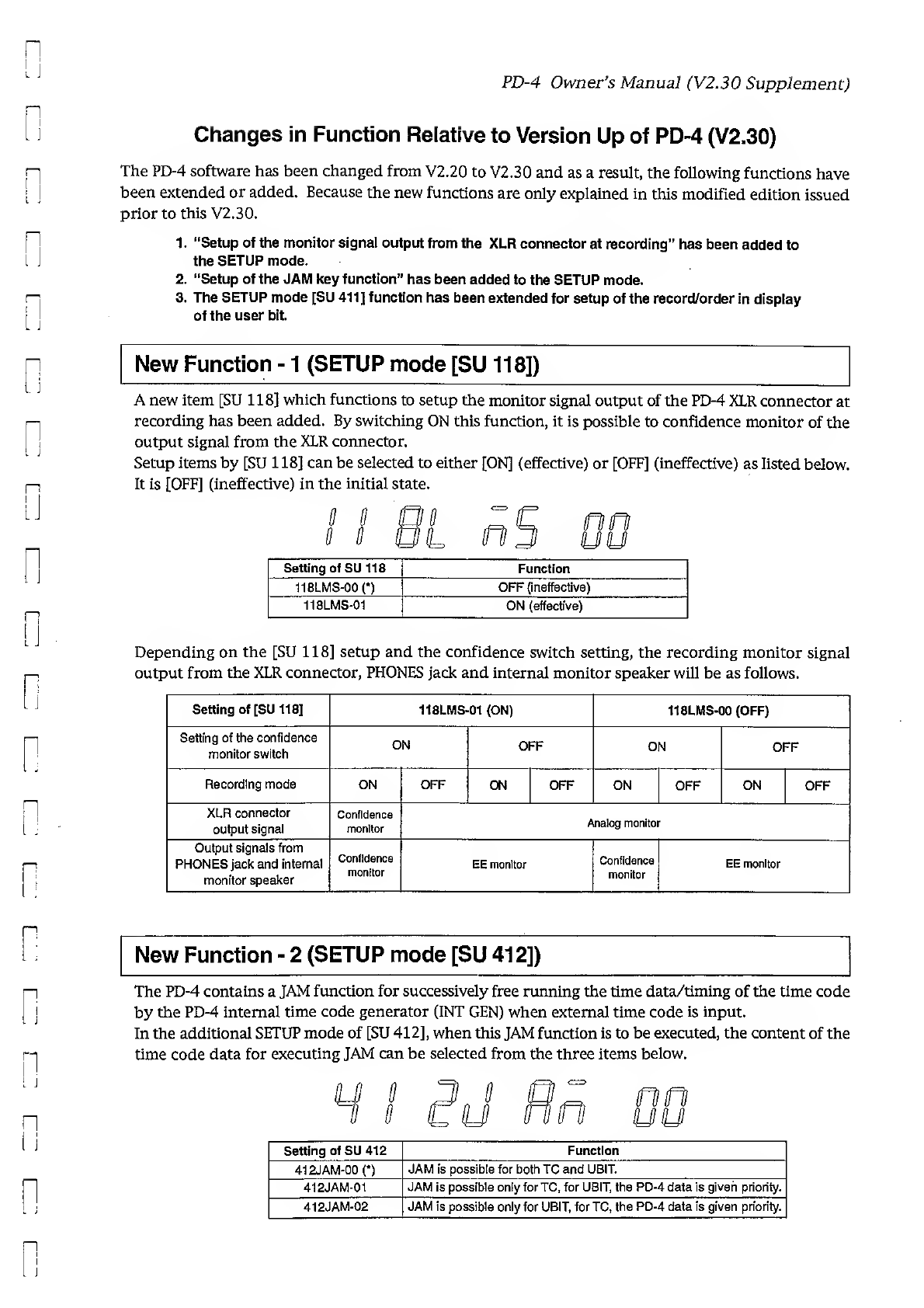

Changes

in

Function

Relative

to

Version

Up

of

PD-4

(V2.30)

The

PD-4

software

has

been

changed

from

V2.20

to

V2.30

and

as

a

result,

the

following

functions

have

been

extended

or

added.

Because

the

new

functions

are

only

explained

in

this

modified

edition

issued

prior

to

this

V2.30.

1.

“Setup

of

the

monitor

signal

output

from

the

XLR

connector

at

recording”

has

been

added

to

the

SETUP

mode.

2.

“Setup

of

the

JAM

key

function”

has

been

added

to

the

SETUP

mode.

3.

The

SETUP

mode

[SU

411]

function

has

been

extended

for

setup

of

the

record/order

in

display

of

the

user

bit.

New

Function

-1

(SETUP

mode

[SU

118])

A

new

item

[SU

118]

which

functions

to

setup

the

monitor

signal

output

of

the

PD-4

XLR

connector

at

recording

has

been

added.

By

switching

ON

this

function,

it

is

possible

to

confidence

monitor

of

the

output

signal

from

the

XLR

connector.

Setup

items

by

[SU

118]

can

be

selected

to

either

[ON]

(effective)

or

[OFF]

(ineffective)

as

listed

below.

It

is

[OFF]

(ineffective)

in

the

initial

state.

0

6

II

0

fnin

uu

Setting

of

SU

118

j

Function

118LMS-00(’)

OFF

(ineffective)

118LMS-01

ON

(effective)

Depending

on

the

[SU

118]

setup

and

the

confidence

switch

setting,

the

recording

monitor

signal

output

from

the

XLR

connector,

PHONES

jack

and

internal

monitor

speaker

will

be

as

follows.

Setting

of

[SU

118]

118LMS-01

(ON)

118LMS-00

(OFF)

Setting

of

the

confidence

monitor

switch

ON

OFF

ON

OFF

Recording

mode

ON

OFF

ON

OFF

ON

OFF

ON

OFF

XLR

connector

output

signal

Confidence

monitor

Analog

monitor

Output

signals

from

PHONES

jack

and

internal

monitor

speaker

Confidence

monitor

EE

monitor

Confidence

monitor

EE

monitor

New

Function

-

2

(SETUP

mode

[SU

412])

The

PD-4

contains

a

JAM

function

for

successively

free

running

the

time

data/timing

of

the

time

code

by

the

PD-4

internal

time

code

generator

(INT

GEN)

when

external

time

code

is

input.

In

the

additional

SETUP

mode

of

[SU

412],

when

this

JAM

function

is

to

be

executed,

the

content

of

the

time

code

data

for

executing

JAM

can

be

selected

from

the

three

items

below.

Setting

of

SU

412

Function

412JAM-00

(*)

JAM

is

possible

for

both

TO

and

UBIT.

412JAM-01

JAM

is

possible

only

forTC,

for

UBIT,

the

PD-4

data

is

given

priority.

412J

AM-02

JAM

is

possible

only

for

UBIT,

forTC,

the

PD-4

data

is

given

priority.

PD-4

Owner's

Manual

(V2.30

Supplement)

The

Extended

Function

(SETUP

mode

[SU

411])

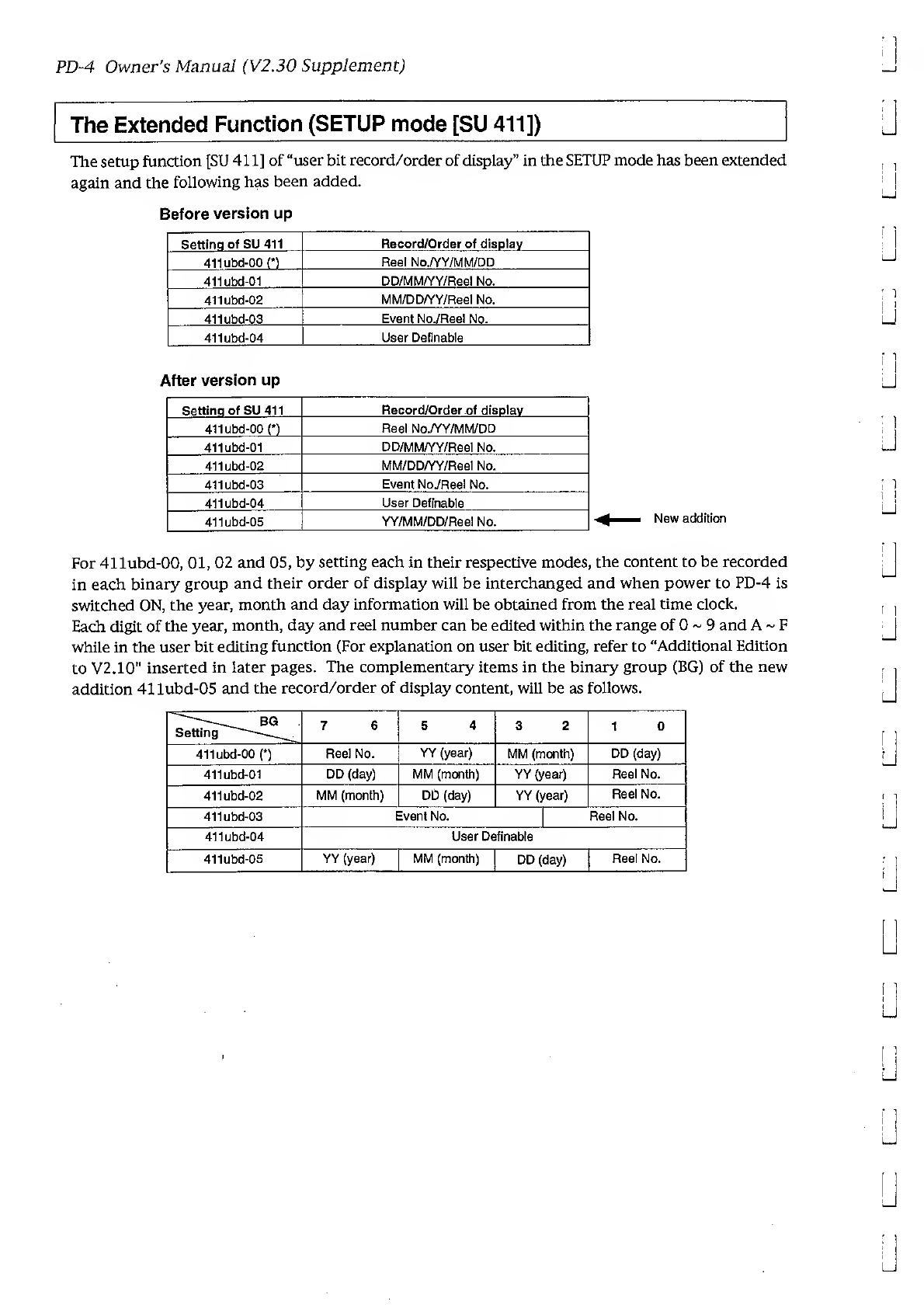

The

setup

function

[SU

411]

of

“user

bit

record/order

of

display”

in

the

SETUP

mode

has

been

extended

again

and

the

following

has

been

added.

Before

version

up

Settina

of

SU

411

Record/Order

of

disolav

411ubd-00

r)

Reel

No.A'Y/MM/DD

411ubd-01

DD/MMA'Y/Reel

No.

411ubd-02

MM/DD/YY/Reel

No.

411ubd-03

Event

No./Ree!

No.

411ubd-04

User

Definable

After

version

up

Settina

of

SU

411

Record/Order

of

disolav

411ubd-00

n

Reel

No.A'Y/MM/DD

411ubd-01

DD/MM/YY/Reel

No.

411ubd-02

MM/DD/YY/Reel

No.

411ubd-03

Event

No./Reel

No.

411ubd-04

User

Definable

41lubd-05

YY/MM/DD/Reel

No.

New

addition

For

411ubd-00,

01,

02

and

05,

by

setting

each

in

their

respective

modes,

the

content

to

be

recorded

in

each

binary

group

and

their

order

of

display

will

be

interchanged

and

when

power

to

PD-4

is

switched

ON,

the

year,

month

and

day

information

will

be

obtained

from

the

real

time

clock.

Each

digit

of

the

year,

month,

day

and

reel

number

can

be

edited

within

the

range

of

0

~

9

and

A

~

F

while

in

the

user

bit

editing

function

(For

explanation

on

user

bit

editing,

refer

to

“Additional

Edition

to

V2.10"

inserted

in

later

pages.

The

complementary

items

in

the

binary

group

(BG)

of

the

new

addition

41

lubd-05

and

the

record/order

of

display

content,

will

be

as

follows.

BQ

Setting

-1

7

6

5

4

3

2

1

0

411ubd-00

(*)

MM

(month)

DD

(day)

411ubd-01

DD

(day)

MM

(month)

YY

(year)

Reel

No.

411ubd-02

MM

(month)

DD

(day)

YY

(year)

Reel

No.

411ubd-03

Event

No.

Reel

No.

411ubd-04

User

Definable

411ubd-05

YY

(year)

MM

(month)

DD

(day)

Reel

No.

r

1

U

!

1

u

U

I

u
