Appliance Setup

This document describes how to setup the FSM-500F appliance.

lFresh Installation

lFactory Reset

lUpgrading FortiSIEM Collector

lAppliance Re-image

Fresh Installation

lStep 1: Rack mount the FSM-500F Appliance

lStep 2: Power On the FSM-500F Appliance

lStep 3: Verify System Information

lStep 4: Configure FortiSIEM via GUI

lStep 5: Register Collectors

lStep 6: Using FortiSIEM

Step 1: Rack mount the FSM-500F Appliance

1. Follow FortiSIEM 500F QuickStart Guide to mount FSM-500F into rack.

2. Connect FSM-500F to the network by connecting an Ethernet cable to Port1.

Before proceeding to the next step, connecting Ethernet cable to Port1 is required for Network

configuration.

Step 2: Power On the FSM-500F Appliance

1. Make sure the FSM-500F device is connected to a Power outlet and an Ethernet cable is connected to Port1.

2. Power On the FSM-500F device.

Step 3: Verify System Information

1. Connect to the FSM-500F appliance using VGA port or Console port.

2. Login as user root with password ProspectHills.

3. You will be asked to change your password. Once you change the password, you will be logged out. Login again

with your new password.

FortiSIEM 6.3.1 500F Collector Configuration Guide 4

Fortinet Technologies Inc.

Appliance Setup

Note this password—you will need it in a later step.

4. Run get to check the available FortiSIEM commands.

5. Use the below commands to check the hardware information. After running each command, ensure that there are

no errors in the displayed output.

Command Description

get system status Displays system name, version and serial

number.

diagnose hardware info Displays system hardware information like

CPUs, Memory and RAID information.

diagnose interface detail

port0

Displays interface status.

Step 4: Configure FortiSIEM via GUI

1. Log in as user root with the password you set in Step 3 above.

2. At the command prompt, go to /usr/local/bin, and enter configFSM.sh. For example:

# configFSM.sh

A simple GUIwill open.

3. In the GUI, select 1 Set Timezone, and then press Next.

4. Select your Region, then press Next.

FortiSIEM 6.3.1 500F Collector Configuration Guide 5

Fortinet Technologies Inc.

Appliance Setup

5. Select your Country, and press Next.

6. Select the Country and City for your timezone, and press Next.

7. Select 1 Collector. Press Next.

FortiSIEM 6.3.1 500F Collector Configuration Guide 6

Fortinet Technologies Inc.

Appliance Setup

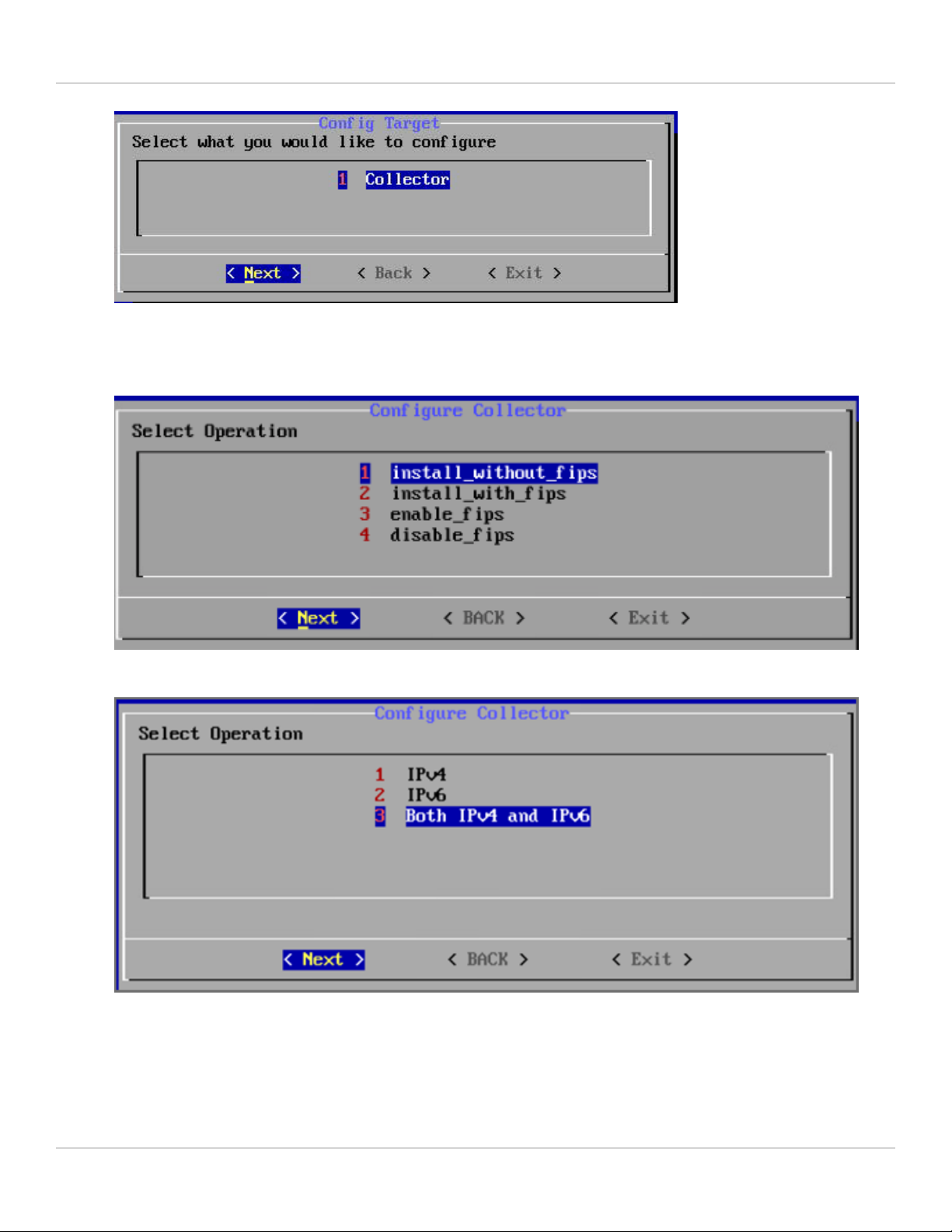

8. If you want to enable FIPS, then choose 2 install_with_fips. Otherwise, choose 1 install_without_fips. You have

the option of enabling FIPS (option 3) or disabling FIPS (option 4) later.

Note: After Installation, a 5th option to change your network configuration (5 change_network_config) is

available. This allows you to change your network configuration and/or host name.

9. Determine whether your network supports IPv4-only, IPv6-only, or both IPv4 and IPv6 (Dual Stack). Choose 1for

IPv4-only, choose 2for IPv6-only, or choose 3for both IPv4 and IPv6.

10. If you choose 1(IPv4) or choose 3(Both IPv4 and IPv6), and press Next, then you will move to step 11. If you

choose 2(IPv6), and press Next, then skip to step 12.

11. When prompted, enter the information for these network components to configure the Static IP

address:IPAddress,Netmask,Gateway,DNSServer(s). Configure the network by entering the following fields.

Press Next.

Note:Configuring a DNSServer to resolve external addresses as updates to remote repositories will be required in

FortiSIEM 6.3.1 500F Collector Configuration Guide 7

Fortinet Technologies Inc.

Appliance Setup

the future.

Note the IP Address—you will need it in a later step.

Option Description

IPv4 Address The Collector's IPv4 address

NetMask The Collector's subnet

Gateway Network gateway address

DNS1, DNS2 Addresses of the DNS servers

12. If you chose 1in step 9, then you will need to skip to step 13. If you chose 2or 3in step 9, then you will configure the

IPv6 network by entering the following fields, then press Next.

Option Description

IPv6 Address The Collector's IPv6 address

prefix

(Netmask)

The Collector's IPv6 prefix

Gateway ipv6 IPv6 Network gateway address

DNS1 IPv6,

DNS2 IPv6

Addresses of the IPv6 DNS server 1 and DNS

server2

FortiSIEM 6.3.1 500F Collector Configuration Guide 8

Fortinet Technologies Inc.

Appliance Setup

Note: If you chose option 3in step 9 for both IPv4 and IPv6, then even if you configure 2 DNS servers for IPv4 and

IPv6, the system will only use the first DNS server from IPv4 and the first DNS server from the IPv6 configuration.

Note: In many dual stack networks, IPv4 DNS server(s) can resolve names to both IPv4 and IPv6. In such

environments, if you do not have an IPv6 DNS server, then you can use public IPv6 DNS servers or use IPv4-

mapped IPv6 address.

13. Configure Hostname for Collector. Press Next.

Note: FQDN is no longer needed.

14. Test network connectivity by entering a host name that can be resolved by your DNS Server (entered in the

previous step) and responds to ping. The host can either be an internal host or a public domain host like

google.com. For migration to complete, the system still needs https connectivity to FortiSIEM OS update servers:

os-pkgs-cdn.fortisiem.fortinet.com and os-pkgs-c8.fortisiem.fortinet.com. Press Next.

Note: By default, “google.com” is shown for the connectivity test, but if configuring IPv6, you must enter an

accessible internally approved IPv6 DNS server, for example: “ipv6-dns.fortinet.com"

Note:When configuring both IPv4 and IPv6, only testing connectivity for the IPv6 DNSis required because the IPV6

takes higher precedence. So update the host field with an approved IPv6 DNSserver.

FortiSIEM 6.3.1 500F Collector Configuration Guide 9

Fortinet Technologies Inc.

Appliance Setup

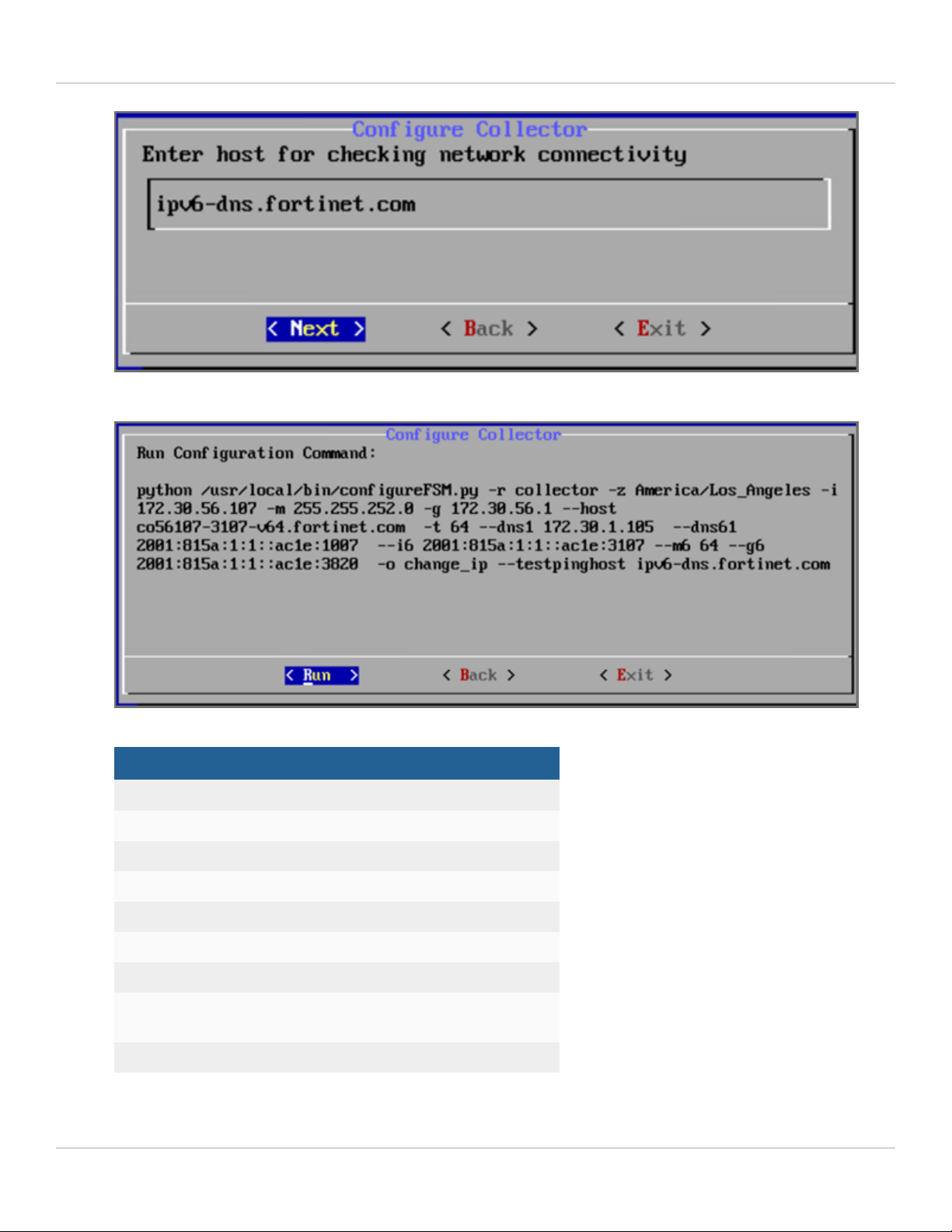

15. The final configuration confirmation is displayed. Verify that the parameters are correct. If they are not, then press

Back to return to previous dialog boxes to correct any errors. If everything is OK, then press Run.

The options are described in the following table.

Option Description

-r The FortiSIEM component being configured

-z The time zone being configured

-i IPv4-formatted address

-m Address of the subnet mask

-g Address of the gateway server used

--host Host name

-f FQDN address: fully-qualified domain name

-t The IP type. The values can be either 4(for ipv4)

or 6(for v6) or 64 (for both ipv4 and ipv6).

--dns1, --dns2 Addresses of the DNS servers

FortiSIEM 6.3.1 500F Collector Configuration Guide 10

Fortinet Technologies Inc.
