Fortinet FortiTester 4000E User manual

FortiTester

4000E

QuickStart

Guide

August 25, 2017

20170825

FortiCare® and FortiGuard®, and certain other marks are registered

trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and

other Fortinet names herein may also be registered and/or

common

law trademarks of Fortinet. All other product or company names may

be trademarks of their respective owners. Performance and other

metrics contained herein were attained in internal lab tests under ideal

conditions, and actual performance and other results may vary. Network

variables, different network environments and other conditions may

fect

performance results. Nothing herein represents any binding commitment by

Fortinet, and Fortinet disclaims all warranties, whether express or implied,

except to the extent Fortinet enters a binding written contract, signed by

Fortinet’s General Counsel, with a purchaser that expressly warrants that

the identified product will perform according to certain expressly-identified

performance metrics and, in such event, only the specific performance

metrics expressly identified in such binding written contract shall be

binding on Fortinet. For absolute clarity, any such warranty will be limited

performance in the same ideal conditions as in Fortinet’s internal lab

tests. In no event does Fortinet make any commitment related to futur

deliverables, features or development, and circumstances may change

such that any forward-looking statements herein are not accurate. Fortinet

disclaims in full any covenants, representations, and guarantees pursuant

hereto, whether express or implied. Fortinet reserves the right to change,

modify, transfer, or otherwise revise this publication without notice, and the

most current version of the publication shall be applicable.

for Support

your

Fortinet

product to receive:

•

Technical

Support

•

New product features

•

Protection

from new threats

Vous devez enregistrer

le produit pour recevoir:

•

Support technique

•

Nouvelles fonctionnalitées

du produit

•

Protection

contre de

nouvelles

menaces

reistrazione

ti permette di

usufruire

di:

•

Supporto Tecnico

•

Nuove

funzionalita

•

Proteezione dalle ultime

minaccce

Debe

registrar

el producto para recibir:

•

Apoyo técnico

•

Nuevas funcionalidades

del producto

•

Protección contra ataques

https://support.fortinet.com

Toll free:

1 866 648 4638

Phone:

1 408 486 7899

Fax:

1 408 235 7737

Email:

登録のお願い本日、フォーティネット製品の登録をしてくだ

さい。登録すると次のメリットがあります。テクニカルサ

ポート •新機能の追加 •新しい脅威への防御

请马上注册您的飞塔产品您在注册以后才能得到技术支持、新产

品特点信息、最新威胁防护

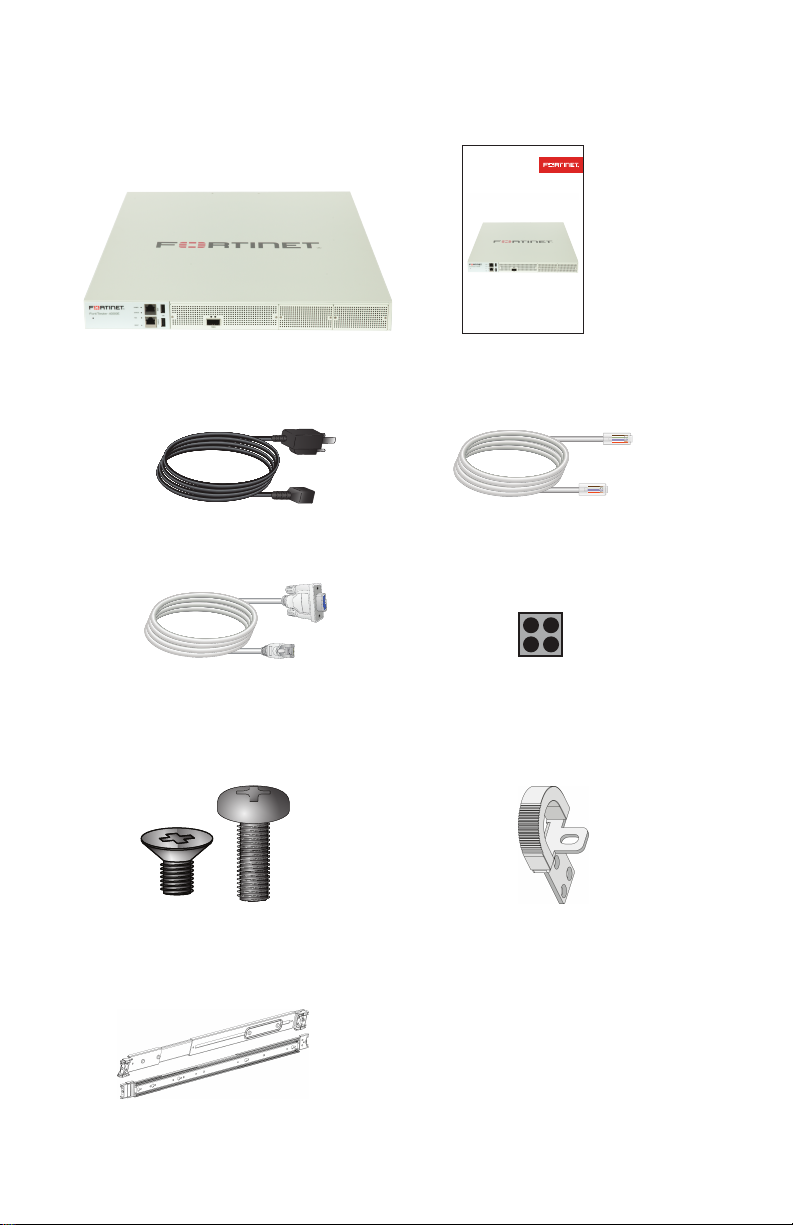

Box Includes

FortiTester 4000E

Quickstart Guide

2 Power cables

Ethernet cable

Console cable

5 Rubber feet

6 M4 screws for sliding rails handles

2 M6 rack mount screws

2 Sliding rail handles

FortiTester

4000E

QuickStart

Guide

2 Sliding rails

1 Installation

Please

read

“Cautions

and

Warnings”

prior to

installing

your device.

The appliance

can be placed on any flat

surface,

or mounted in a standard 19 inch rack.

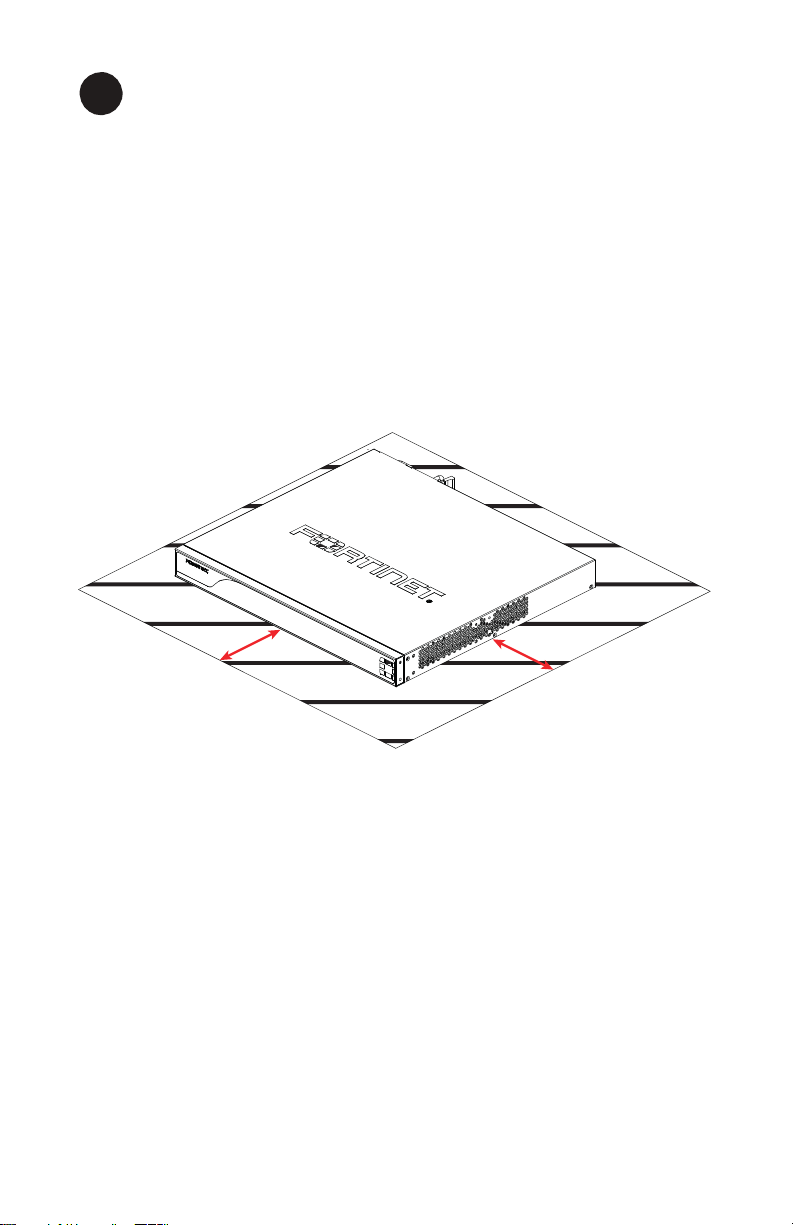

To install the appliance on a flat surface

Ensure

that the

surface

onto which the

appliance is

to be

installed

clean, level,

and stable and that there is at

least

1.5in

(3.8cm)

clearance

all sides

allow

for

adequate

airflow.

2. Attach the provided rubber feet to the bottom of the appliance.

Place

the

appliance

in the

designated

location.

Verify

that the spacing around the

appliance

conforms to

requirements

and that the unit is level.

To install the FortiTester unit into a rack:

1. Ensure that the FortiTester unit is placed on a stable surface prior to

rack-mount installation.

2. Assemble the rails and install the system in the rack following the safety

instructions and the rack installation instructionsin Rail Installation (p.

6).

3. Verify that the spacing around the FortiTester unit conforms to

requirements and that the unit is level.

4. Connect the provided power cables tothe system.

5. Plug the other end of the power cables into separate power sources,

such as uninterruptible power supplies (UPS) or power distribution units

(PDU).

6. Insert one end of the provided Ethernet cable into one of the Ethernet

ports on the FortiTester unit. Insert the other end to a router or switch

that is connected tothe internet.

7. Press the power button on the system to turn on the device.

1.5in

Do NOT place heavy objects on the unit.

2 Rail Installation

To install the FortiTester unit using the rail mounted kit:

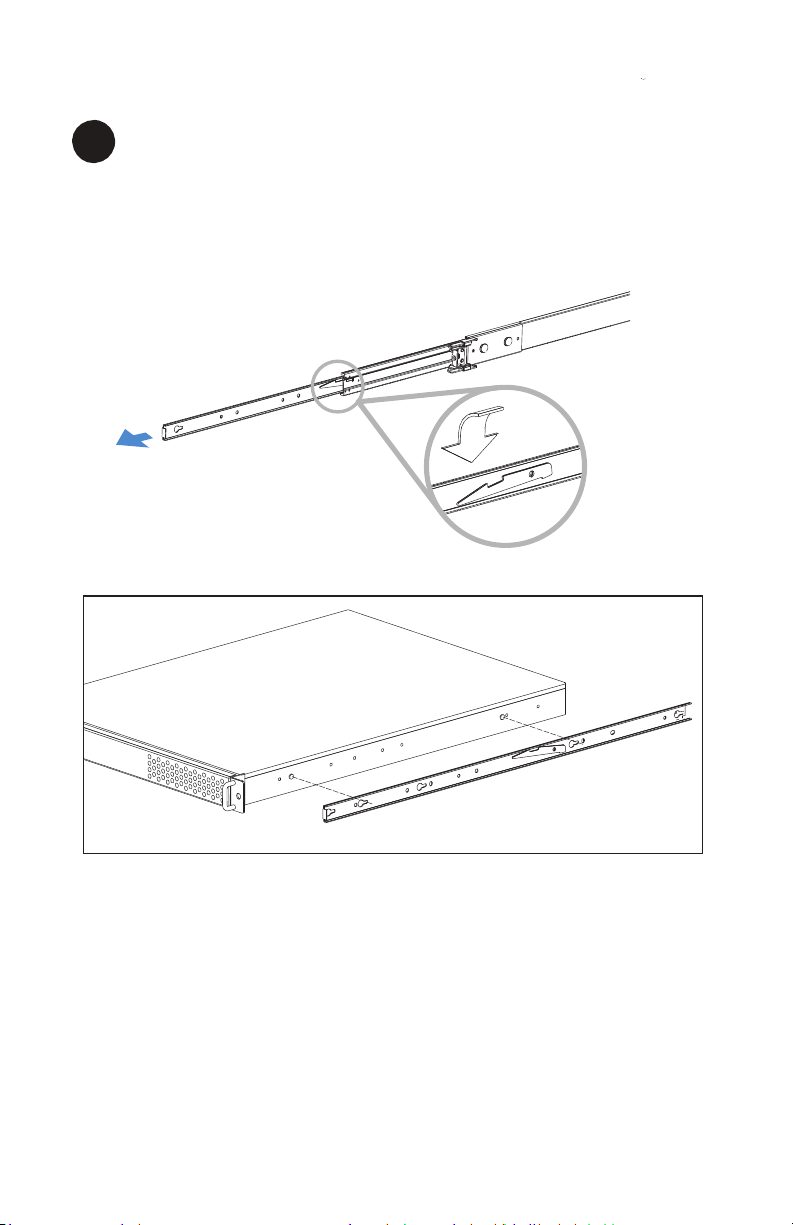

1. To remove the chassis (inner) member, pull the slide open, and then

press the trigger down as shown on the drawing, and pull the chassis

(inner) member out.

2. Use the standos to mount the chassis (inner) member to the chassis.

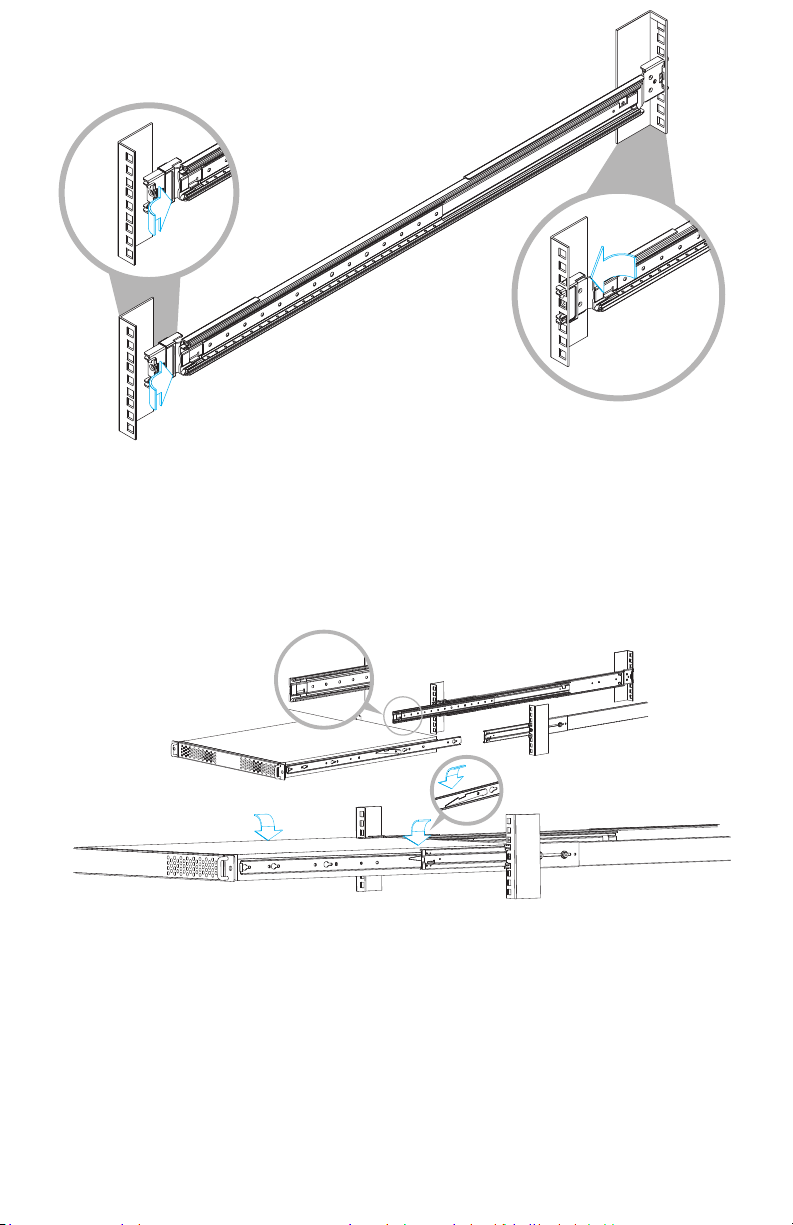

3. To attach the cabinet (outer) member of the rail, first ensure that the

safety lock is in the unlocked position. Then, insert the stag into the

upper and lower square holes on the EIA rail from the back of the rail.

Finally, push the safety lock forward to secure the bracket.

Press trigger down to release

Pull chassis (inner) member out

4. To mount the chassis into the cabinet, first ensure that the ball retainer is

in the fully open position. Then, insert the chassis (inner) member into

the cabinet member. When you push the chassis back into the cabinet,

press the trigger down torelease the slide from the locked position.

Release safety lock

before mounting

Push the safety lock forward to secure

Retainer is in fully open position

Press trigger down to unlock slides

QSFP+

Transceivers

Caution:

Transceivers

are

static sensitive

devices.

Use

ESD

wrist

strap or similar

grounding

device

when handling

transceivers.

Do not

install

remove

transceivers

while

fiber-optic cables

are

still

attached.

This

can cause

damage to the

cables, cable

connectors,

and the optical

interfaces.

It may

also

prevent

the

transceiver

from

latching

correctly

into the socket

connector.

Note: Installing

and removing

transceivers

can

shorten their

useful life.

Do not

install

or remove

transceivers

than is

necessary.

To install the transceivers

Properly ground yourself with an ESD wrist strap

or similar grounding device.

Carefully take the device out of the

packaging and check to ensure it is the

correct device

Position

the

transceiver

in front of the cage

socket opening and

ensure

that the

transceiver

is correctly

oriented. The latch

should be vertical.

Note: Cage socket

orientation

may

vary.

Ensure

that the

transceiver

module is

correctly

oriented

each time that you are

inserting

a transceiver.

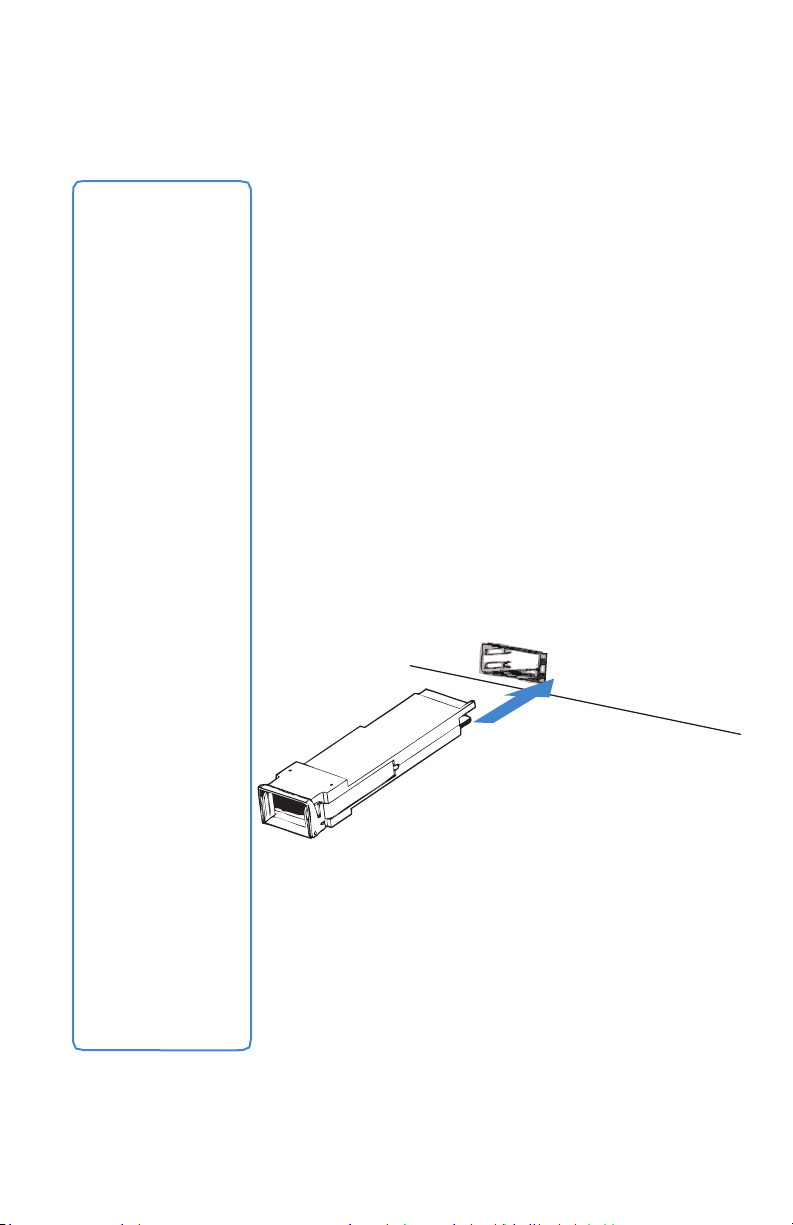

4. Hold the

sides

of the

transceiver

and

slide

into the cage socket until it makes contact

with the electrical connector.

Press

the

transceiver firmly

into the cage

socket with your thumb.

Verify

that the

transceiver

is latched correctly by

grasping the

sides

of the

transceiver

and trying to

pull it out without

lowering

the

latch

. If the

transceiver

cannot be

removed,

it is

installed

and

latched correctly. If the

transceiver

can be

removed, reinsert

it and press

harder

with your

thumb. If

necessary,

repeat this process until the

transceiver

securely

latched into the cage

socket.

7. If the Multi-fiber Push On (MPO) connectors

had dust plugs, remove them and set them

aside.

8. Ensure the end faces are clean.

9. If the transceiver had a dust plug for the

optical bore, take it off.

10. Connect the MPO connector with the QSFP+

transceiver.

11.Gently pull on the cable to ensure it is

connected properly. If the cable comes out,

reinsert it until it is fully seated.

Caution: Do not

force the

transceivers

into

the cage slots.

If the transceiver

does not easily

slide

in and click

into place, it may

not be aligned

correctly or may

be upside down.

If this happens,

remove

the

transceiver,

realign

it or rotate it and

slide

it in again.

Note: Follow

proper fiber-

optic handling

procedures

when

installing

and

removing

transceivers

ensure

the devices

are not damaged.

To remove the transceivers

Ensure

that you are

properly

grounded.

2. If

applicable,

disconnect the fiber-optic cable from the

transceiver

connector and

install

clean

dust plug in

the

transceiver’s

optical bores.

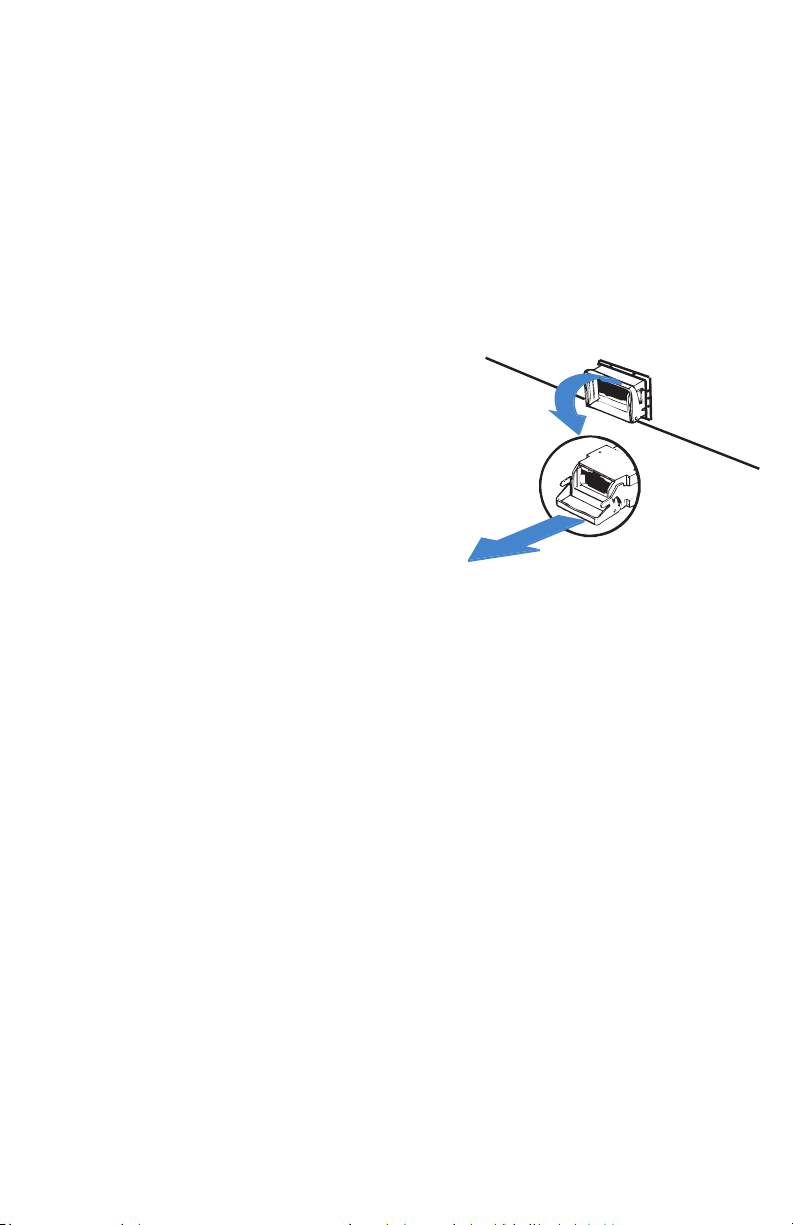

3. Pull the latch out and down into the horizontal

position. If you are

unable

to use your

finger

to open

the

latch,

use a

small flat-head screwdriver

or other

similar

tool to open the latch.

4. Install a clean dust plug into the transceiver’s optical

bores.

5. Hold the

sides

of the

transceiver

and

carefully

pull it

away from the cage socket.

Replace

the cap on the cage socket and place the

removed transceiver

into an

antistatic

bag.

Table of contents

Other Fortinet Firewall manuals

Fortinet

Fortinet FortiGate FortiGate-4000 User manual

Fortinet

Fortinet FortiGate FortiGate-1000A User manual

Fortinet

Fortinet FortiGate-100 Instruction Manual

Fortinet

Fortinet FortiGate-7030E Parts list manual

Fortinet

Fortinet FortiGate-110C User manual

Fortinet

Fortinet FortiGate FortiGate-300 User manual

Fortinet

Fortinet FortiGate 300 User manual

Fortinet

Fortinet FortiGate FortiGate-800 Instruction Manual

Fortinet

Fortinet FortiGate FortiGate-5001 Instruction Manual

Fortinet

Fortinet FortiGate FG-80C User manual

Fortinet

Fortinet Fortiwifi fortiwifi-60 Operator's manual

Fortinet

Fortinet FortiNDR 1000F User manual

Fortinet

Fortinet FortiGate-60 series Instruction Manual

Fortinet

Fortinet FortiGate 3600 User manual

Fortinet

Fortinet FSM-500F User manual

Fortinet

Fortinet FortiGate-100 User manual

Fortinet

Fortinet FortiBridge FortiBridge-1000 User manual

Fortinet

Fortinet FortiGate FortiGate-400 Instruction Manual

Fortinet

Fortinet FortiMail-4000 User manual

Fortinet

Fortinet FortiGate-3016B User manual

Fortinet

Fortinet FortiGate 60C-LENC User manual

Fortinet

Fortinet FortiGate FortiGate-300 User manual

Fortinet

Fortinet FortiGate 3000 User manual

Fortinet

Fortinet FortiMail-400 User manual

Popular Firewall manuals by other brands

Cisco

Cisco S190 quick start guide

ADTRAN

ADTRAN NetVanta 2300 Specifications

SecureLogix

SecureLogix ETM System installation guide

NETGEAR

NETGEAR ProSafe FVX538 Reference manual

Lanner

Lanner FW-8877 user manual

Huawei

Huawei USG6000 Series Upgrade guide

H3C

H3C SecPath F5000-AI-15 installation guide

Nexcom

Nexcom DNA 1150 user manual

Cisco

Cisco 3110 Hardware installation guide

Draytek

Draytek Vigor2860 Series user guide

Lanner electronics

Lanner electronics FW-7650 Series user manual

Swisscom

Swisscom Internet Backup manual

SonicWALL

SonicWALL NSa 5700 quick start guide

DPtech

DPtech FW1000 SERIES Maintenance manual

FEITIAN

FEITIAN MultiPass FIDO product manual

EBLOCKER

EBLOCKER PRO user manual

GTA

GTA GB-200 Product guide

Trend Micro

Trend Micro Deep Edge quick start guide
