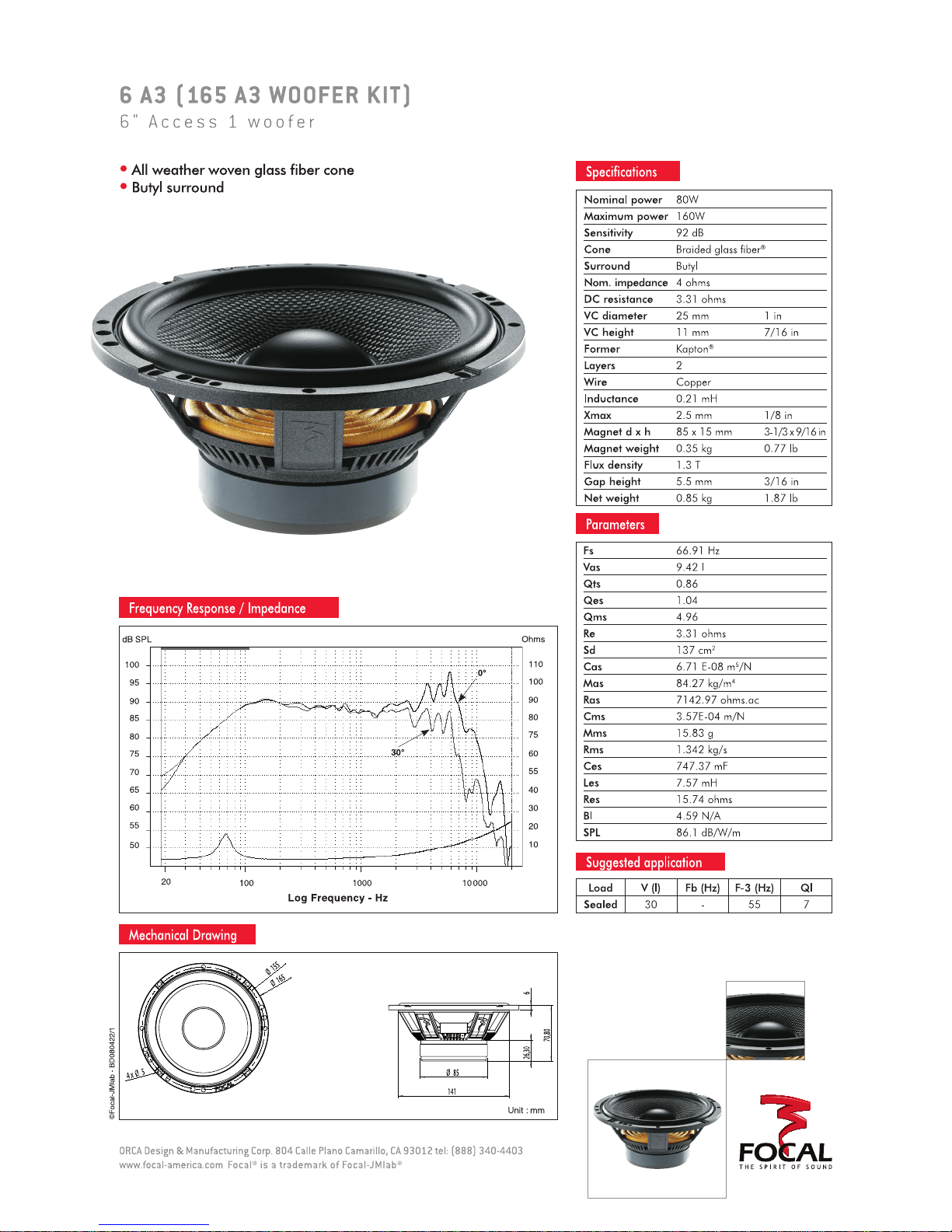

Focal Access 165 A3 User manual

Focal® is a trademark of Focal-JMlab® - BP 374 - 108, rue de l’Avenir - 42353 La Talaudière cedex

France - Tél. (33) 04 77 43 57 00 - Fax (33) 04 77 37 65 87 - www.focal-fr.com - SCBD080422/1

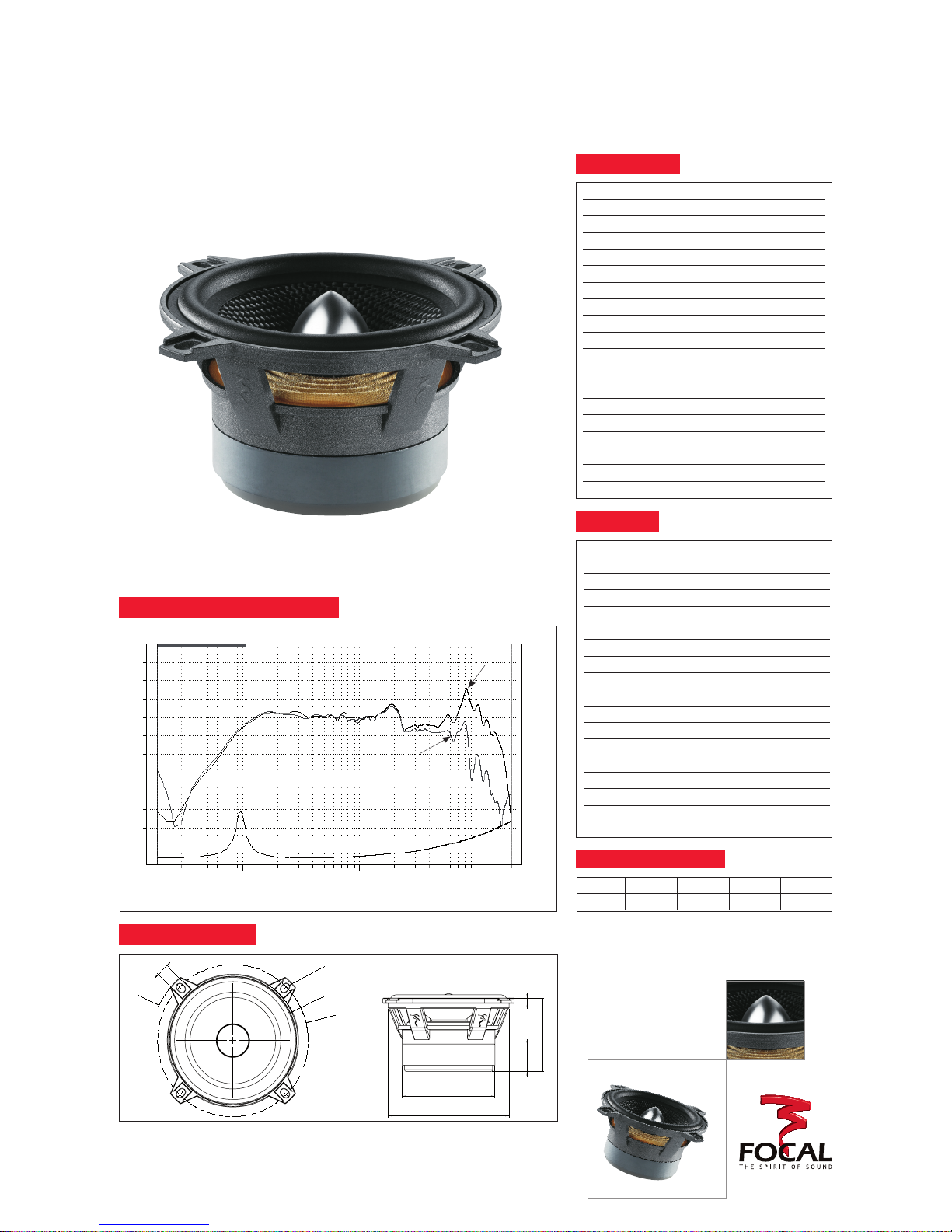

4 A3 (165 A3 midrAnge kit)

4" Access 1 midrange

•All weather woven glass ber cone

• Phase plug

Ø102

Ø116,80

4 x Ø5,30

Ø127

9,50

56,40

20,60

Ø72

Ø94

Nominal power 80W

Maximum power 160W

Sensitivity 89 dB

Cone Braided glass ber

Surround Butyl

Nom. impedance 4 ohms

DC resistance 3.3 ohms

VC diameter 25 mm 1 in

VC height 11 mm 7/16 in

Former Kapton®

Layers 2

Wire Copper

Inductance -

Xmax 2.5 mm 0.18 in

Magnet d x h 70 x 15 mm 2-3/4 x 9/16 in

Magnet weight 0.25 kg 0.66Ib

Flux density 1 T

Gap height 5.5 mm 3/16 in

Net weight 0.5 kg 1.1 Ib

Fs 94.54 Hz

Vas 1.66 l

Qts 0.76

Qes 0.86

Qms 6.66

Re 3.37 ohms

Sd 54.11 cm2

Cas 1.18E-08 m5/N

Mas 240.14 kg/m4

Ras 21418.27 ohms.ac

Cms 4.03E-04 m/N

Mms 7.03 g

Rms 0.414 kg/s

Ces 429.61 mF

Les 6.60 mH

Res 26.25 ohms

BI 4.06 N/A

SPL 84 dB/W/m

Load V (l) Fb (Hz) F-3 (Hz) Ql

Sealed 30 - 89 7

©Focal-JMlab - DB080422/1

30°

0°

Mechanical Drawing

Unit : mm

100

dB SPL

110

100

Ohms

Log Frequency - Hz

20 100 1000 10 000

Frequency Response / Impedance

Specications

Parameters

Suggested application
