Fly Sky FS-T6 User manual

FS-T6

警告

此款产品只适合15岁以上人员使用。

The product is suitable

for 15 years old and

above.

FS-T6

1. Introducion...............................................................2

2. Services....................................................................2

3. The special symbols..................................................3

4. Safty guides..............................................................3

5. Battery charging notes...............................................4

6. Tansmitter parameters...............................................5

7. Receiver parameters.................................................5

8. Receiver connectivity.................................................6

9. 2.4G Operation notes.................................................8

10. Definition of key functions.........................................9

11. Features...................................................................10

12. Packs the content...................................................41

FS-T6

T-6.01

T-6.02

FS-T6

T-6.03

T-6.04

FS-T6

T-6.05

参数说明： Specifications:

频率范围：2.40-2.4835GHz；

波段宽度：500Hz；

波段个数：160个；

发射功率：不高于20dBm（100mW）

2.4G模式：自动跳频率数字系统；

编码方式：GFSK；

天线长度：26毫米；

接收灵敏度：-105dBm;

RF range:2.40-2.4835GHz;

Bandwidth:500Hz;

Band sum:160;

2.4G system:AFHDS;

Code type:GFSK;

ANT length:26mm;

RX Sensitivity:-105dBm;

RF power:less than 20dBm(100mW);

AFHDS（自动跳频数字系统），这个系统是富斯公司专为模型爱好者自主

研发，并具有自主知识产权的一套数字无线系统。它是专门针对模型产品而

研发的，它具有超强的主动和被动抗干扰能力及极低的使用功耗和极高的接

收灵敏度，是目前市面上最好的系统之一。此系统经过研发人员极端严格的

测试及多年市场验证，模型爱好者完全可放心使用！

AFHDS(quiomalic frequency hopping digital system),is developed by FLYSKY for all the Radio Control model

lovers and is patented by FLYSKY at home. The system is specially developed fo all the Radio control models,

that offers super active and passive anti-jamming capabilities, very low power consumption and high receiver

sensitivity. With extreme rigorus testing by engineers and studying the markets for years, FLYSKY AFHDS is

now considered to be the one of the best systems available in the market.

FS-T6

T-6.06

T-6.06.1

FS-T6

T-6.07

T-6.08

3.发射功率：小于等于20dBm（100mW)；

7.低电压报警功能: 有(低于9伏后)；

8.数据输出接口: 有(3.5英寸变频)；

Specifications:

机种参数：

1.通道个数：6个通道；

2.适合机种：飞机、直升机；

4.调制方式：CFSK；

5.系统模式: AFHDS；

6.数据分辩率: 4096级；

9.充电接口: 有;

10.电源标准：12V DC；

11.整机重量: 590克；

12.天线长度：26毫米；

13.外型尺寸：302*190*93毫米；

14.外观颜色：黑色；

15.安规认证：CE、FCC.

SPECIFICATIONS:

A.Channels: 6channels;

B.Model type: Aircraft/helicopters;

C.RF power: no more than 20dBm(100mW);

D.Modulation: GFSK;

E.System type: AFHDS;

F.Sensitivity: 4096;

G.Low voltage warning: yes(less than 9V);

H.DSC port: yes(3.5mm);

I.Charger port: yes;

J.Power: 12V DC(1.5aa*8);

K.Weight: 590g;

L.ANT length: 26mm;

M.Size: 302*190*93mm;

N.Color: black;

O.Certificate: CE、FCC.

机种参数：

1.通道个数：6个通道；

2.适合机种：飞机/直升机；

3.接收灵敏度：-105dBm；

4.调制方式:GFSK；

5.系统模式:AFHDS；

6.数据分辩率:1024级；

7.失控保护功能:有(第2通道)；

8.对码接口:有(第三通道)；

9.电源接口:有( VC C)；

10.电源标准:4.5-6.5V DC；

11.整机重量:13克；

12.天线长度:26毫米；

13.外型尺寸:45*23*9毫米；

14.外观颜色:黑色；

15.安规认证:CE、FCC。

SPECIFICATIONS：

A.Channels: 6channels;

B.Model type: car/boat;

C.RF receiver sensitivity: -105dBm;

D.Modulation: GFSK;

E.System type: AFHDS;

F.Sensitivity: 1024;

G.Faisafe: yes(channel 2);

H.Bind port: yes(channel 3);

I.Power port: yes(VCC);

J.Power: 4.5-6.5VDC;

K.Weight: 13g;

L.ANT length: 26mm;

M.Size: 45*23*9mm;

N.Color: black;

O.Certificate: CE、FCC.

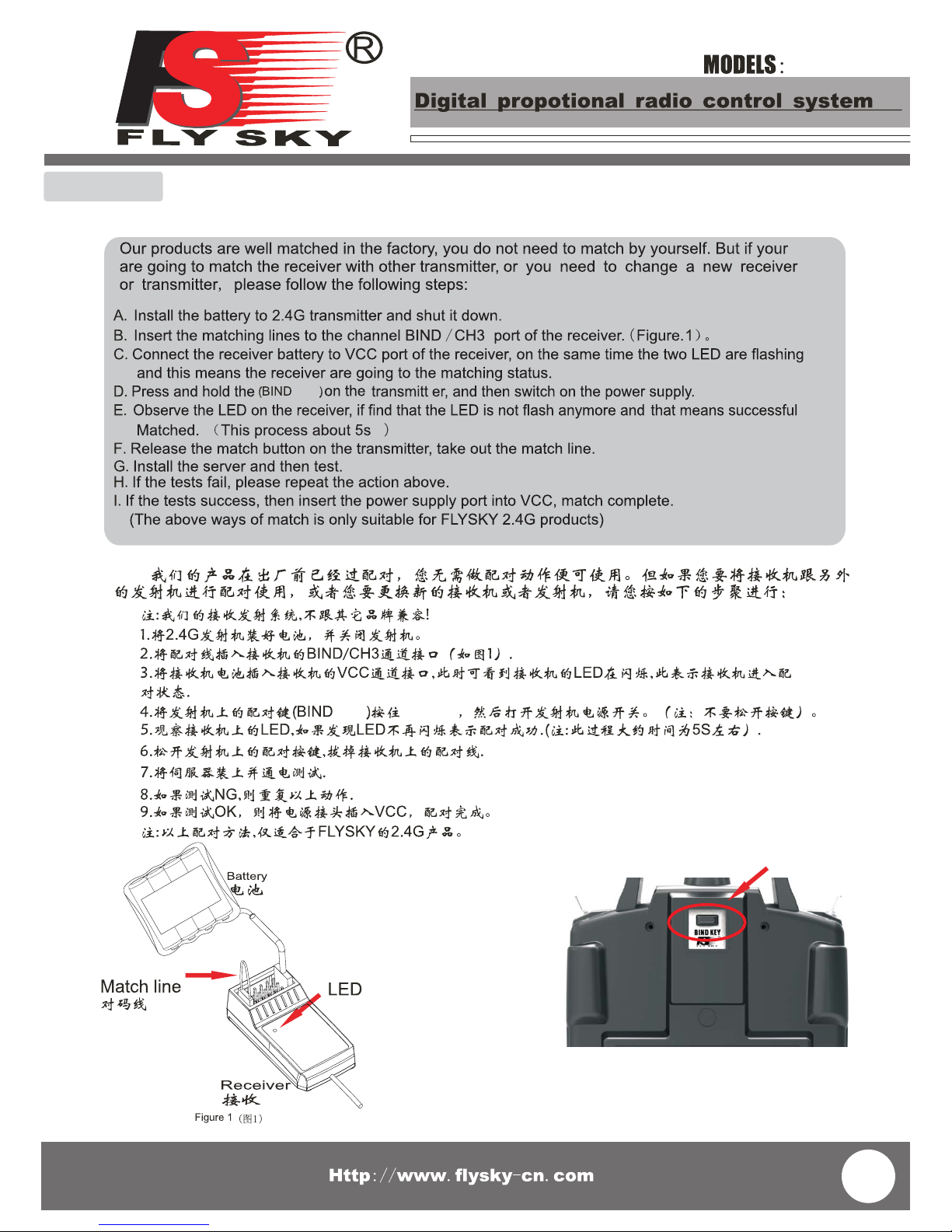

MODEL: FS-R6B

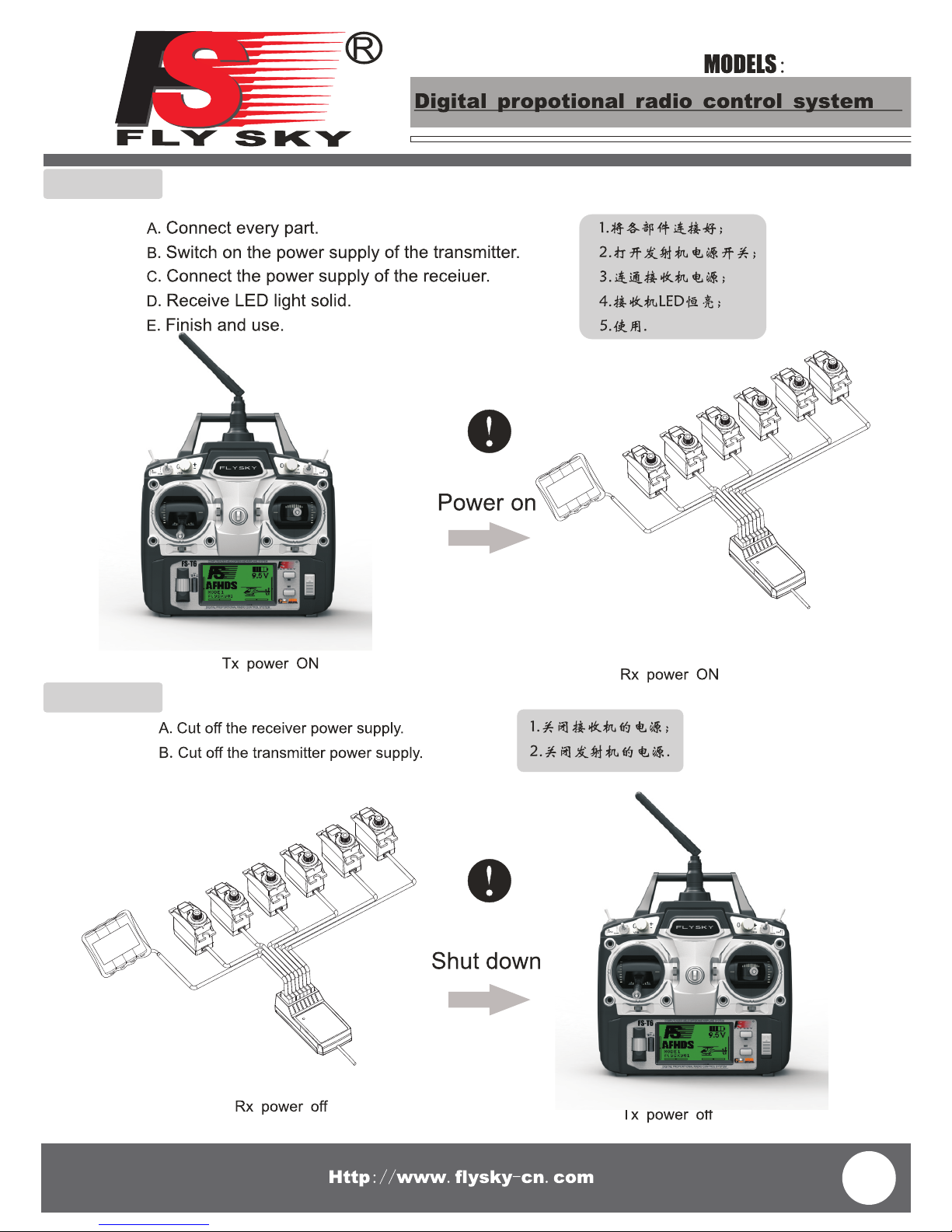

FS-T6

T-6.09

Figure(图2 )

(如图2)

Figure(2)

BIND KEY

KEY

FS-T6

T-6.10

T-6.10.1

Ch.1

Aileron

Ch.2

Elevator

Ch.3

ESC

Ch.4

Rudder

Ch.5

Gyro Gain

Ch.6 Pitch

(Aileron 2)

Ch.1

Aileron

Ch.2

Elevator

Ch.3

ESC

Ch.4

Rudder

Ch.5

Gyro Gain

Ch.6 Pitch

(Aileron 2)

Handle

2.4Ghz Antenna

C (Defalut Flight Mode Normal / IDLE for Storm 460)

SWA (Defalut Dual Rate for Storm 460)

SWD (Defalut Throttle Hold for Storm 460)

VRA (Defalut Not Used for Storm 460)

VRB (Defalut Not Used for Storm 460)

SWB (Defalut Not Used for Storm 460)

HOOK

MODE1:

CH2 ,CH4

MODE2:

CH3 ,CH4

TRIM Ch1

Charger Port

(Not Used)

TRIM

Mode 1 : Ch.2

Mode 2 : Ch.3

CH4

LCD

UP/DOWN

ENTER

Power ON / OFF

Cancel

FS-T6

T-6.11

Definition of key functions

TRIM

Mode 1 : Ch.3

Mode 2 : Ch.2

MODE1:

CH1 ,CH3

MODE2:

CH1 ,CH2
