Fly Dragon LIGHT SKY TX0610 User manual

USER MANUAL

PROFESSIONAL SHOW LIGHTING

LED

TX0610

BEAM

www.lightsky.com.cn/www.lightsky-china.com

FLY DRAGON LIGHTING EQUIPMENT CO., LTD

AC100~240V 50/60H

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD

www.lightsky. om. n

www.lightsky- hina. om

CONTENTS

1. General information 2

2. Safety instructions 3

3. Trait and s ill specifications 4

4. Operation panel 6

5. Dimensional drawings 6

6. Photometric data 7

7. Mounting and Installation 7

8. Power supply and Signal connection 9

9. Display menu 11

10. DMX traits 18

11. Circuit connecting diagram 22

12. Trouble dispose 23

13. Cleaning and Maintenance 24

14. Duty exonerative and Copyright protection .24

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD

www.lightsky. om. n

www.lightsky- hina. om

1. GENERAL INFORMATION

INTRODUCTION: Congratulations, you have just pur hased one of the

most innovative and reliable LED fixtures on the market today. Our

ompany has been designed to perform reliably for years when the

guidelines in this booklet are followed. Please read and understand the

instru tions in this manual arefully and thoroughly before attempting to

operate this unit. These instru tions ontain important information

regarding safety during use and maintenan e.

UNPACKING: Thank you for pur hasing our ompany produ ts. Every

produ t has been thoroughly tested and has been shipped in perfe t

operating ondition. Carefully he k the shipping arton for damage that

may have o urred during shipping. If the arton appears to be damaged,

arefully inspe t your fixture for damage and be sure all a essories

ne essary to operate the fixture have arrived inta t. In the event damage

has been found or parts are missing, please onta t our ustomer support

team for further instru tions. Inside the box you should find: the fixture,

a DMX XLR able, a power able, and this user manual.

Please do not dis ard the shipping arton in the trash. Please re y le

whenever possible.

Notice: As part of our ongoing ommitment to ontinuous

produ ts update, ompany will keep the right to improve

this produ ts, the information in this menu may be

hanged in the future, the ompany reserve the right to

hange the data without any advises.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD

www.lightsky. om. n

www.lightsky- hina. om

2. SAFETY INSTRUCTIONS

●1. In order to ensure the light ould operate normally, the ambient

temperature ouldn't be higher than 38℃and no lower than- 2℃.

●2. Under normal ondition, the highest se tional surfa e temperature

may be up to 60 ℃.

●3.These proje tors are designed depends on the ele tri sho k

prote tion, the proje tor should be onne ted with the power supply

system whi h onne ted ground enough. The proje tor's ground

able should be onne ted with the ground able of the power

supply system as well. The ground mark of the light metal over

should be onne ting with the installation bri ked steadily.

●4. Don't use the power able when the insulation is damaged.

It must be the manufa turer or distributor or the professional person

to hange the damaged power able in order to avoid any

dangerous.

●5.Please he k the voltage, frequen y data of power supply system is

suitable for the mentioned on the proje tor. Please do avoid the

different voltage between them and burn the proje tor.

●6.Do not attempt to operate this fixture if the power ord has be ome

damaged or frayed.

●7.Never open this fixture while in use.

●8.Never look dire tly into the light sour e. You risk injury to your

retina, whi h may indu e blindness.

●9.Please be aware that damages aused by modifi ations to the devi e

are not subje t to warranty.

Notice: To guarantee proper and onsistent operation, it is

important to follow the guidelines in this manual. Our

ompany will not a ept responsibility for damages

resulting from the misuse of this fixture due to the

disregard of the information printed in this manual.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD

www.lightsky. om. n

www.lightsky- hina. om

3. PERFORMANCE TRAIT AND SKILL SPECIFICATIONS

◎Voltage：AC100~240V 50/60Hz.

◎Power：91W.

◎LED hip：10W，RGBW 4 in 1 LED hip.

◎LED QTY：6PCS.

◎LED life：50000H.

◎Lens degree：standard：1.5°.

◎Beam angle: Minimum 6°, Maximum 51°

◎Color: RGBW ma ro olor system.

◎Strobe:1-30 times/ se ond ele troni strobe and random strobe.

◎Dimmer ：65536 lass dimmer.

◎Pan/Tilt ：Pan ：540° times /1.5 se onds Tilt：180°/0.5 se onds.

◎Control Mode: DMX512, RDM, Stand-alone mode ,Voi e Control

mode , Mater-Slave mode , Wireless DMX512.

◎Channel: Standard Channel : 11 , Extend Channel : 17.

◎Display Menu:

1. 2.4 in hes TFT tou h s reen, Chinese and English two version

language.

2, Display board an re ord devi e’s using time , show devi e’s

temperature, hannel data and software version .

3, Edit the pro edure

◎Other feature :

1. Extend IP address fun tion , ea h IP address maximum an set 64

ID.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD

www.lightsky. om. n

www.lightsky- hina. om

2.Support DMX signal priority identifi ation, when lose the signal

it would be turn into Bla k , default s ene , Automati fun tion

et a ording to your set.

3.Remote ontrol fun tion: ontrol the pro edure, speed et

fun tion by the remote ontroller when the produ t under the

ondition without signal.

4.software upgrade : upgrade software by XRL able.

◎Outlooking: adopt ABS anti-fire plasti .

◎Carton size : 270×260×350MM.

◎N.W.: 3.8KG G.W.: 5.7KG

◎Light size:φ226×268MM

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD

www.lightsky. om. n

www.lightsky- hina. om

4. OPERATION PANEL

5. DIMENSIONAL DRAWINGS

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD

www.lightsky. om. n

www.lightsky- hina. om

6. PHOTOMETRIC DATA

7. MOUNTING AND INSTALLATION

Cautions:

For added prote tion mount the fixtures in areas outside walking

paths, seating areas, and away from areas were unauthorized personnel

might rea h the fixture. Before mounting the fixture to any surfa e, make

sure that the installation area an hold a minimum point load of 10 times

the devi e's weight. Fixture installation must always be se ured with a

se ondary safety atta hment, su h as an appropriate safety able. To

avoid injury, never stand dire tly below the devi e when mounting,

removing, or servi ing the fixture.

Mounting points:

Overhead mounting requires extensive experien e, in luding

amongst others al ulating working load limits, a fine knowledge of the

installation material being used, and periodi safety inspe tion of all

installation material and the fixture. If you la k these qualifi ations, do

not attempt the installation yourself. Improper installation an result in

bodily injury. Be sure to omplete all rigging and installation pro edures

before onne ting the main power ord to the appropriate wall outlet.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD

www.lightsky. om. n

www.lightsky- hina. om

Mounting

Our ompany is fully operational in any mounting position, hanging

upside-down, side mounted, or set on a flat level surfa e, et . Be sure this

fixture is kept at least 0.5m (about 1.6feet) away from any flammable

materials (de oration et .).

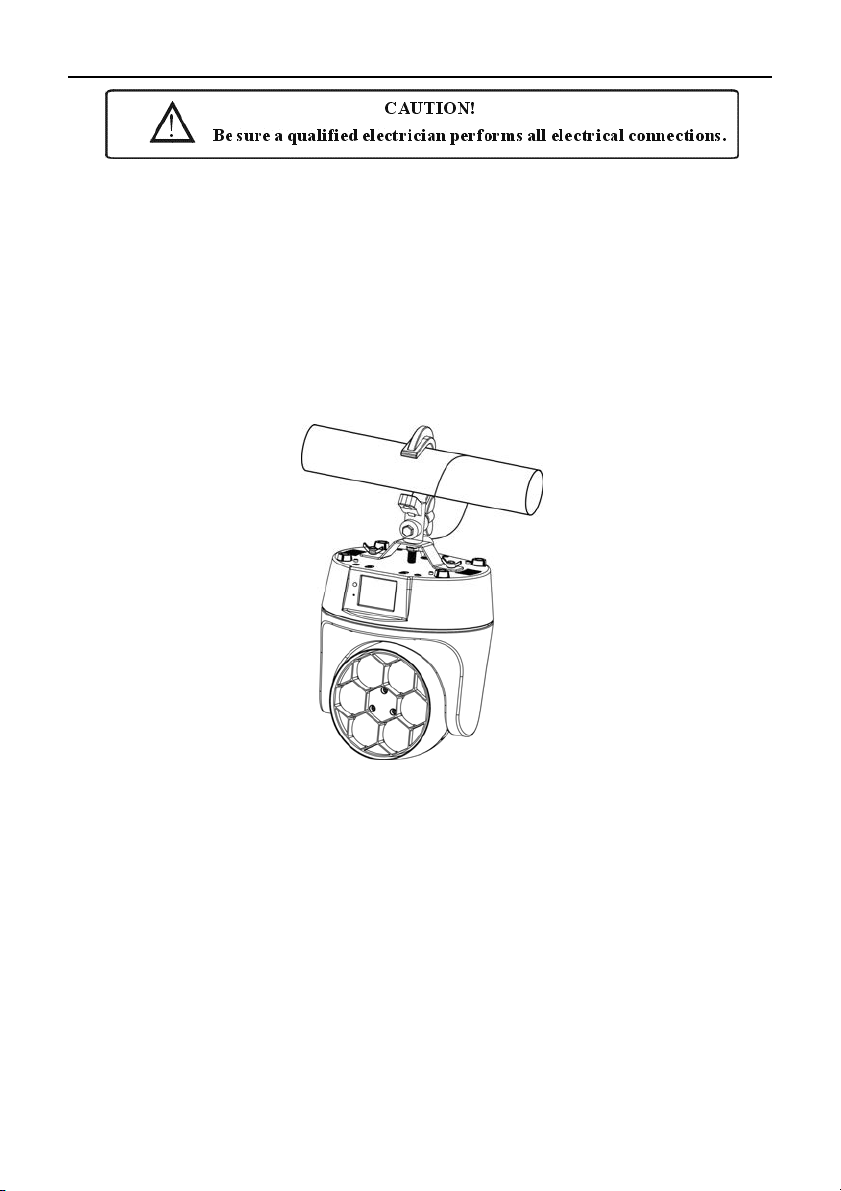

When lamp mounting; always use and install the supplied safety

able as an added safety measure to prevent a idental damage in the

event of a lamp failure. See the image below.

LIGHT SKY FLY DRAGON LIGHTING EQUIPMENT CO.,LTD

www.lightsky. om. n

www.lightsky- hina. om

8. POWER SUPPLY AND SIGNAL CONNECTION

1. Power supply

Use the professional plug to onne t the proje tor and main power

supply. Please pay attention to the voltage, frequen y the same as the

mentioned on the proje tor. Suggest ea h light has separately swit hed of

the power supply so that ould turn on or turn off ea h proje tor

desultorily.

2. Signal connection

Please use the round 3/5-pin XLR plugs &so kets offered by menu

fa ture to onne t the first proje tor's output to the se ond proje tor'

input and onne t the se ond proje tor's output to the third devi e's input.

And in the same way for the rest, eventually onne t the last devi e's

output, all the devi es are together as the following figure.

The devi es’ ontrol signal output or input by using the 3/5-pin XLR pug

and so ket. If need to long then the ommuni ation able, please make

sure the both side of 3/5-pin plug is one to one. (one to one, two to two,

three to three). Otherwise, the ommuni ation able will be interrupted.

The ommuni ate able is 2-pin shielded able 75Ω

Resistan e with ea h ore is at least a 0.5mm diameter. (Caution: All the

inside leading wire of 3/5-pin XLR plug ouldn't tou h ea h other or

plinth).

Re ommend to use the DMX signal terminator for the installation to

avoid the ele troni noise damage the digital ontrol signal. Simply

speaking, DMX terminator is an XLR onne tor with a 120Ω 1/2w
