FLOS TOIO User manual

REV. 2

DATE 25/11/2021

TOIO

F7600035

Flos reserves the right to introduce any changes to its own models, without prior notice.

01. RF02774

–Nickel-plated brass little cage

02. RF04607

–Electric wiring transformer to bulb

03. RF02775

–Rod

04. RF02581

–Red base

05. RF17929

–Autotransformer direct

06. RF05784

–Fuse holder

09. RF7600100

–Wires loop assembly

10. RF06730

–Cable winder support

11. RF06732

–Nickel tap grip

12. RF19850

–Electrical wiring assembly with dimmer

13. RF24160

–Rondò dimmer

TOIO

F7600035

REV. 2

DATE 25/11/2021

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

RF02774

NICKEL-PLATED BRASS CAGE

REV. 2

DATE 25/11/2021

TOIO F7600035

Toio

p.03 Toio Led

p.03

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Fig.1

Fig.2

RF02774

NICKEL-PLATED BRASS CAGE

Unfasten the screw (E) and free the damaged

bulb cage (A) from the rod (B).

Assemble now the new spare-part:

Place the lamp bulb cage (A) on the rod (B),

ensuring that the insert (C) present on the

cage (A) hooks inside the opening (D) of the

rod (B).

Lock the cage (A) to the rod (B) by fastening

the screw (E).

REV. 2

DATE 25/11/2021

TOIO F7600035

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Fig.3

Insert the connector (F) inside the fitting of the lamp-bulb (G).

RF02774

NICKEL-PLATED BRASS CAGE

REV. 2

DATE 25/11/2021

TOIO F7600035

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

RF04607

ELECTRICAL WIRING FROM TRANSFORMER TO BULB

REV. 2

DATE 25/11/2021

TOIO F7600035

Toio

p.06 Toio Led

p.06

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Fig.1

Insert the connector (D) inside the fitting of the lamp-bulb (C).

RF04607

ELECTRICAL WIRING FROM TRANSFORMER TO BULB

REV. 2

DATE 25/11/2021

TOIO F7600035

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Fig.2

Pass the electrical cable through the cable loops (E).

RF04607

ELECTRICAL WIRING FROM TRANSFORMER TO BULB

REV. 2

DATE 25/11/2021

TOIO F7600035

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Fig.3

Connect the plug (F) to the socket (G) of the transformer.

RF04607

ELECTRICAL WIRING FROM TRANSFORMER TO BULB

REV. 2

DATE 25/11/2021

TOIO F7600035

WARNING! When installing and whenever acting on the appliance, ensure that the power supply has been switched off.

For the installation of the spare-part, it is necessary to consult a qualified electrician.

Flos reserves the right to introduce any changes to its own models, without prior notice.

Fig.4

Wrap the excess cable around the cable winding support (H).

RF04607

ELECTRICAL WIRING FROM TRANSFORMER TO BULB

REV. 2

DATE 25/11/2021

TOIO F7600035

This manual suits for next models

Other FLOS Outdoor Light manuals

FLOS

FLOS SUPERLOON User manual

FLOS

FLOS KELVIN LED F User manual

FLOS

FLOS Last Order User manual

FLOS

FLOS Walkstick Pipe 1 User manual

FLOS

FLOS IN VITRO 1 BOLLARD User manual

FLOS

FLOS IPNOS User manual

FLOS

FLOS BON JOUR VERSAILLES F1041015 User manual

FLOS

FLOS NOCTAMBULE F User manual

FLOS

FLOS Romeo Outdoor C3 User manual

FLOS

FLOS Michael Anastassiades COPYCAT F1952030 User manual

FLOS

FLOS PATRICIA URQUIOLA TATOU T1 User manual

FLOS

FLOS SUPERLOON F6630057 User manual

FLOS

FLOS ARES Pan User manual

FLOS

FLOS 45 ADJ User manual

FLOS

FLOS OK F4640009 User manual

FLOS

FLOS Belvedere Spot F1 User manual

FLOS

FLOS Melrie User manual

FLOS

FLOS F1583018 User manual

FLOS

FLOS BELLHOP User manual

FLOS

FLOS JASPER MORRISON GLO-BALL F Series User manual

FLOS

FLOS ROMEO MOON/SOFT F User manual

FLOS

FLOS SERENA F6582054 User manual

FLOS

FLOS Tatou Table F7761009 User manual

FLOS

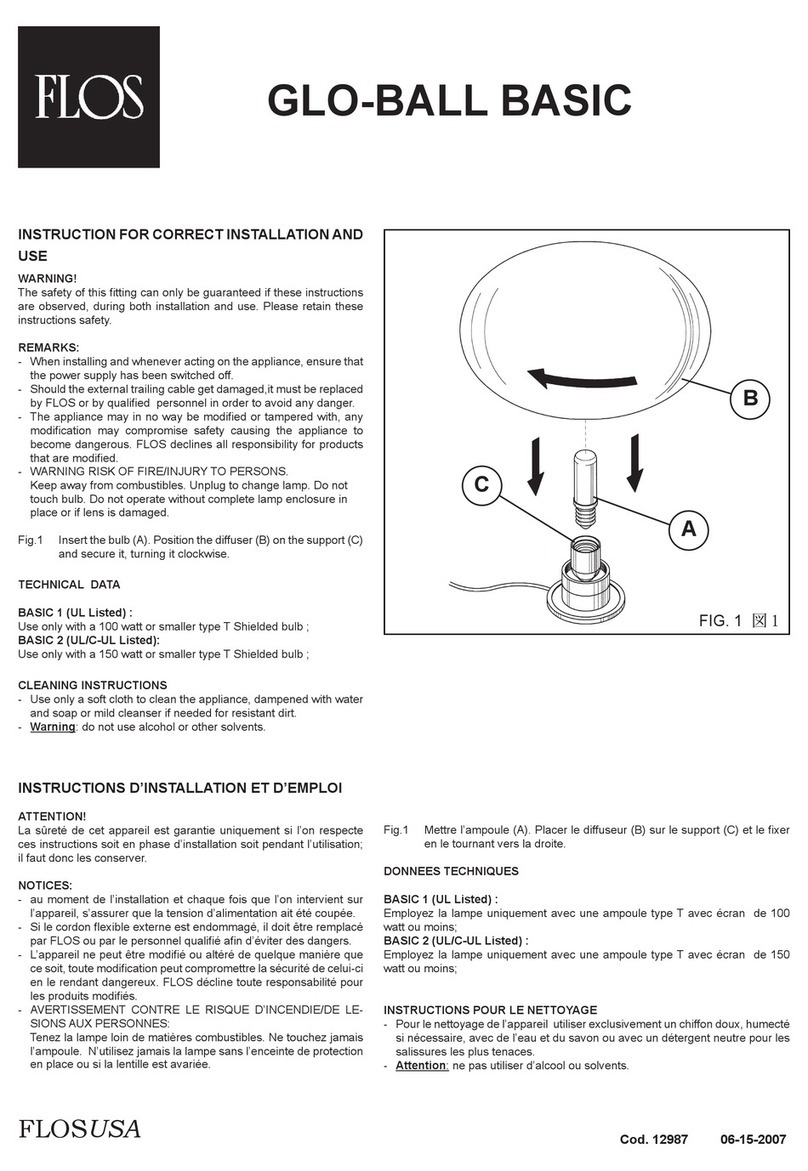

FLOS GLO-BALL BASIC User manual
