THE

'THURCROFT'

MOBILE GAS STOVE

MODEL NUMBER’S FFSC00MB / MB1 / MB2

USE ONLY IN A WELL VENTILATED

AREA

INSTALLATION, USER AND SERVICING INSTRUCTIONS

THESE INSTRUCTIONS MUST REMAIN WITH THE USER

THIS APPLIANCE HAS BEEN FITTED WITH A SUITABLE REGULATOR AND HOSE. THE REGULATOR

WILL FIT A CYLINDER WITH A 21mm VALVE.

THIS APPLIANCE RE UIRES A 7 kg. CYLINDER OF GAS.

This appliance must not be used in high rise apartments, basements, bathrooms

or bedrooms.

When you first light your stove you may detect a slight odour. This will disappear after a few hours use.

THIS APPLIANCE MEETS THE RE UIREMENTS OF THE EUROPEAN GAS DIRECTIVE

0086

Contents

Page No.

List of components 3

Appliance Data 3

ENERAL

E UIREMENTS

Ventilation 4

Preparing the appliance for use 4

SERS

UIDE

Lighting the stove 6

Moving your stove

Cleaning and storage

ERVICING

AINTENANCE

Installation & Service Record 10

Important Note

These Installation Instructions must

be adhered to without exception.

COMPONENTS LIST

Before connecting the gas cylinder ensure that all the components listed below are included

in the packaging;

Mobile Gas Stove

Ceramic Coal Matrix

APPLIANCE DATA

MODEL No.

FFSC00MB

FFSC00MB1 FFSC00MB2

GAS TYPE

G30

G30 G30 or G31

JET SIZE

0. 5mm

0. 5mm 0. 5mm

HEAT INPUT (Gross)

2.42 kW

2.42 kW 2.42 kW

REGULATOR OUTLET

PRESSURE

28-30mbar

28-30 or 3 mbar 30mbar

CYLINDER SIZE

Kg Kg

DIMENSIONS H : 00mm W : 400mm

D :450mm

H : 00mm W : 400mm

D :450mm

H : 00mm W : 400mm

D :450mm

GENERAL RE UIREMENTS

1 This appliance must not be used in high rise apartments, basements, bathrooms or

bedrooms.

2 This appliance is designed to operate from a kg. cylinder of Gas. It has been factory

fitted with a regulator suitable for a 21mm cylinder valve.

3 Do not place clothes or other materials on the stove.

4 Do not operate the stove close to chairs and fabrics.

5 Do not move the stove when lit.

6 Do not position the stove alongside a wall or near curtains etc.

Always face the stove towards the centre of the room.

8 Leakage of Gas: Should a gas leak be suspected, turn off the gas at the cylinder and

extinguish all naked lights. Contact your dealer.

9 The glass door on this appliance forms a guard to prevent risk of fire or injury from

burns and it should not be permanently removed.

IT DOES NOT GIVE FULL PROTECTION FOR YOUNG CHILDREN OR THE INFIRM.

10 For their protection we recommend that a fireguard, conforming to BS 8423 be fitted.

11 The glass door, the front casting and the front of the top casting all become hot in use.

12 This appliance has been designed to give a realistic coal fire effect. Because of this

soot may form on the underside of the ceramic coal matrix. This is normal but, if small

nodules of soot are observed in the flame holes of the matrix, the matrix must be

removed from the appliance when it is cool and gently brushed clean. This type of soot

formation only occurs after a long period of burning at low fire.

Ventilation

Use only in a well ventilated room.

1 The room in which the heater is to be used must be provided with adequate

ventilation at all times to ensure the proper removal of products of combustion

and to reduce the possibility of condensation. The smallest sized room in which

the appliance should be operated is 48m³ for a living room and 24m³ for other

rooms except for basements, bathrooms and bedrooms where the appliance

must not be used. A permanent vent with an effective area of 62cm

is required

together with a window that can be opened.

Preparing the appliance for use

1 Fitting the Ceramic Coal Matrix

Loosen the slotted headed screw from beneath the glass door. Lift the door upwards

and remove. (The top of the door is located with a hidden screw in a keyhole and the

door may have to be moved around to free it from the front casting).

Warning: The Ceramic Coal Matrix is very fragile.

2 Carefully remove the packaging from above the ceramic. The front of the ceramic coal

matrix is lower than the back. Place the ceramic on its mounting ledges above the

burner. Refit the glass door and tighten the securing screw.

Front view of the stove showing the

glass door and the ceramic coal

matrix

Gas Connection Shroud

Cylinder

3 Fitting the Gas Cylinder

Warning: Gas cylinders must not be fitted or changed in the presence of naked

flames.

4 Remove the plastic safety cap by rotating it until the arrow points out through the gap

in the cylinder shroud, pull on the plastic strap and then lift off the safety cap.

5 Remove the rear access door and place the cylinder close behind the stove. Rotate the

cylinder so that the gap in the shroud points in the direction of the stove. Make sure the

regulator switch is in the 'OFF' position before trying to mount the regulator on to the

cylinder. Taking care not to twist the hose, mount the regulator onto the cylinder valve

and push down until there is an audible click. Lift and rotate the cylinder and place it

inside the stove.

6 To remove the regulator from the cylinder first turn the stove off by turning the switch

downwards and then press the switch inwards towards the body of the regulator. Lift to

release from the cylinder

Note: The regulator supplied with your stove may have been exchanged for the factory

fitted item and may mount in a different manner to the above. Refer to the regulator

instructions supplied with your appliance.

Replace the rear access door and secure with its latch.

8 Examine the flexible tubing between the regulator and the gas control regularly and if

worn or perished get your dealer to fit a new piece.

9 New hose must be to B.S.3212 Type 2 fitted with suitable hose clips, length 330mm.

10 Any replacement regulator must be to B.S.3096 set at 28mbar (11.2 in w.g.).

Please read the note at the end of the ‘Lighting the Stove’ section about lighting the

stove for the first time after changing the gas cylinder.

Rear view of stove showing the

gas cylinder, the rear door and

the top cover

The Thurcroft stove

ready for use

USERS GUIDE

Lighting the stove

1 Reach through the aperture in the rear access door and turn on the gas by turning the

switch on the regulator upwards.

2 Depress the control knob and turn it fully clockwise. Keep the control knob fully

depressed and rotate it fully anticlockwise. This will operate the spark generator (you

will hear a ‘click’) and allow gas to flow to the burners. The pilot burner and the main

burner should light. If they do not ignite repeat the operation. Check that the pilot

burner has lit (it can be viewed, or its reflection can, by looking at the lower right hand

side of the glass door.) If the stove is new or has not been used for some time the main

burner will light before the pilot burner. In this case the pilot burner may not light from

the main burner and the knob will have to be released and the burners relit.

3 Once the burners are both alight hold the control knob down for a further 15 seconds

and then release. The burners should stay alight. If they do not, repeat the lighting

procedure only holding the knob down for longer.

4 Once the burner is alight the control knob can be turned further anticlockwise to go to

the high fire setting and clockwise to low fire. If the stove does not light on the second

try, wait three minutes before attempting to light the appliance again. This is to allow

any gas vented in the first two attempts time to disperse.

5 To turn the appliance OFF, reach through the aperture in the rear access door and turn

off the gas at the bottle by turning the switch on the regulator downwards to a

horizontal position.

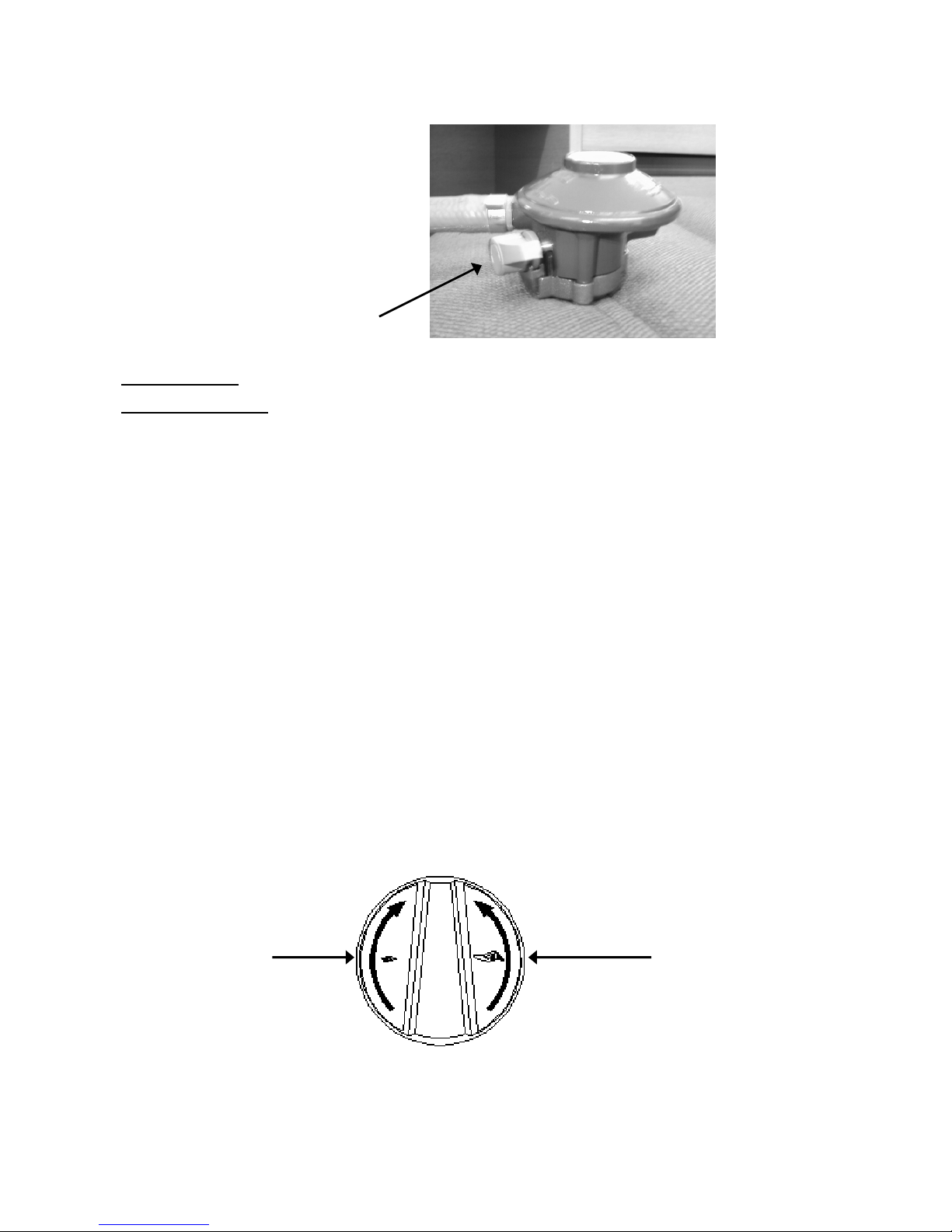

VERTICAL / ON

HORIZONTAL / OFF

Regulator

LOW FIRE HIGH FIRE

The Control Knob

Note; After changing the cylinder more than one attempt may be needed to light

the appliance as air may have entered the pilot gas supply and this will take a

few attempts to pass through. This may also happen if the stove has not been

used for some time and may also cause the pilot to burn with a roaring noise.

The pilot should burn quietly after a few minutes. Sometimes the stove may not

light at all after being fitted with a new gas cylinder. This is caused by the

remaining residue of the incombustible gas used to purge the cylinder during

the re-filling process. In this case the control knob may have to be held down for

several minutes to allow this gas to pass out of the cylinder. Whilst holding the

knob down make frequent attempts to light the stove to avoid a flare up when

the burner does light.

Moving your stove

Warning: Do not attempt to move the stove while it is burning or even while it is still

hot.

1 Wait until the stove is cold before moving. It is easier to move with rear door and gas

cylinder removed. If the stove is to be transported by motor vehicle the gas cylinder

should be removed as should the Ceramic Coal Matrix which should be carefully

packed to avoid breakage.

Cleaning and storage

1 Do not attempt to clean the stove unless it is cold. It should only require occasional

dusting or a wipe with a damp cloth. If the stove is not to be used for some time, cover

and store in a dust free place.

Servicing

This appliance MUST be serviced by a registered engineer annually,

And MUST include changing the oxy-pilot.

AFTER REPLACING ANY GAS FITTING, CHECK FOR GAS TIGHTNESS.

WARNING

This product may use fuel effect pieces containing Refractory Ceramic Fibre

(RCF). This material contains man-made vitreous silicate fibres along with

fibrous glass and mineral wool. Excessive exposure to these materials may

cause temporary irritation to eyes, skin and respiratory tract; consequently, it

makes sense to take care when handling these articles to ensure that the release

of dust is kept to a minimum.

The appliance should be serviced at least once a year by a registered engineer.

This is the basic procedure.

Basic Service (See Figures 1 and 2, page 9)

Note: The oxy pilot must be changed annually as a condition of the guarantee.

1 Remove the glass door panel and the ceramic coal matrix as previously described.

2 Clean any debris and soot from the burner top. This can be done by using a soft brush

or a vacuum cleaner. The burner mesh should be thoroughly cleaned.

3 The ceramic coal matrix can be cleaned by gently brushing with a soft brush in a

direction away from the person and any persons nearby. This operation should be

performed outside facing downwind. A vacuum cleaner must not be used for this

purpose.

4 Check that there is no impairment to the electrode spark or pilot burner.

5 Check that the pilot flame is satisfactory. If this is not the case remove and clean (see

instructions below). If the flame is still unsatisfactory replace the pilot burner.

6 Replace the burner ceramic and glass door panel and secure with the fixing screw.

To Remove the Burner/ Control Assembly (See Figures 1 – 6, page 9)

1 Remove the rear access door and the cylinder.

2 Remove the glass door panel and the ceramic coal matrix.

3 Pull off the control knob. Unscrew the control lock nut (use 1 mm box spanner).

4 Undo and remove the two screws inside the cylinder space. These two screws are

situated either side of the appliance between the bolts securing the front casting.

5 Gently pull the control valve clear of the top casting and the lift the whole assembly

clear.

6 To replace, follow the reverse of the above locating the control valve in the top casting

first. Check for gas leaks. Make sure that the spark lead is secured so that it cannot

trail under the gas cylinder.

To Remove the Pilot Burner

1 Remove the Burner/ Control assembly as described above.

2 Unscrew the thermocouple nut from below the control valve.

3 Unscrew the pilot supply tube from the pilot burner.

4 Gently pull the spark lead from the electrode.

5 Remove the two screws holding the pilot burner to its bracket.

Note; Apart from cleaning the pilot burner cannot be serviced and must be replaced as

a complete unit if faulty. When replacing, carefully coil the excess length of the

thermocouple just under the control valve and push out of the way of the cylinder when

the burner/ control assembly is re-installed into the stove body. Make sure that the

spark lead is secured so that it cannot trail under the gas cylinder.

To Remove the Injector

1 Remove the Burner/ Control assembly as described above.

2 Unscrew the tube nut securing the gas supply pipe to the injector elbow.

3 Unscrew the injector elbow from its carriage.

4 The injector can now be removed from the elbow.

To Remove the Control Valve

1 Remove the Burner/ Control assembly as described above.

2 Gently pull the spark lead from the electrode on the pilot burner.

3 Unscrew the thermocouple, the two 8mm supply tubes and the 4mm pilot supply tube.

4 Remove the control valve.

FIGURE 1

FIGURE 2

FIGURE 3

FIGURE 4

Installation & Service Record

Please ensure that installer completes the installation record below

INSTALLATION RECORD

Appliance Supplied by: JJJJJJJJJ.J..JJ....

Installation Date: JJJJJSerial No.: JJJ...JJ...

Installed By: JJJJ..J... No.: J..JJJJJ

Signed by Installer: JJJJJJJJJJJJJJ..J

This manual suits for next models

Table of contents

Other Flavel Stove manuals

Flavel

Flavel Rochester FCSSB User manual

Flavel

Flavel No1 User manual

Flavel

Flavel Arundel MK2 User manual

Flavel

Flavel Arundel MK3 User manual

Flavel

Flavel Arundel FCMSB User manual

Flavel

Flavel Arundel XL MK2 User manual

Flavel

Flavel MULTI-FUEL SOLID FUEL HEATING STOVES User manual

Flavel

Flavel Rochester 5kW User manual

Flavel

Flavel MBSC11ME User manual

Popular Stove manuals by other brands

Arada

Arada Cassette Stove installation guide

Parmco

Parmco FS 600 Installation and operating instructions

MCZ

MCZ SUITE AIR 10 M2 installation guide

HearthStone

HearthStone Stowe DV 8321 Owner's manual & installation guide

Cattara

Cattara FAMILY manual

Stanley

Stanley Argon F500 OVAL Installation and operating instructions

Avalon

Avalon B-VENT instructions

Nordpeis

Nordpeis Vega user manual

Exquisit

Exquisit EKC601-5 Instructions for use and installation

Stanley

Stanley Oisin Oil MK II Installation and operation instruction

Thermocet

Thermocet Brookfield S/CC Operating and installation instructions

HASE

HASE delhi operating instructions

Vermont Castings

Vermont Castings Intrepid 2 User instructions

Italiana Camini

Italiana Camini CLASSICA Installation, use and maintenance

Avalon

Avalon Vashon Avanti DVS FS manual

Spartherm

Spartherm ambiente a1 Installation and operating manual

Dimplex

Dimplex MCFSTV12AU manual

Warmlite

Warmlite WL46040 manual
