Flash butrym F7100501 User manual

User Manual

Instrukcja Obsługi

F7100501

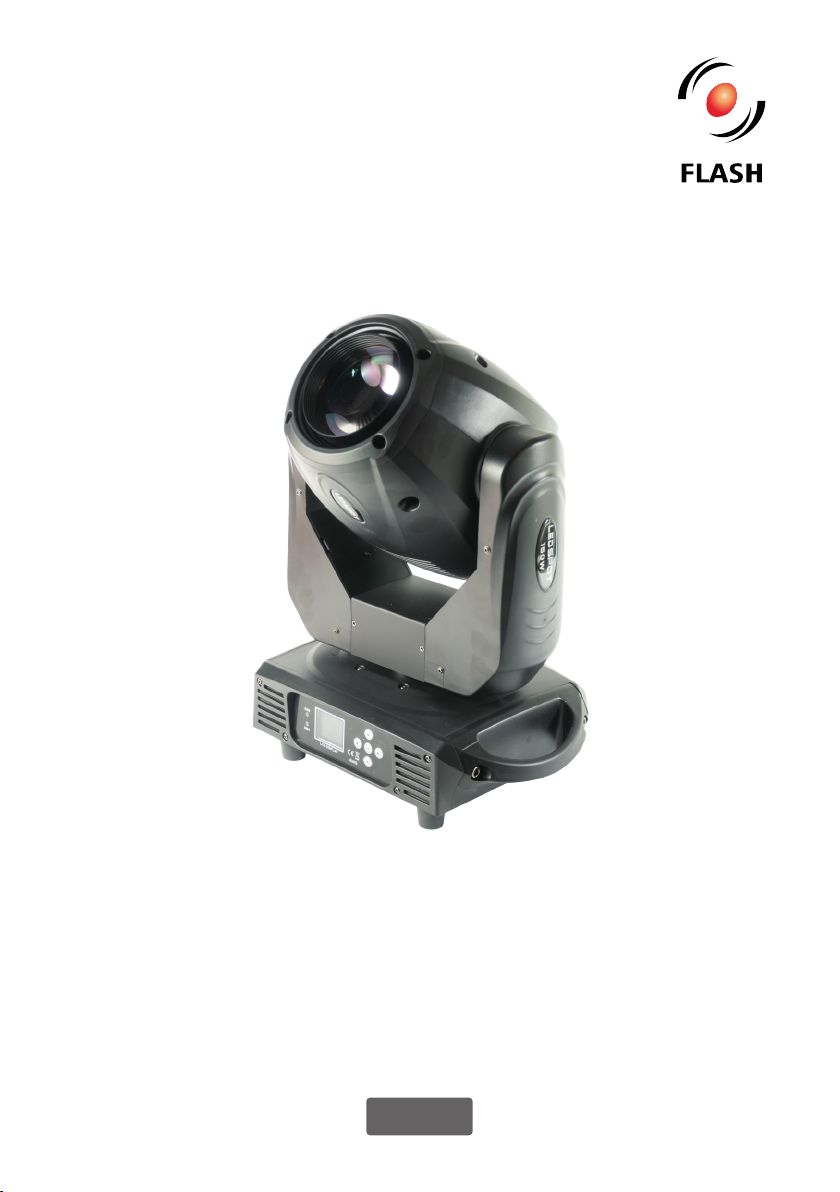

MOVING HEAD

LED 150W SPOT

Please keep this User Manual for future

      

another user, be sure that they also receive

this instruction booklet.

Unpack and check carefully there is no

transportation damage before using the



Before operating, ensure that the voltage

and frequency of power supply match the



It’s important to ground the yellow/green

conductor to earth in order to avoid electric

shock.

Disconnect main power before servicing

and maintenance.





only, but always by taking its base.



WARNING! The LMH 150W Spot has a powerful pan motor. The torque reaction when the



a surface. Do not apply power to the LMH 150W Spot unless the baase is securely fastened to

a surface or to rigging hardware.

WARNING! 



 clockwise.

WARNING! 



use any type of clamp that does not completely encircle the structure when fastened.

WARNING! 

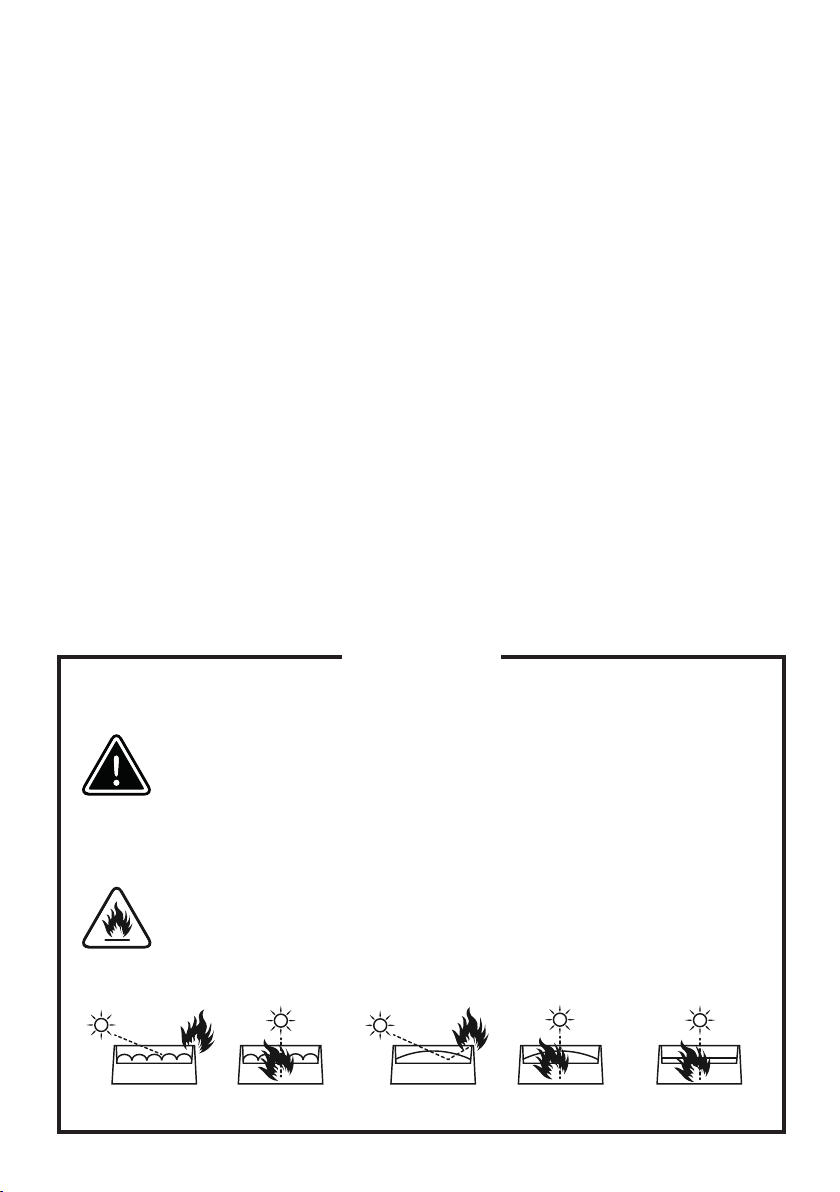

See Figure 2. The

LMH 150W Spot lens can focused the sun's rays, creating a potential fire hazard and causing

damage.

IMPORTANT!LMH 150W Spot,

as intense illumination can damaged the display.

Don’t operate it where the temperature is

higher than this.

In the event of serious operating problem,

     



carried out by unskilled people can lead to

damage or malfunction. Please contact the

nearest authorized technical assistance

center. Always use the same type spare

parts.

Do not connect the device to any dimmer

pack.

Do not touch any wire during operation

and there might be a hazard of electric

shock.

To prevent or reduce the risk of electrical

 

rain or moisture.



visibly damaged.

Do not look directly at the LED light spot



2. SAFETY INFORMATION

1. INTRODUCTION

    LED MOVING HEAD 150W SPOT  

        



WARNING!

User Manual •Instrukcja Obsługi

Figure 2.



LED MOVING HEAD 150W SPOT •Art No F7100501









the rainbow







       

holes on the bracket. Always ensure that

       

and slipping while operating. Always

ensure that the structure to which you are

attaching the unit is secure and is able to



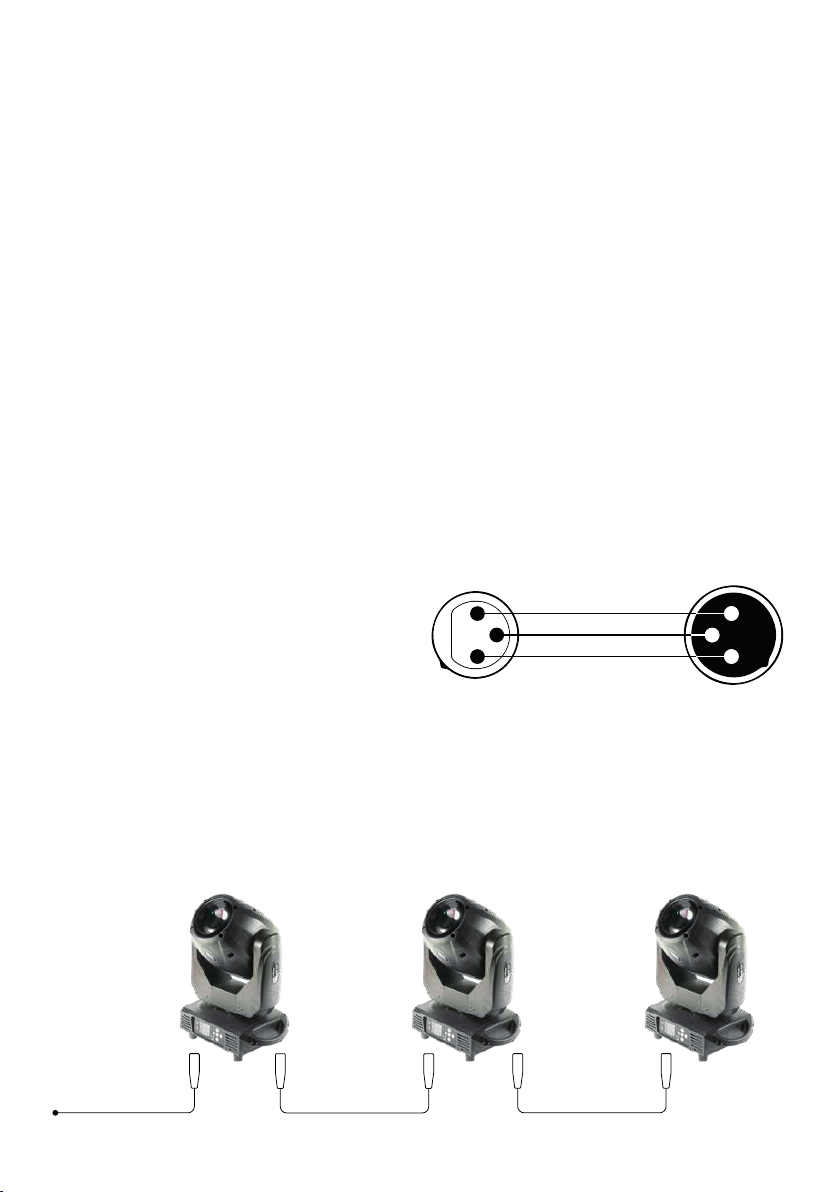

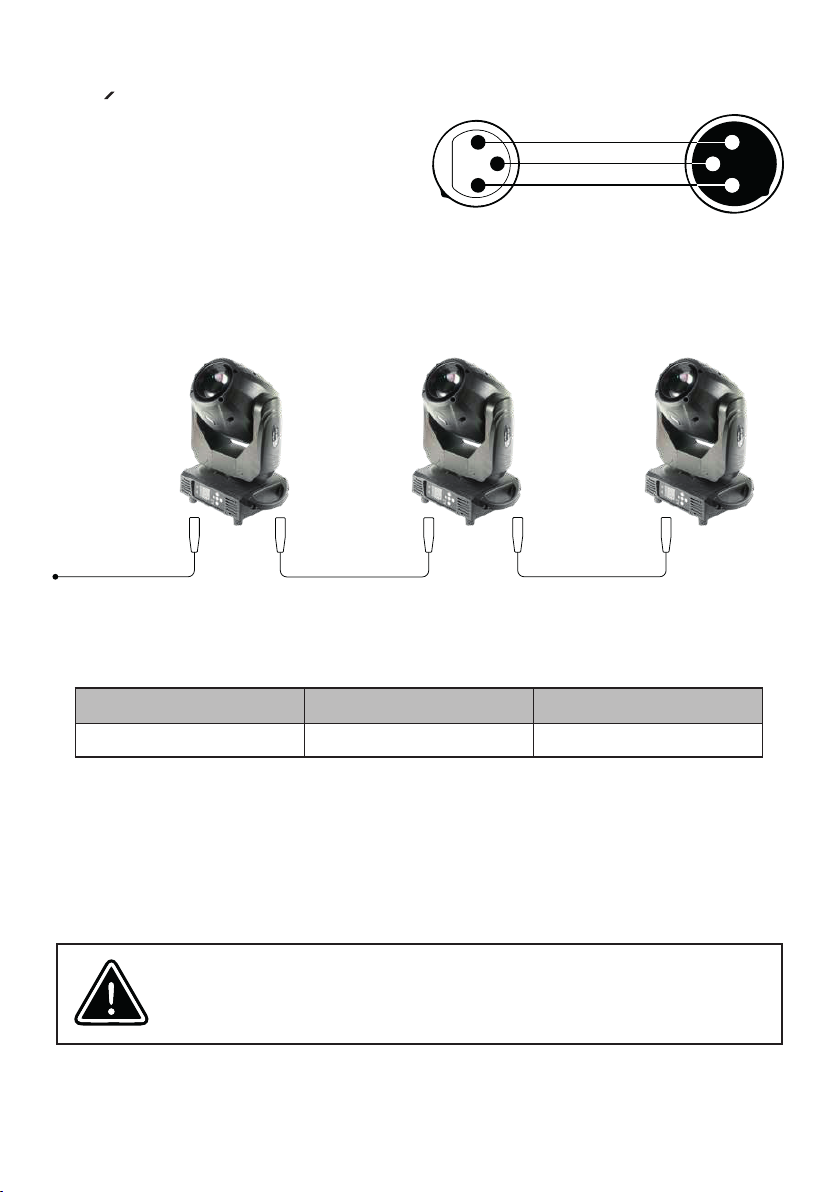

5.1 Connecting DMX signal

     



4. INSTALLATION

5. CONNECTION

3. PRODUCT INFORMATION 



frequency.

16 and DMX channel mode.















weight. Also always use a safety cable that

can hold 12 times of the weight of the unit







of people and has no one pass by or under

it.

      







FEMALE

XLR

GROUND

DMX +

DMX -

MALE

XLR

CAUTION!     

DMX signal has to be terminated with a







DMX

Controller DMX 512 DMX 512

The connection is performed using



    

operated by qualified personnel.

5.2 Voltage specification

Input Voltage Total Power Frequency

100~240V 200W 50/60Hz

5.3 Connecting power supply

CAUTION! In the case of cable damage do not attempt to repair.



a person with appropriate permissions.

Make sure that the power grid supply

parameters are consistent with device

parameters and limitations are not



Using lamp, the change rate of power voltage should be within

± 10%, if the voltage is too high, it will shorten the light’s life; if it’s





reduce the life span of lamps and bulbs; intermittent using will

improve the life of bulbs and lamps.

User Manual •Instrukcja Obsługi

CH Function Value Description

1Dimmer 0-255 From dark to bright

2Strobe 0-10 No Strobe

11-255 From Slow to Fast

3Pan 0-255 Pan

4Pan ne 0-255 Pan 16 bit

5Tilt 0-255 Tilt

6Tilt ne 0-255 Tilt 16 bit

7Speed 0-255 Fast - Slow

8Color

0-4 White

5-9 White + Color 1

10-14 Color 1

15-19 Color 1 + Color 2

20-24 Color 2

25-29 Color 2 + Color 3

30-34 Color 3

35-39 Color 3 + Color 4

40-44 Color 4

45-49 Color 4 + Color 5

50-54 Color 5

55-59 Color 5 + Color 6

60-64 Color 6

65-69 Color 6 + Color 7

70-74 Color 7

75-79 Color 7 + Color 8

80-84 Color 8

85-89 Color 8 + Color 9

90-169 Color fast to slow in clockwise

170-174 Stop

175-255 Color slow to fast in anticlockwise

6. DMX CHANNELS

16 CH Mode

LED MOVING HEAD 150W SPOT •Art No F7100501

CH Function Value Description

9Fixed gobo wheel

0-9 Open White

10-19 Gobo 1

20-29 Gobo 2

30-39 Gobo 3

40-49 Gobo 4

50-59 Gobo 5

60-69 Gobo 6

70-79 Gobo 7

80-89 White shaking

90-99 Gobo 1 shaking

100-109 Gobo 2 shaking

110-119 Gobo 3 shaking

120-129 Gobo 4 shaking

130-139 Gobo 5 shaking

140-149 Gobo 6 shaking

150-159 Gobo 7 shaking

160-204 Fast to slow in clockwise

205-209 stop

210-255 Slow to fast in anti clockwise

10 Rotating Gobo

wheel

0-9 Open white

10-19 Gobo 1

20-29 Gobo 2

30-39 Gobo 3

40-49 Gobo 4

50-59 Gobo 5

60-69 Gobo 6

70-79 Gobo 7

80-89 White shaking

90-99 Rotating Gobo 1 shaking

100-109 Rotating Gobo 2 shaking

User Manual •Instrukcja Obsługi

CH Function Value Description

110-119 Rotating Gobo 3 shaking

120-129 Rotating Gobo 4 shaking

130-139 Rotating Gobo 5 shaking

140-149 Rotating Gobo 6 shaking

150-159 Rotating Gobo 7 shaking

160-204 Fast to slow in clockwise

205-209 STOP

210-255 Slow to fast in anti clockwise

11 Gobo wheel

rotating

0-127 Gobo angle

128-190 Fast to Slow

191-192 STOP

193-255 Slow to Fast in anti clockwise

12 Zoom 0-255 Zoom

13 Prism and Frost

0-49 Invalid

50-99 Prism 1

100-149 Prism 2

150-255 Frost

14 Prism rotating

0-127 Prism angle

128-190 Fast to slow in clockwise

191-192 STOP

193-255 Slow to fast in anti clockwise

15 Macro

0-255 Brightness from dark to bright

0-5 Invalid

6-55 Demo 1

56-105 Demo 2

106-155 Demo 3

156-205 Demo 4

206-255 Random

16 Reset 0-25 No

26-76 Small motor Reset

LED MOVING HEAD 150W SPOT •Art No F7100501

CH Function Value Description

77-127 XY Reset

128-255 Whole RESET

20 CH Mode

User Manual •Instrukcja Obsługi

OSTRZEŻENIE!

UWAGA! 

         







UWAGA!         





UWAGA!           

Quick Half

Coupler - (Hak)

UWAGA!            



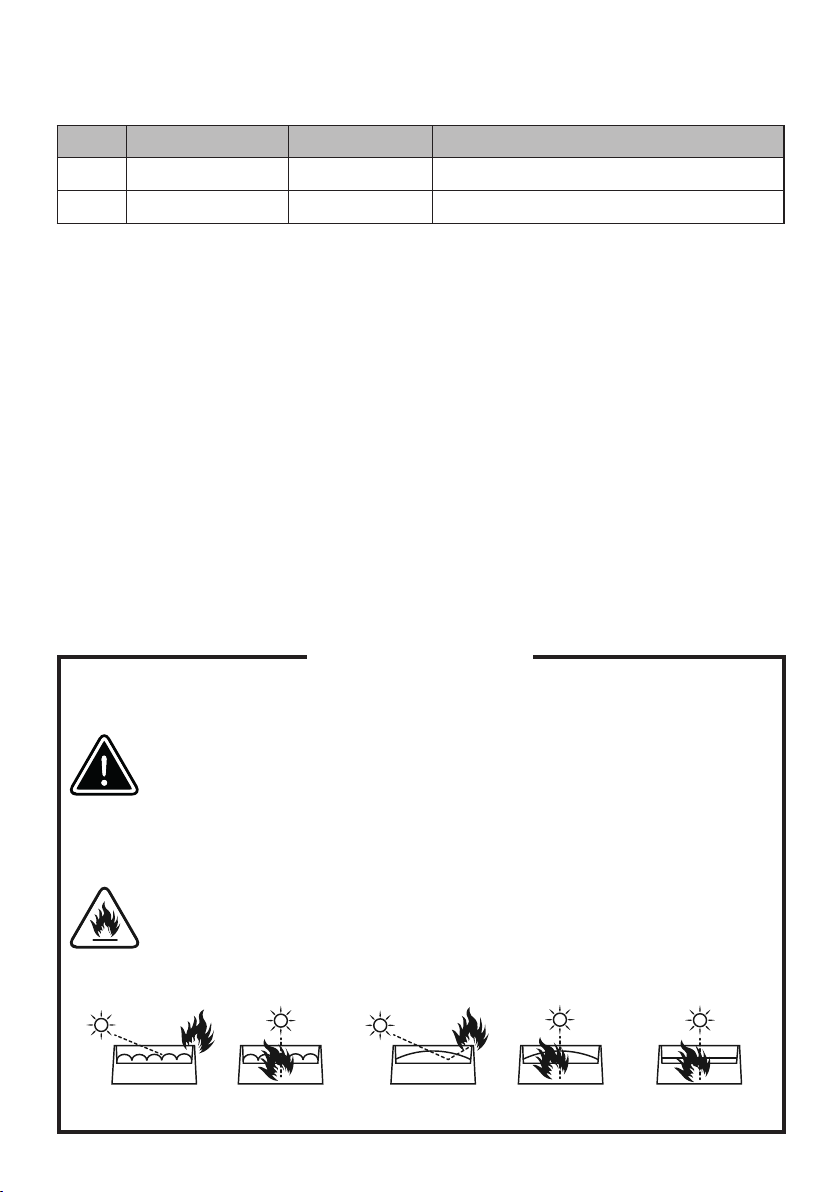

przez kilka sekund. Patrz rysunek 2 



WAŻNE! 



Rysunek 2. 



LED MOVING HEAD 150W SPOT •Art No F7100501

2. ZASADY BEZPIECZENSTWA

1. WPROWADZENIE

3. INFORMACJE O PRODUKCIE

4. INSTALACJA

LEDMOVINGHEAD150WSPOT

 





przez wykwalifikowany personel, aby

  



    





    

    



   





     





     

  



    



    

w dobrze wentylowanym pomieszczeniu,

     



     

     







   

     

    



uszkodzenia spowodowane niestabilnym



    

      

   

     

    

   



    

































User Manual •Instrukcja Obsługi

5.2 Specyfikacja zasilania



Napięcie Zasilania Pobór Mocy Częstotliwość zasilania

100~240V 300W 50/60Hz





5. POLACZENIA











ŻEŃSKI

XLR

GROUND

DMX +

DMX -

MĘSKI

XLR

    









UWAGA! 





wykwalifikowany personel techniczny.

    

    

     

  



DMX

Controller DMX 512 DMX 512
