Fisher & Paykel WODV330 User manual

USER GUIDE

US CA

WALL OVEN

WODV0 & WOSV0

models

This user guide is an accompaniment to your ‘Quick start guide’ which is included

with your oven.

For operating instructions, see your ‘Quick start guide’. If you no longer have your

‘Quick start guide’, you can download it from our website, listed on the back cover.

Refer to your ‘Quick start guide’ for information on:

● Setting the clock

● Controls

● Positioning the shelves

● Conditioning the oven before first use

● Using the timer

CONTENTS

Safety and warnings 2

Cooking guide 6

Oven functions 9

Cooking charts 14

Automatic cooking 20

Using the meat probe 25

User preference settings 28

Sabbath mode 30

Care and cleaning 32

Using the Self Clean function 38

Troubleshooting 41

Alert codes 45

Warranty and service 47

IMPORTANT!

SAVE THESE INSTRUCTIONS

The models shown in this user guide may not be available in all markets and are subject

to change at any time. For current details about model and specification availability

in your country, please go to our website fisherpaykel.com or contact your local

Fisher & Paykel dealer.

Your oven has been carefully designed to operate safely during normal cooking

procedures. Keep the following safety instructions in mind when you are using it:

WARNING!

HOT SURFACE HAZARD

Accessible parts may become hot when in use.

To avoid burns and scalds, keep children away.

Use oven mitts or other protection when handling hot surfaces such

as oven shelves or dishes.

Use care when opening the oven door.

Let hot air or steam escape before removing or replacing food.

Do not touch heating elements or interior surfaces of the oven.

Heating elements may be hot even though they are dark in colour.

Interior surfaces of an oven become hot enough to cause burns.

During and after use, do not touch, or let clothing or other flammable

materials contact heating elements or interior surfaces of the oven until

they have had sufficient time to cool.

Other surfaces of the appliance may become hot enough to cause burns

– among these surfaces are the oven vent,

the surface near the oven vent, and the oven door.

Failure to follow this advice could result in burns and scalds.

WARNING!

ELECTRICAL SHOCK HAZARD

Turn the oven off at the wall before replacing the oven lamp.

Failure to follow this advice may result in electrical shock or death.

WARNING!

FIRE HAZARD

Follow the instructions on starting a Self Clean cycle carefully.

Items made from combustible materials (eg wood, fabric, plastic)

may catch fire if left in the oven during a Self Clean cycle.

Do not place aluminium foil, dishes, trays, water or ice on the oven

floor during cooking, as doing so will irreversibly damage the enamel;

lining the oven with aluminium foil may even cause fire.

Never use your appliance for warming or heating the room.

Persons could be burned or injured or a fire could start.

Storage in or on appliance: flammable materials should not be stored

in an oven or near its surface.

Failure to follow this advice may result in death or serious injury.

SAFETY AND WARNINGS

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock, injury to persons or damage when using

the oven, follow the important safety instructions listed below:

● Read all the instructions before using the oven. Use the oven only for its intended

purpose as described in these instructions.

● Proper installation: be sure your appliance is properly installed and grounded by

a qualified technician.

● Isolating switch: make sure this oven is connected to a circuit which incorporates

an isolating switch providing full disconnection from the power supply.

● Household appliances are not intended to be played with by children.

● Do not leave children alone. Children should not be left alone or unattended in the

area where the appliance is in use. They should never be allowed to sit or stand on

any part of the appliance.

● Children of less than 8 years old must be kept away from the appliance unless

continuously supervised. This appliance can be used by children aged from 8 years

and above, and persons with reduced physical, sensory or mental capabilities or lack

of experience and knowledge, if they have been given supervision or instruction

concerning the use of the appliance in a safe way and they understand the hazards

involved. Cleaning and user maintenance shall not be done by children without

supervision.

● Do not place heavy objects on the oven door.

● Wear proper apparel. Do not wear loose fitting or hanging garments when using

the appliance. They could ignite or melt if they touch an element or hot surface

and you could be burned.

● User servicing: do not repair or replace any part of the appliance unless specifically

recommended in the manual. All other servicing should be referred to a qualified

technician.

● Do not use water on grease fires. Smother the fire or flame or use a dry chemical

or foam type extinguisher.

WARNING!

CUT HAZARD

Take care – some edges are sharp.

Failure to use caution could result in injury or cuts.

SAFETY AND WARNINGS

IMPORTANT SAFETY INSTRUCTIONS

● Use only dry oven mitts or potholders. Moist or damp potholders on hot surfaces

could result in burns from steam. Do not let potholders touch hot areas or heating

elements. Do not use a towel or a bulky cloth for a potholder. It could catch fire.

● Do not heat unopened food containers. They can build up pressure that may cause

the container to burst and result in injury.

● Safe food handling: leave food in the oven for as short a time as possible before

and after cooking. This is to avoid contamination by organisms which may cause

food poisoning. Take particular care during warm weather.

● Always keep oven vents unobstructed.

● Do not operate your appliance by means of an external timer or separate

remote-control system.

● Caution: Hot air can blow from the vent at the base of the oven as part of the

oven’s cooling system.

● Placement of oven shelves: always position shelves in the desired location while

the oven is cool (before preheating). If a shelf must be removed while the oven

is hot, do not let the oven mitts or potholder contact hot heating elements in

the oven or the base of the oven.

● Do not clean the oven seal or use any oven-cleaning products on it.

It is essential for a good seal, which ensures that the oven operates efficiently.

Care should be taken not to rub, damage or move it.

● Do not use oven cleaners, harsh/abrasive cleaning agents, waxes, or polishes.

No commercial oven cleaner, oven liner, or protective coating of any kind should

be used in or around any part of the oven. Do not use harsh/abrasive cleaners,

scourers or sharp metal scrapers to clean the oven door glass since they scratch

the surface, which may result in the glass shattering.

● Clean only the parts listed in this manual.

● Do not use a steam cleaner to clean any part of the oven.

● Double oven models only:

● You can only Self Clean one oven at a time, and whilst in a Self Clean cycle,

the other oven cannot be used.

SAFETY AND WARNINGS

IMPORTANT SAFETY INSTRUCTIONS

● Before starting a Self Clean cycle, remove oven shelves, side racks, and all other

cookware/utensils, and wipe up large food spills or grease deposits.

● Before starting a Self Clean cycle, make sure you move any pet birds to another,

closed and well-ventilated room. Some pet birds are extremely sensitive to the

fumes given off during a Self Clean cycle and may die if left in the same room

as the oven during such a cycle.

● During a Self Clean cycle, the oven reaches higher temperatures than it does for

cooking. Under such conditions, the surfaces may get hotter than usual and children

should be kept away.

● Do not store things children might want above the oven. Children could be burned

or injured while climbing on the oven to retrieve items.

● Do not install or operate the appliance if it is damaged or not working properly.

If you receive a damaged product, contact your dealer or installer immediately.

● Use only bakeware approved for oven use. Follow the bakeware manufacturer’s

instructions.

● The California Safe Drinking Water and Toxic Enforcement Act requires businesses

to warn customers of potential exposure to substances which are known by the

State of California to cause cancer or reproductive harm. Small amounts of harmful

chemicals are given off in the oven’s self-cleaning cycle from insulation and food

decomposition. Significant exposure to these substances can cause cancer and

reproductive harm. Venting with a hood or open window, and wiping out excess

food spills prior to self-cleaning the oven reduces exposure.

Setting an oven function

Turn the function knob to the right to

select a function. Turning the knob

to the following positions will select

the corresponding function, which

appears in the display:

PROBE: 100

TIMER: 2H 15M

SET: 175

BAKE VENT BAKE FAN BAKE GRILL

FAN GRILL FAN FORCED

ROAST CLASSIC BAKE

PASTRY BAKE

COOKING GUIDE

Congratulations on your new purchase. Your Fisher & Paykel oven has a number of

features to make cooking a great experience for you:

● a wide choice of oven functions

● a convenient Self-Clean function – see ‘Using the Self Clean function’

● intuitive controls and displays

● illuminated halos around the knobs for visual feedback

Before you start

● Make sure the installer has completed the ‘Final checklist’ in the Installation instructions.

● Read this guide, taking special note of the ‘Safety and warnings’ section.

● Remove all packaging and dispose of it responsibly. Make sure all cable ties used to

● secure the shelves during shipping have been removed. Recycle items that you can.

● Check that you have all the accessories listed in the separate ‘Quick start guide’.

● Make sure you follow the instructions under ‘Setting the clock and first use’ in the

separate ‘Quick start guide’ before using your oven.

General guidelines

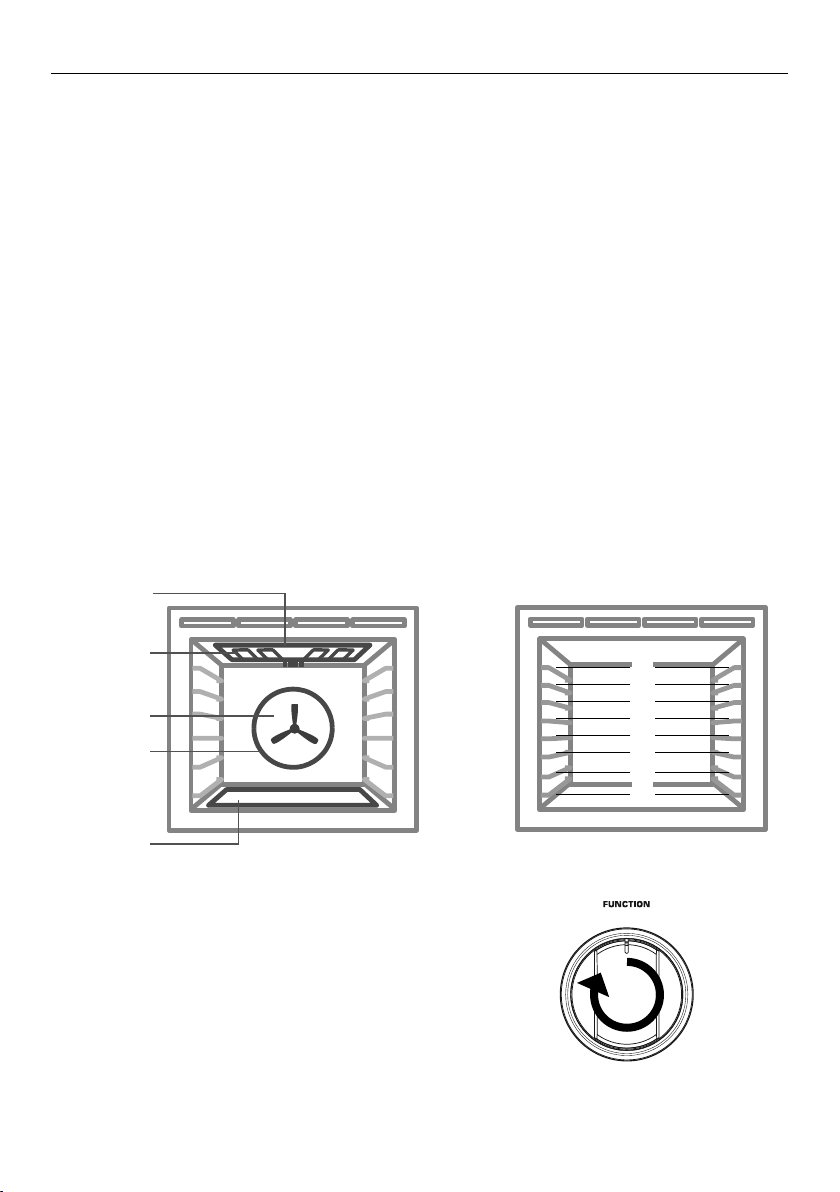

This oven has been designed to utilise its four elements and rear fan in differing

combinations to provide you with enhanced performance and a wide range of functions,

allowing you to cook all types of food to perfection.

BAKE VENT BAKE FAN BAKE GRILL

FAN GRILL FAN FORCED

ROAST CLASSIC BAKE

PASTRY BAKE

Lower

Element

(concealed)

Rear Element

(concealed)

Outer

Element Shelf positions

Fan

OFF BAKE

CONV BAKE

TRUE CONV

BROIL

MAXI BROIL

CONV BROIL

CONV PASTRY

ROAST

PASTRY BAKE

WARM

SELF CLEAN

Inner

Element

Other manuals for WODV330

This manual suits for next models

Table of contents

Other Fisher & Paykel Oven manuals

Fisher & Paykel

Fisher & Paykel PROFESSIONAL OM76NPX1 User manual

Fisher & Paykel

Fisher & Paykel BI453 User manual

Fisher & Paykel

Fisher & Paykel OB24SDPX4 User manual

Fisher & Paykel

Fisher & Paykel WODV230 Guide

Fisher & Paykel

Fisher & Paykel OB76 Series User manual

Fisher & Paykel

Fisher & Paykel OB60SL11DEPX1 User manual

Fisher & Paykel

Fisher & Paykel BI453 User manual

Fisher & Paykel

Fisher & Paykel Astro B1452R User manual

Fisher & Paykel

Fisher & Paykel WOSV230 Guide

Fisher & Paykel

Fisher & Paykel OB24SDPTDX1 User manual

Fisher & Paykel

Fisher & Paykel OB60SCEX4 User manual

Fisher & Paykel

Fisher & Paykel OB60SC7CEPX1 User manual

Fisher & Paykel

Fisher & Paykel WOSV230 User manual

Fisher & Paykel

Fisher & Paykel OB90 Series User manual

Fisher & Paykel

Fisher & Paykel OB60 Series User manual

Fisher & Paykel

Fisher & Paykel Aerotech OB30 S User manual

Fisher & Paykel

Fisher & Paykel Elba OB90 User manual

Fisher & Paykel

Fisher & Paykel OR30SDI6X1 Operating instructions

Fisher & Paykel

Fisher & Paykel OB90S9LEX1 User manual

Fisher & Paykel

Fisher & Paykel OB24SC User manual

Fisher & Paykel

Fisher & Paykel OB24SDPT User manual

Fisher & Paykel

Fisher & Paykel AeroTech OB30SDEPX3 User manual

Fisher & Paykel

Fisher & Paykel Essence NULL Owner's manual

Fisher & Paykel

Fisher & Paykel OB24SDPTX1 User manual

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

Electrolux

Electrolux EOF6P46X user manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Electrolux

Electrolux air-o-convect 20 GN 2/1 user manual

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual
