Fisher & Paykel CE604DT Mounting instructions
NZ AU GB IE
Installation instructions
and User guide
Touch control
ceramic glass cooktops
CE604DT, CE704DT,
and CE754DT models
1
Contents
Safety and warnings
2
Installation instructions
6
Introduction
12
Using your cooktop
14
Using your cooktop’s special features
18
Cooking guidelines
23
Care and cleaning
26
Troubleshooting
28
Warranty and service
30
Important!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may not be available in all markets and are
subject to change at any time. For current details about model and specification
availability in your country, please visit our local website listed on the back cover
or contact your local Fisher & Paykel dealer.
2Safety and warnings
Your safety is important to us. Please read this information before using your cooktop.
Installation
WARNING!
Electrical Shock Hazard
Disconnect the appliance from the mains electricity supply before carrying
out any work or maintenance on it.
Connection to a good earth wiring system is essential and mandatory.
Alterations to the domestic wiring system must only be made by a qualified
electrician.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Cut Hazard
Take care – panel edges are sharp.
Failure to use caution could result in injury or cuts.
3
Safety and warnings
Important safety precautions
Read these instructions carefully before installing or using this appliance.
No combustible material or products should be placed on this appliance at any time.
Please make this information available to the person responsible for installing the appliance as it
could reduce your installation costs.
In order to avoid a hazard, this appliance must be installed according to these instructions for
installation.
This appliance is to be properly installed and earthed only by a suitably qualified person.
This appliance should be connected to a circuit which incorporates an isolating switch providing
full disconnection from the power supply.
Failure to install the appliance correctly could invalidate any warranty or liability claims.
4Safety and warnings
Operation and maintenance

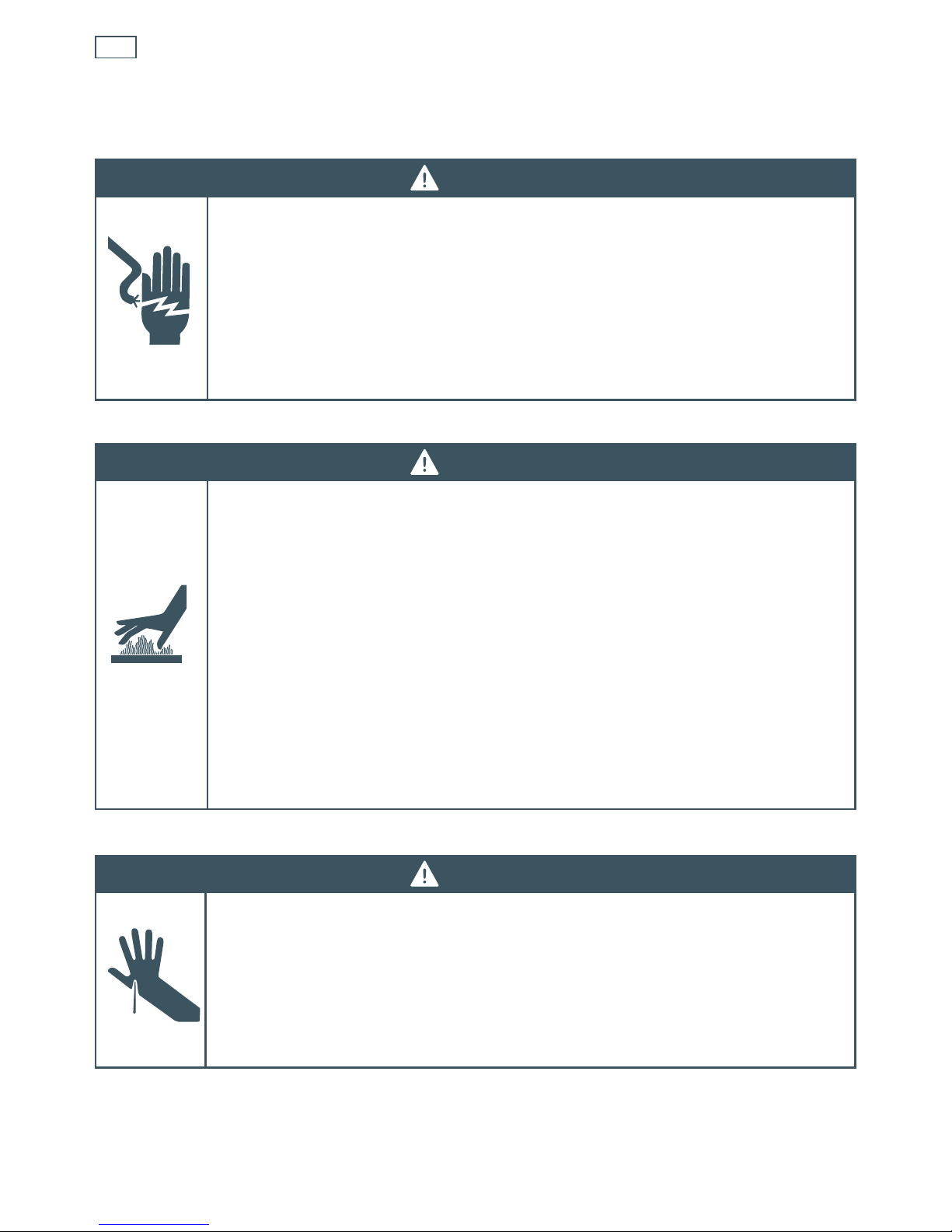

WARNING!
Hot Surface Hazard
During use, accessible parts of this appliance will become hot enough to
cause burns.
Do not let body, clothing or any item other than suitable cookware contact
with the ceramic glass until the surface is cool.
Never leave metal objects on the cooktop as they can become hot very
quickly.
Keep children away.
Handles of saucepans may be hot to touch. Check saucepan handles do not
overhang other cooking zones that are on. Keep handles out of reach of
children.
Failure to follow this advice could result in burns and scalds.
WARNING!
Electrical Shock Hazard
Do not cook on a broken or cracked cooktop. If the cooktop surface should
break or crack, switch the appliance off immediately at the mains power
supply (wall switch) and contact a qualified technician.
Switch the cooktop off at the wall before cleaning or maintenance.
Failure to follow this advice may result in electrical shock or death.
WARNING!
Cut Hazard
The razor-sharp blade of a cooktop scraper is exposed when the safety
cover is retracted. Use with extreme care and always store safely and out
of reach of children.
Failure to use caution could result in injury or cuts.
5
Important safety precautions
Never leave the appliance unattended when in use. Boilover causes smoking and greasy
spillovers that may ignite.
Never use your appliance as a work or storage surface.
Never leave any objects or utensils other than suitable cookware on the appliance.
Never use your appliance for warming or heating the room.
Do not allow children to play with the appliance or sit, stand or climb on it.
Do not store items of interest to children in cabinets above the appliance. Children climbing on
the cooktop could be seriously injured.
Do not leave children alone or unattended in the area where the appliance is in use.
Children or persons with a disability which limits their ability to use the appliance should have a
responsible and competent person to instruct them in its use. The instructor should be satisfied
that they can use the appliance without danger to themselves or their surroundings.
Do not repair or replace any part of the appliance unless specifically recommended in the
manual. All other servicing should be done by a qualified technician.
Do not use a steam cleaner to clean your cooktop.
Do not place or drop heavy objects on your cooktop.
Do not stand on your cooktop.
Do not use pans with jagged edges or drag pans across the ceramic glass surface as this can
scratch the glass.
Do not use scourers or any other harsh/abrasive cleaning agents to clean your cooktop, as these
can scratch the ceramic glass.
If the power supply cable is damaged, it must only be replaced by a qualified technician.
Safety and warnings
6
Installation instructions
Cooktop and cutout dimensions Electrical connection is
made at the middle rear
A
B
CCI
D
G
F
E
Cooktop and cutout dimensions (mm)
CE604DT
CE704DT
CE754DT
Aoverall width of cooktop 600 700 750
Boverall depth of cooktop 530 530 530
Cheight of chassis (below top of bench) 48 48 48
CIheight of terminal block (below top of bench) 58 58 58
Dwidth of chassis 552 552 715
Edepth of chassis 480 480 480
Foverall width of cutout 560 560 725
Goverall depth of cutout 490 490 490
7
Installation instructions
Clearances
A
B
C
C
E
D
Clearances (mm)
CE604DT
CE704DT
CE754DT
Aminimum clearance from rear edge of cutout to:
nearest combustible surface 55 55 55
Bminimum clearance from glass surface to:
rangehood 650 650 650
Cminimum clearance from side edges of cutout to:
nearest combustible surface 85 135 78
Dminimum clearance from benchtop to:
overhead cabinet not directly above the cooktop 450 450 450
Eminimum clearance below top of benchtop to:
thermal protection barrier 68 68 68
8
Installation instructions
Before you install the cooktop, make sure that
the benchtop is square and level, and no structural members interfere with space requirements
the benchtop is made of a heat-resistant material
the cooktop will not be installed directly above a dishwasher, as the humidity may damage the
cooktop electronics
the installation will comply with all clearance requirements and applicable standards and
regulations
a suitable isolating switch providing full disconnection from the mains power supply is
incorporated in the permanent wiring, mounted and positioned to comply with the local wiring
rules and regulations. The isolating switch must be of an approved type and provide a 3 mm air
gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules
allow for this variation of the requirements)
the isolating switch will be easily accessible to the customer with the cooktop installed
you consult local building authorities and by-laws if in doubt regarding installation
you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces
surrounding the cooktop.
When you have installed the cooktop, make sure that
the power supply cable is not accessible through cupboard doors or drawers
there is adequate flow of fresh air from outside the cabinetry to the base of the cooktop
if the cooktop is installed directly above an oven or its base is accessible through a cupboard
or drawer space after installation, a thermal protection barrier is installed below the base of the
cooktop (see Fig.1)
the isolating switch is easily accessible by the customer
you complete the ‘Final checklist’ at the end of these installation instructions.

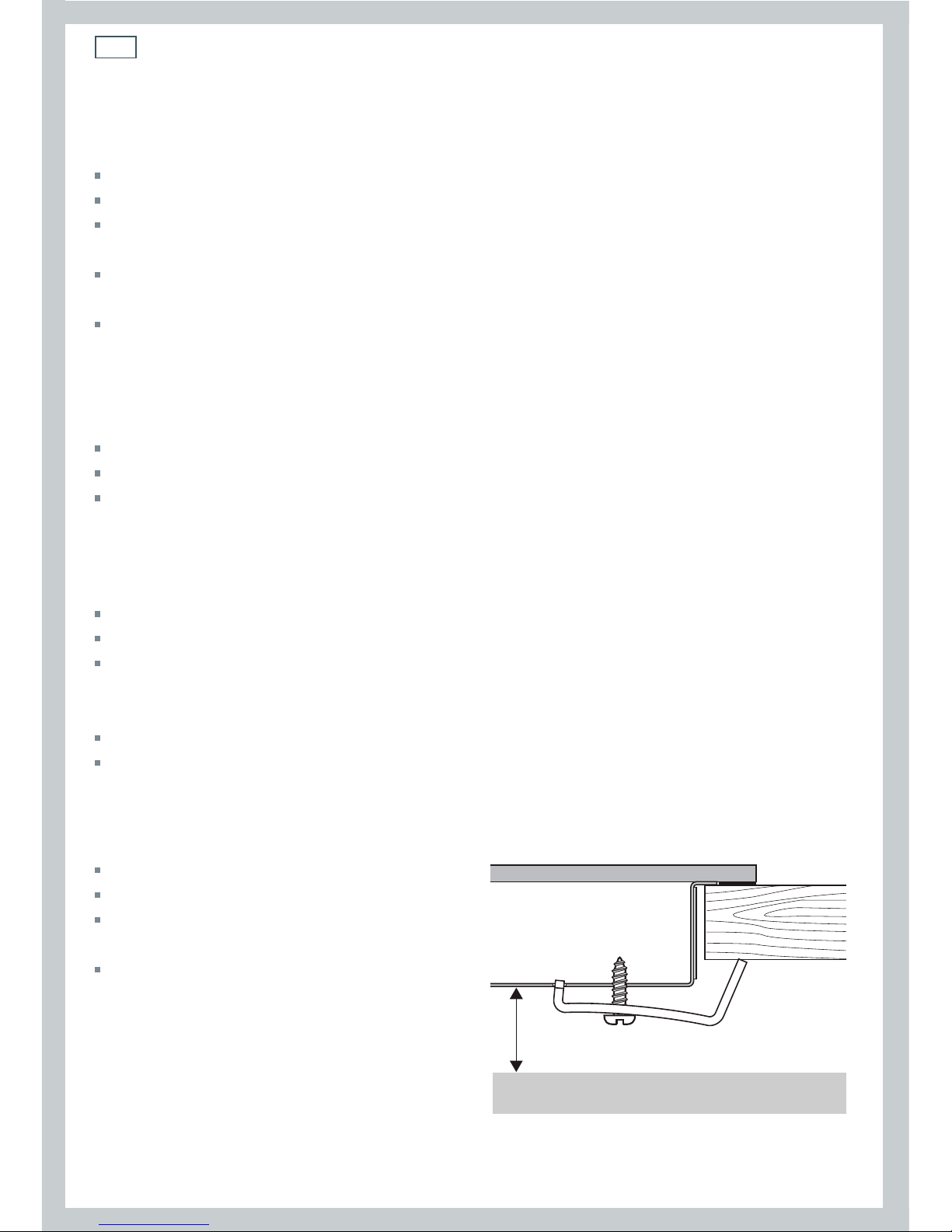

The thermal protection barrier must be:
removable
heat-resistant
made from low thermal conductivity
material
at least 20 mm below the base of the
cooktop to ensure adequate ventilation
20 mm min.
Fig. 1 Thermal protection barrier
< Fresh air from
outside the
cabinetry
