Firich Enterprise Mega POS MP-3525 User manual

Mega POS MP-3000 Series

MP-3525

15” ULV Fanless POS system

This document is copyrighted,

2008. All rights are reserved. Firich Enterprise Co., Ltd reserves

the right to make improvements of the product described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by

any means without the prior written permission from Firich Enterprise Co., Ltd. Information

provided in this manual is intended to be accurate and reliable. However, Firich Enterprise Co.,

Ltd assumes no responsibility for its use, nor for any infringements upon the rights of third parties,

which may result from its use.

The material in this document is for product information only and is subject to change without

notice. While reasonable efforts have been made in the preparation of this document to assure its

accuracy, Firich Enterprise Co., Ltd, assumes no liabilities resulting from errors or omissions in

this document, or from the use of the information contained herein.

Safety and Warranty

1. Read these safety instructions carefully.

2. Keep this user's manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray

detergents for cleaning. Use a damp cloth.

4. For pluggable equipment, the power outlet must be installed near the equipment and must be

easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall could

cause damage.

7. The openings on the enclosure are for air convection. Protect the equipment from overheating.

DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting the equipment to the

power outlet.

9. Position the power cord so that people cannot step on it. Do not place anything over the power

cord.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid

damage by transient over-voltage.

12. Never pour any liquid into an opening. This could cause fire or electrical shock.

13. Never open the equipment. For safety reasons, only qualified service personnel should open

the equipment.

14. If any of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

15. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED ENVIRONMENT WHERE

THE STORAGE TEMPERATURE IS BELOW -20°C (-4°F) OR A BOVE 60°C (140°F). IT MAY

DAMAGE THE EQUIPMENT.

Introduction 1

MP-3525 Introduction...........................................................................................................1

A Quick Tour for MP-3525...................................................................................................2

MP-3525 Dimension .....................................................................................................3

Rear I/O Panel.....................................................................................................................4

Packing List.........................................................................................................................4

Hardware Installation and Upgrading 5

2.5” Hard Disk Drive Installation....................................................................................5

Pole-Type VFD Installation ...........................................................................................6

Memory (DDRII RAM) / CPU / DOM Installation ...........................................................7

Compact Flash Card (CF) Installation...........................................................................7

MCR Configuration Modification....................................................................................8

Cash Drawer Installation...............................................................................................9

Software Installation and Setup 10

Please follow this installation sequence.............................................................................10

Chipset Driver Installation.................................................................................................10

Chipset Installation Utilities for Windows XP..............................................................10

VGA Driver Installation.......................................................................................................14

VIA/S3G driver installation Windows 2000/XP ............................................................14

LAN Driver Installation.......................................................................................................15

Realtek RTL8139/810x LAN Driver Installation Windows XP.....................................15

Audio Driver Installation.....................................................................................................17

Audio Driver Installation for all Windows Operating Systems......................................17

ELO Touch Tools Installation.............................................................................................20

ELO Touch Tools Installation for all Windows Operating Systems..............................20

ELO Control Panel......................................................................................................23

Fuji TouchKit Tools Installation..........................................................................................26

TouchKit Tools Installation for all Windows Operating Systems..................................26

Fuji TouchKit Control Panel........................................................................................29

Wireless LAN Driver Installation.........................................................................................30

Wireless LAN Driver Installation for all Windows Operating Systems (Optional) .........30

Specifications 31

MP-3525 Specifications.....................................................................................................31

Troubleshooting 33

Touch Panel Does Not Work.......................................................................................33

ELO Touch Panel Cannot Calibrate Correctly.............................................................33

Cannot Detect HDD....................................................................................................33

PS/2 Keyboard Is Not Functioning Normally...............................................................34

LAN Is Not Functioning Properly.................................................................................34

COM1, COM2, COM5 Are Not Functioning Properly...................................................34

Cash Drawer Port Is Not Functioning Properly............................................................34

USB Device Is Not Functioning Properly.....................................................................34

MP-3525

MP-3525 Introduction

To reach the balance of budget-saving and strong requirement for product quality, MP-3525 is

designed with quality-oriented and cost-effective concept. Fanless as it is, MP-3525 provide a

decent choice for noise-free environment applications with optimized product reliability.

Main Features:

•The most cost-effective solution with built-in customer display and 12 DC out for 2nd

display connection without extra adaptor needed.

•Fanless solution for green and noise-free environment.

•Easy maintenance for system parts, such as HDD, CF, and RAM…etc.

•Sufficient I/O access for various connection requirements.

•Integrated cable cover for supporting pole-type FD / LCD display.

•Compliant with IP54 front panel standard

MP-3525 w/ cable cover & MCR

MP-3525

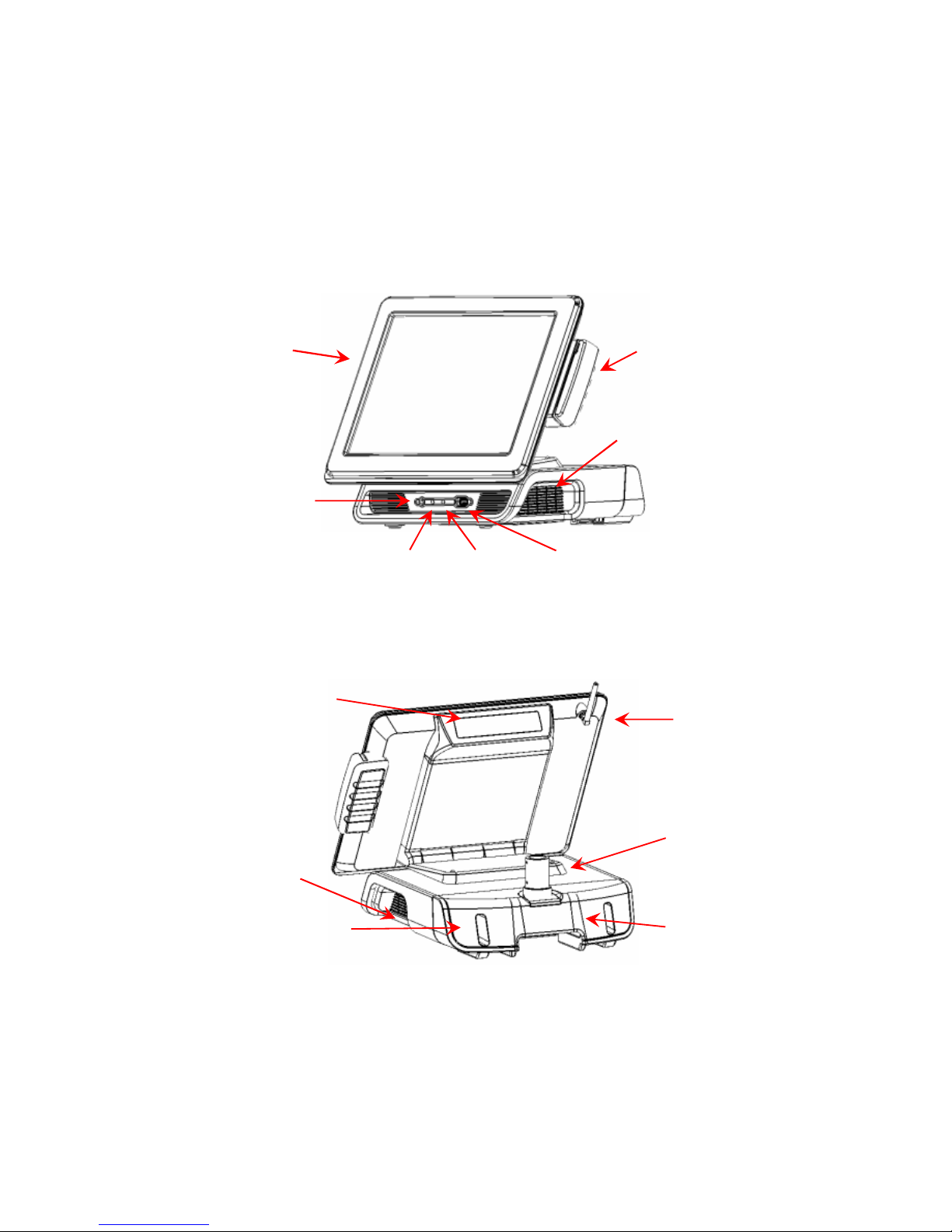

A Quick Tour for MP-3525

Before you start, take a moment to become familiar with MP-3525.

Identification

Device

Display

External I/O

(inside the cable cover)

Built-in Customer

Display (LCM)

HDD LED / LAN LED / USB Port

HDD Location

(in the bottom)

Power Switch with

LED

System Venting Hole

Cable Cover

Display Stand for

Pole-Type VFD/LCD

(attached with 2

display option)

Antenna Location

MP-3525

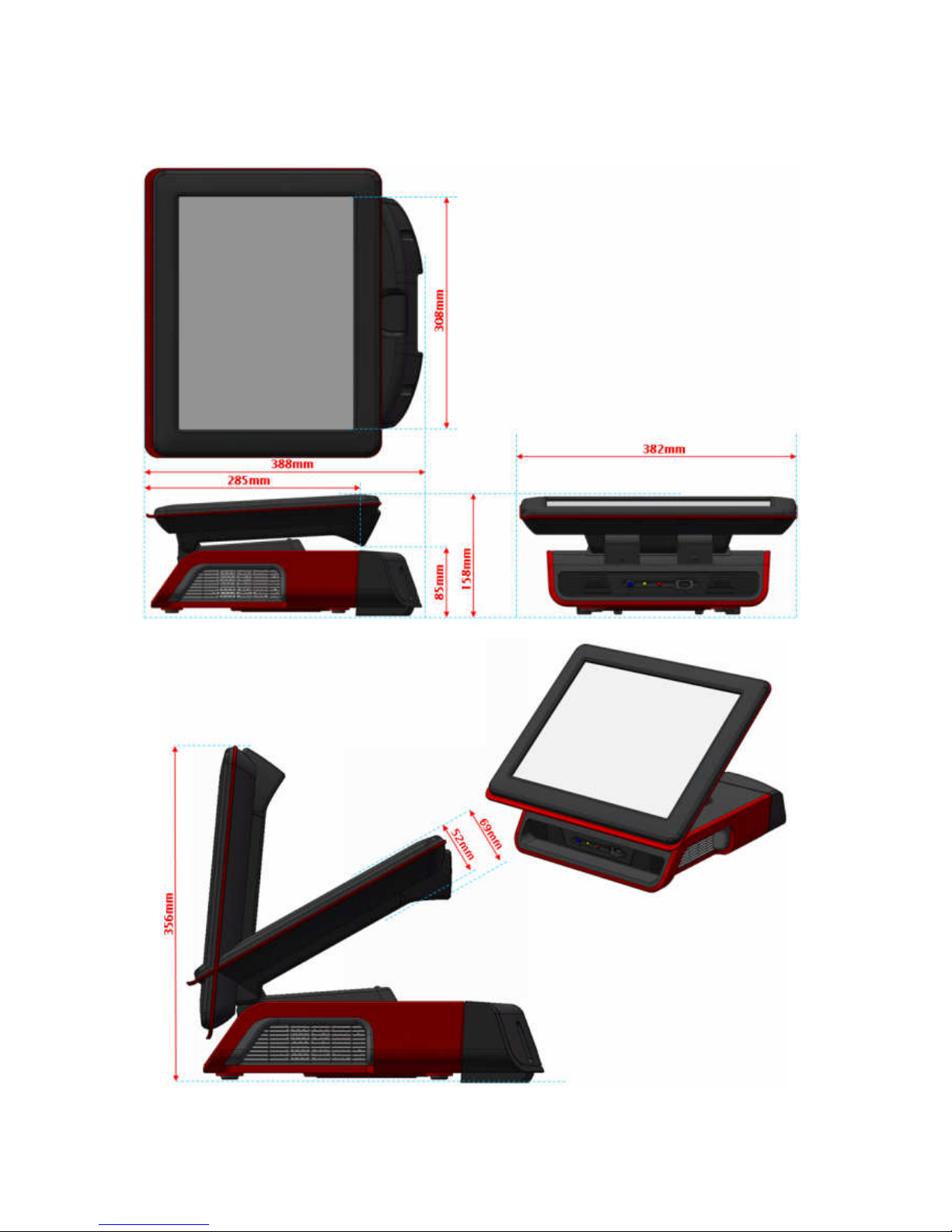

MP-3525 Dimension

MP-3525

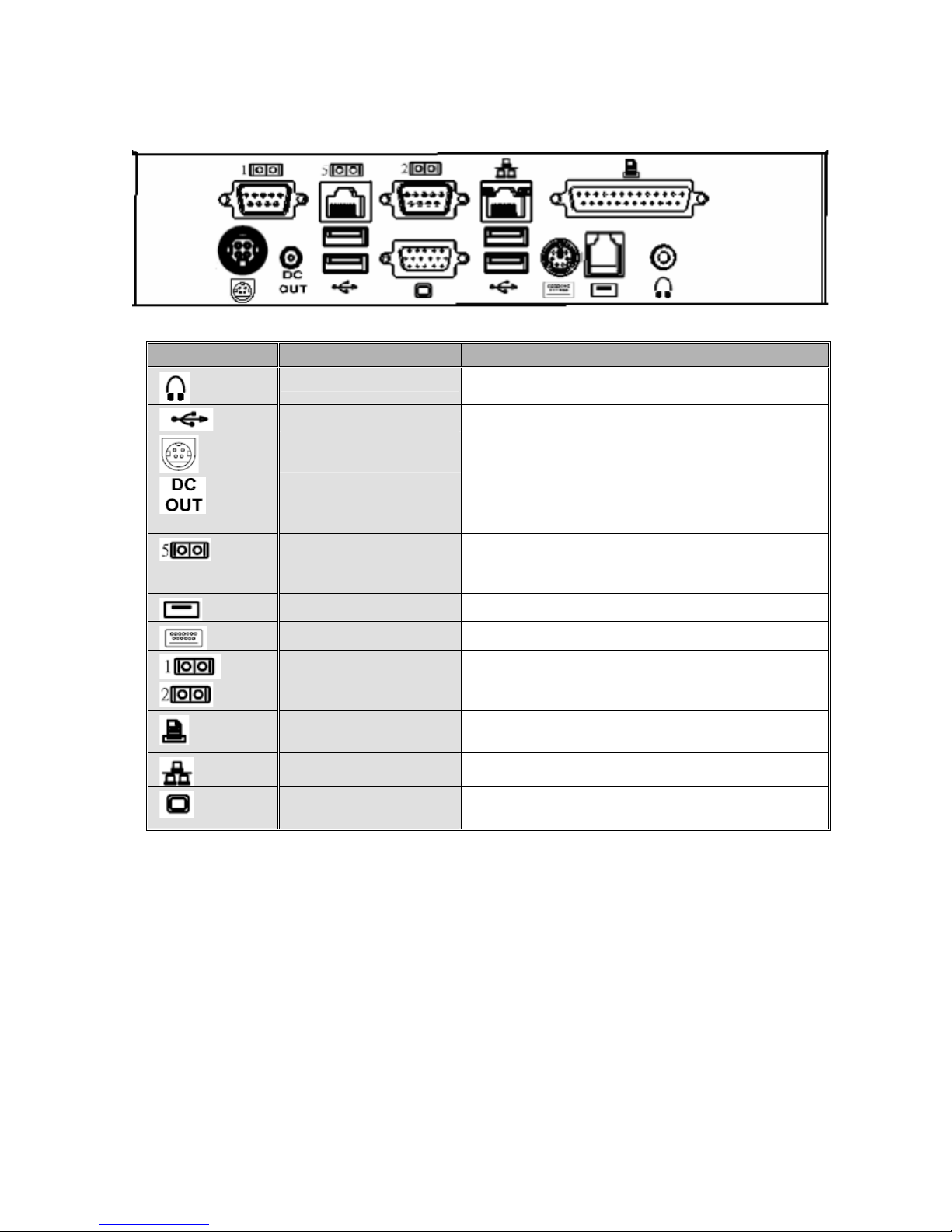

Rear I/O Panel

I/O Port Connector Type Description

Earphone connector Connect the speakers to this port

USB type A connector

Standard USB connector for external device

DC-in connector Connect the power adaptor to this port

12V DC-out connector

This DC-out port can sustain the power of the

monitor or any other devices which need 12V DC

power input.

VFD / RJ45 connector

This RJ45 port can be used to attach a VFD

customer display or serve as an additional serial

port (switching cable provided).

RJ11 connector Cash Drawer Connector, 12 V actuation support

PS2 connector Connect the keyboard or mouse to this port

D-SUB 9 connector

The serial ports COM1/COM2 can be used to

connect devices such as a printer or a

fax/modem.

Parallel 25-pin LPT

Connector The standard LPT (D-SUB 25 pin) connector for

connecting POS printers or KeyPro solution

RJ45 connector Connect MP-3525 to the Ethernet

D-Sub 15 Pin

Connector

The VGA port is used for connecting LCD or CRT

monitors

Packing List

•MP-3525 Main System x 1

•Power Adaptor x 1 / AC Power Cord x 1

•Driver & Manual CD x 1

•COM port switching cable (RJ45 to D-SUB 9

pin) x 1

Optional:

•Pole-type Customer Display

•MCR

•Built-in LCM Customer

Display Module

•WiFi Wireless Module

MP-3525

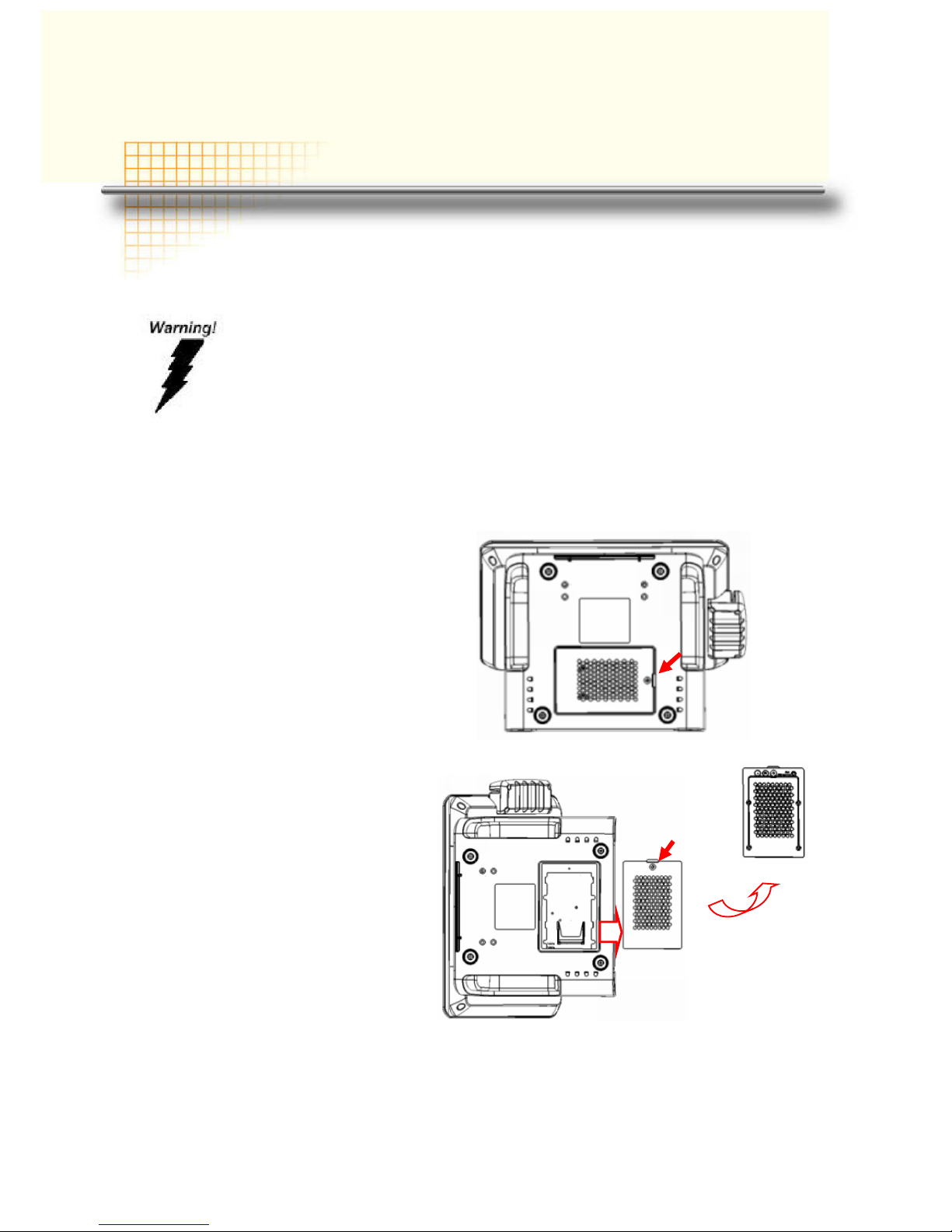

2.5” Hard Disk Drive Installation

1. Turn off power and remove power cord from the system

2. Unscrew the

maintenance door at

the bottom of the unit

3. Remove the door and

flip it over

Do not remove the rear cover until you have verified

that no power

supplied to the system. Power must be switched off and the power cord

must be unplugged. Every time you service the system, you should be

aware of this.
