1. Important Safety Instructions
1. Read all instructions before use.
2. Save these instructions for later use.
3. Follow all warnings and instructions marked on
the product.
4. Unplug this product from the wall outlet before
cleaning. Clean with a damp cloth using a mild
soap and water solution. (Do not use abrasives
or petroleum based cleaners.)
5. Place this product as close as possible to
power source for quick and easy unplugging.
6. Do not use this product near water.
7. This product should never be placed near or
over a radiator or heat source.
8. Operate from the type power source indicated
on the marking label. If you are not sure of the
type of power available, consult your dealer or
local electricity board.
9. Do not allow anything to rest on the power cord.
Do not place this product where people may
walk on the cord.
10. If an extension cord is used with this product,
make sure that the total of the ampere ratings
on the products plugged into the extension cord
do not exceed the extension cord ampere
rating.
11. Do not attempt to service this product yourself,
as opening or removing covers may expose
you to dangerous live parts or other risks.
12. Unplug this product and refer servicing to
qualified personnel under the following
conditions:
A) When the power cord or plug is damaged or
frayed.
B) If liquid has been spilled on the product.
C) If the product has been exposed to rain.
D) If the product does not operate normally when
the operating instructions are followed.
E) If the product has been dropped or the casing
has been damaged.
13. Keep out of the reach of children.
14. This shredder should be operated only with an
operator in attendance.
15. Do not use flammable synthetic oil, petroleum-
based products, or aerosols of any kind on or
near shredder at any time.
2. Parts Identification
1. LED display 5. Caution label
2. Rocker switch 6. Cabinet
3. Cover 7. Cabinet access door
4. Serial label 8. Paper feed opening
420
420C
420-2HS
7
8
5
6
Fellowes Manufacturing Co.
1789 Norwood Avenue
Itasca, IL 60143 USA
Model:
Serial #:
Voltage: Motor:
Current: Manufactured:
R
R
4
2
3
1
4200SC
4200CC
C-420HS
4200SC
4200CC
C-420HS
Paper shredder
Edition 01/06 5
Edition 08/04 5
480
480C
Paper shredder 480-2HS
3. Technical Specifications
Model Model Model
4200SC 4200CC C-420HS
Cutting Style High Security
Strip Cut Cross Cut Cross Cut
Shred Size 7/32" 5/32" x 1 1/2" 1/25" x 1/5"
(5.8 mm) (3.9 x 40 mm) (1 x 5 mm)
*Sheet capacity
U.S. (75 g/m2): 36 - 38 22 - 24 7
Speed
32 FPM 30 FPM 43 FPM
(160 mm/sec) (150 mm/sec) (220 mm/sec)
Entry width
12"
(300 mm)
Motor power
120 Volt 60 Hz units: 1.93 H.P.
Voltage (Depending on country)
120 V 60 Hz
Dimensions (HxWxD)
35 1/4" x 19 3/4" x 16 1/2"
Weight
97 lbs (44 kg) 106 lbs (48 kg) 108 lbs (49 kg)
Waste container volume
26.5 gallons (100 liters)
Noise level
In Idle 56 dB
Under load 62 dB strip cuts and 70 dB cross cuts
4200SC
4200CC
C-420HS Paper shredder
6 Edition 01/06
420
420C
420-2HS Paper shredder
6 Edition 08/04

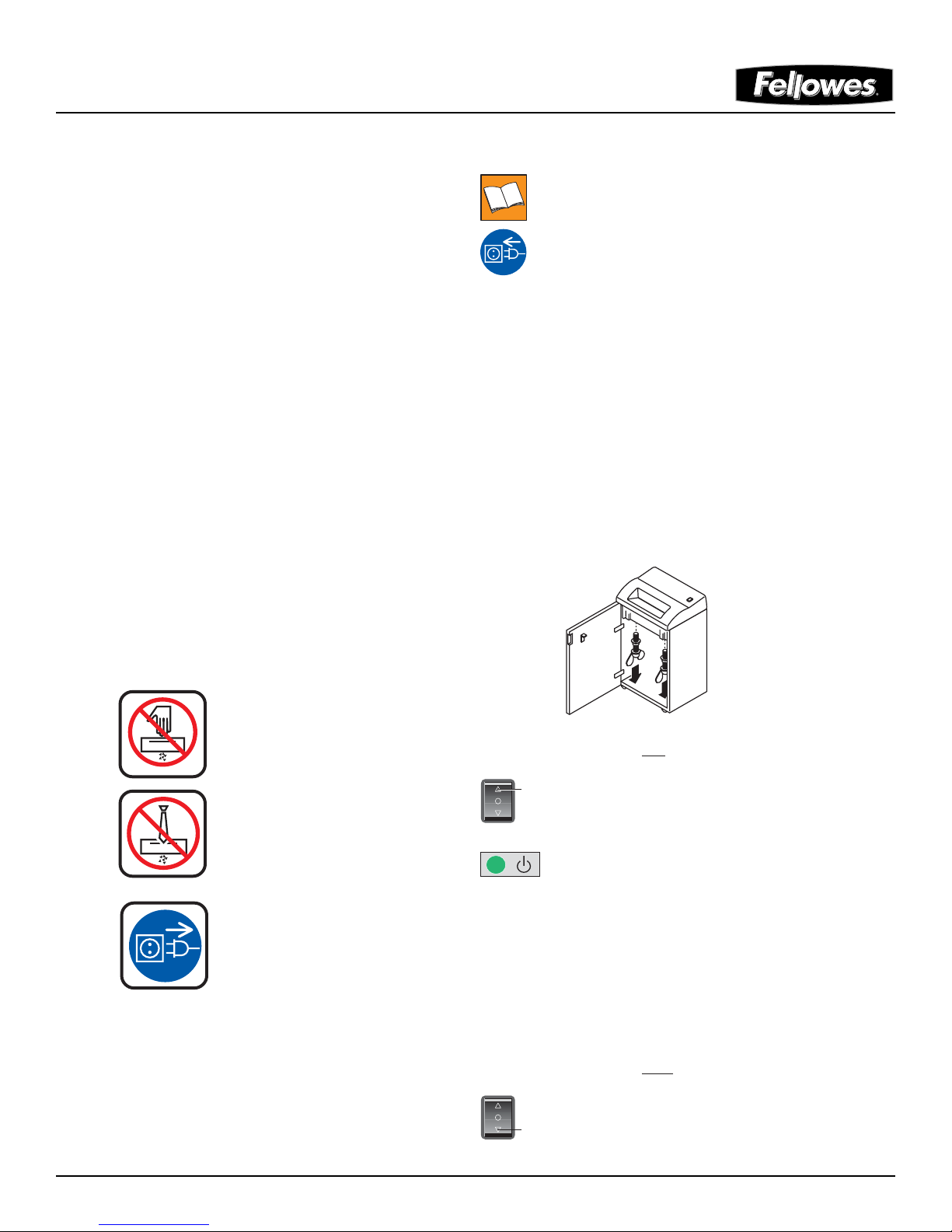

7. Operation
Read operating instructions before
putting shredder into operation
Insert plug in power outlet
Install waste bag for shredded material
– Open front door and completely remove
bag frame from cabinet
– Fold new bag around frame.
Allow bag to overhang frame by
approximately 7" (20 cm).
– Slide frame with bag back into cabinet
– Close cabinet door.
Before start-up
– Undo the wing screws securing the unit
during transportation
Switching equipment ON
– Press rocker switch to pos. 1
•Switch locks in "on" position
•Equipment is ready for operation
(stand by)
•Green LED lights
– Feed paper
•The shredding process is started by
photo–cells in the paper feed opening.
Insert paper and shredding begins
automatically.
•When the shredding is complete, the
cutting system automatically stops
after approx. 3 sec.
Switching equipment OFF
– Press rocker switch to pos. 3
•Switch resets to center position and the
machine is turned off.
4. Supplies
– Bags for cut material
(Packed in dispenser carton, 50 or 100 bags
to a roll depending on size. Contact Fellowes
or your local Fellowes dealer for the stock
number of the bag that fits your machine.)
– Cutting block oil for cross-cut units
Stock # 35250
5. Installation
– Refer to separate set–up instructions for proper
assembly
– Operate this product only from the type of
power source indicated on the marking label
– Install the paper shredder so that the plug is
easily accessible
– Shredder must be operated only in upright
position
– Set up paper shredder so that the ventilation
slots are unobstructed. To ensure sufficient
ventilation of the shredder a minimum distance
of 4" (10 cm) to the wall or to the furniture must
be maintained.
6. Caution
Never insert hand, fingers or any
foreign objects into the feed
opening.
Serious injury may result.
Keep all loose articles of
clothing, ties, jewelery, long hair
or other loose objects away from
feed opening.
Injury may result.
Always turn off and unplug the
machine before moving,
servicing, cleaning or any other
conduct other than normal
operation.
Serious injury may result.
1
3
4200SC
4200CC
C-420HS
Paper shredder
Edition 01/06 7
Edition 08/04 7
420
420C
Paper shredder 420-2HS
8. Checklist for Inoperative Machine
If the equipment does not work properly,
please check the following points first:
– Is the plug inserted?
– Is the switch turned on?
– Is the cabinet door closed?
– Is waste receptacle full?
Empty waste bag.
– Is there a paper jam in the shredder?
– Is the motor overheated?
Switch machine off and allow motor to
cool down for approximately 15–20 min.
If none of the above applies and the equipment stil
does not run, please contact our customer service
department.
9. Malfunctions
Paper jam
Red LED lights
• Press rocker switch to center position
(2) to stop the cutting system
• Press and hold down rocker switch in
pos. 3 to reverse the cutting system
and back out jammed material
(paper is pushed out)
Caution!
Do not
attempt to force the jammed
material through the machine by
alternating the cutting system between
forward and reverse
• Remove excess paper
• Return switch to pos. 1 and continue
shredding in smaller quantities so as
not to jam the machine further
Note:
The C-420HS
will not run
forward again
unless the jammed material has been
completely removed from the throat
Motor Overheating
Red LED lights
– Paper shredder switches off automati-
cally.
• Press rocker switch to center position
(2).
• Allow shredder to cool down for
approximately 15-20 minutes.
• Return switch to "on" position (1)
and continue shredding.
Cabinet door ajar / bag full
Red LED lights
– Paper shredder switches off automati-
cally.
• Press rocker switch to center position
(2).
• Make sure cabinet door is properly
closed and/or empty waste bag.
• Return switch to "on" position (1) and
continue shredding.
10. Maintenance
(Cross cut unit only)
– When shredding capacity drops or the
noise increases
• Apply oil over full width of cutting
cylinders through the paper entry
(Fellowes Powershred Lubricant
# 35250).
CAUTION: Do not use flammable
synthetic oil, petroleum-based products,
or aerosol lubricants of any kind.
• Run cutting system forward and
backward several times without feeding
paper
• Continue shredding
2
3
3
1
1
1
2
3
1
1
2
4200SC
4200CC
C-420HS Paper shredder
8 Edition 01/06
420
420C
420-2HS Paper shredder
8 Edition 08/04
11. Warranty
Limited Warranty
Fellowes, Inc. warrants the cutting cylinders of the
machine to be free from defects in material and
workmanship for 20 years from the date of purchase
by the original consumer in the case of models
4200SC and 4200CC, or 5 years from the date of
purchase by the original purchaser in the case of
model C-420HS. Fellowes warrants all other parts
of the machine to be free of defects in material and
workmanship for 2 years from the date of purchase
by the original consumer (applies to all models
covered in this manual). If any part is found to be
defective during the warranty period, your sole and
exclusive remedy will be repair or replacement, at
Fellowes’ option and expense, of the defective part.
This warranty does not apply in cases of abuse,
mishandling or unauthorized repair. ANY IMPLIED
WARRANTY, INCLUDING THAT OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, IS HEREBY LIMITED IN
DURATION TO THE APPROPRIATE WARRANTY
PERIOD SET FORTH ABOVE. IN NO EVENT
SHALL FELLOWES BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL DAMAGES
ATTRIBUTABLE TO THIS PRODUCT. This warranty
gives you specific legal rights. You may have other
legal rights that vary from this warranty. The
duration, terms and conditions of this warranty are
valid worldwide, except where different limitations,
restrictions or conditions may be required by local
law. For more details or to obtain service under this
warranty, please see below.
Fellowes offers toll free consumer service in the
following regions: United States, Canada, Mexico,
Australia, and Europe. Residents in these regions
should contact the appropriate Consumer Helpline
located on the back of this manual.
If you are unable to access the Consumer Helpline
from your calling area, call the nearest Fellowes
location, also listed on the back of this manual. You
may also contact your local dealer, contact us online
at www.fellowes.com or write to us at:
Fellowes, Inc.
ATTN: Customer Service
1789 Norwood Avenue
Itasca, IL 60143
USA
Australia
Benelux
United Kingdom
United States
Polska
Singapore
Japan
Korea
Deutschland
España
©2006 Fellowes, Inc.
Canada
China
France
Italia
1789 Norwood Avenue, Itasca, Illinois 60143-1095 • USA• 630-893-1600
parts of
Helpline
Australia + 1-800-33-11-77
Canada + 1-800-665-4339
Mexico + 1-800-234-1185
United States + 1-800-955-0959
Fellowes
Australia + 61-3-8336-9700
Benelux + 31-(0)-76-523-2090
Canada + 1-905-475-6320
Deutschland + 49-(0)-5131-49770
France + 33-(0)-1-30-06-86-80
Italia + 39-071-730041
Japan + 81-(0)-3-5496-2401
Korea + 82-(0)-2-3462-2884
Malaysia + 60-(0)-35122-1231
Polska + 48-(22)-771-47-40
Spain + 34-91-748-05-01
Singapore + 65-6221-3811
United Kingdom + 44-(0)-1302-836836
United States + 1-630-893-1600
Helpline
12. Contact for Service11. Warranty
This manual suits for next models
2
Table of contents
Other Fellowes Paper Shredder manuals
Fellowes
Fellowes Powershred 1800C User manual
Fellowes
Fellowes Microshred MS-460Cs User manual
Fellowes
Fellowes DM17Ci User manual
Fellowes
Fellowes Powershred PS-67Cs User manual
Fellowes
Fellowes PS-79Ci User manual
Fellowes
Fellowes C-220i User manual
Fellowes
Fellowes Powershred PS-77Cs User manual
Fellowes
Fellowes Powershred SB-95C User manual
Fellowes
Fellowes POWERSHRED 99Ci User manual
Fellowes
Fellowes 225i User manual
Fellowes
Fellowes Powershred 46Ms User manual
Fellowes
Fellowes FORTISHRED 4850C User manual
Fellowes
Fellowes Powershred 53C User manual
Fellowes
Fellowes Powershred M-7Cm User manual
Fellowes
Fellowes AutoMax 500C User manual
Fellowes
Fellowes POWERSHRED DS-3 User manual
Fellowes
Fellowes Powershred 94MC User manual
Fellowes
Fellowes POWERSHRED 73Ci User manual
Fellowes
Fellowes POWERSHRED C-120C User manual
Fellowes
Fellowes POWERSHRED 69Cb User manual
Popular Paper Shredder manuals by other brands
Swingline
Swingline STACK-AND-SHRED200X&200XL 60X Start here
GBC
GBC ShredMaster CC055 instruction manual
UNITED OFFICE
UNITED OFFICE UAV 190 A1 operating instructions
UNITED OFFICE
UNITED OFFICE UAV 190 A1 operating instructions
Rexel
Rexel Optimum AutoFeed+ 45X instruction manual
Martin Yale
Martin Yale 227284S1 instruction manual
