Product Profile

This product is built to shred

paper, staples, small paper clips

and credit cards

. It is not built to shred adhesive labels, trans-

parencies, newspaper, cardboard, large paper clips, or plastic

(other than credit cards). Attempting to shred items not intended

for this shredder may cause damage.

Strip-Cut Strip-cut Confetti-cut

(120-2) (120-2) (120C-2)

Sheet capacity* 18-20 sheets 16-18 sheets 12-14 sheets

Paper shred size 5,8 mm 3,9 mm 3,9 x 25 mm

Maximum paper width 241 mm 241 mm 241 mm

Recommended daily capacity 4,000 sheets 4,000 sheets 2,000 sheets

*Based on A4 (70 g/m2) paper with shredder operating at rated voltage; heavier paper, high humidity, or other than rated

voltage may reduce sheet capacity.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING

While setting up shredder

•Check shredder for damage or defects; some paper particles in the basket are normal

due to product testing and does not indicate a defect.

•Avoid touching exposed blades on underside of confetti-cut shredder head.

•Plug power cord in an outlet that can easily be reached. The plug is the primary electri-

cal disconnect.

•Make sure the electrical rating listed on the serial label (located inside, just below top of

shredder) matches the available electric power.

•Do not place shredder near or over a heat or water source.

While operating shredder

•Keep hands and hanging objects (jewelry, ties, loose clothing,

long hair, etc.) away from paper entry.

•Keep children and pets away from the shredder.

When not in use

•Always turn off and unplug shredder.

•Unplug before emptying basket.

•Do not open shredder head: Danger of electric shock.

Opening shredder head will void the warranty.

NOTE:

Do not use flammable synthetic oil, petroleum-based products or aerosols of any

kind on or near product at any time.

English

Set-Up

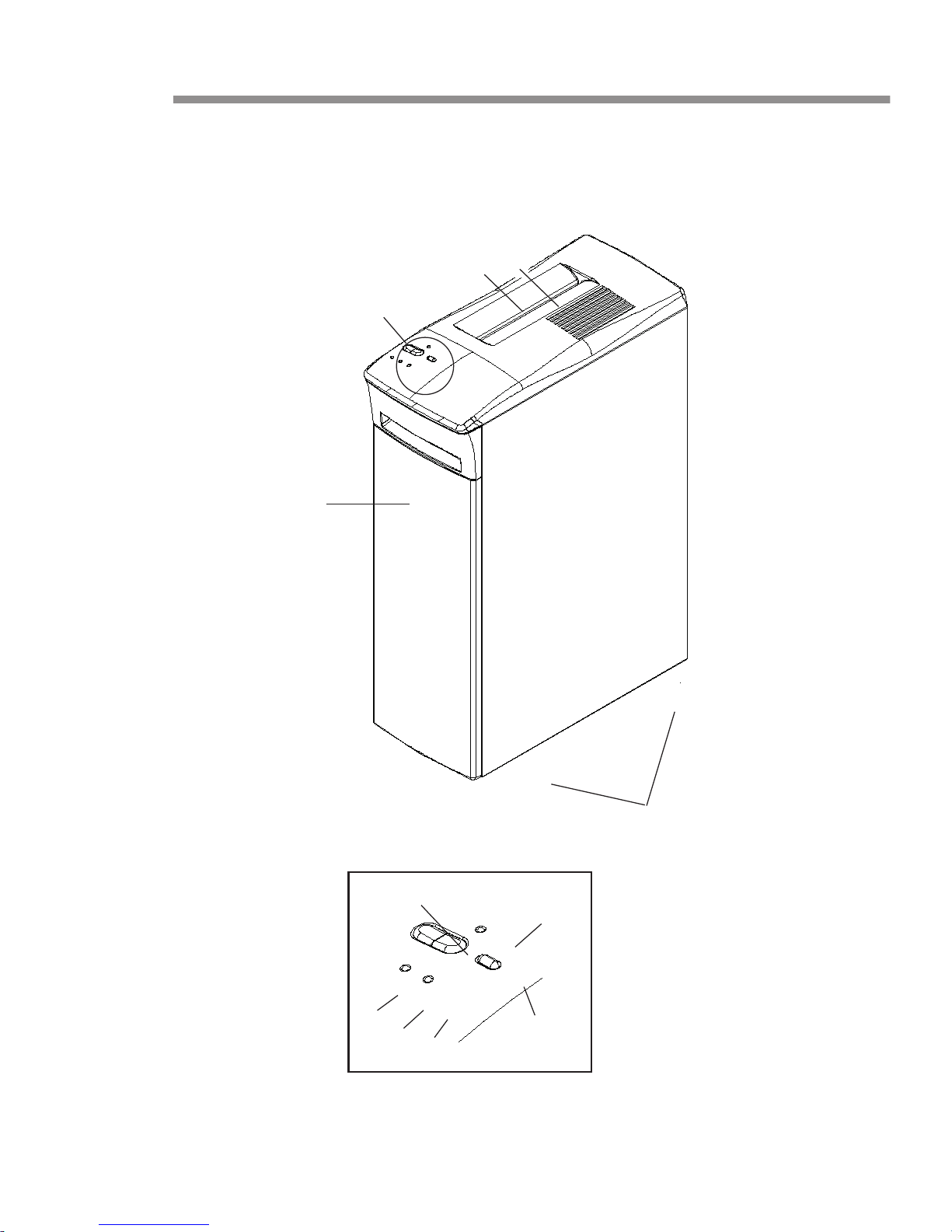

•Turn retractable feet (D) to outward position. This will improve stability. The feet should be

turned outward if shredder will not be placed between furniture.

•Pull waste basket drawer (A) completely out of cabinet.

•Put waste bag in basket (sample bags provided). Allow edges to overhang. Contact

Fellowes to order more bags. (Part #36054).

•Slide waste basket drawer (A) into cabinet. The shredder will not operate if drawer is not

pushed all the way into cabinet.

•Plug power cord into a convenient outlet.

Operation

Control Switches

Control Switch (E)

IAUTOMATIC

Turns on the automatic-start

sensor and the green Ready

light.

OOFF

Turns off the automatic-start

sensor and the green Ready

light.

RREVERSE

Runs shredder in reverse mode.

Press and hold to activate.

Manual Forward Button (G)

Runs shredder when

button is held down.

Troubleshooting Lights

Ready Light (F)

(Green)

Shredder is in automat-

ic start mode.

Basket Ajar (H)

Waste basket drawer is

open.

Basket Full (I)

Waste basket is full or

paper has collected

under cutting cylinders.

Paper Jam (J)

Shredder is jammed

(e.g., too much paper

fed at one time).

For convenience and energy savings, your shredder is equipped with an

automatic-

start sensor

(K). This means that when the control switch (E) is in the automatic [I] posi-

tion, the shredder will start running when you put paper into it and stop a few seconds

after the paper has passed through.

CAUTION:

The automatic-start sensor cannot tell the difference

between paper and other objects. This feature can also be a hazard.

Always turn off the shredder when it is not in use. Unplug the shredder

if it will not be used for an extended period.

To shred

• Press control switch (E) to automatic [I] position. Green ready light (F) should turn on.

• Feed paper straight into entry (C), releasing when shredder begins shredding; see

Product Profile for limits on paper width, shreddable items, sheet capacity, etc.

English

To empty waste basket

If basket full light (I) is on, follow these steps until light turns off.

•Press manual forward button (G) to finish shredding any paper in paper entry.

– Press control switch (E) to the off [O] position.

– Open the waste basket drawer (A) and remove full bag.

– Place new bag in basket, then slide drawer into cabinet.

•Press and hold control switch (E) in the reverse [R] position for a few seconds to clear

paper shreds that have collected under cutting cylinders.

– Alternate between manual forward (G) and reverse [R] for a few seconds in each

position.

CAUTION:

The shredder may be damaged if you alternate too rapidly between forward

and reverse.

•Unplug shredder and remove wastebasket drawer (A).

– Carefully clear any paper shreds that have collected on under side of paper entry (C).

CAUTION:

Model 120C-2 (confetti cut model) has exposed blades.Use care when

removing paper shreds on underside of paper entry.

To clear a paper jam

If paper jam light (J) is on, follow these steps until light turns off.

•Check the waste basket and empty if full.

•Press and hold control switch (E) in the reverse [R] position to back paper out of paper

entry (C). Try pulling gently on paper to remove it from shredder.

•Alternate between forward and reverse, if needed:

– Press and hold manual forward button (G) for a few seconds.

– Press and hold control switch (E) in the reverse [R] position for a few seconds.

– Continue alternating between forward and reverse until the jam clears.

CAUTION:

The shredder may be damaged if you alternate too rapidly between forward

and reverse.

Maintenance

Empty waste basket regularly

to ensure the smooth functioning of the cutting cylin-

ders. The shredder will not operate when the basket is full.

Oil

confetti-cut model

(120C-2) regularly to ensure proper operation.

If used at or near daily capacity, apply oil every time you empty the basket.

Use Fellowes Powershred Lubricant #35250 or other non-aerosol vegetable-

based oil in a long-nozzle container (sample oil provided).

CAUTION:

Do not use flammable synthetic oil, petroleum-based products, or aerosol

lubricants of any kind.

To oil the cutting cylinders

•Apply oil over full width of cutting cylinders through the paper entry (C).

•Press and hold the manual forward button (G) for at least 3 seconds.

•Press and hold the control switch (E) in reverse [R] for at least 3 seconds.

•Repeat the forward/reverse sequence 3 or more times.

English

Troubleshooting

If there is a problem with your shredder, check these symptoms and remedies. If you can-

not solve the problem, call your local dealer or contact Fellowes directly.

Do not open

shredder head

to attempt repair. You could be exposed to serious electric shock and

will void the warranty.

Symptom

Ready Light (F) will not light

Shredder does not start or stops while

shredding

Basket ajar light (H) is on

Basket full light (I) is on

Paper jam light (J) is on

Confetti-cut shredder (120C-2): Shredder

sheet capacity decreases, noise level

increases, or cutting cylinders stop with a

squeak or rubbing sound

Shredder runs for a few seconds after the

paper has cleared the cutters

Remedy

Make sure shredder is plugged in and

the control switch (E) is in the automatic [I]

position.

• Make sure shredder is plugged in and

control switch (E) is in the automatic [I]

position.

• Shredder is jammed. Follow the

instructions under Operation.

Make sure the waste basket drawer (A) is

all the way into the cabinet.

Empty the waste basket. Follow the

instructions under Operation.

Clear the paper jam. Follow the

instructions under Operation.

Oil the cutting cylinders. Follow the

instructions under Maintenance.

No action required. This is a self-cleaning

function.

Supplies

The following items for the 120-2 and 120C-2 shredders are available from Fellowes:

Item Quantity Part Number

Waste bags (in dispenser) 50/roll 36054

Waste basket (box) 1 box 400008

Powershred Lubricant (120C-2 only) 12 oz. bottle 35250

To purchase supplies, contact Fellowes at the appropriate location listed on the back

page of this instruction manual, or visit us at

www.fellowes.com

English

Fellowes conducts extensive testing to ensure that these shredders are capable of meeting all of the specifications listed

in the Product Profile (see page 3). However, the actual sheet capacity is dependent on a number of factors including

the type and weight of paper, the humidity, the voltage level of the power source, the temperature of the motor, and the

care with which the operator feeds the paper. Safety agency testing is conducted to ensure that the shredder will oper-

ate to specifications even if the available voltage is 10% below or 6% above the rated voltage. During this testing 2.5

minutes was taken to empty the basket each time it filled and the following capacities were used for temperature rise

testing: Cut Size Number Paper Size

Voltage Hertz & Type of Sheets & Weight

220-240 VAC 50 Hz 3,9 mm Strip Cut 17 A4 70 g

220-240 VAC 50 Hz 5,8 mm Strip Cut 19 A4 70 g

220-240 VAC 50 Hz 3,9 mm Confetti Cut 13 A4 70 g

120 V 60 Hz 5,8 mm Strip Cut 19 8.5x11 20 lb

120 V 60 Hz 3,9 mm Confetti Cut 13 8.5x11 20 lb

100 V 50/60 Hz 3,9 mm Strip Cut 17 A4 70 g

100 V 50/60 Hz 3,9 mm Confetti Cut 13 A4 70 g

Limited Warranty

Fellowes, Inc. ("Fellowes") warrants the cutting blades of the machine to be free from

defects in material and workmanship for 20 years from the date of purchase by the origi-

nal consumer. Fellowes warrants all other parts of the machine to be free of defects in

material and workmanship for 2 years from the date of purchase by the original con-

sumer. If any part is found to be defective during the warrant period, your sole and

exclusive remedy will be repair or replacement, at Fellowes’ option and expense, of the

defective part.

This warranty does not apply in cases of abuse, mishandling or unauthorised repair.

ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR

A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE

WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any

consequential or incidental damages attributable to this product. This warranty gives you

specific legal rights. You may have other legal rights that vary. The duration, terms and

conditions of this warranty are valid worldwide, except where different limitations, restric-

tions or conditions may be required by local law.

For more details or to obtain service under this warranty, please contact:

EUROPEAN CONSUMER HELPLINE

00 800 1810 1810

(Accessible via most major telephone networks)

OR the nearest Fellowes location listed on the back page of this user manual.

Warrantor: Fellowes, Inc.

www.fellowes.com

All European Countries

European Consumer Helpline

00 800 1810 1810

(Accessible via most major telephone networks)

France + 33 (0) 2-99-22-71-22

Germany + 49 (0) 5131-4977-0

Italy + 39 (0) 071-730041

Poland + 48-22-837-7356

The Netherlands + 31 (0) 347-377988

United Kingdom + 44 (0) 1302-836836

Declaration of Conformity

Fellowes

Yorkshire Way, West Moor Park,

Doncaster, South Yorkshire, DN3 3FB England

declares that the product

Models 120-2 and 120C-2

conform with the requirements of the Low Voltage Directive (73/23 EEC) and the

Electromagnetic Compatibility Directive (89/336 EEC) and the following harmonized

European Normes (EN Standards) and IEC Standards.

Safety: EN60950 ‘Information Technology Equipment’

EMC: Standard Severity Level Performance Criteria

EN 61000-4-2: 1995 3AD, 2CD B

EN 61000-4-4: 1995 2 B

EN 61000-4-5: 1995 2DM, 3CM B

EN 61000-4-6: 1996 2 A

EN 61000-4-11: 1994 per table 13 C

EN55014-1:2000

EN 61000-3-2;1995 Class A

+A1: 1998, +A2: 1998, +A14:2000

EN 61000-3-3:1995

+A1:2001

Itasca, Illinois, USA _____________________

2 September 2002 Anthony Storrie

Other manuals for 120-2

This manual suits for next models

Table of contents

Other Fellowes Paper Shredder manuals

Fellowes

Fellowes 23392J User manual

Fellowes

Fellowes Fortishred 3250HS User manual

Fellowes

Fellowes AutoMax AutoMax 200C Manual

Fellowes

Fellowes POWERSHRED 1000 User manual

Fellowes

Fellowes POWERSHRED 60Cs Service manual

Fellowes

Fellowes POWERSHRED P70CM User manual

Fellowes

Fellowes Powershred PS-60 User manual

Fellowes

Fellowes MS-460Ci User manual

Fellowes

Fellowes Powershred 11C User manual

Fellowes

Fellowes IntelliShred SB-89Ci User manual

Fellowes

Fellowes Powershred W11C User manual

Fellowes

Fellowes POWERSHRED 99Ms User manual

Fellowes

Fellowes DM17Ci User manual

Fellowes

Fellowes 220-2 Operating manual

Fellowes

Fellowes POWERSHRED P-48C User manual

Fellowes

Fellowes POWERSHRED Shredmate User manual

Fellowes

Fellowes FORTISHRED 3850C User manual

Fellowes

Fellowes Microshred MS-460Cs User manual

Fellowes

Fellowes Powershred C-320 User manual

Fellowes

Fellowes CC4-2 User manual

Fellowes

Fellowes POWERSHRED HD-10Cs User manual

Fellowes

Fellowes Powershred P-20 User manual

Fellowes

Fellowes Powershred C-420 User manual

Fellowes

Fellowes Metal 25 User manual

Popular Paper Shredder manuals by other brands

Swingline

Swingline STACK-AND-SHRED200X&200XL 60X Start here

GBC

GBC ShredMaster CC055 instruction manual

UNITED OFFICE

UNITED OFFICE UAV 190 A1 operating instructions

UNITED OFFICE

UNITED OFFICE UAV 190 A1 operating instructions

Rexel

Rexel Optimum AutoFeed+ 45X instruction manual

Martin Yale

Martin Yale 227284S1 instruction manual

Bonsaii

Bonsaii DocShred C223-A instruction manual

HSM

HSM Pure 740 max operating manual

TRU RED

TRU RED TR-BMC20A Operator's manual

GBC

GBC SHREDMASTER 1236SE operating instructions

Gude

Gude GH 2600 P operating instructions

Ativa

Ativa DQ80M operating instructions

Q-Connect

Q-Connect Q8CC instruction manual

Olivetti

Olivetti Privacy 5000C Operational manual

UNITED OFFICE

UNITED OFFICE UAV 190 A1 operating instructions

Dahle

Dahle paperSAFE 22022 instructions

Formax

Formax OnSite FD 87 Operator's manual

GEHA

GEHA Home & Office S7 CD manual
