Fein RS 12-70E Quick start guide
SERVICE
Tool service and maintenance must be performed only by qualified
repair personnel.
When servicing a tool, only use identical replacement parts available
from FEIN.
Repairs on FEIN Power Tools required the use of special tools (pulling devices
and bearing press). Authorized repair centers have trained repair technicians
andequipmentnecessarytoper-formtheserepairs.Serviceorrepairsperformed
by unqualified persons could result in operator injury.
For the location of the repair center near you, please call 1-800-441-9878.
Monday thru Friday, 9AM to 5PM EST. Or, look on our web site at
www.feinus.com and follow the link to “AuthorizedWarranty Repair Centers”
Phone: 412-922-8886 Fax: 412-922-8767 Toll Free: 1-800-441-9878
FEIN Power Tools
1030 Alcon Street
Pittsburgh, PA 15220
Dec 28, 2004
RS 12-70E

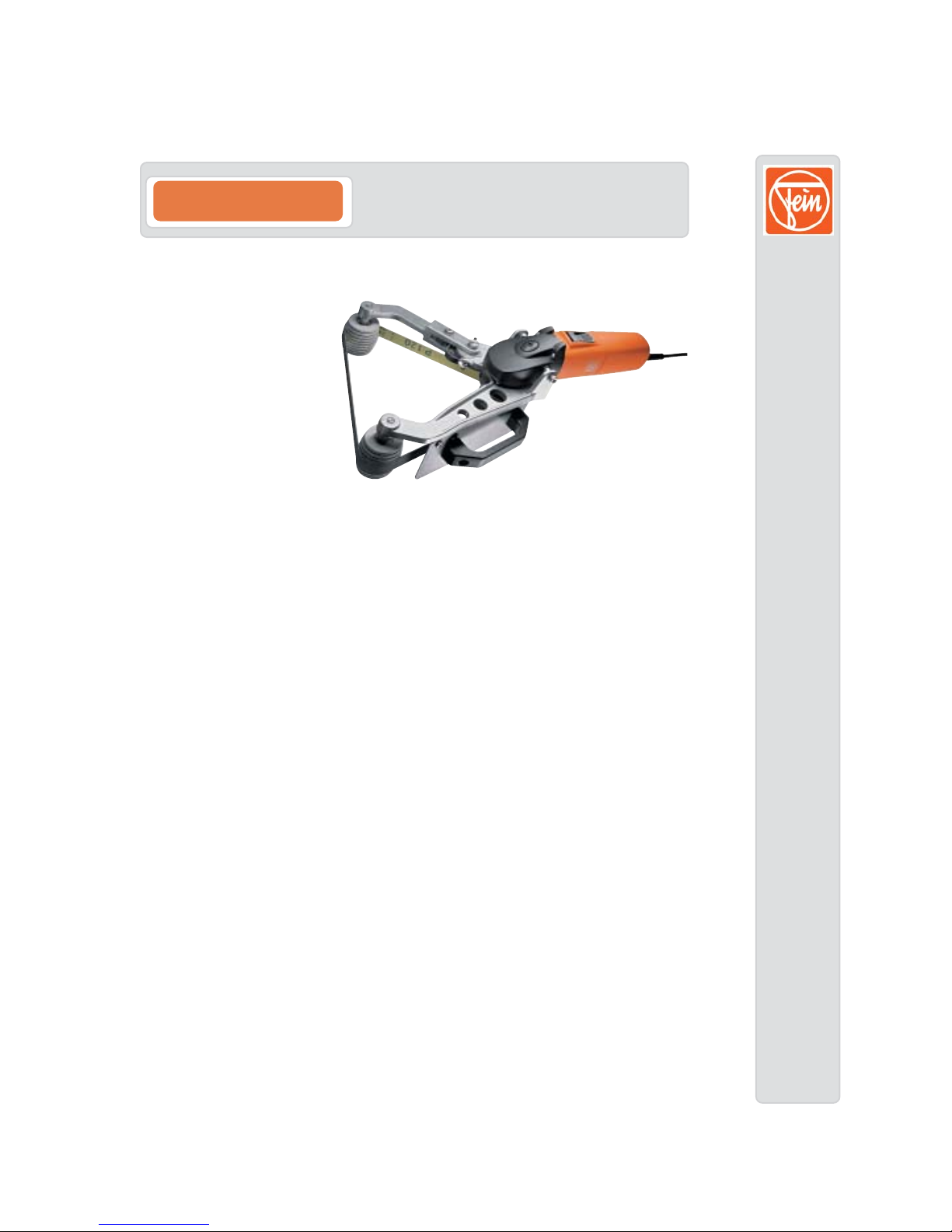

Pipe Sander / Polisher
FEIN Power Tools
RS 12-70E
Item Item Numbe
r
Description Reqd
10 3-24-31-021-00-7 CABLE CLAMP 1
20 4-30-70-001-00-6 SCREW 2
30 3-24-31-040-00-6 SUPPORT 1
40 3-07-62-233-99-9 ELECTRONIC 1
50 4-17-01-001-17-2 BALL BEARING 1
60 3-07-12-088-01-3 BRUSH HOLDER 2
70 3-07-11-132-00-3 BRUSH 2
80 4-30-70-018-00-9 SCREW 2
90 3-19-01-114-01-4 MOTOR HOUSING 1
100 5-32-73-001-23-3 MOTOR ASSEMBLY 1
110 3-14-28-118-00-7 AIR CONDUCTING RING 1
120 3-24-16-098-00-5 COVER PLATE 1
140 4-30-70-007-00-2 SCREW 4
200 3-12-06-110-01-5 GEAR HOUSING 1
210 4-17-05-019-00-1 NEEDLE BEARING 1
220 3-09-01-032-00-3 SPRING 1
230 3-02-17-327-00-3 PIN 1
240 4-06-12-137-00-8 SEALING RING 1
250 3-28-05-185-00-2 BUTTON 1
260 3-24-19-115-00-
6
BEARING PLATE 1
270 3-34-06-284-00-9 SHAFT 1
280 4-17-01-010-05-4 BALL BEARING 1
290 3-24-16-101-00-9 COVER PLATE 1
305 3-38-09-229-01-2 BEVEL GEAR ASSEMBLY 1
320 3-26-24-117-00-9 WASHER 1
330 4-24-43-003-04-3 LOCK WASHER 4
340 4-30-41-023-04-6 SCREW 4
450 4-17-01-007-26-6 BALL BEARING 1
480 3-28-05-156-00-8 SLIDING SWITCH 1
490 5-1-273-001-23-1 FIELD COIL 1
500 4-30-70-017-00-1 SCREW 2
510 3-28-16-055-00-0 SWITCH BAR 1
520 3-28-16-052-00-4 SWITCH ROD 1
530 4-30-41-039-99-9 SCREW 2
540 3-07-01-218-00-3 SWITCH 1
550 3-12-01-101-00-8 COVER 1
560 3-14-15-082-00-4 BOLSTER 1
570 3-14-13-007-00-7 CABLE PROTECTING SLEEVE 1
580 3-07-05-035-01-3 CABLE 1
730 3-13-35-012-00-9 OUTPUT SHAFT 1
740 3-13-35-011-00-6 DRIVE WHEEL 1
750 3-13-35-009-00-5 OUTER FLANGE 1
760 3-13-35-010-00-7 INTER FLANGE 1
770 3-13-35-015-00-5 SCREW 1
780 4-02-21-067-00-9 FITTING KEY 2
800 3-13-35-005-00-6 OUTPUT SHAFT 2
810 3-13-35-008-00-1 TENSION ROLLERS 2
820 4-17-01-004-03-7 BALL BEARING 4
830 4-20-19-020-08-7 NUT 3
840 3-13-35-001-00-7 TENSION ARM ASSEMBLY 1
850 3-13-35-007-00-3 HANDLE GUARD 1
860 3-13-34-002-00-0 TENSION ARM 1
870 3-13-35-004-00-2 SPACER 1
880 3-13-35-003-00-4 SPRING 1
890 3-13-35-016-00-8 HANDLE 1
900 4-30-35-032-06-5 SCREW 2
910 3-13-35-013-00-3 BOLT 1
920 4-30-35-047-08-9 SCREW 1
930 4-30-41-039-99-9 SCREW 5
940 4-24-01-004-08-3 DISC - BELT 2
960 3-13-35-014-00-1 BOLT 1
970 4-24-02-015-00-2 DISC 2
980 3-13-35-018-00-0 SCREW 1
990 3-13-35-006-00-9 SPACER 1
