Fanvil i20S User manual
SIP Door Phone
Quick Installation Guide
i20S
WWW.FANVIL.COM
Table of Contents
1. Package Contents.............................................................................. 4
2. Physical Specifications...................................................................... 4
3. Installation........................................................................................ 8
4. Searching Door Phone .................................................................... 11
5. SIP Door Phone Setting................................................................... 12
6. Door Unlocking Setting................................................................... 13
4
1. Package Contents
2. Physical Specifications
Device size
160 x 93 x 35 mm
Weight
420g (gross weight)
1) Front Panel
Door Phone
Connectors
Quick Installation
Guide
RFID Cards
Screw and
Wrench
MIC
RFID Reader
Numeric Keyboard
DSS Key
Lock
Call & Ring
Network &
SIP Registration
Speaker
5
Interface
Description
Speaker
The door phone has a built-in speaker for convenient communication
and alert use.
MIC
The door phone has a built-in microphone hidden in the pinhole
located on the front panel.
RFID Reader
Use RFID cards to unlock the door by touching RFID reader of device.
Button Definition
Button
Description
DSS Key
Press the Button, calling or request to open the door.
Numeric Keyboard
Input password to open the door or call.
LED Definition
LED
Status
Description
Lock
Steady Blue
Door unlocking
off
Door locking
Call & Ring
Blinks per second
Call Hold or Ringing
off
On Hook
Blinks every 3 seconds
Device in the issuing state
Steady Blue
Online talking
Network & SIP
Registration
Blinks per second
Network error
off
Network is normal, SIP is not registered
Blinks every 3 seconds
SIP Registration failed
Steady Blue
SIP Registration succeeded
2) Port Definition

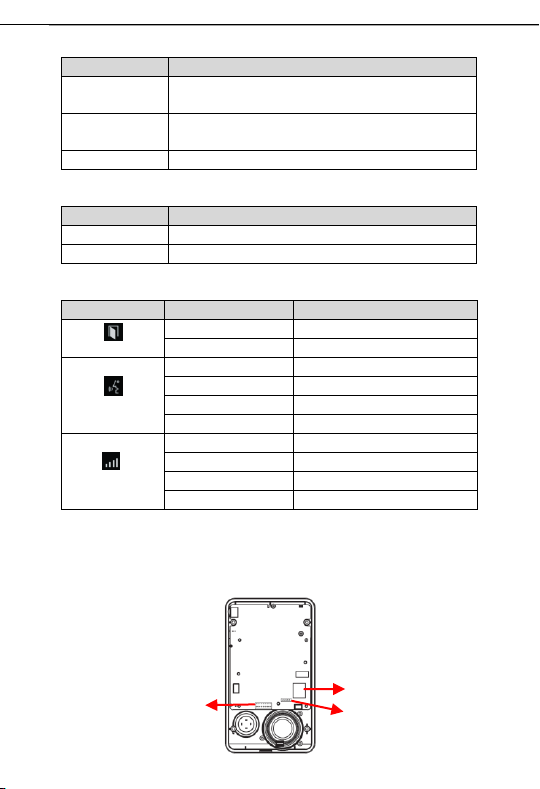

After removing the Back Panel of i20S, there are one terminal block connectors for power and lock control connection
as shown in the picture below.
JP1 Jumper
Power and lock
connector
Network port
500
500
7
Wiring instructions
NO: Normally Open Contact
COM: Common Contact
NC: Normally Close Contact
Driving Mode
Electric-lock Mode
JP1
Jumper
Connections
Active
Passive
No electricity
when open
Electrify
when open
√
√
√
√
√
√
√
√
√
√
8
3. Installation
Main Part of Intercom Back Panel Wall-mounted hanging shell
Figure 1 Three Major Parts of i20S
Step 1: Installation preparation
A. Check the following contents:
Hex wrench x 1
RJ45 plugs x 2 (1 spare)
KA4 x 25mm screws x 4
25mm screw anchors x4
B. Tools that may be required:
Hex wrench
Phillips screwdriver (Ph2 or Ph3), hammer, RJ45 crimper
Electric impact drill with an 6mm drill bit
Step 2: Drilling
Figure 2 Wall Mounting
A. Place the mounting template with dimensions on the surface of a wall in a desired flat position.
B. Use an electric drill to drill the 4 holes marked on the mounting template. It is recommended to drill about
30mm deep. Remove the template when finishing drilling.
C. Push or hammer screw anchors into the drilled holes.
9
Step 3: Removing hanging shell
A. Remove the hanging shell in Figure 3 and Figure 4.
Figure 3 Figure 4
B. With Phillips screwdriver, unpacks the Back Panel and the main part of intercom as shown in Figure 5.
Figure 5
Step 4: Hanging shell Fixing and Cabling
Figure 6
A. Select the hole for cable supply; cable length of 15cm to 20cm is recommended.
B. With 4 KA4 x 25mm screws, tighten the Wall-mounted hanging shell as shown in Figure 6.
10
Step 5: Connection line
Figure 7 Figure 8
A. Select the hole for cable supply.
B. Connect the cables of RJ45, power, and electric-lock to the motherboard socket as mentioned in connectors
description (refer to Section 2).
C. Test whether there is electricity by doing the following:
Press the # button for 3 seconds to get the IP address of intercom by voice.
Input access password or press the indoor switch to check electric-lock installation.
Note: Do not proceed mounting until you have finished the electric checking.
Step 6: Mounting
Figure 9 Figure 10
A. Use the 4 screws to tighten the main part of intercom on the back panel as shown in Figure 9.
B. Push the device into the Wall-mounted hanging shell and tighten it with 1 screw as shown in Figure 10.
C. Make sure the screws have been tightened properly for better waterproof effect.
11
4. Searching Door Phone
There are two methods as shown below to search the i20S.
Method 1:
Open the iDoorPhone Network Scanner. Press the Refresh button to search the i20S and find the IP address.
(Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe )
Method 2:
Press and hold the “#” key for 3 seconds and the door phone will report the IP address by voice.
Default Setting
Default DHCP Client
On
Static IP Address
192.168.1.179
Default Web Port
80
Default Login User Name
admin
Default Login Password
admin
Display IP address
Hold # for 3 seconds to display by voice
Search Tools
iDoorPhone Network Scanner
