SPECIFICATION SHEET

Product Speciﬁcations subject to change

The Louvre®

FP1320 Series

Select Finishes

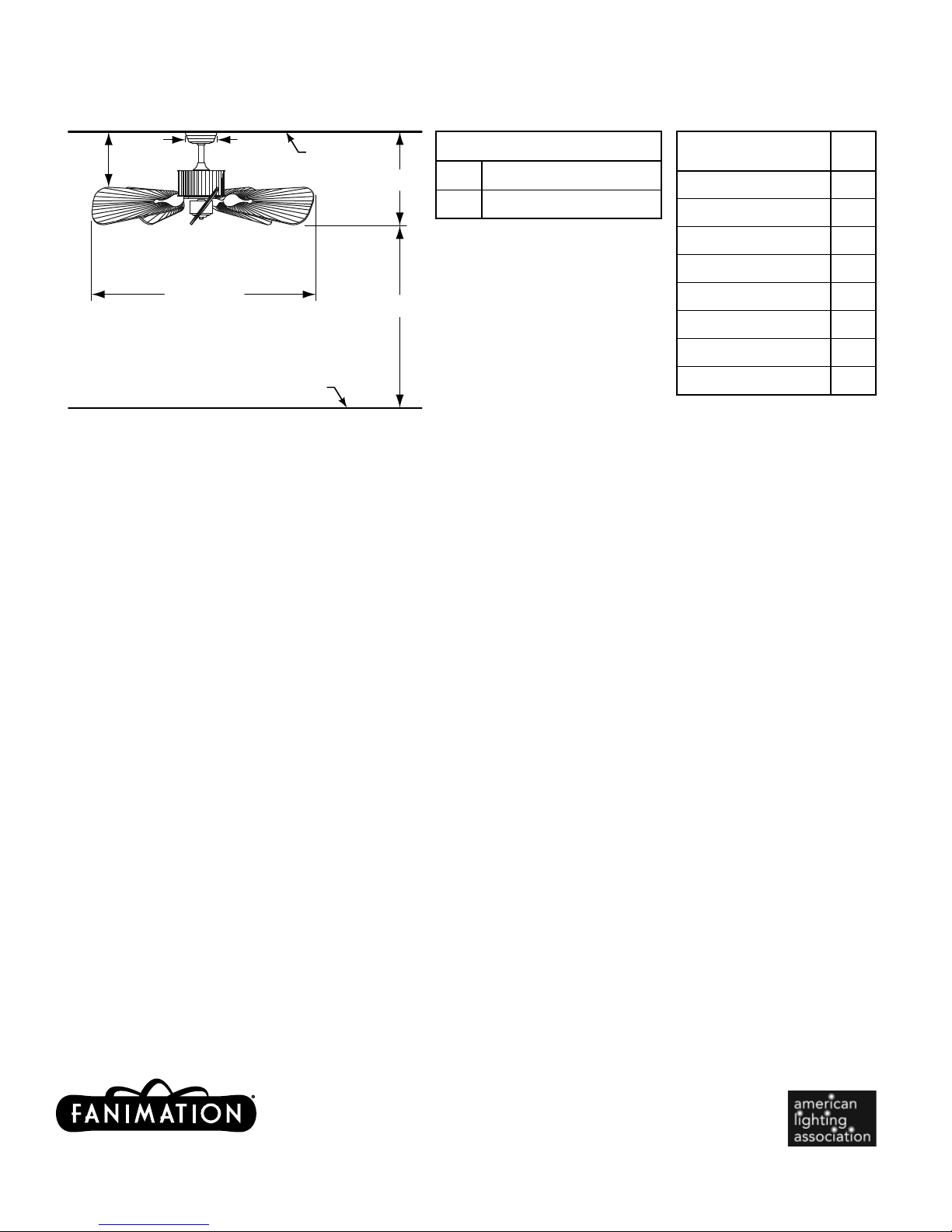

7´ min

Floor

Ceiling

Blade Sweep

Traditional Blades:

18˝Blade - 44˝

22˝Blade - 52˝

B4000 Series Wood Blades:

22˝Blade - 52˝

25˝Blade - 58˝

Net Hanging Weight: 16 lbs

5¾˝dia

11˝

The Louvre®Fan Assembly – FP1320¾¾

10983 Bennett Parkway

Zionsville, IN 46077

Toll Free (888) 567-2055

FAX (866) 482-5215

Outside U.S. call (317) 733-4113

Visit Our Website www.fanimation.com

INSTALLATION REQUIREMENTS:

Ceiling fan attaches to electrical junction box securely anchored and capable of withstanding a load of at least 50 lbs.

ELECTRICAL REQUIREMENTS:

Ceiling fan requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit. 220 VAC, 50 Hz export

version is available.

FAN SPEEDS:

Material, shape, and size of fan blade will affect the speed of the fan. In general, the larger blades (22”) will turn slower

than the smaller blades (18”) and the narrower blades (narrow oval & oar shaped) will turn faster than the wide oval

blades. For comparison the ISP1 blade set (22” wide oval palm blade set) turns at approximately the following speeds:

1st Pull-High-70 rpm, 2nd Pull-Medium-50 rpm, 3rd Pull-Low-25 rpm. The ISD4 (22” narrow oval woven bamboo) turns

at approximately the following speeds: 1st Pull-High-103 rpm, 2nd Pull-Medium-73 rpm, 3rd Pull-Low-33 rpm. (All speeds

listed are approximate and are given for comparison only)

CONTROL OPTIONS:

Optional controls are: C1 or C2 wall controls; C4 remote control with canopy receiver; SW50 switch cap receiver with

C20 remote and/or C21 wall control.

LIGHTING OPTIONS:

Optional lighting ﬁtters and light kits are available, including a single bowl ﬁxture with a maximum of 180 watts and a

variety of four-light ﬁxtures with a maximum of 240 watts. See catalog or visit our website, www.fanimation.com for more

lighting options.

DOWN ROD OPTIONS:

The Louvre®fan comes with a standard 6˝down rod. Optional down rods are available in 12˝, 18˝, 24˝, 36˝, 48˝, 60˝, and

72˝. For installations requiring a longer down rod, a down rod coupler is available. The Louvre®fan can be mounted on

a sloped ceiling up to 30°. Most sloped ceiling installations require a down rod longer than the standard 6˝down rod.

Optional sloped ceiling kits are available for up to 52°. Call tech support for more information.

BLADE SETS:

Blade sets consist of either 4 blades or 5 blades depending on blade style. Mounting only four blades is an option and

will increase speed and airﬂow. See catalog or visit our website, www.fanimation.com for more blade selections.

Available Finishes

PW Pewter

RS Rust (Damp)

Dimensions shown in inches

20° Blade Pitch

Distance from Ceiling

to Edge of Blade A

Fan w/6˝downrod 15˝

Fan w/12˝downrod 21˝

Fan w/18˝downrod 27˝

Fan w/24˝downrod 33˝

Fan w/36˝downrod 45˝

Fan w/48˝downrod 57˝

Fan w/60˝downrod 69˝

Fan w/72˝downrod 81˝
