Falcon DOMINATOR PLUS E3405 CHIP SCUTTLE User manual
CAUTION - READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE!
SECTION 1 - GENERAL DESCRIPTION
SECTION 2 - CONTROLS and OPERATION
SECTION 3 - STORING HINTS
SECTION 4 - CLEANING and MAINTENANCE
This appliance has been CE-marked on the basis of compliance with the Low Voltage and
EMC Directives for the voltages stated on the data plate.
The appliance MUST BE installed by a competent person in compliance with the INSTALLATION AND
SERVICING INSTRUCTIONS and National Regulations in force at the time.
UK regulations are listed on the front of the Installation and Servicing Instructions.
Regular servicing by a qualified person is recommended to ensure the continued safe and efficient
performance of the appliance.
WARNING - THE APPLIANCE MUST BE EARTHED.
THIS EQUIPMENT IS DESIGNED FOR PROFESSIONAL USE AND MUST BE OPERATED BY
COMPETENT PERSONS. IT CAN BE USED BY PERSONS WITH REDUCED PHYSICAL,
SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE/KNOWLEDGE. PROVIDED
SUCH INDIVIDUALS HAVE BEEN GIVEN INSTRUCTION CONCERNING USE OF THE
APPLIANCE IN A SAFE WAY AND THAT THEY UNDERSTAND THE HAZARDS INVOLVED.
CHILDREN SHALL NOT PLAY WITH THE APPLIANCE AND CLEANING/USER MAINTENANCE
WILL NOT BE CARRIED OUT BY CHILDREN WITHOUT SUPERVISION.
Upon receipt of the User's Instruction manual, the installer should instruct the responsible person(s)
of the correct operation and maintenance of the unit.
WEEE Directive Registration No. WEE/DC0059TT/PRO
At end of unit life, dispose of appliance and any replacement
parts in a safe manner, via a licenced waste handler.
Units are designed to be dismantled easily and recycling of all
material is encouraged whenever practicable.
DOMINATOR PLUS
E3405 CHIP SCUTTLE
USERS INSTRUCTIONS
Falcon Foodservice Equipment
HEAD OFFICE AND WORKS
Wallace View, Hillfoots Road, Stirling. FK9 5PY. Scotland.
SERVICELINE CONTACT
Phone: 01438 363 000 Fax: 01438 369 900
T100824 Ref. 1
SECTION 1 -
GENERAL DESCRIPTION

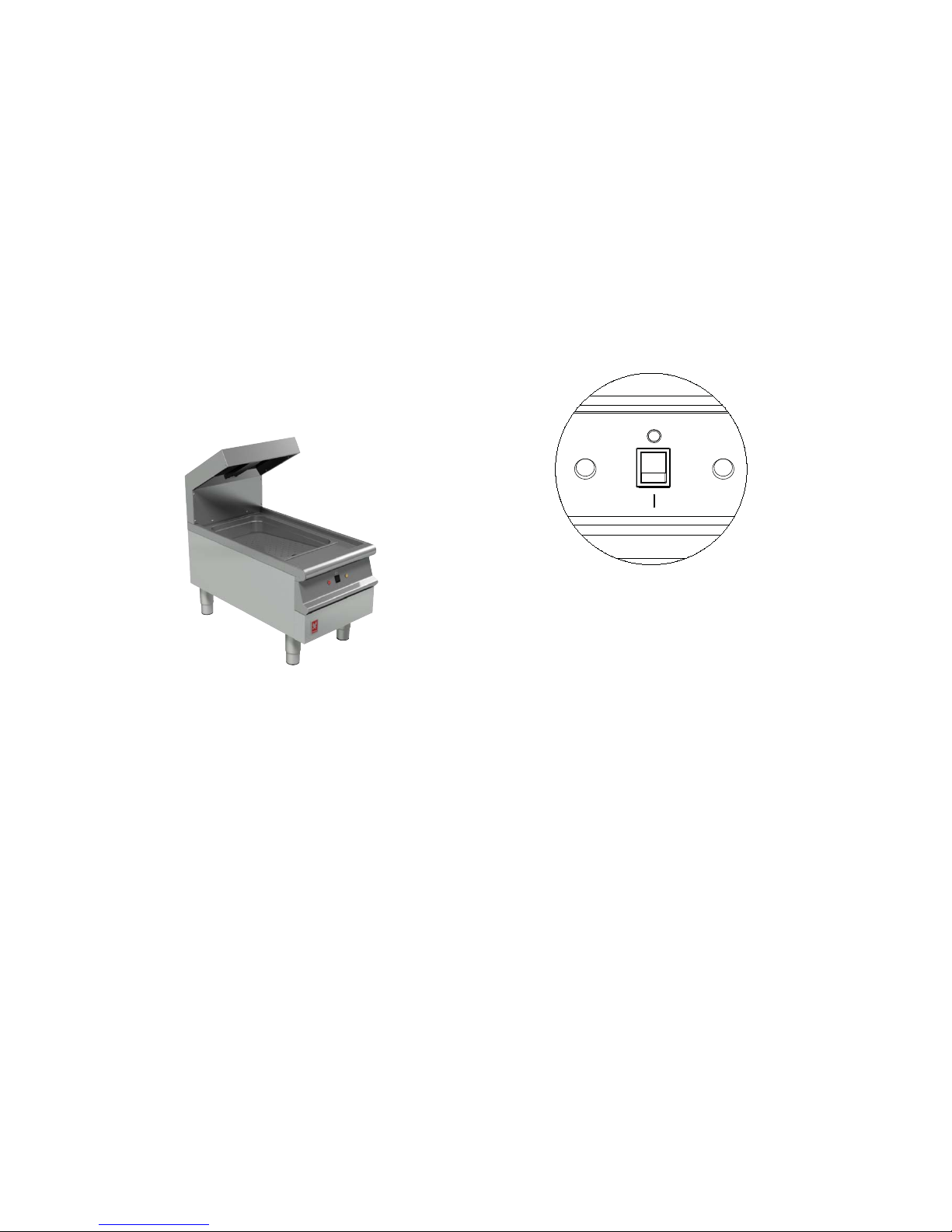

The E3405 is a 400mm wide electric chip scuttle.
It is designed to be mounted on a worktop or similar
surface. Alternatively, it can be installed upon a fixed or
mobile stand.
Heating element is controlled by a single switch.
A red neon indicates that power is available (i.e. isolating
switch is on). The amber neon will go out when the set
temperature has been reached.
This unit is designed to accommodate standard
1/1 gastronorm containers (530mm x 325mm) with a
maximum depth of 150mm.
Warning - THIS APPLIANCE MUST BE EARTHED.
SECTION 2 -
CONTROLS and OPERATION
This unit must be installed by a suitably qualified
person.
A mains input connecting cable is supplied. If supply
cable is damaged, it must be replaced by manufacturer,
service agent or similiarly qualified person.
Red neon will light when mains supply is on.
Switch on, amber neon will light.
Allow 15 – 20 minutes heat up time before filling container
with chips.
Switch off after use.
SECTION 3 -
STORING HINTS
The over-pan ceramic element warms the stored chips
while an element heats the container from below.
SECTION 4 -
CLEANING and MAINTENANCE
Switch off electricity supply prior to cleaning.
Allow pan to cool before cleaning.
Clean pan and drip tray with hot, soapy water and a soft
cloth.
NEVER USE a spray jet to clean this appliance.
Red
neon
Amber
neon
