Fagor Innova 40i TS User manual
Quick Reference
This quick reference shows how to access the main functions shown by the color TFT screen of the DRO. Once
these functions are accessed, the DRO will guide the operator through its operations easily and intuitively with
interactive assistance messages.
For further detail on all the features, refer to the CD that comes with the DRO and contains the full installation
and operation manuals which are also available on our corporate website: www.fagorautomation.com.
Turning the DRO on and off
The DRO turns on automatically when applying voltage or after pressing the on/off key.
Front plate
Axis zero and preset
Pressing Set/Clear toggles between axis zeroing (Clear) and presetting (Set). The status bar shows the current
status of this function at the top left with the letters C or S.
Spindle orientation
Stops the spindle. When pressed while the spindle is stopped, it gives access to spindle orientation.
Keys for entering numeric values
Power-off button
Cursor keys
Keys for axes
Validate
Abort
Power indicator LED
Keys to open droplist buttons of the
FUNCTION BAR
TFT screen
Spindle keys
DRO Innova 40i TS/ 40i TS-B (Manual code: 14460114 version: 1205)

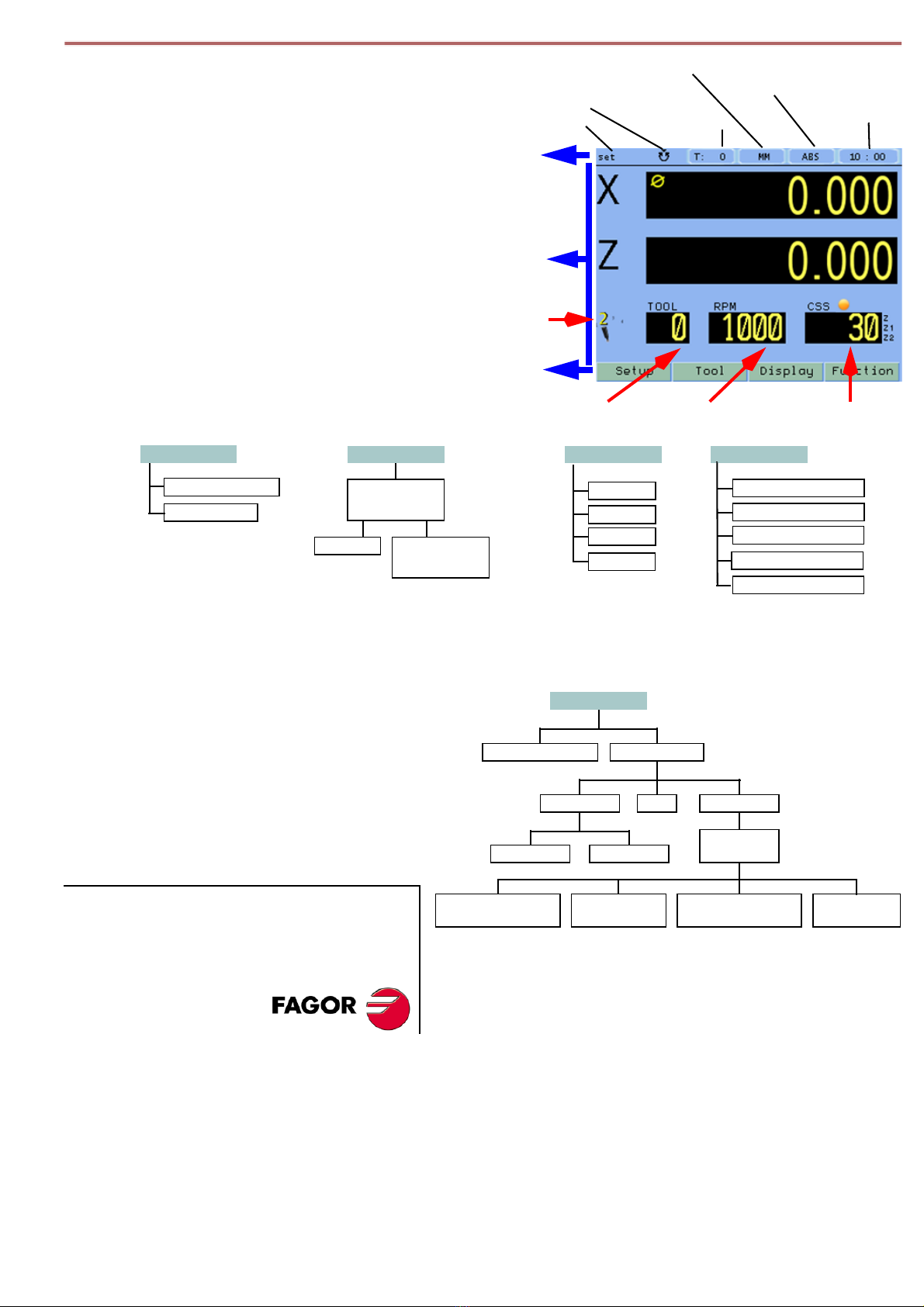

Main screen:
Here are the functions the machine
operator can access from a main menu or
main screen.
Once the functions are accessed, the
DRO guides the operator through screen
messages and a direct access to help
texts for each operation using the function
key ?.
Access to functions:
Accessing installation parameters:
TOOL
Set tool Nr.
Teach-in Tool table
DISPLAY FUNCTION
Home search
Setup
Setup
RPM
Angle measurement
Calculator
CSS
Turning
Set/Clear
inc/abs
mm/inch
rad/diam
Home search Setup
Setup
Test InstallerUser
ColorLanguage
Password
231202
DRO
(type, axes, alarms)
Feedback
(encoders)
Compensation
(linear, multi-point)
Machine
control
Active tool Nr.
Display units mm/inch Display mode:
INC/ABS
Set/Clear Chronometer
DISPLAY
AREA
STATUS
BAR
FUNCTION
BAR
Active tool Nr. curr./prg. RPM curr./prg. CSS
Spindle orientation
Current range
FAGOR AUTOMATION S. COOP.
Bº San Andrés Nº 19
Apdo de correos 144
20500 Mondragón - España
Web: www.fagorautomation.com
Email: [email protected]
Tel: +34 943 719200
Fax: +34 943 791712
DRO Innova 40i TS/ 40i TS-B (Manual code: 14460114 version: 1205)
